HP Agilent E4405B Spectrum analyzer 13.2 GHz

You are here: Spectrum Analyzer » Digital

HP Agilent E4405B Spectrum analyzer 13.2 GHz

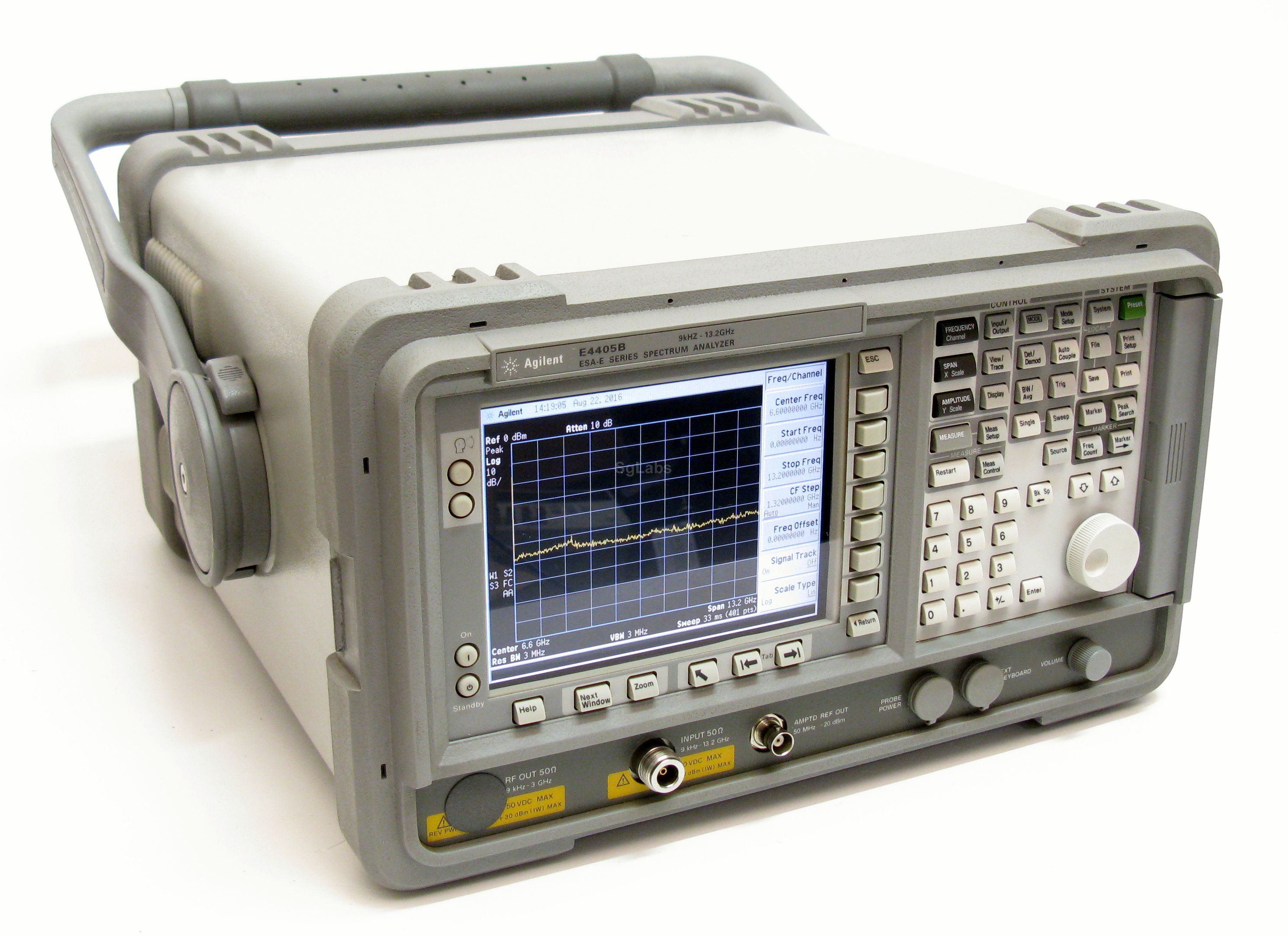

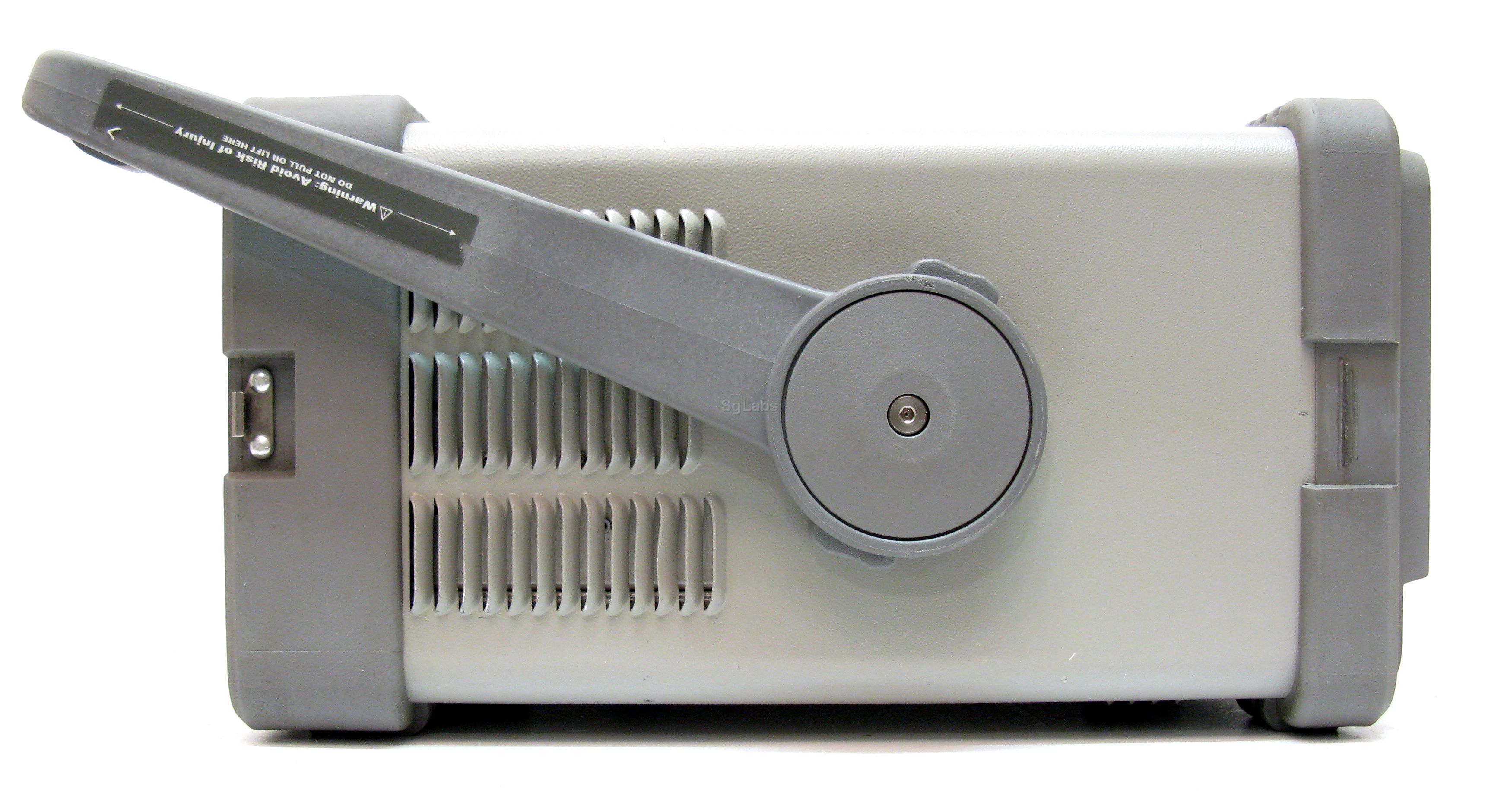

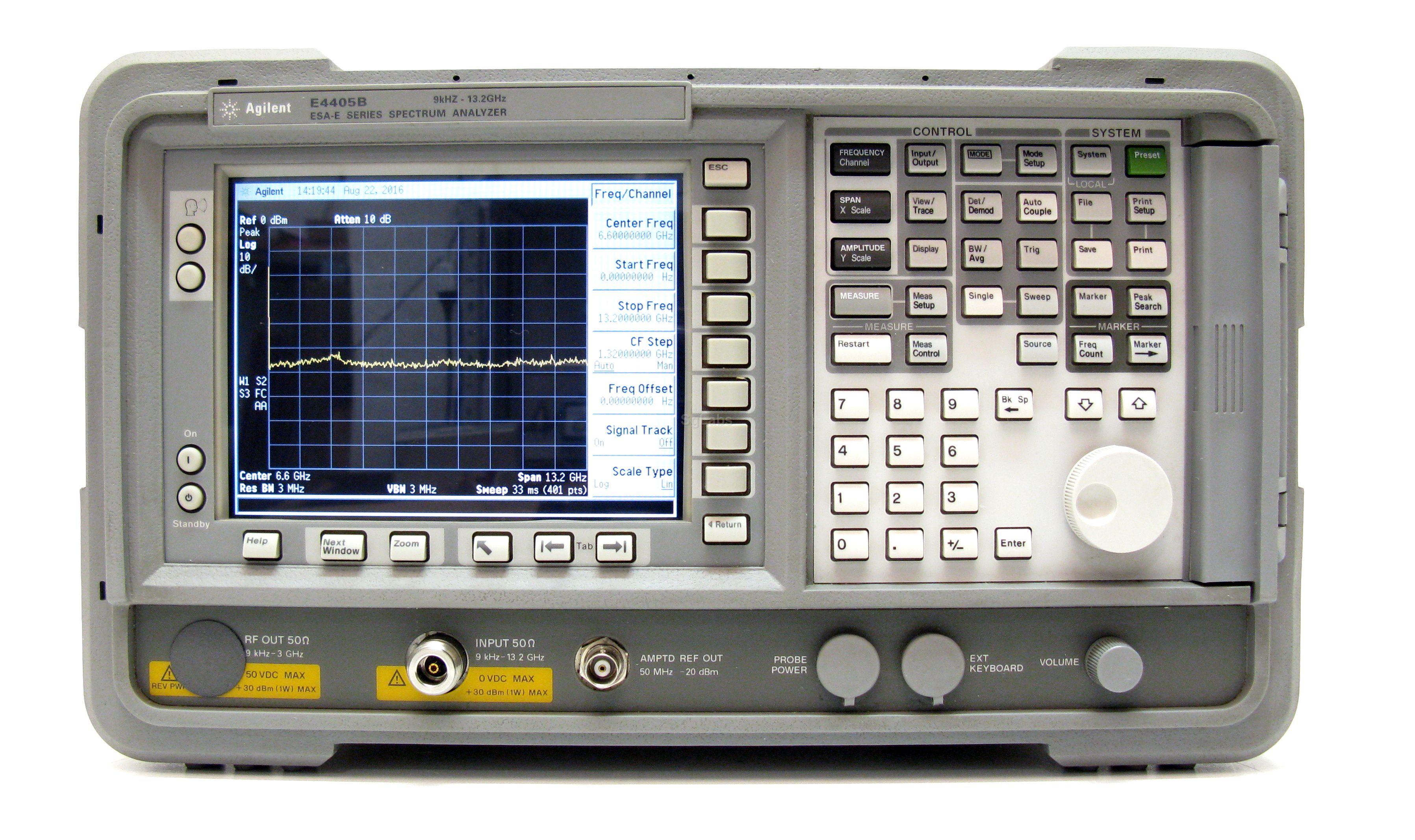

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent ESA-E Series is our mid-performance spectrum analyzer solution for the future. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required. The products' selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.

  • Remotely view and control the ESA over the Internet
  • 8590-Series Programming Code Compatibility
  • Modulation Analysis Measurement Personality
  • Multiformat RF power measurement suite
  • Bluetooth standards compliant measurement personality
  • Optional ACPR dynamic range extention
  • GSM and CDMAOne standards compliant measurement personalities
  • Fault location, phase noise, CATV Service measurement personalities
  • Rugged and portable for lab grade performance in the field
  • One-millisecond RF sweep time, 40 measurements per second
  • ± 1 dB overall amplitude accuracy
  • Optional 10 Hz digital-resolution bandwidth filter and preamplifier
  • -151 dBm sensitivity, with internal preamp, +12.5 dBm TOI
  • Variable sweep (trace points) from 2 to 8192
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • Free IntuiLink PC software for screen and data transfer
Features
  • Frequency Range: 9 kHz - 13.2 GHz
  • RBW Range: 1 Hz - 5 MHz
  • DANL (1 GHz): -135 dBm / -151 dBm* (-157 dBm* typical) (Opt. Preampl)
  • Max Input: 30dBm (1W)
  • Max. Frequency: 13.2 GHz
  • Min. Frequency: 9 kHz
  • Tracking generator: Option
Price
 € 4.400,00
