HP Agilent Keysight, 83711B

You are here: RF Signal Generator » Digital

HP Agilent Keysight, 83711B

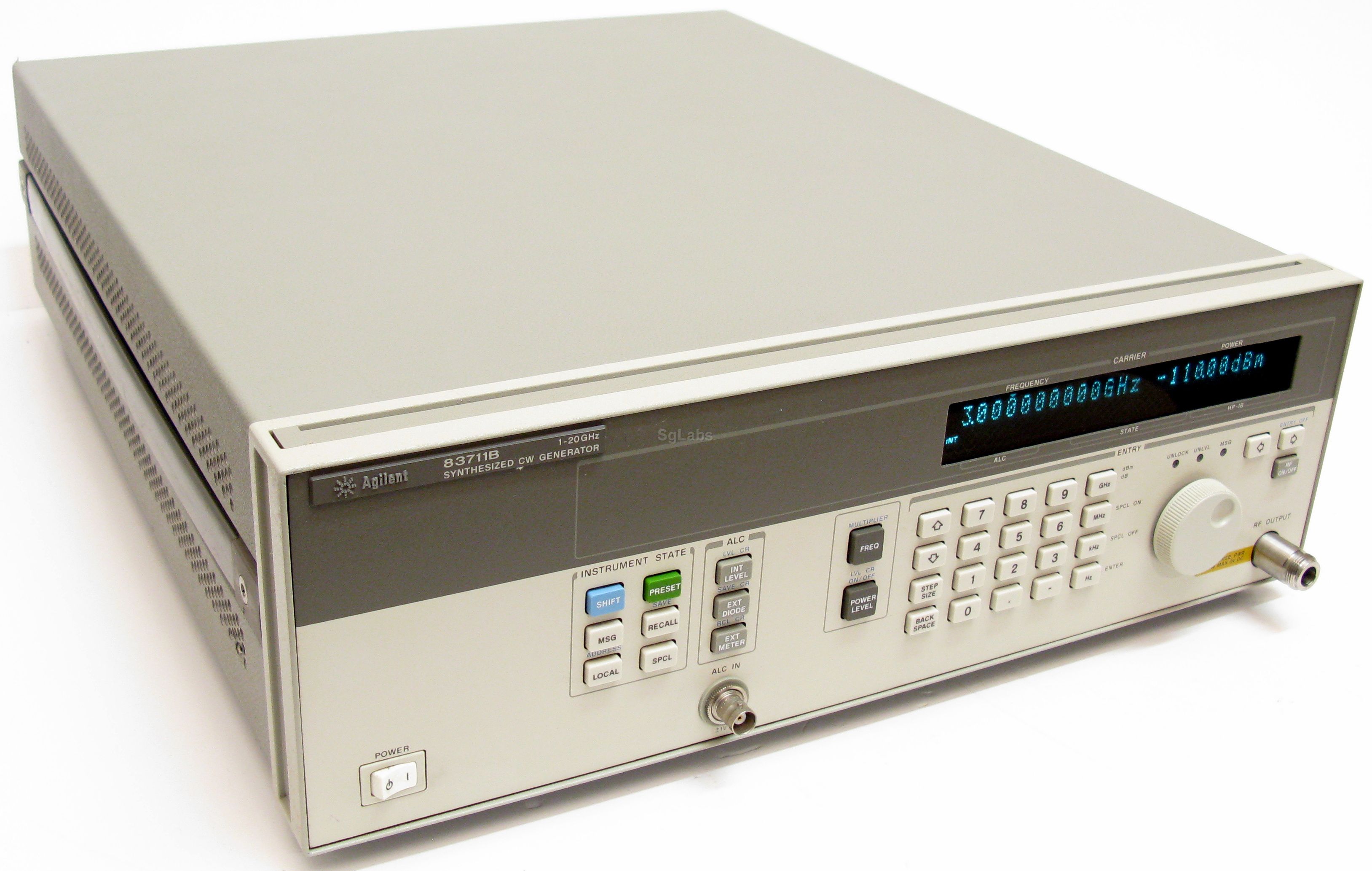

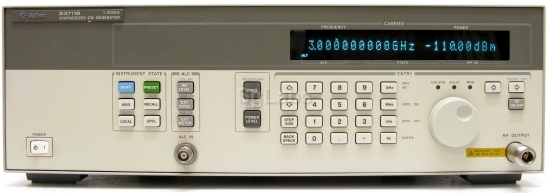

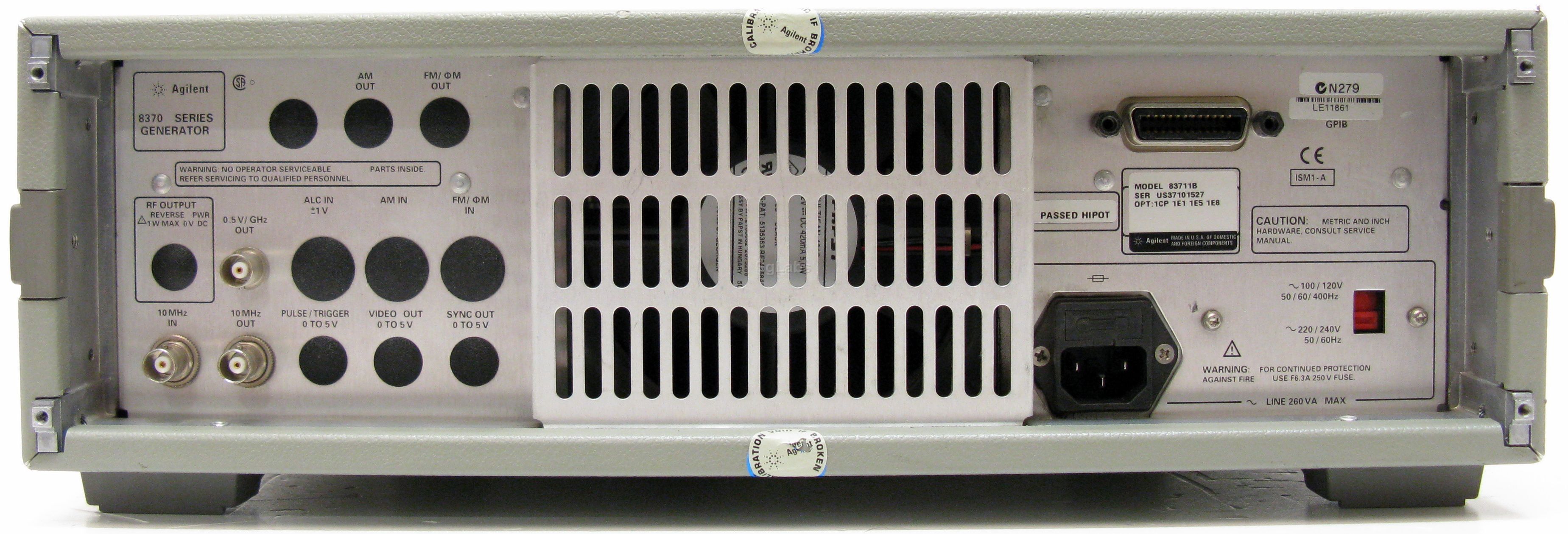

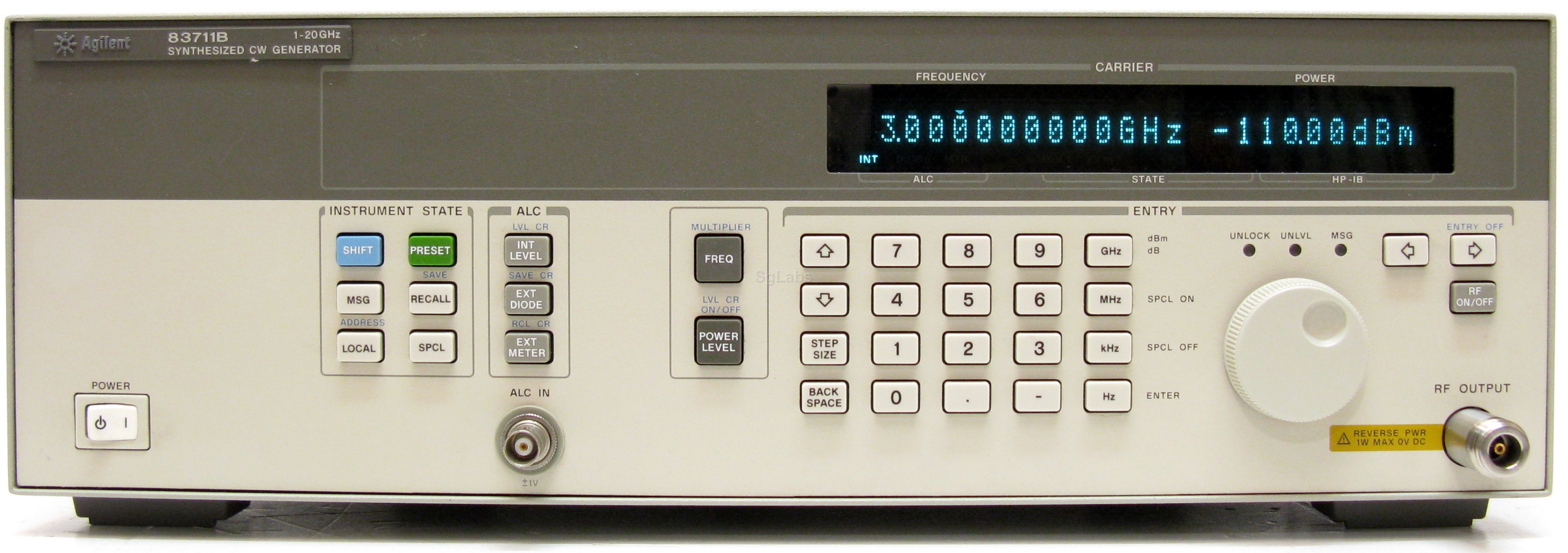

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Agilent 83711B synthesized CW generator sets a new standard for performance at a price that is surprisingly affordable. No longer will you have to give up frequency coverage, modulation or reliability to meet your budget. This signal source will perform beyond your expectations at a price within your reach. Fundamental oscillators and switched low-pass filters deliver+14 dBm), while spectral purity is maintained even at high power levels.

  • Frequency range 1 GHz - 20 GHz
  • High stability time base for frequency accuracy
  • Low SSB phase noise for out-of-channel tests
  • High power output for driving the LO port of mixers
  • Low output power with option 1E1 for receiver sensitivity and SINAD measurements
  • Harmonics
  • Frequency range: 1 - 20 GHz
  • Resolution: 1 kHz (1 Hz with opt. 1E8)
  • Maximum leveled output power:
  1. 1 - 18 GHz: +11 dBm (standard); +10 dBm (opt.1E1)
  2. 18 - 20 GHz: +10 dBm (standard); + 8 dBm (opt.1E1)
  • Max frequency: 20 GHz
  • Minimum Frequency: 1 GHz
  • Max. Output level: 13 dBm
  • Min. output level: -110 dBm (opt.1E1)
  • Resolution: 1 kHz (1 Hz opt. 1E8)
