HP Agilent Keysight, 81525A

You are here: Optical Test » Power meter

HP Agilent Keysight, 81525A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

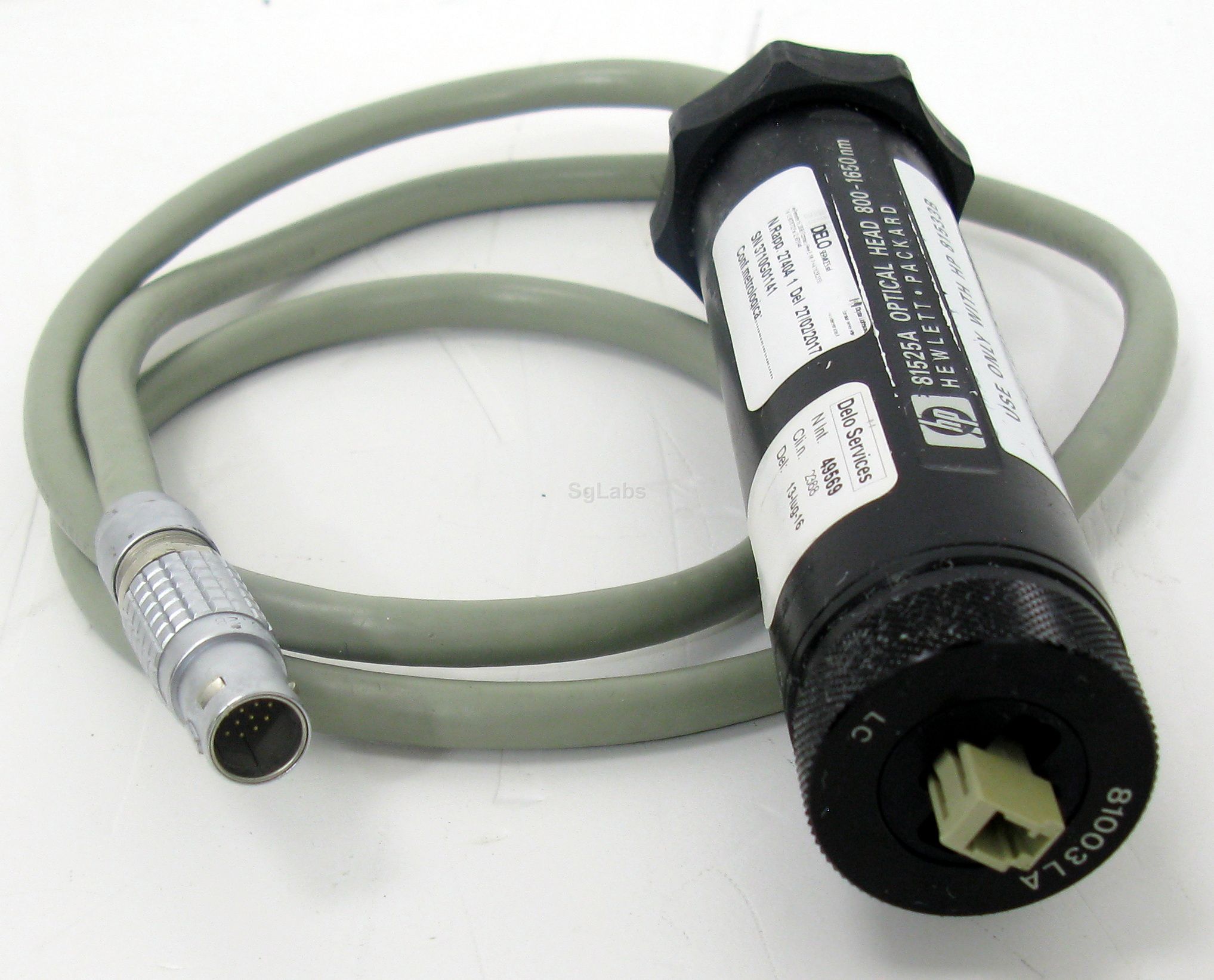

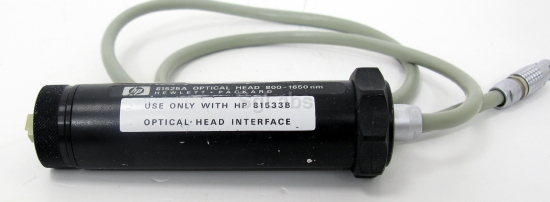

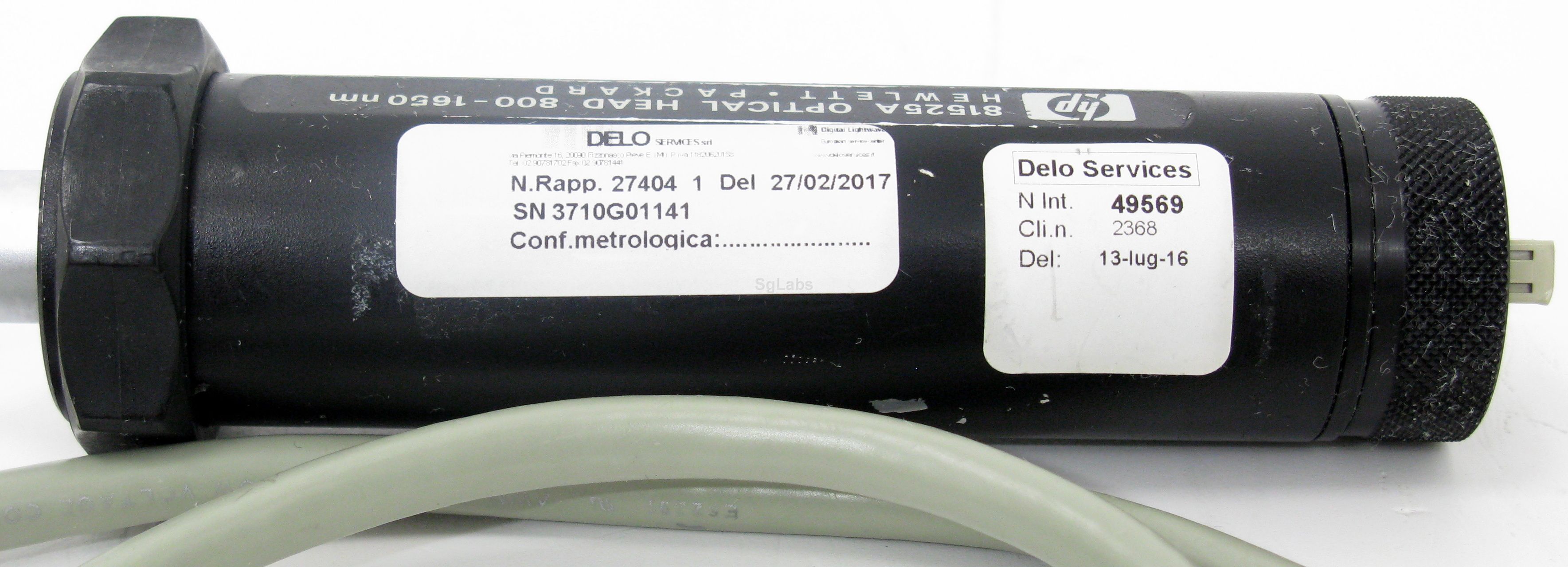

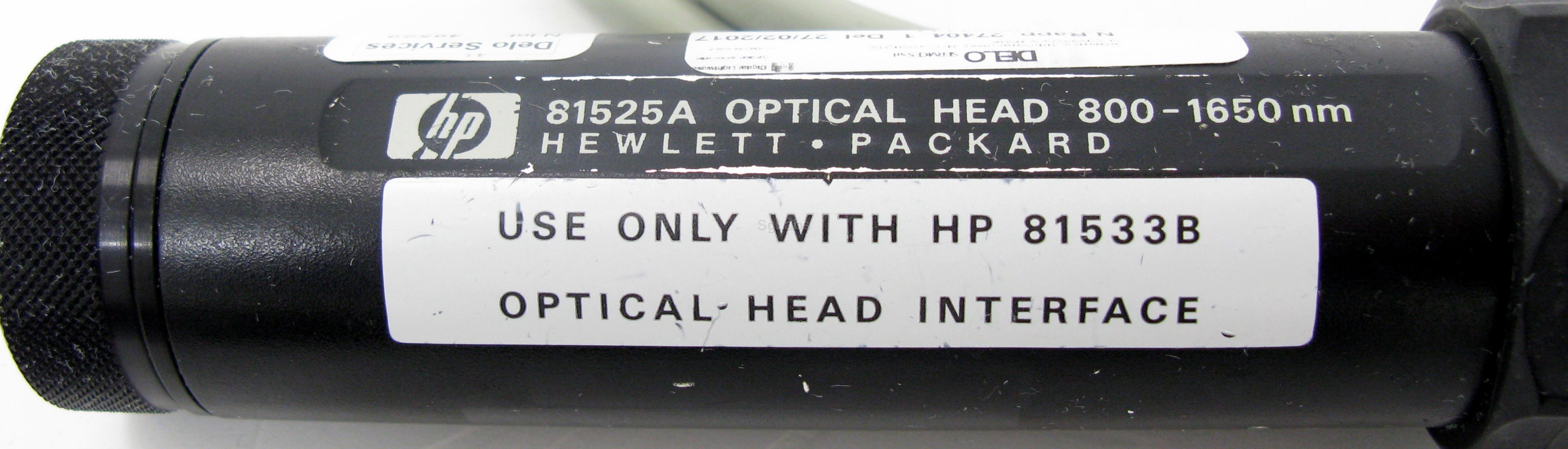

The HP 81525A is an optical head that connects to the 81533A or 81533B which is a plug-in module that fits the 8153A and 8163 and 8166 Agilent/HP series mainframe. The 81525A optical head is made of a 5mm InGaAs sensor element and covers the range of 800-1650nm wavelengths. Various connector interfaces are available for that head.
Features
  • Maximum Power: +27dBm
  • Sensor Type: InGaAs
  • Minimum Wavelength: 800nm
  • Maximum Wavelength: 1650nm
  • Minimum Power: -70dBm
  • Max wavelenght (nm): 1650
  • Min wavelenght (nm): 800
