HP Agilent Keysight, 346CK01
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

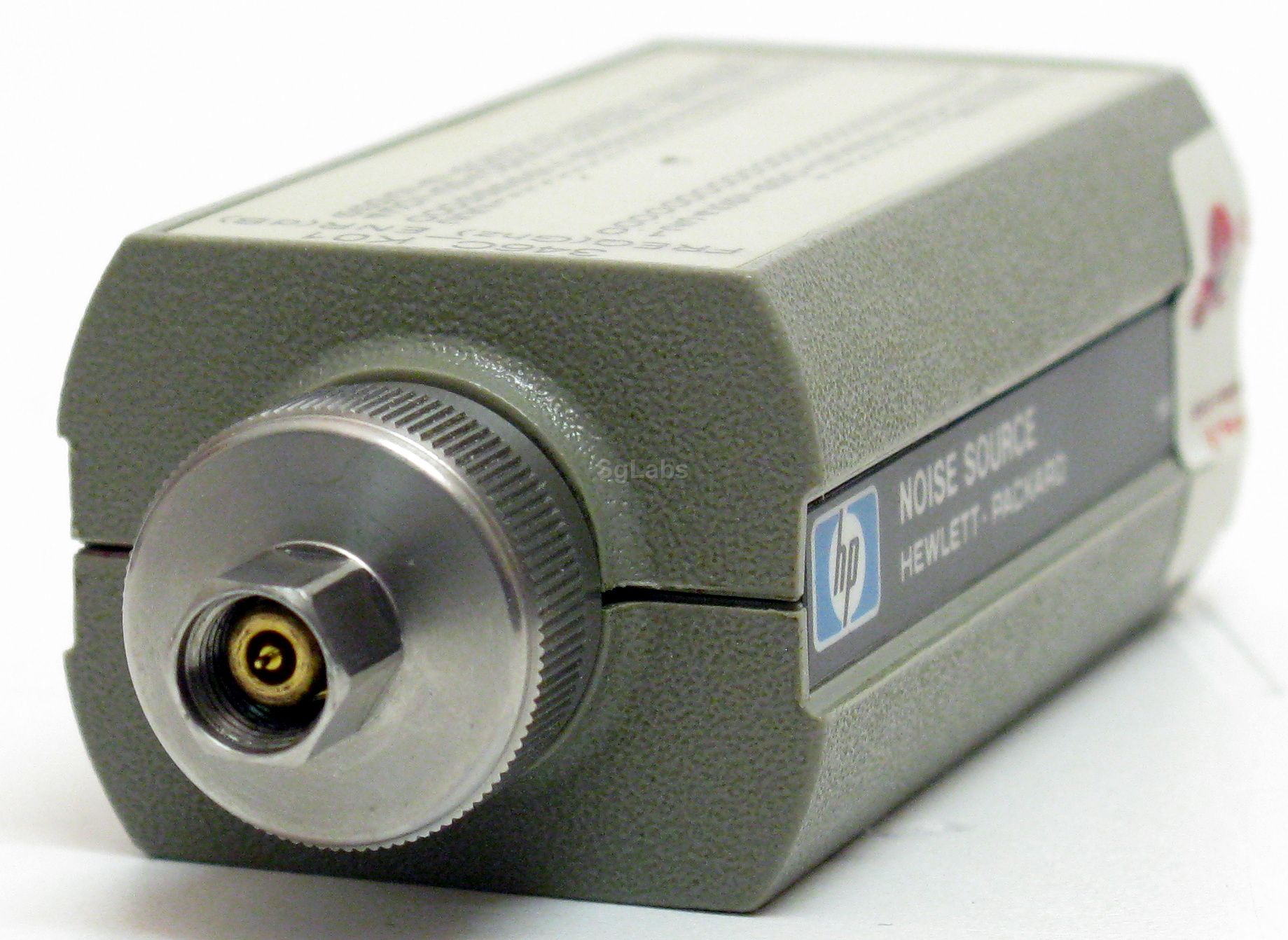

The Keysight 346CK01 is the ideal companion to Keysight´s noise figure solutions when working on high frequency applications. Since it is broadband (1 GHz to 50 GHz), it eliminates the necessity for several sources at different frequency bands. The low SWR of the noise source reduces a major source of measurement uncertainty, which are reflections of the test signals. This is a coaxial noise source with a 2.4 mm coaxial connector. ENR typically 20 dB at 1 GHz, decreasing to typically 7 dB at 50 GHz.
Features
  • Frequency range: 1 GHz to 50 GHz
  • VSWR:< 1.35 from 1 GHz to 20 GHz; < 1.40 from 20 GHz to 26.5 GHz;< 1.50 from 26.5 GHz to 50 GHz

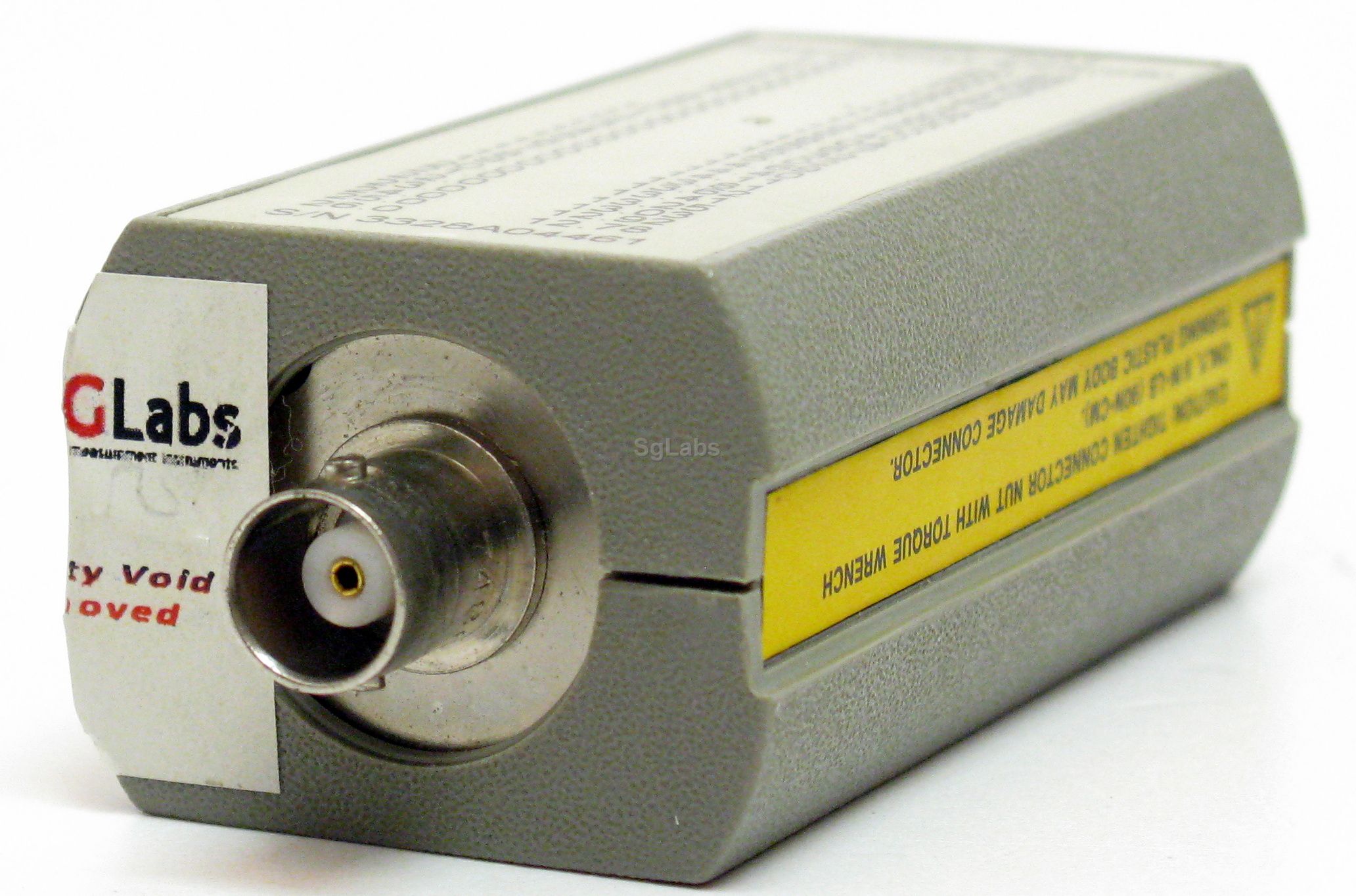

  • Connectors: BNC (f) input bias / 2.4 mm (m)
  • Low SWR for reducing noise figure measurement uncertainty

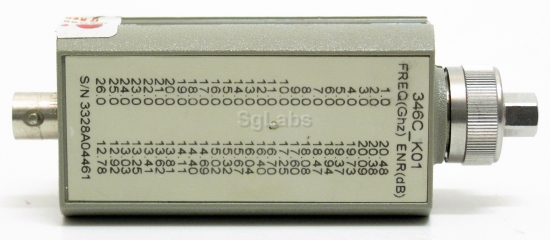

  • Individually calibrated ENR values at specific frequencies
  • Connector: 2.4 mm(m)
  • ENR: 20 dB @ 1 GHz decreasing to 7 dB @ 50 GHz
  • Max. Frequency: 50 GHz
  • Min. Frequency: 1 GHz
