HP Agilent Keysight, 33511B

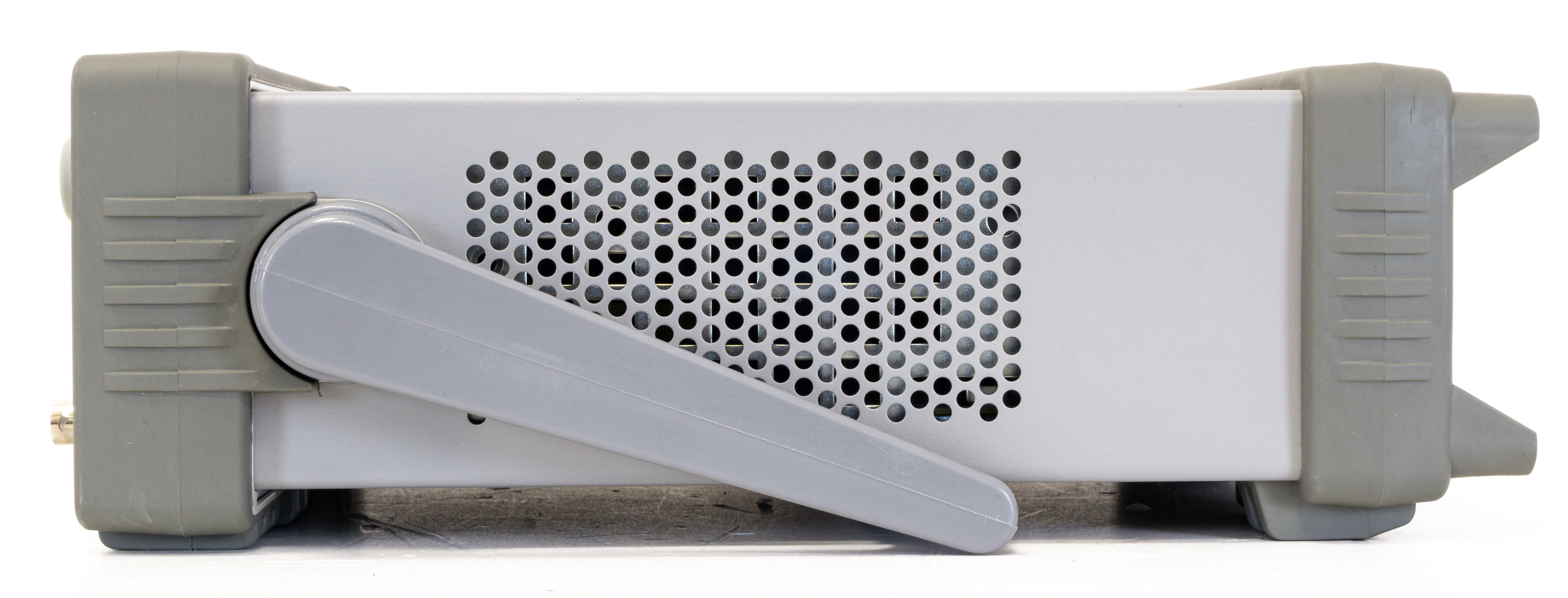

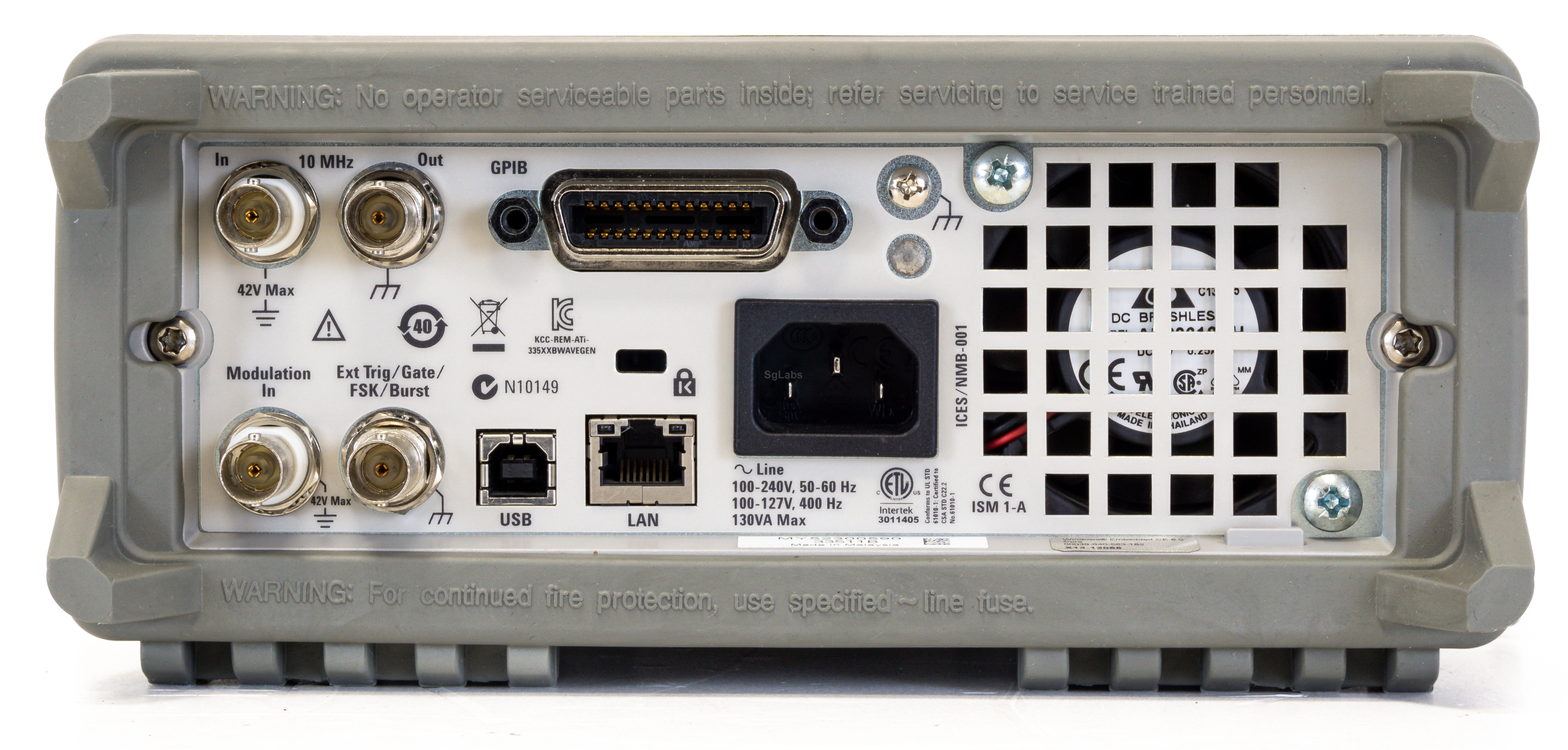

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 33500B Series waveform generators offer the common signals and features you expect, such as modulation, sweep, and burst. But the 33500B Series offers many more features that give you the capabilities and flexibility you need to get your job done. Like an intuitive front-panel user interface that makes it easy to quickly relearn it when you’ve been focused elsewhere. Like built-in LAN, USB and GPIB interfaces that make it easy to control your instruments or transfer your waveforms to your instrument.
  • Bandwidth: 20 MHz
  • Channels: 1
  • Amplitude: 1 mVpp - 10 Vpp (50 Ohm); 2 mVpp - 20 Vpp (open circuit)
  • Standard Waveforms: Sine, square, ramp, pulse, triangle, Gaussian noise, PRBS (Pseudorandom Binary Sequence), DC
  • Built-in arbitrary: Cardiac, exponential fall, exponential rise, Gaussian pulse, Haversine, Lorentz, D-Lorentz, negative ramp, sinc
  • User-defined arbitrary: Up to 1 MSa (16 MSa with Option MEM) with multi-segment sequencing
  • Modulation types: AM, FM, PM, FSK, BPSK, PWM, Sum (carrier + modulation)
  • Operating modes: Continuous, modulate, frequency sweep, burst, output gate
  • Max. Frequency: 20MHz
  • Min. Frequency: 1uHz
  • Pulse generator: yes
  • Max. Level: 10Vpp (50 ohm)
  • Min. Level: 1 mVpp
  • sweep: yes
