HP Agilent Keysight 33330C Low-Barrier Schottky Diode Detector 26.5 GHz
You are here: RF Component » Detector

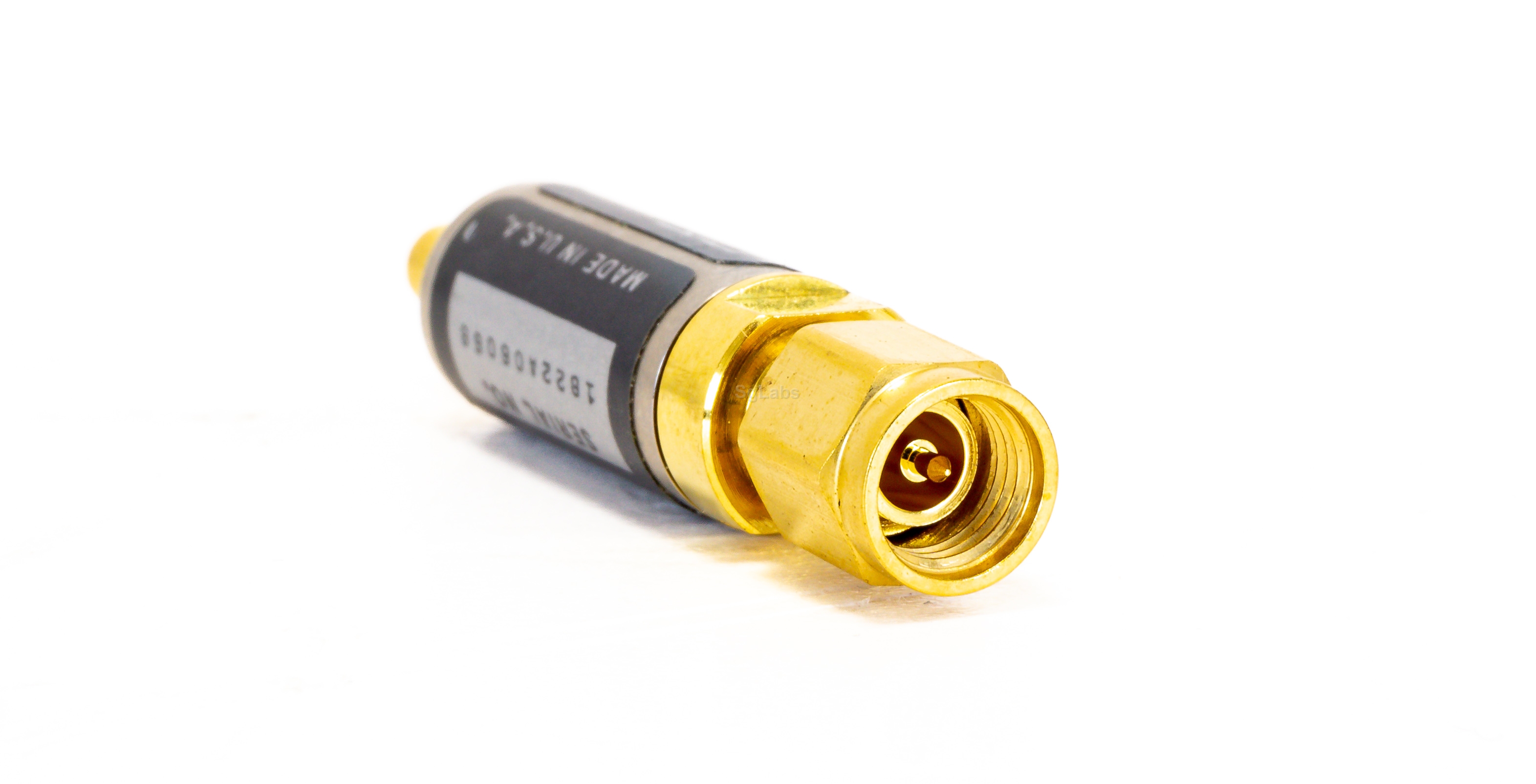

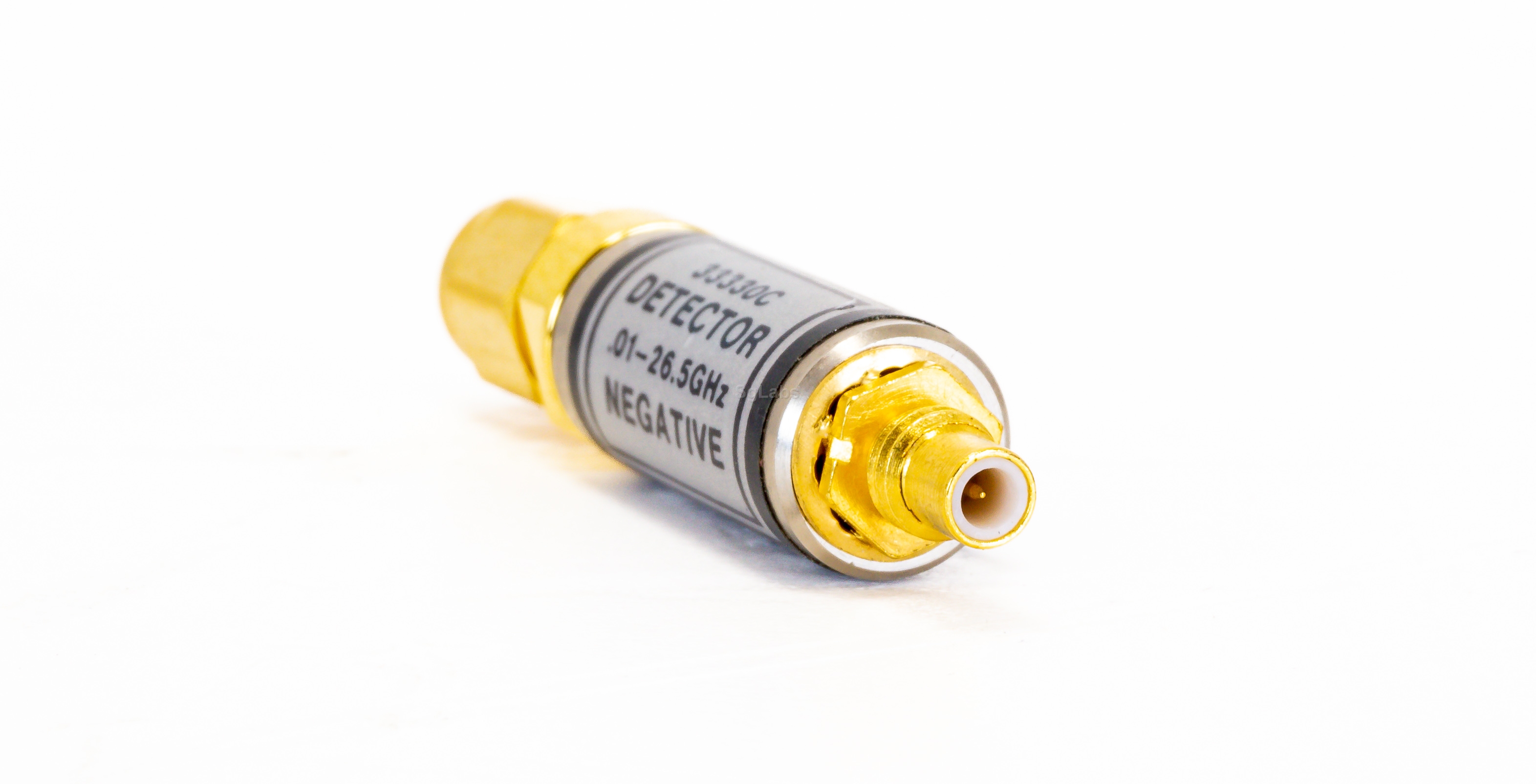

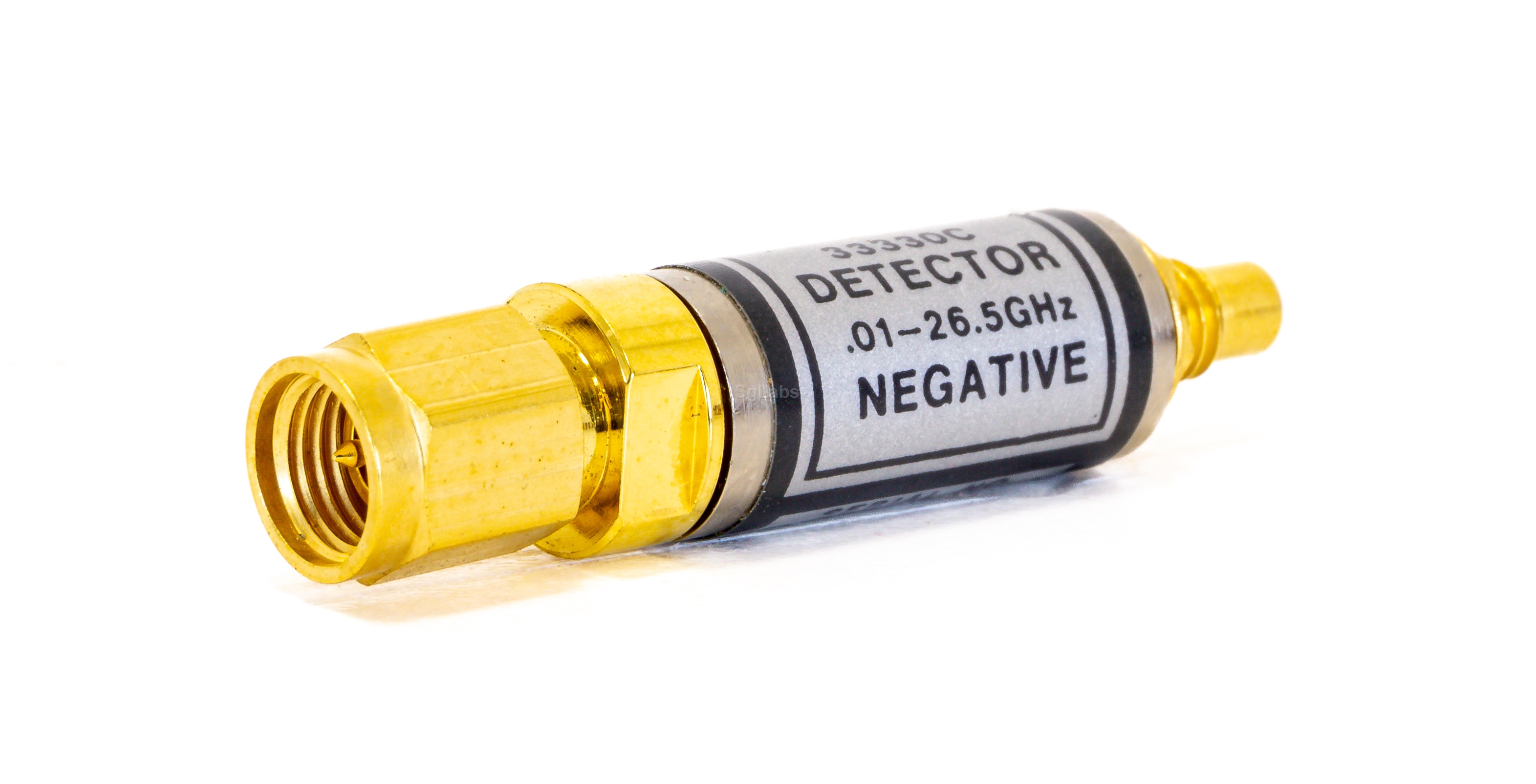

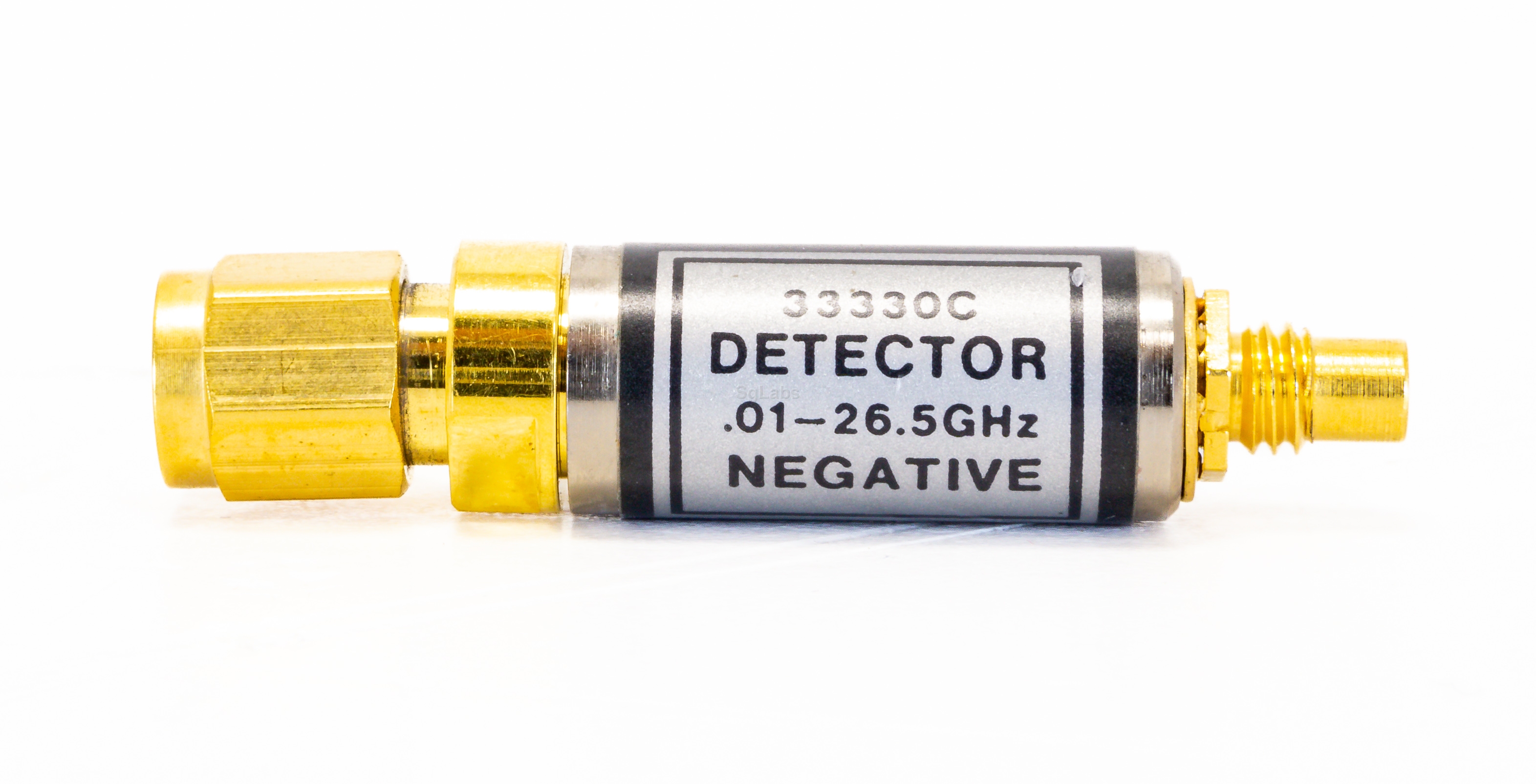

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 33330C low-barrier schottky diode detector has been widely used for many years in a variety of applications including leveling and power sensing. It offers good performance and ruggedness. Matched pairs (Option 001) offer very good detector tracking.
Features
Superior RF Performance
- Frequency response: ±0.6 dB (10 MHz to 20 GHz), ±1.5 dB from a -3.3 dB linear slope (20 GHz to 26.5 GHz)
- Maximum SWR: 1.2 (10 MHz to 4 GHz), 1.5 (4 GHz to 18 GHz), 2.2 (18 GHz to 26.5 GHz)
- Low-level sensitivity: > 0.5 mV/uW (10 MHz to 18 GHz), > 0.18 mV/uW (18 to 26.5 GHz)
- Output Polarity: Negative
Power Handling
- Maximum operating input power: 200 mW
- Typical short-term maximum input power (< 1 minute): 1 W
Noise
- Noise: 50 uV
- Connector: 3.5mm SMB
- Max. Frequency: 26.5 GHz
- Min. Frequency: 10 MHz
- Max. power: 200 mW
- VSWR / RL: 1.2 (10 MHz to 4 GHz), 1.5 (4 GHz to 18 GHz), 2.2 (18 GHz to 26.5 GHz)
Price
€ 200,00
