HP Agilent Keysight 11636B Power Divider 26.5 GHz

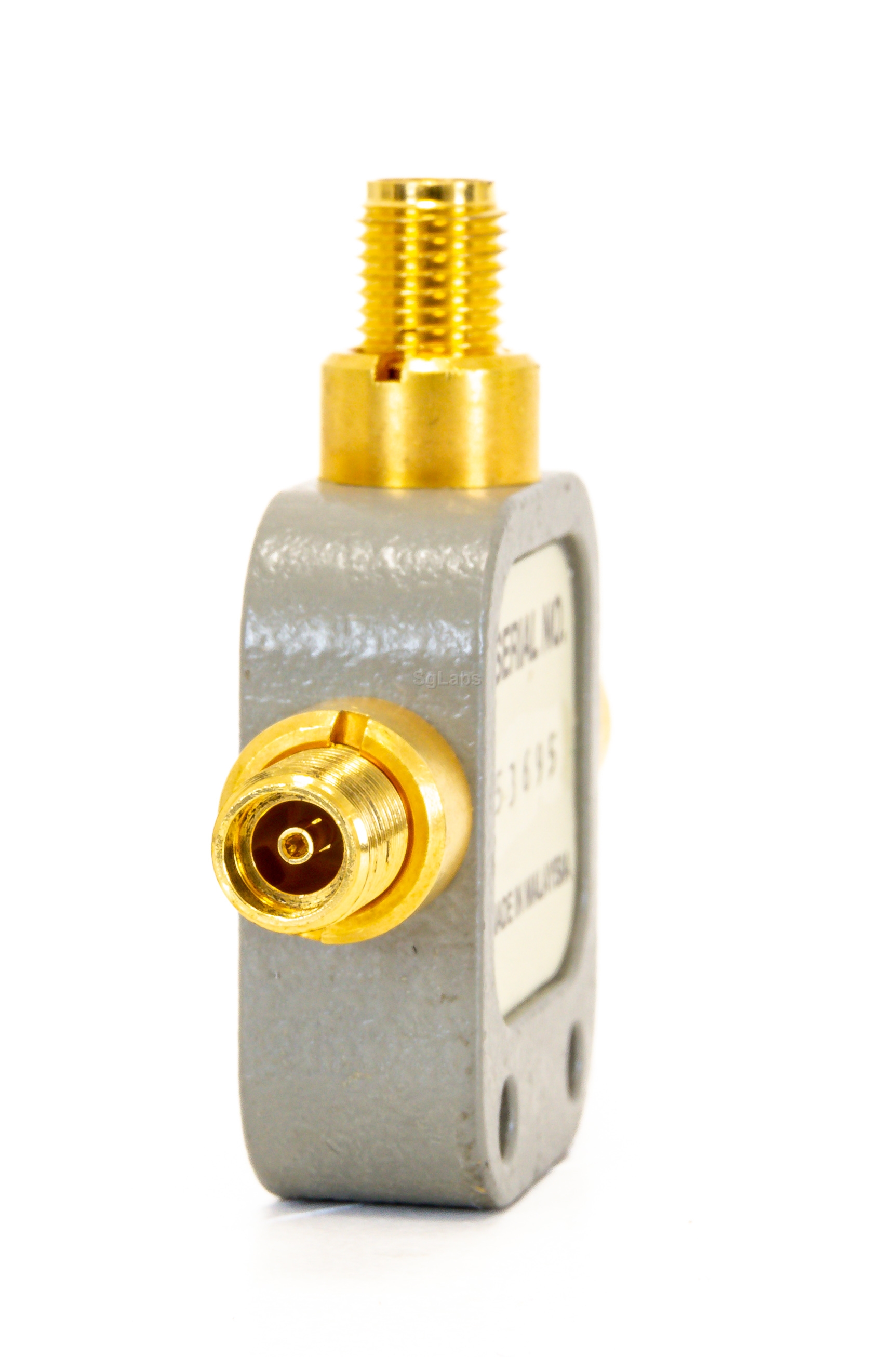

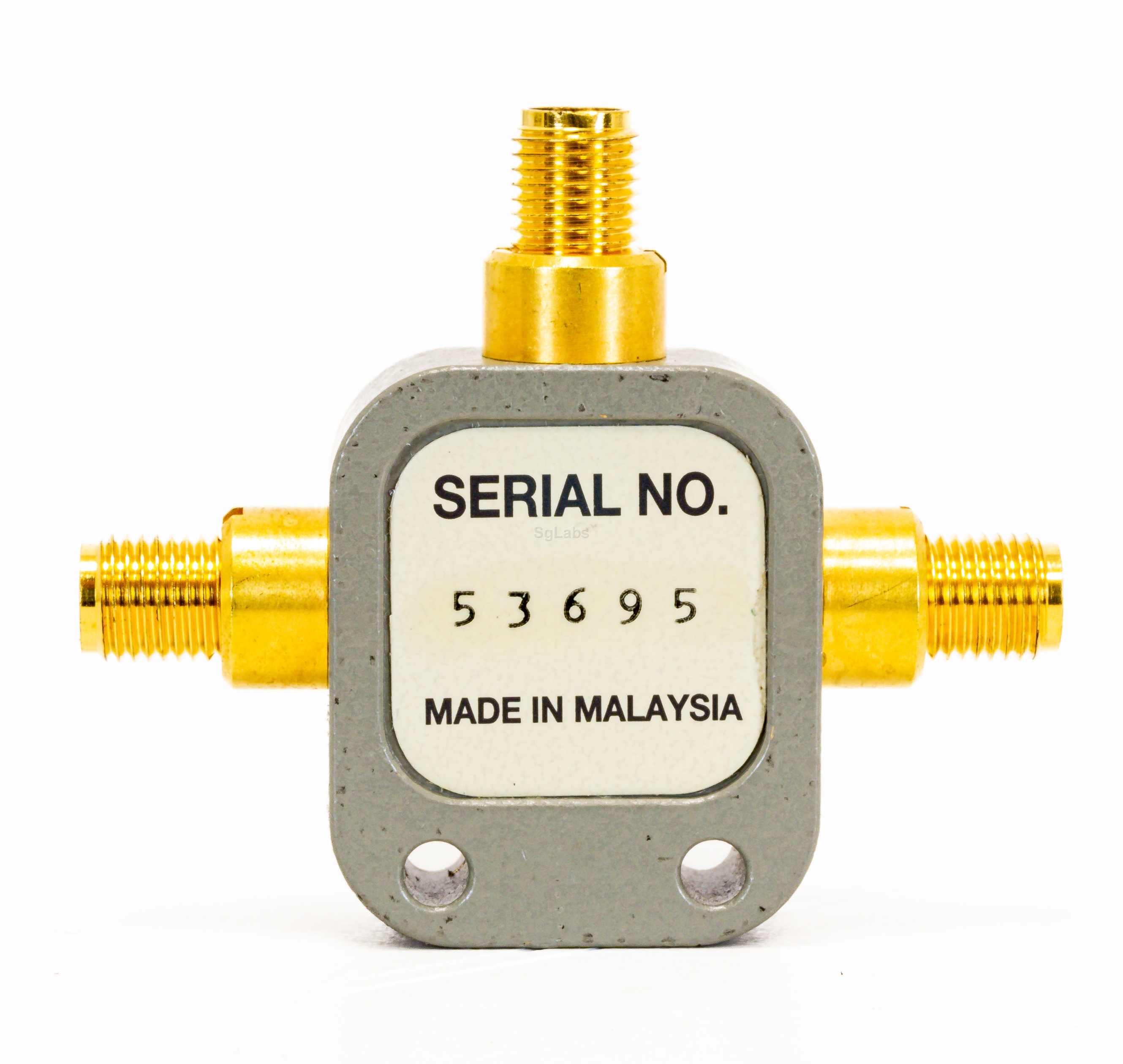

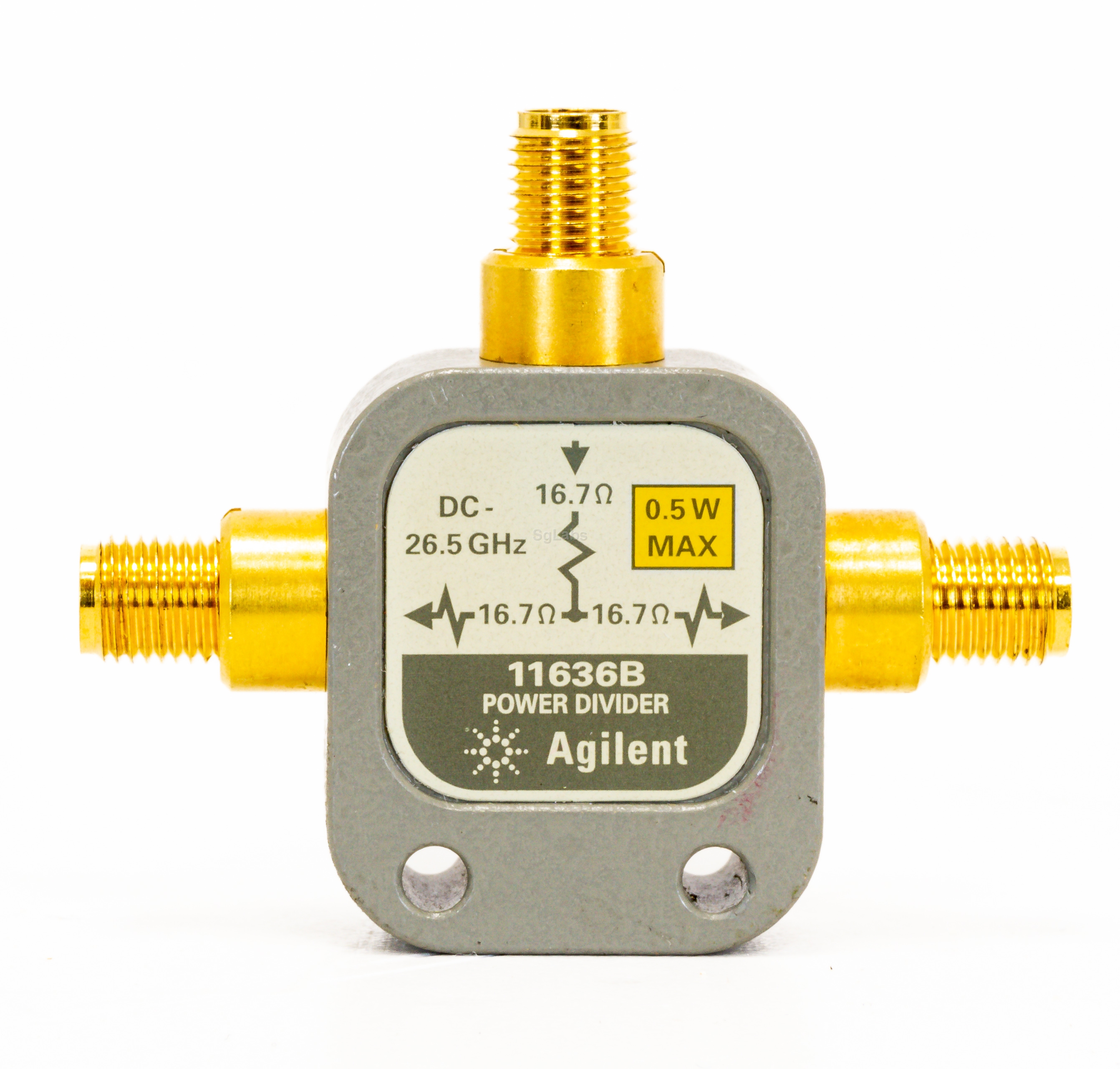

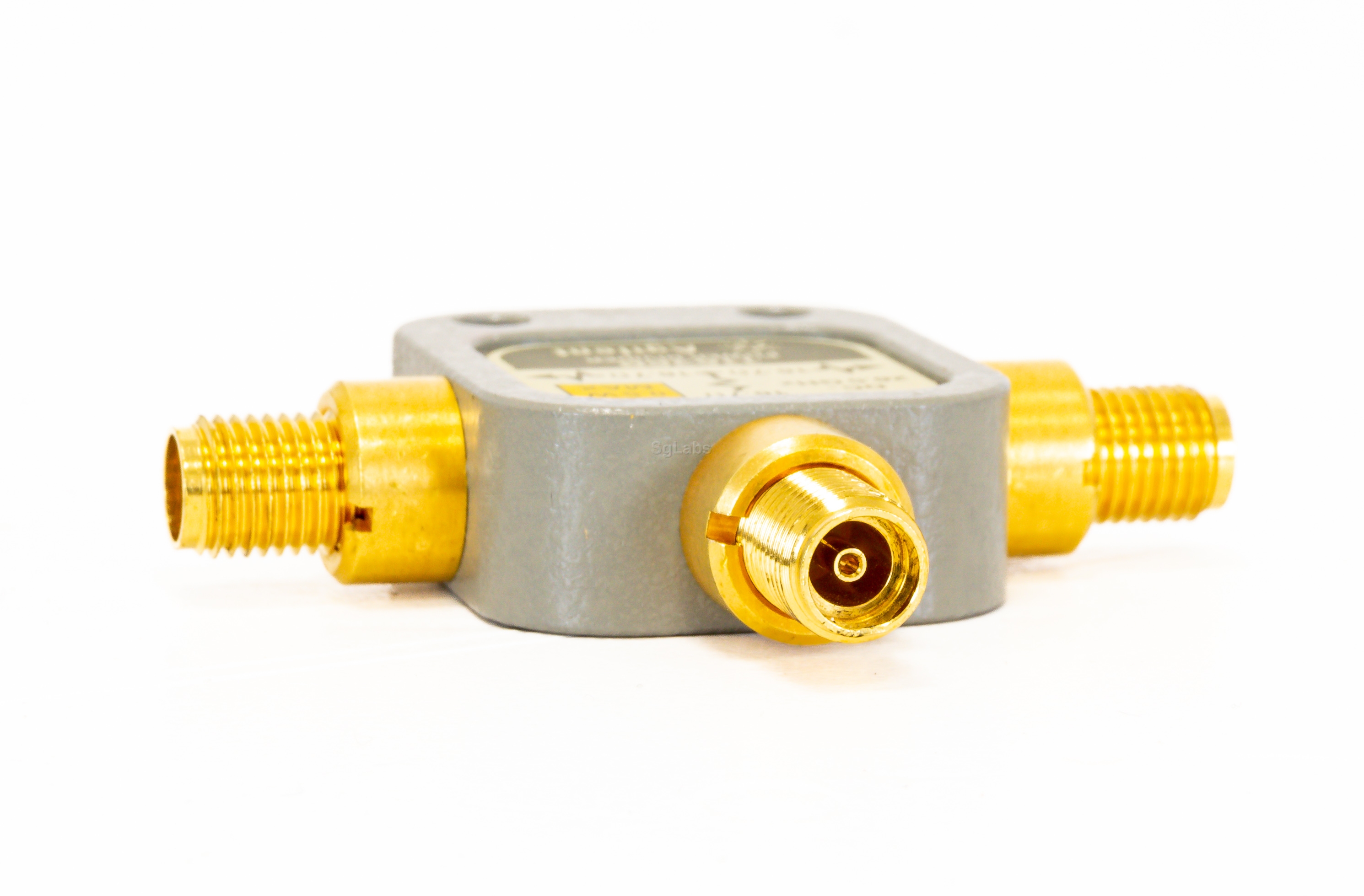

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 11636B is a dc to 26.5 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Keysight 11636B power divider/combiner is recommended when making wideband comparison measurements with the Keysight 8757 scalar vector network analyzer.
  • Frequency range: dc to 26.5 GHz
  • Maximum SWR: 1.29
  • Insertion loss: 7.5 dB
  • Maximum amplitude tracking: 0.25 dB at 18 GHz
  • Maximum phase tracking: 2 deg typical
  • Connector: 3.5mm
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: DC
  • Max. power: 0.5W
  • VSWR / RL: 1.29
 € 450,00
