HP Agilent E4400B RF Signal Generator 1 GHz

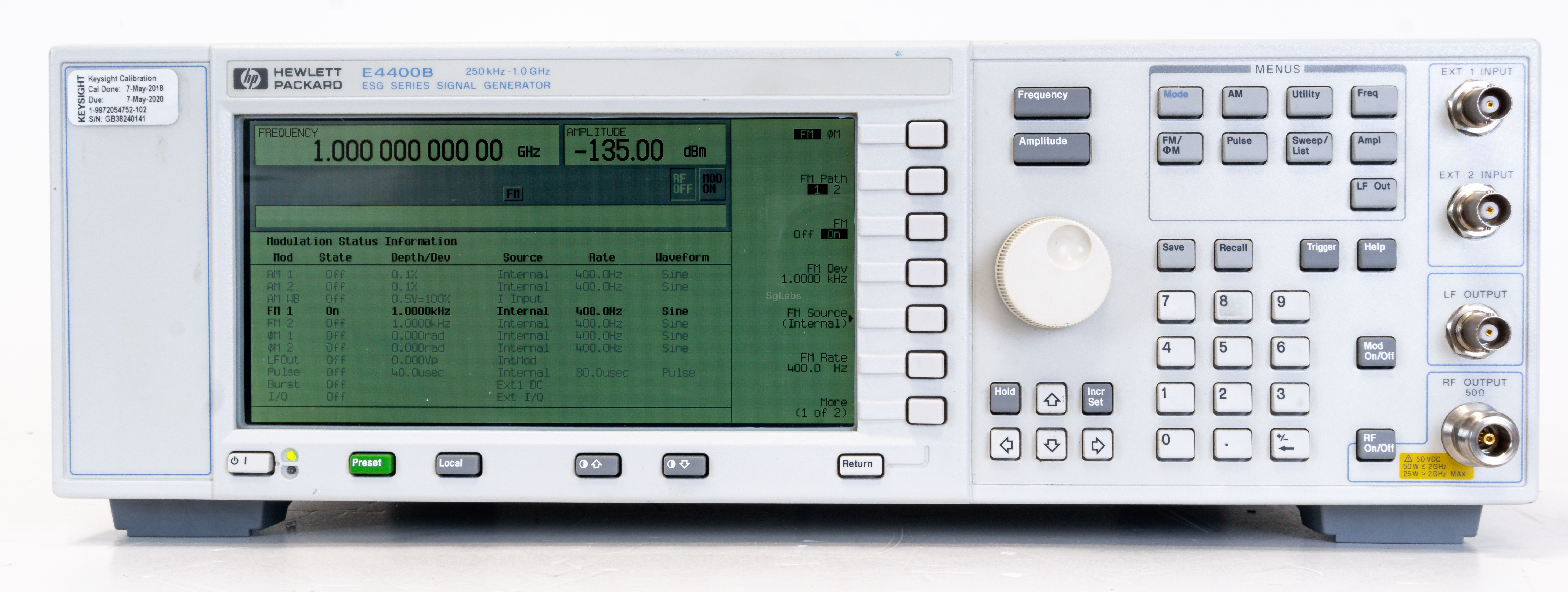

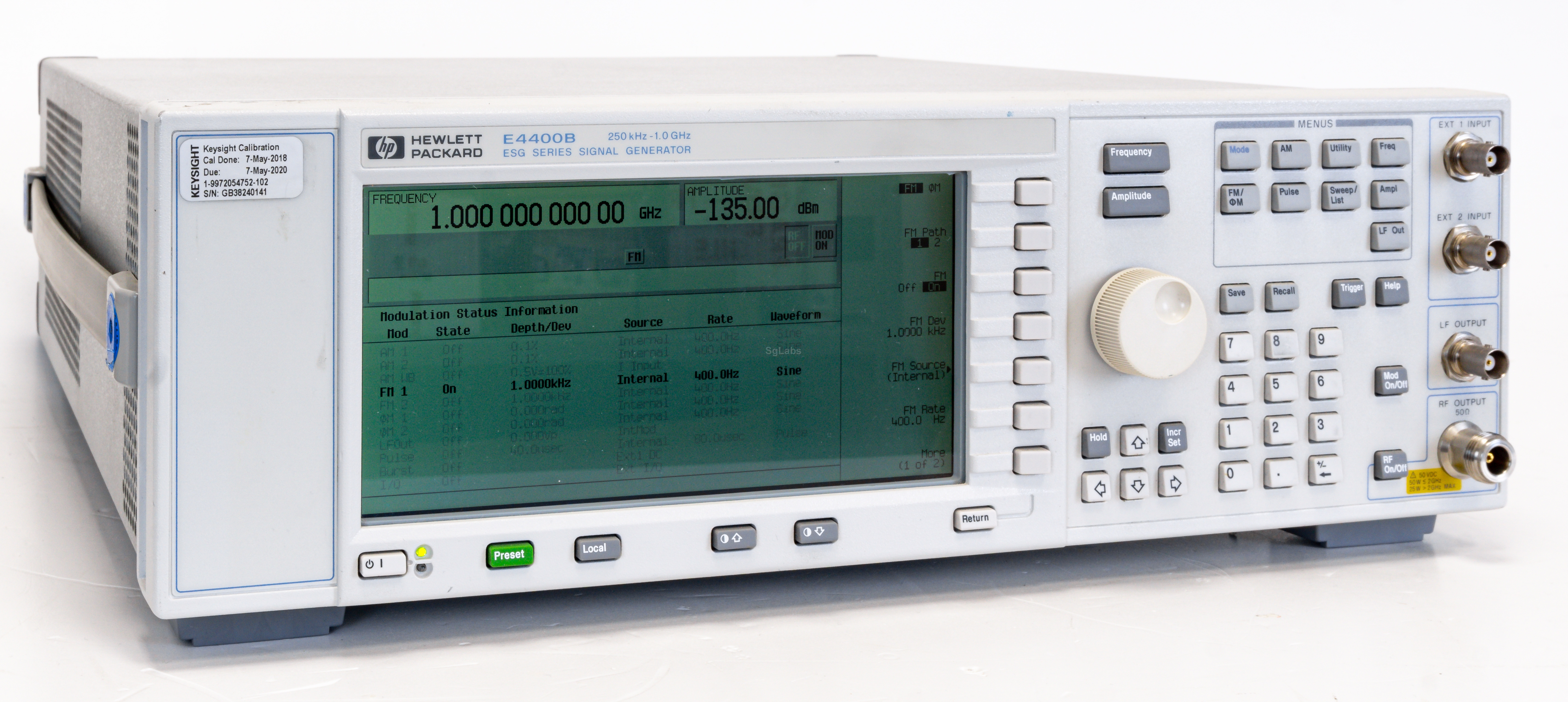

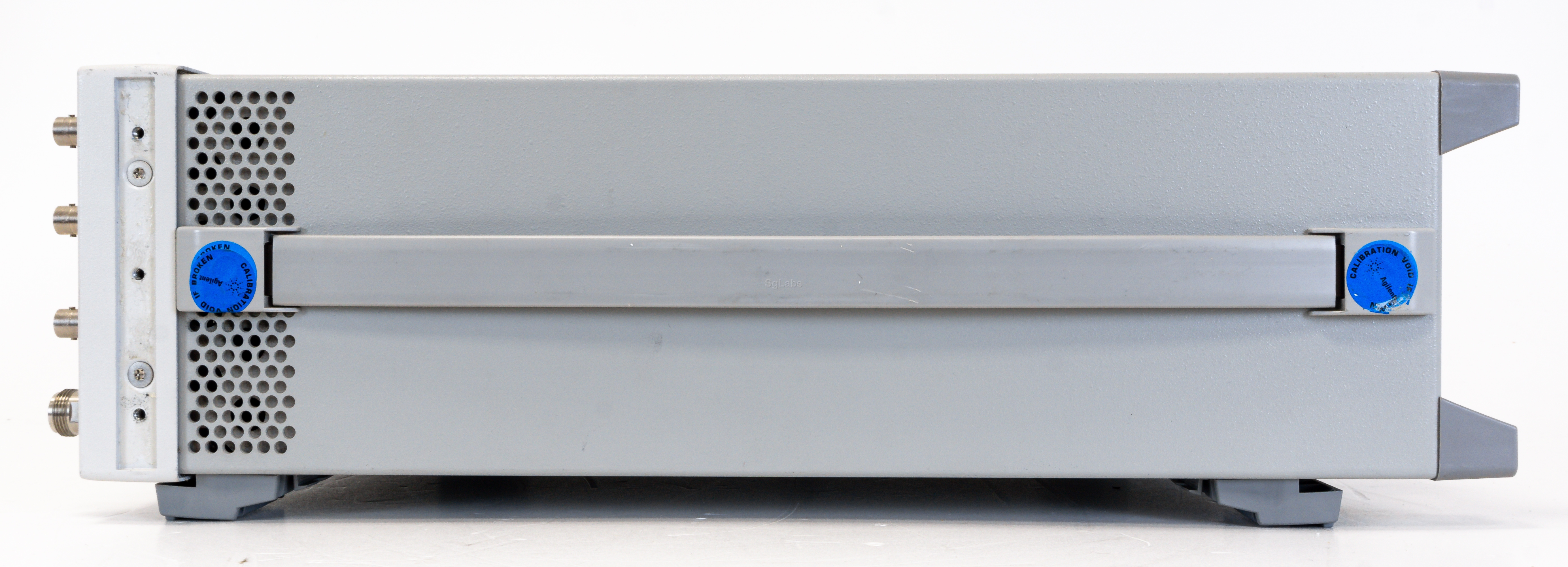

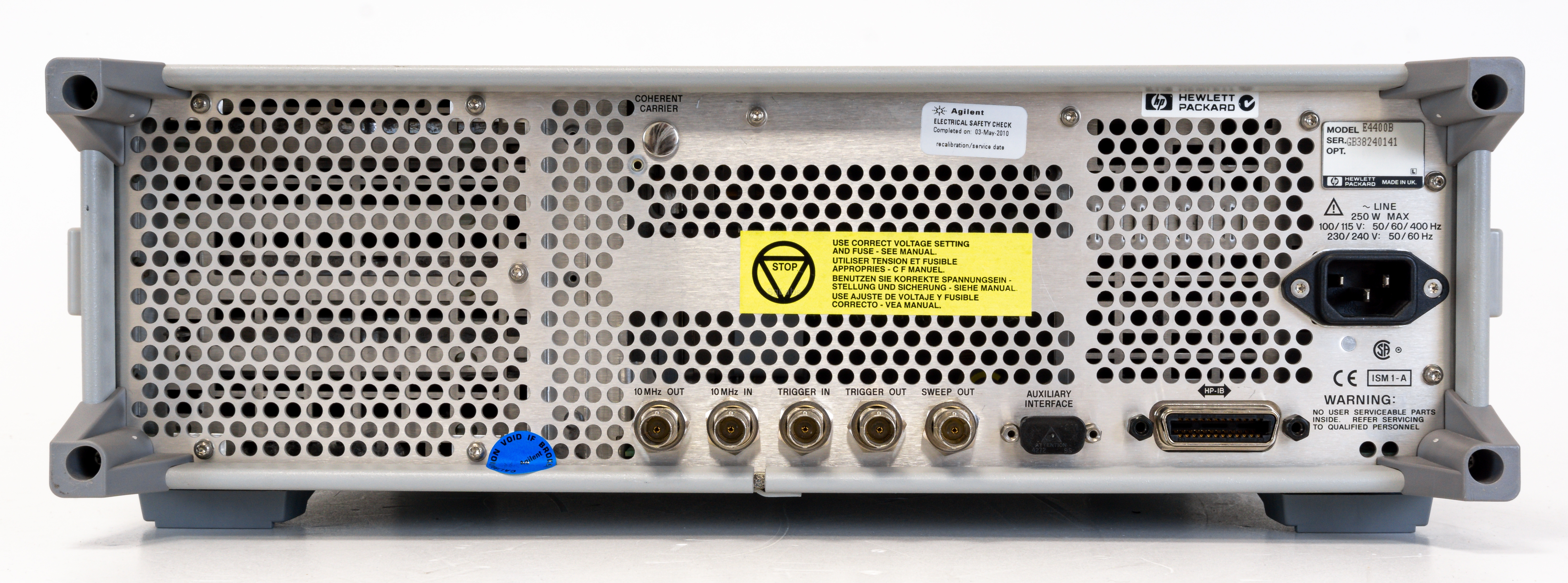

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP / Agilent E4400B 100 kHz - 1 GHz ESG RF Signal Generator offers excellent in-channel performance with superior quality, reliability and worldwide support - at an affordable price. The first in a new generation of signal generators, it provides excellent frequency and level control, and wide analog modulation capabilities. It is ideally suited to meet the demanding requirements of today's receiver test, component test and local oscillator applications.
Features
  • Frequency range : 100 kHz - 1 GHz
  • Output level : -136 dBm - +13 dBm
  • Modulation: FM, AM, Phase e Pulse
  • Frequency resolution: 0.01 Hz
  • Power resolution: 0.2 dB
  • Output accuracy: 0.9 dB
  • Sweep mode: amplitude and frequency

Options descriptions

  • Option 1E5: High stability timebase
  • Option 1EM: Rear connectors
  • Max frequency: 1 GHz
  • Minimum Frequency: 100 kHz
  • Modulation: AM FM Pulse
  • Max. power: 13 dBm
  • Min. output level: -136 dBm
  • Resolution: 0.01 Hz
