HP Agilent Keysight, 6634B

You are here: Power Supply (DC) » Single output

HP Agilent Keysight, 6634B

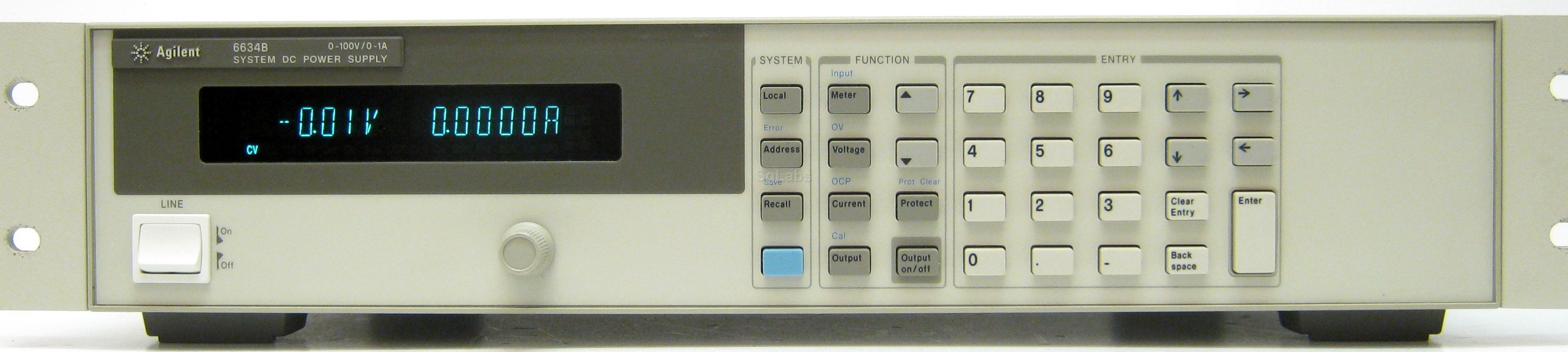

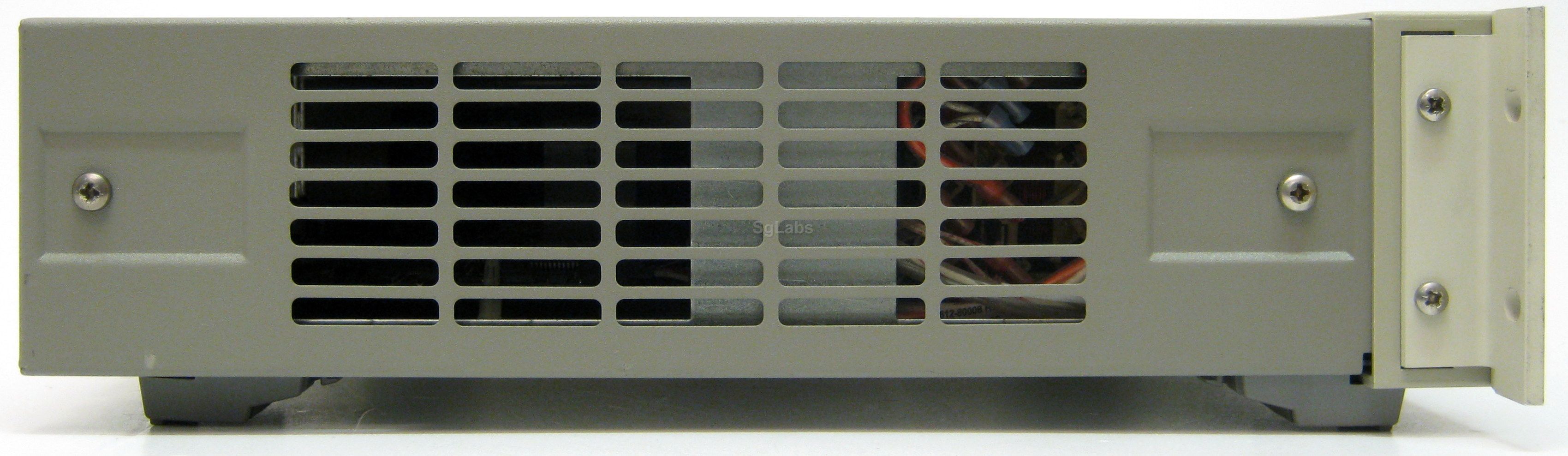

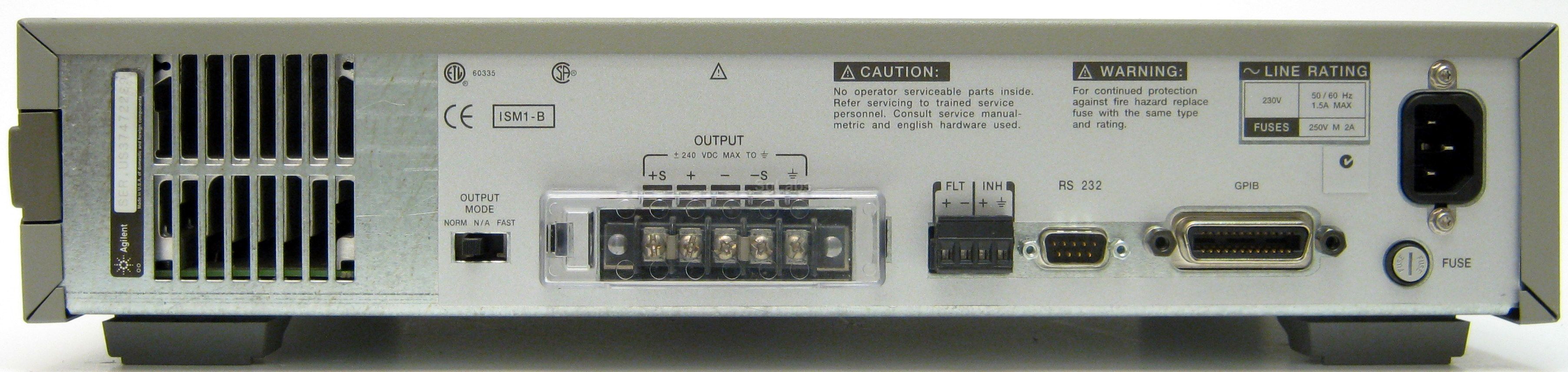

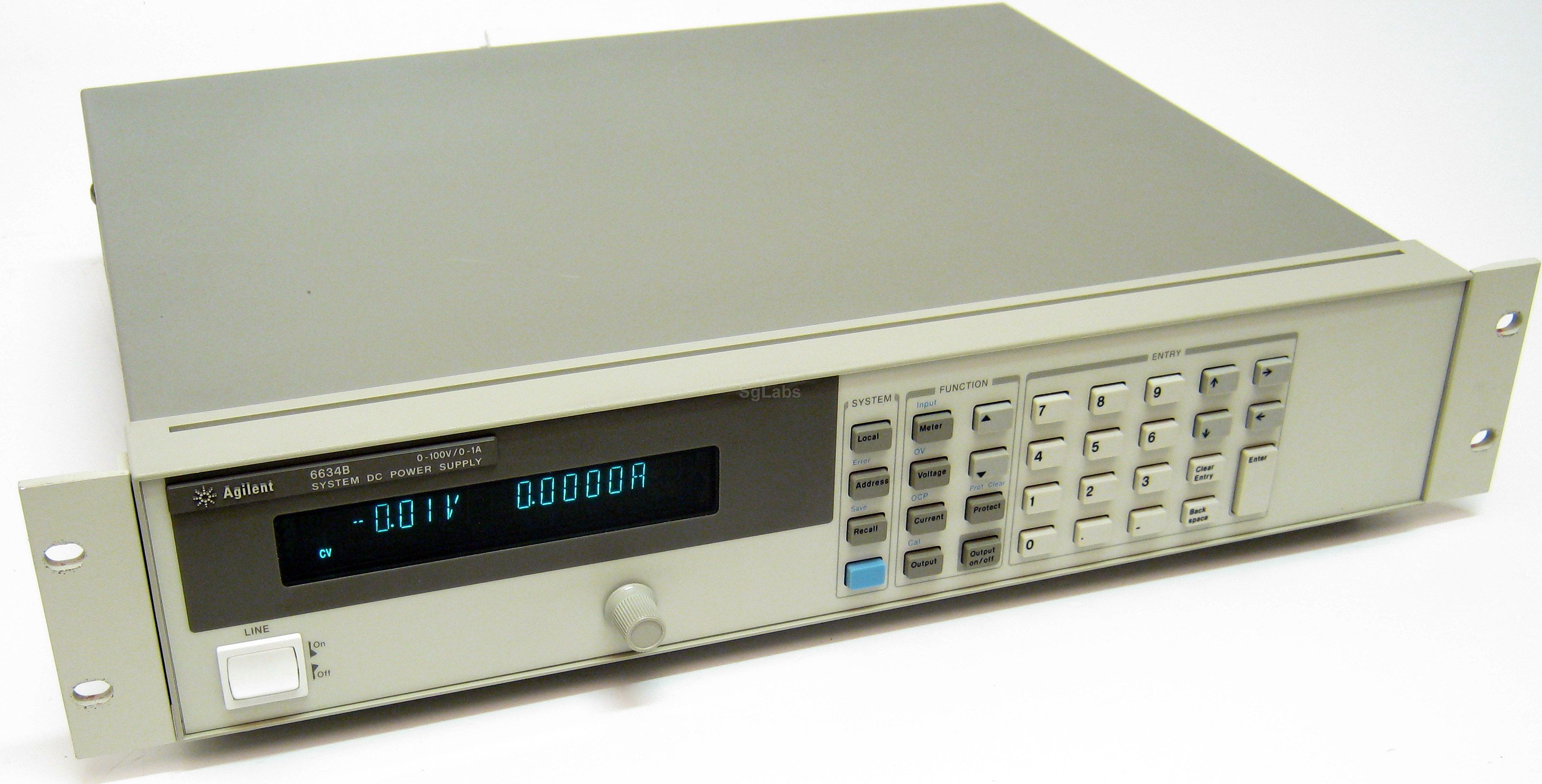

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Agilent high performance DC power supplies offer speed and accuracy for test optimization. The single output, 80-100 W, GPIB 6631B-6634B provide fast, low-noise outputs; programmable active down-programmer sinks the full rated current; dual-range, precision low current measurement; as well as optional isolation and polarity reversal relays.

The Agilent 100W, GPIB, single output 6634B is a versatile medium-power solution for automated applications that reduces development time with a combination of benchtop and system features designed for demanding design and test requirements.


Output Ratings

  • Output voltage: 0 to 100 V
  • Output current: 0 to 1 A

Programming Accuracy at 25°C ±5°C

  • Voltage: 50 mV
  • + Current 0.05% + 0.5 mA

Ripple & Noise (20 Hz to 20 MHz)

  • Voltage Normal mode rms: 0.5 mV
  • Voltage Normal mode peak-to-peak: 3 mV
  • Fast mode rms/peak-to-peak: 2 mV/25 mV
  • Current rms: 2 mA
  • Max current: 1A
  • Display: LCD
  • Interface: GPIB
  • Max. Voltage: 100V
