HP 85132F 85132-60004 7 mm Flex cable

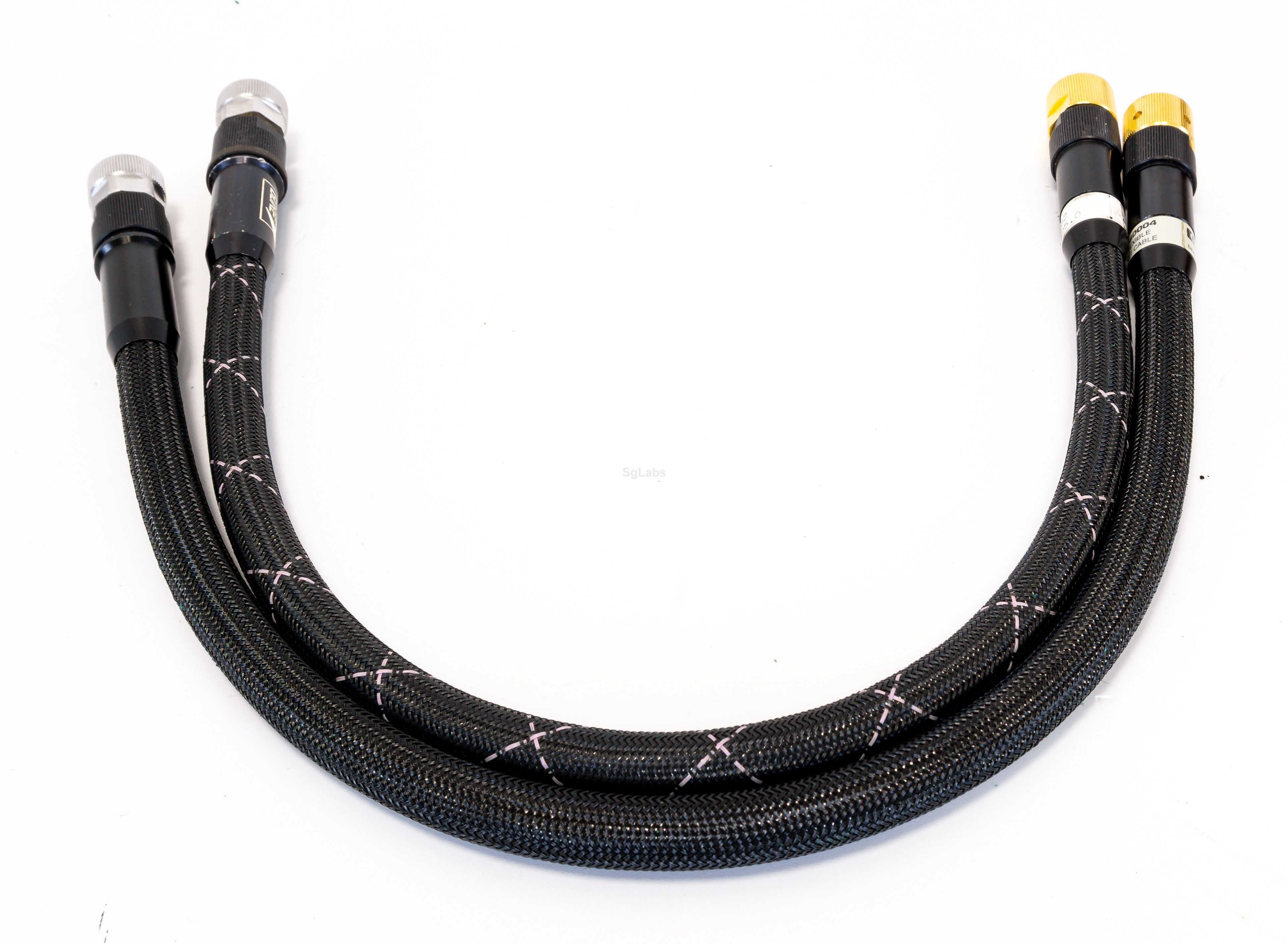

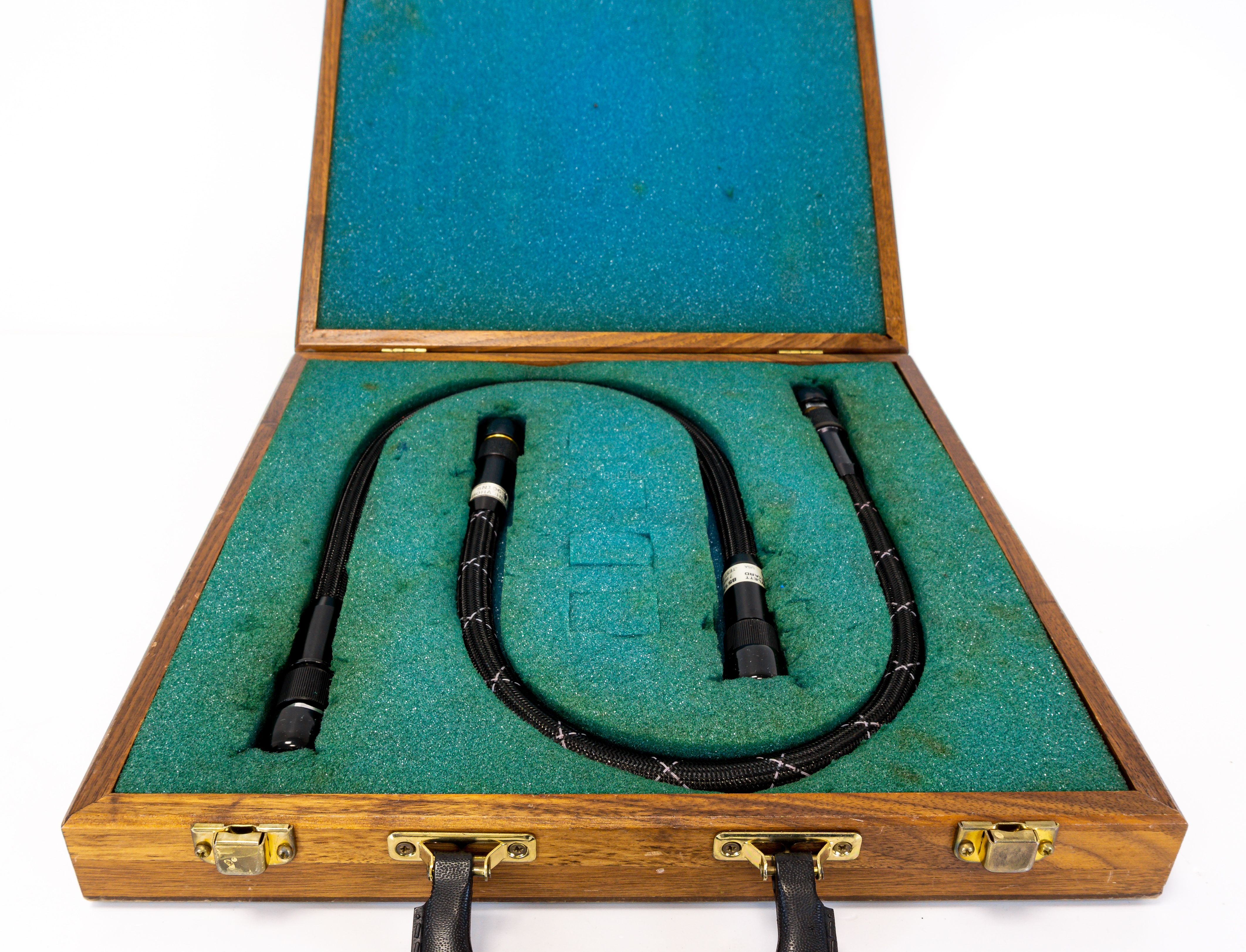

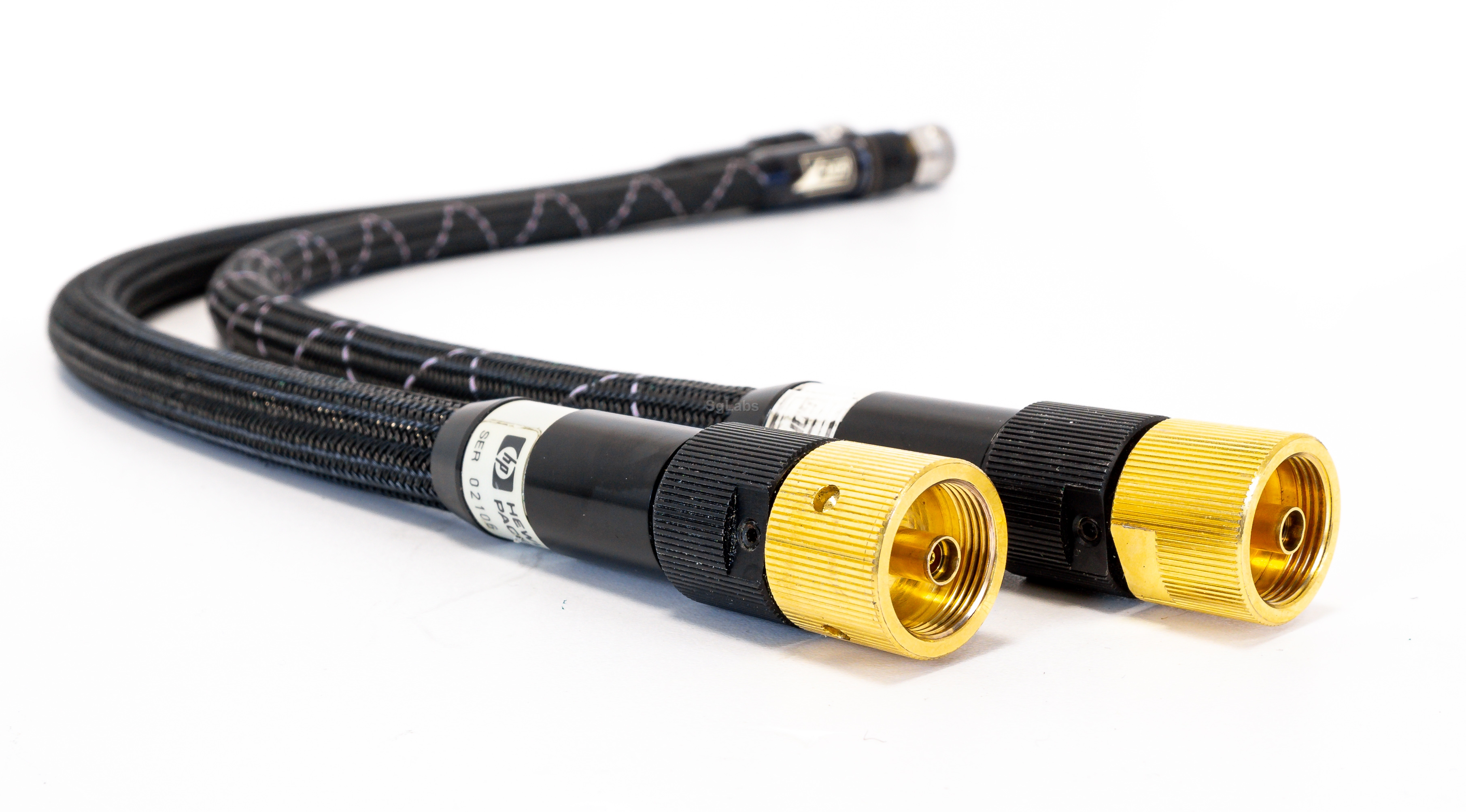

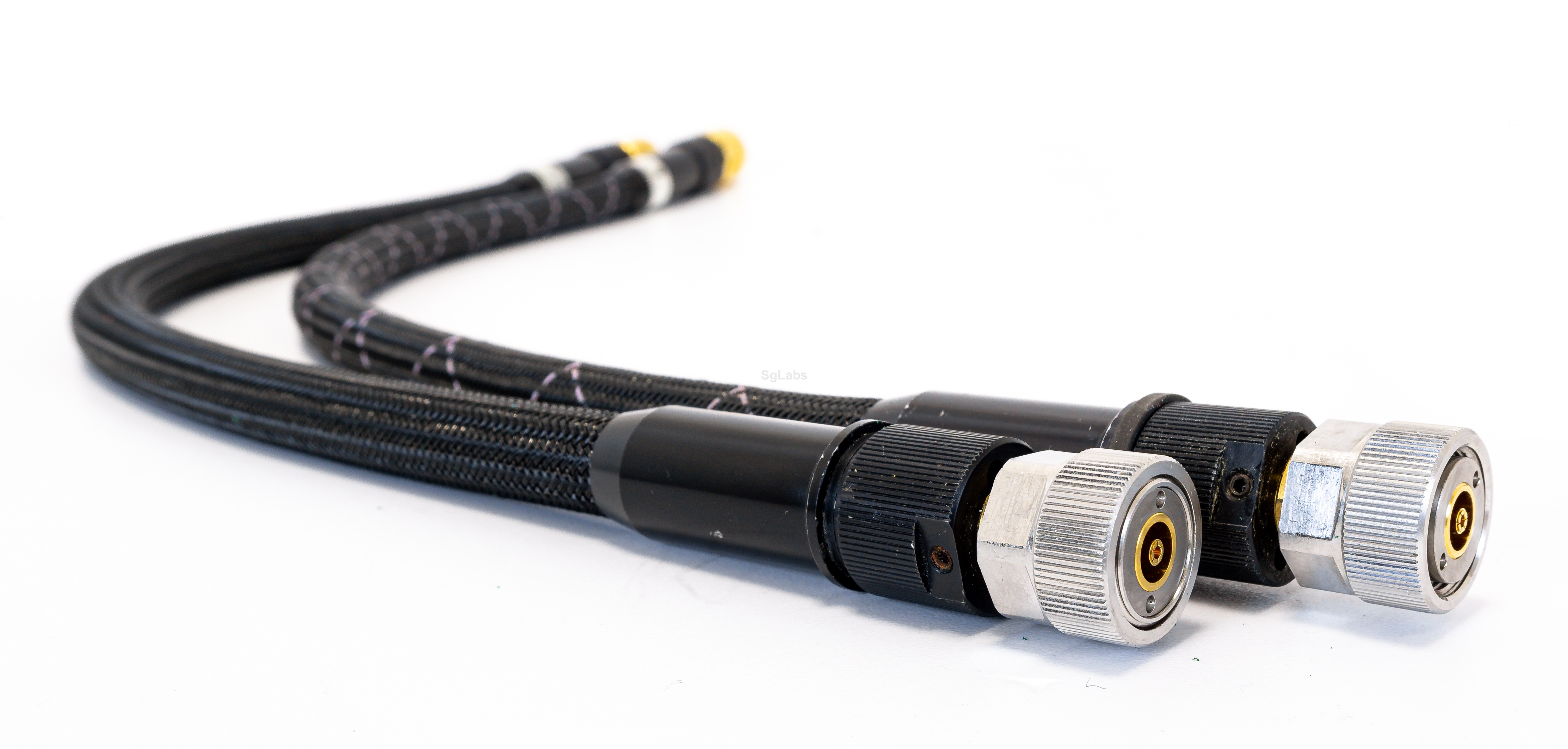

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 85132-60004 is a 62.9 cm (24.75 in) long¹ flexible cable composed of one 3.5 mm female² to 7 mm connectors. Cable frequency range is dc to 18 GHz with a return loss greater than or equal to 17 dB. Insertion loss is 0.25 * sqrt(f) + 0.2, where f is frequency in GHz, for the test port connector and device connector. Phase stability of semi-rigid/flexible cables is specified with a 90 degree bend using a 4 to 3 inch radius. Stability¹ of the Keysight 85132F is less than 0.12 dB and phase is 0.13 * f + 0.5, where f is frequency in GHz.
Features

Keysight Technologies guarantees that the performance of your cables will equal or exceed the following specifications, at frequencies



  • SWR: max 1.3
  • Insertion Loss (in dB): max [0.25 SQR (f) + 0.2]   f is in GHz
  • Recession of center conductor shoulder behind outer conductor mating plane.
  • NMD-3.5 mm (f) connector 0.005 to 0.056 mm (0.0002 to 0.0022 inch)
  • 7 mm connector with collet removed 0.005 to 0.021 mm (0.0002 to 0.0008 inch)
  • Protrusion of 7 mm center pin with collet in place 0.05 to 0.25 mm (0.002 to 0.010 inch)
  • Connector: 3.5 mm
  • Connector: 7 mm
  • Max. Frequency: 18 GHz
  • VSWR / RL: < 17.7 dB
Price
 € 700,00
