HP Agilent Keysight, 85031B
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

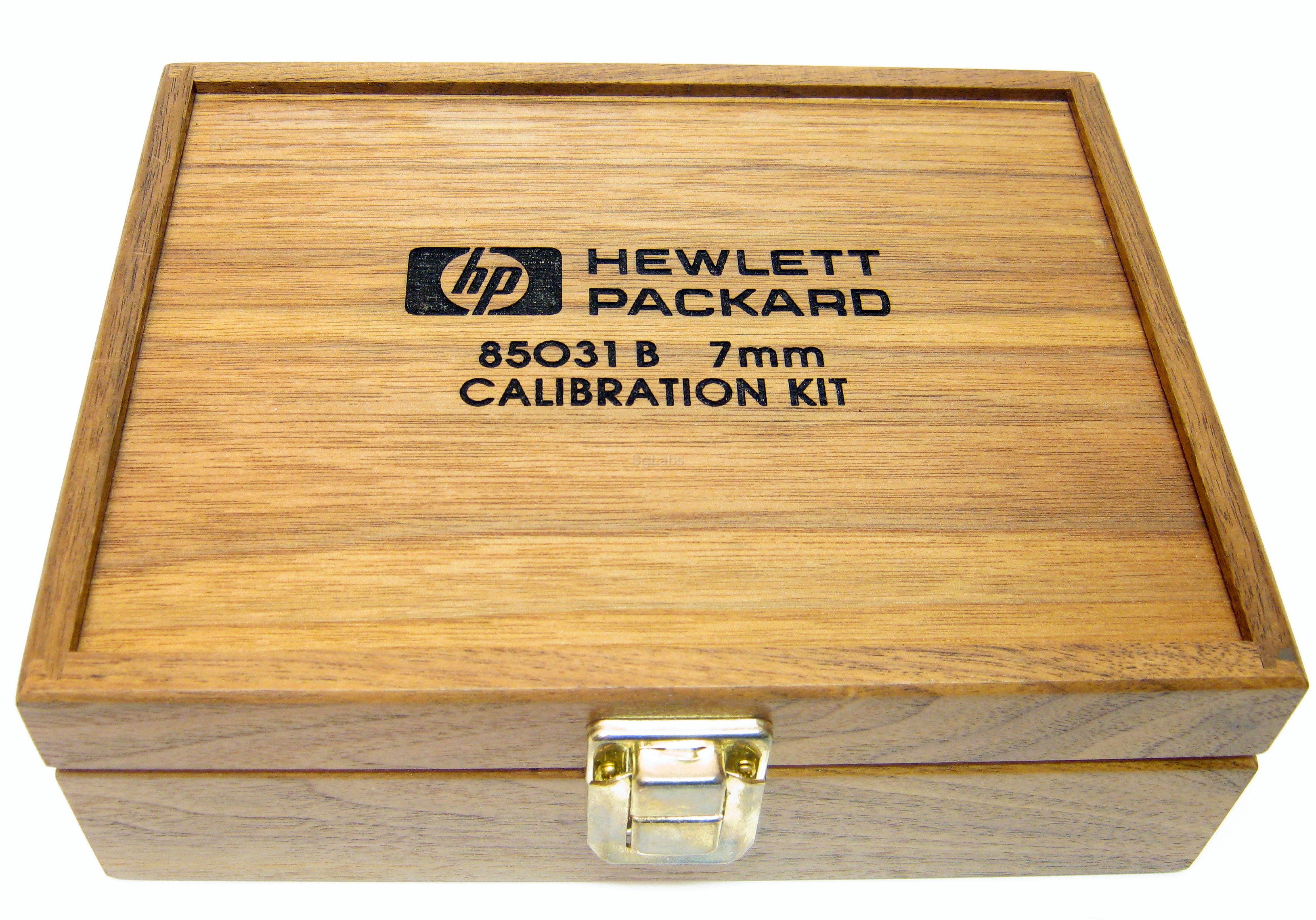

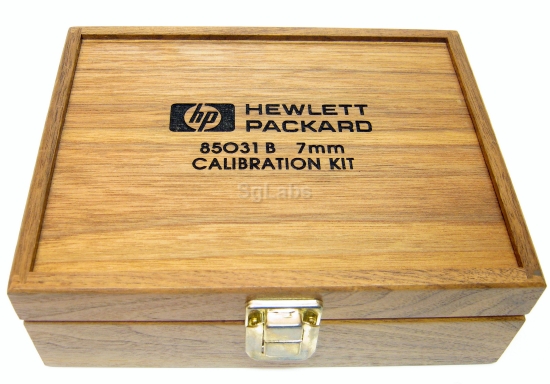

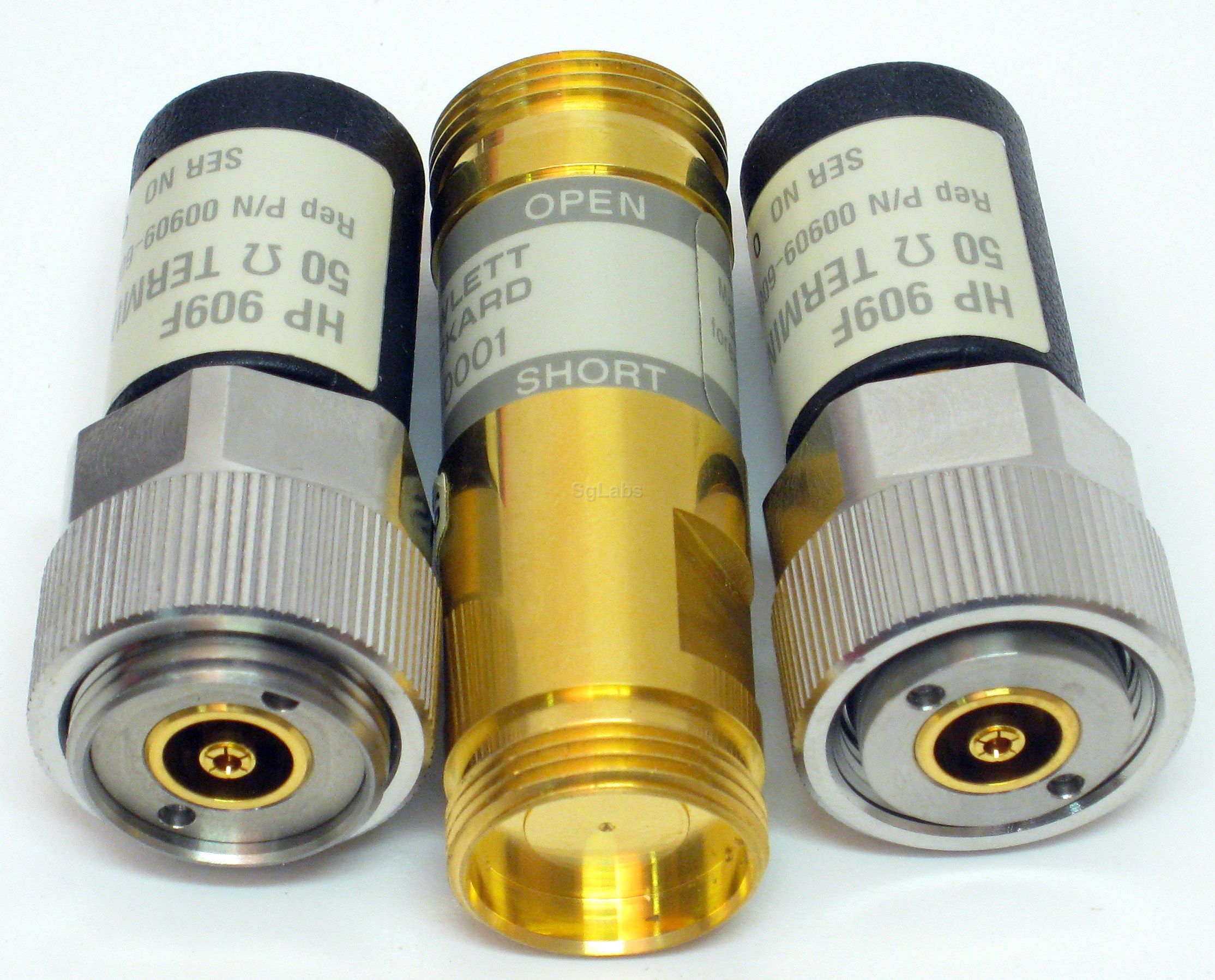

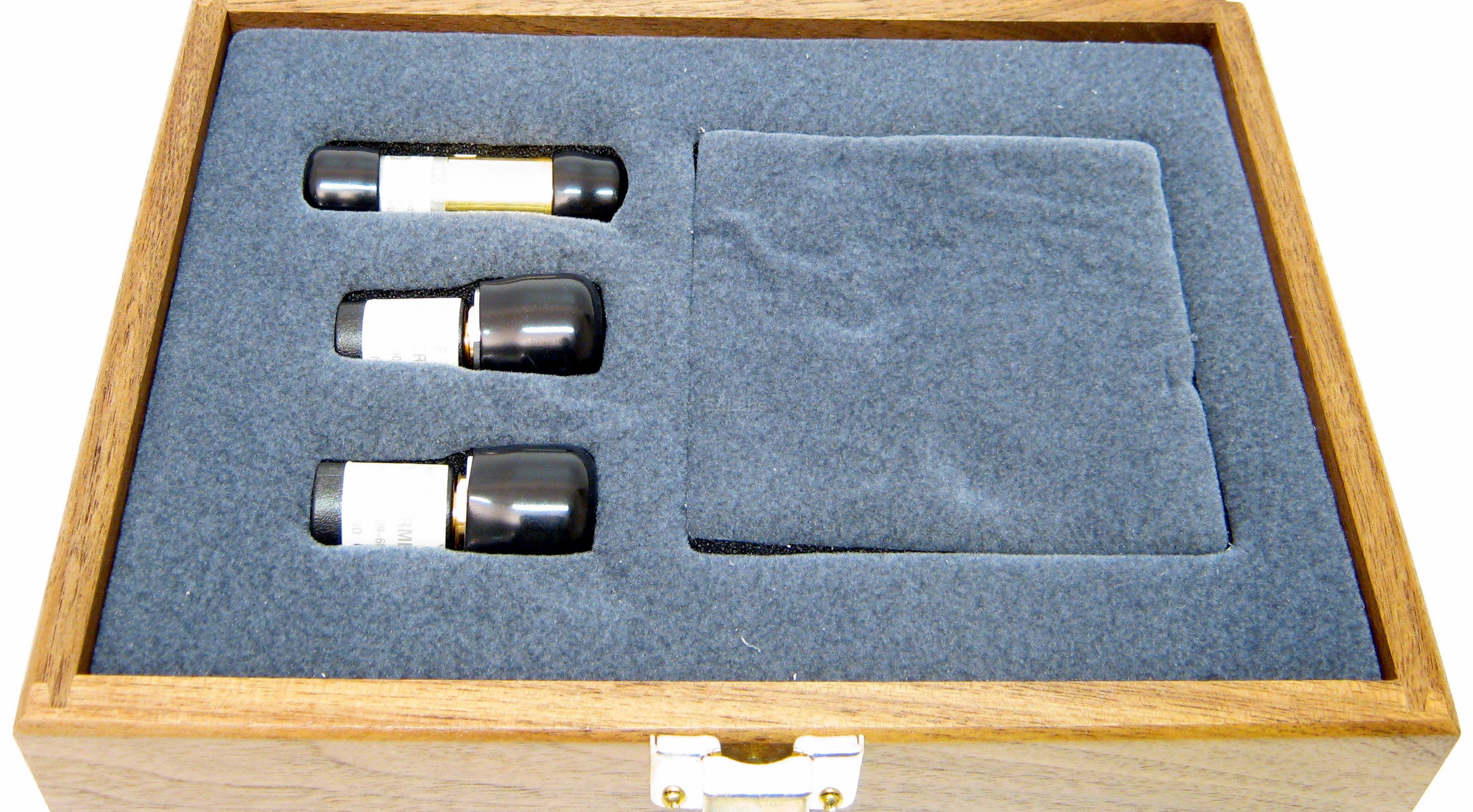

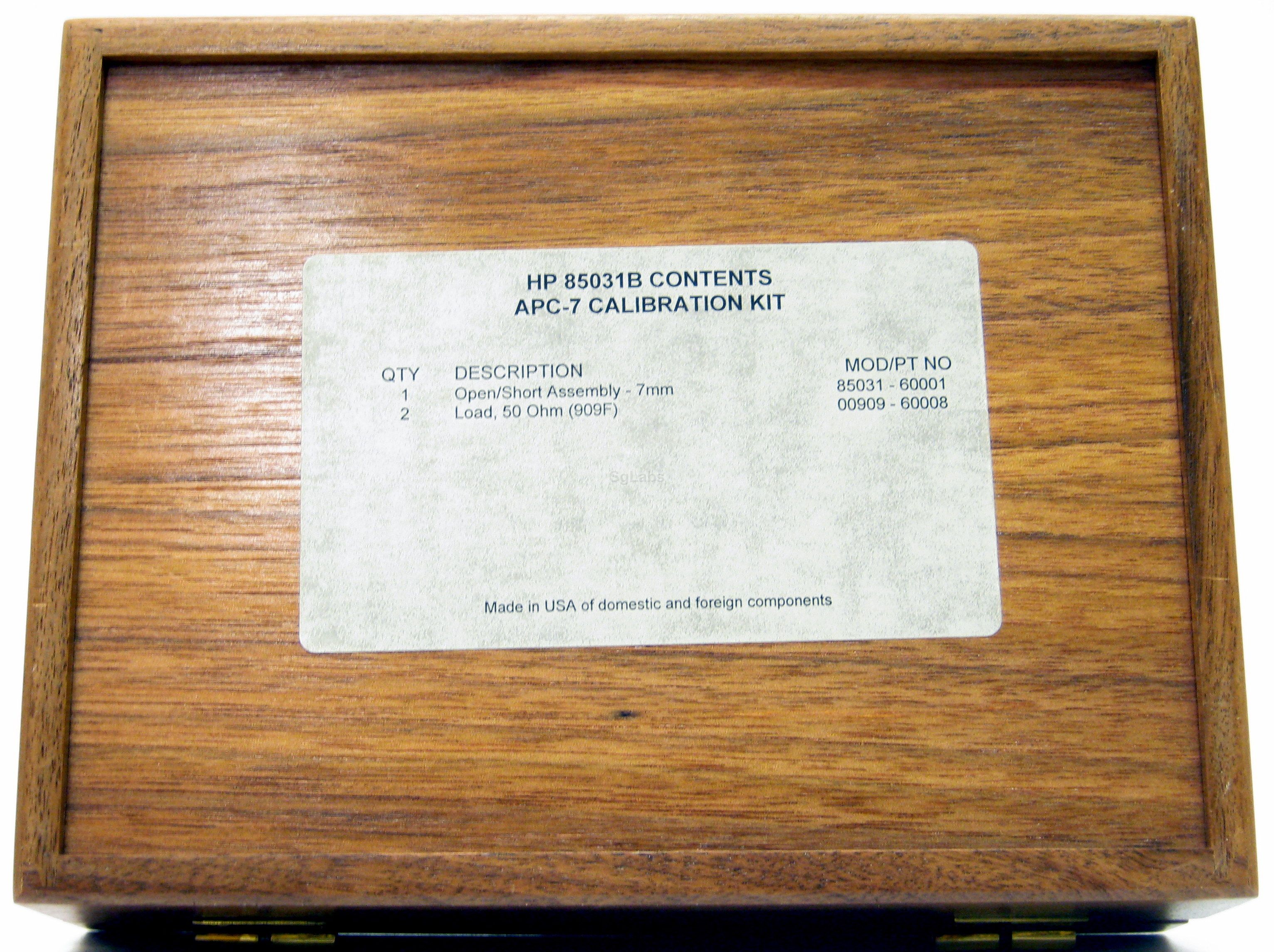

The Agilent 85031B calibration kit contains a set of precision 7 mm fixed terminations and a one-piece open/short circuit used to calibrate Agilent network analyzers for measurement of devices with precision 7 mm connectors. This kit is specified from dc to 6 GHz.
Features
  • Frequency Range: DC - 6 GHz
  • Return Loss:
    • ≥52 dB DC-5 GHz
    • ≥46 dB 5-6 GHz
  • Connectors: 7 mm
  • Connector: 7 mm
  • Max. Frequency: 6 GHz
  • Min. Frequency: DC
  • VSWR / RL: ≥52 dB DC-5 GHz; ≥46 dB 5-6 GHz
