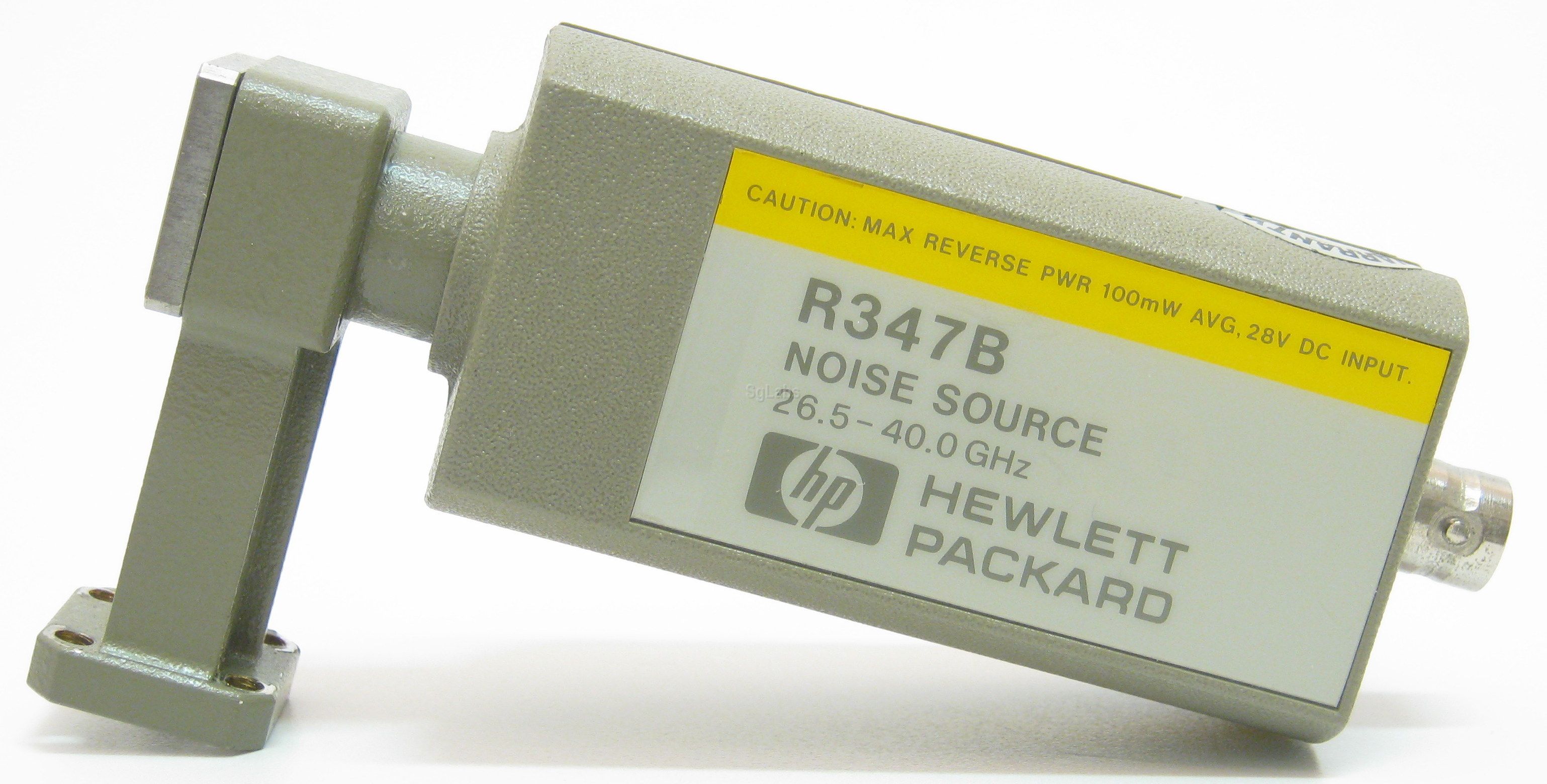

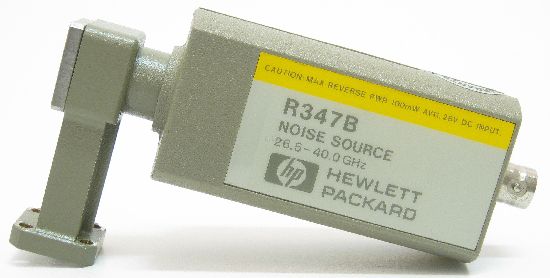

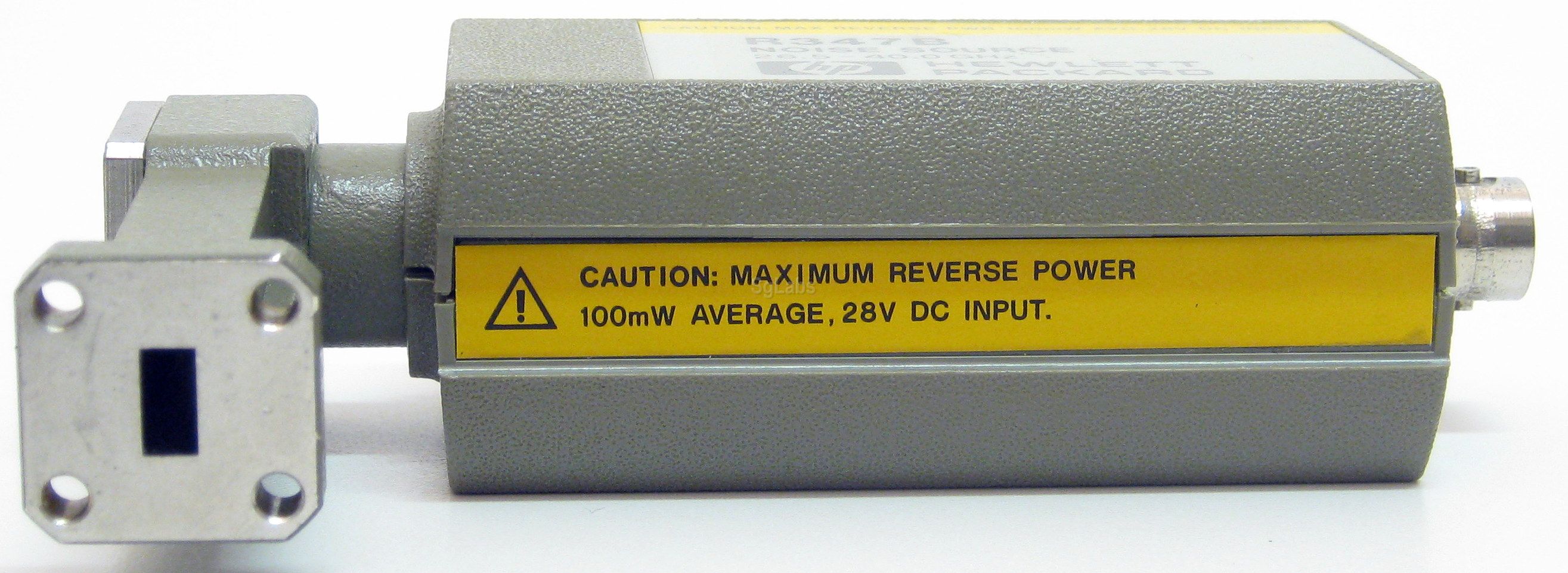

HP Agilent Keysight, R347B
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent R347B noise source covers a 26.5 to 40 GHz frequency range. This waveguide noise source allows you to make accurate and convenient noise figure measurements on millimeter-wave devices. The R347B provides highly precise broadband noise at the input of the system or component under test. The noise figure meter then processes the ON/OFF ratio of noise power present in the system IF, and provides an accurate reading of noise figure and gain. The R347B noise source has remarkable ENR stability over time, which allows longer recalibration cycles and more accurate noise figure measurements.

  • Frequency Range: 26.5 - 40 GHz
  • Power required : 28V +/- 1 V (automatically supplied by the Agilent 8970B noise figure meter)

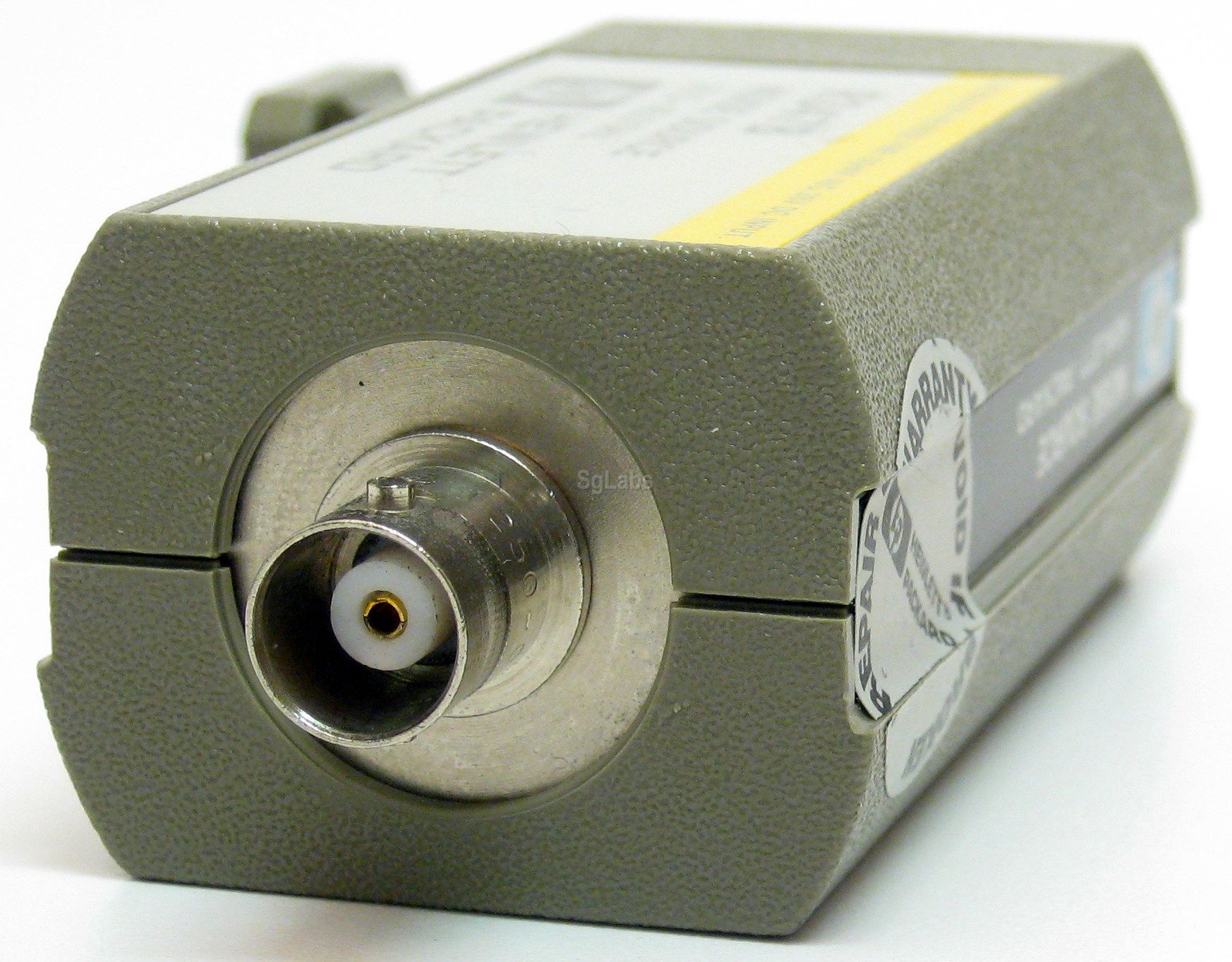

  • Connector: BNC

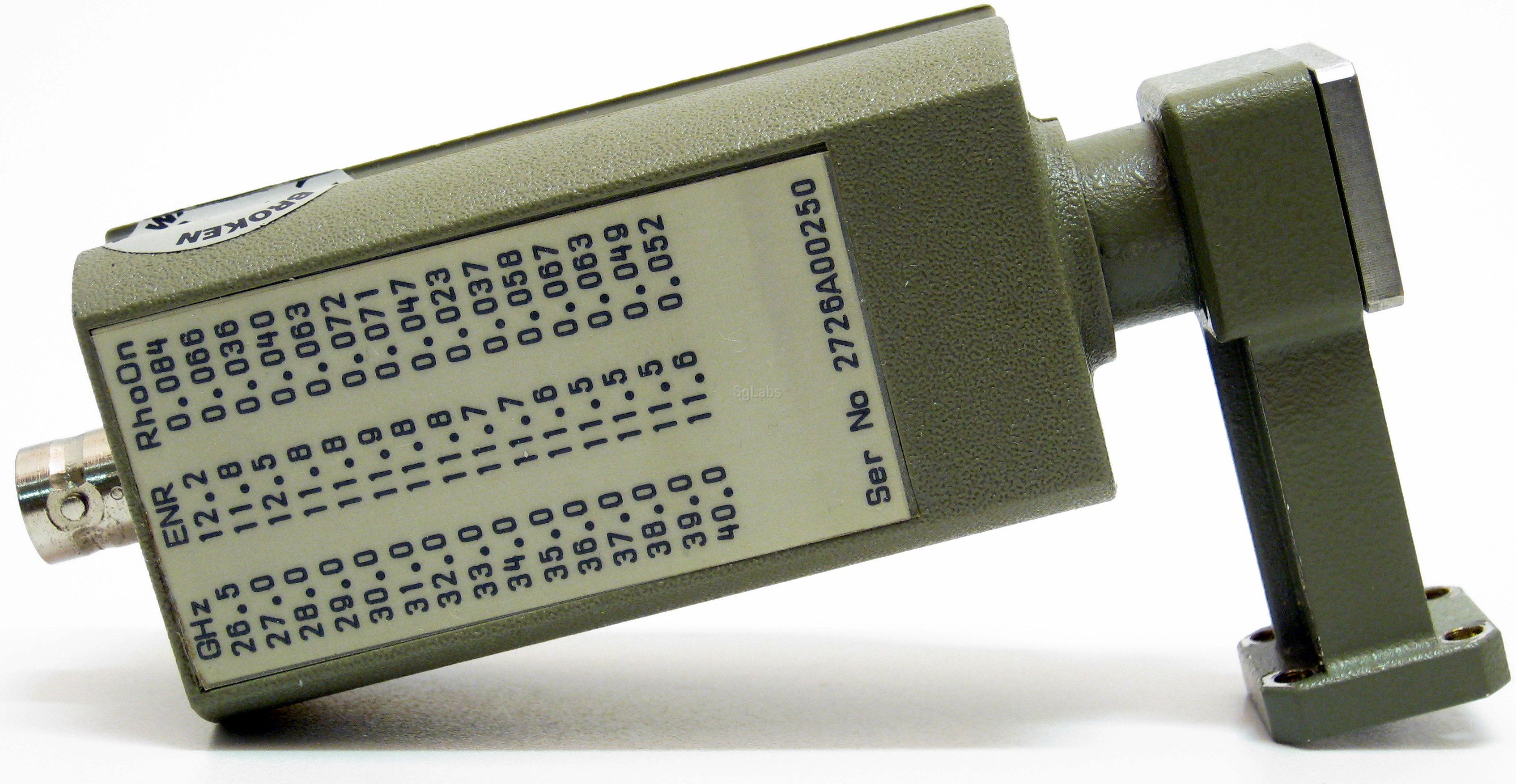

  • ENR: 10 to 13 dB
  • Max. Frequency: 40 GHz
  • Min. Frequency: 26.5 GHz
