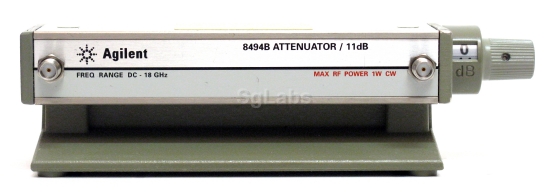

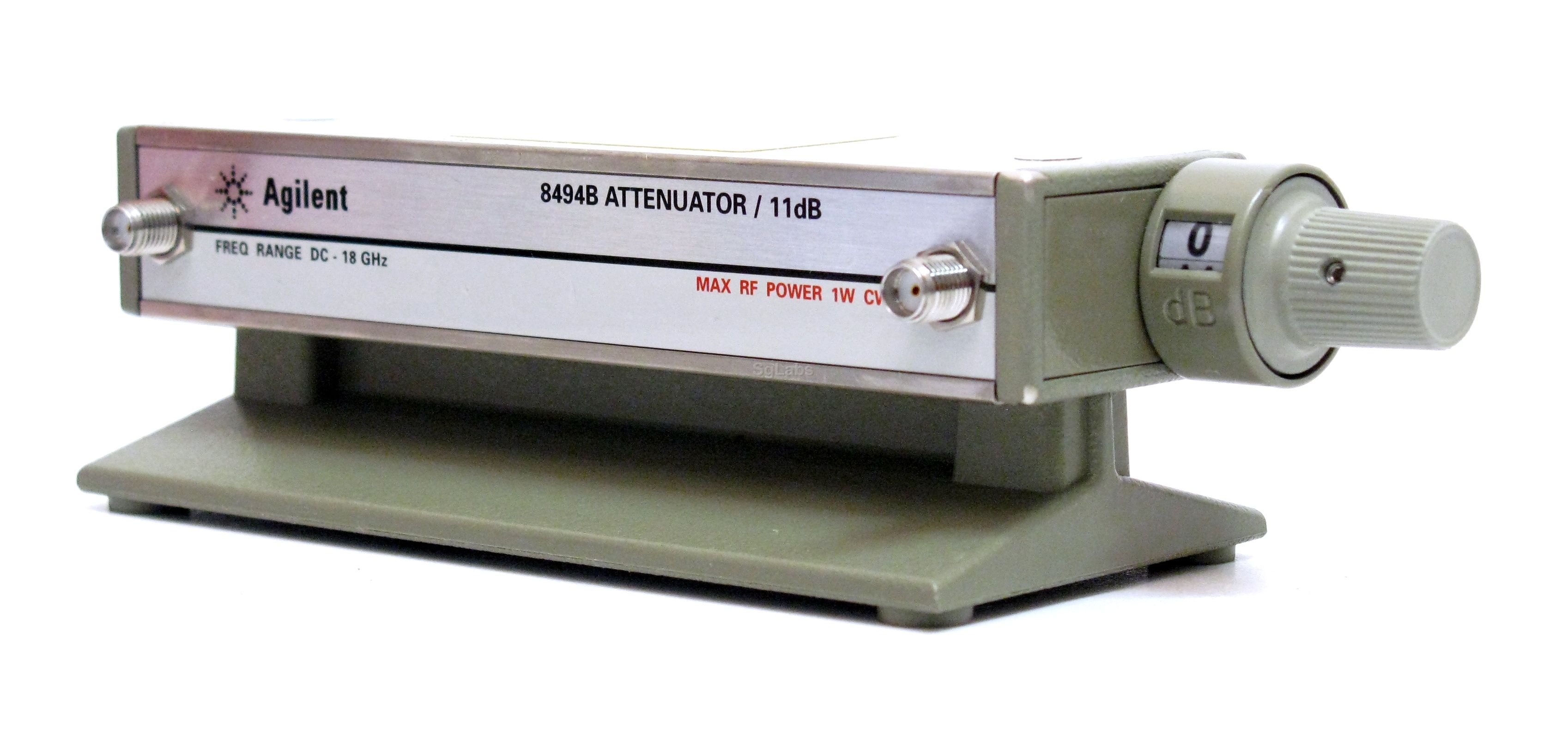

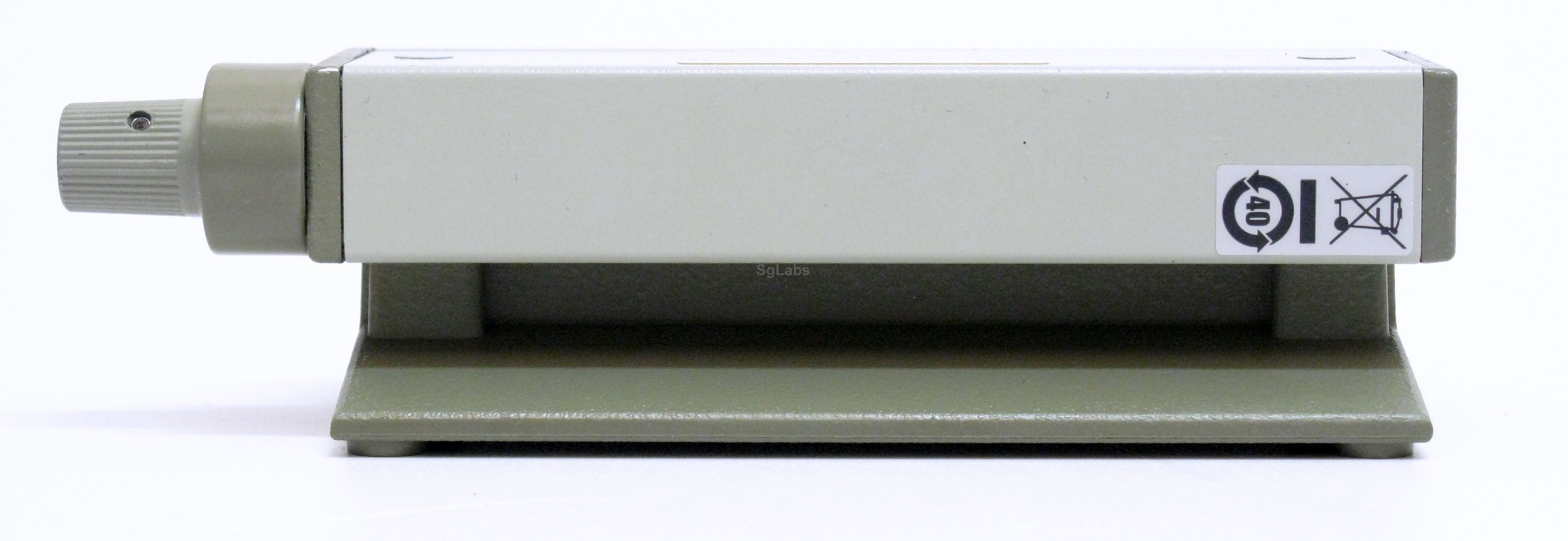

HP Agilent Keysight, 8494B
You are here: RF Component » Attenuator
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
STEP Attenuator, 11dB, 1dB step 18GHz
Features
- Frequency Range: dc to 18 GHz
- Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
- Maximum SWR: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
- Attenuation: 11dB STEP 1dB
- Connector: Nf (Opt.001), SMAf (Opt.002)
- Max. Frequency: 18GHz
- Min. Frequency: DC
- Max. power: 1W
- VSWR / RL: 1.5 to 8 GHz, 1.6 to 12.4 GHz, 1.9 to 18 GHz
Price
€ 250,00
