HP Agilent Keysight, E4401B

You are here: Spectrum Analyzer » Digital

HP Agilent Keysight, E4401B

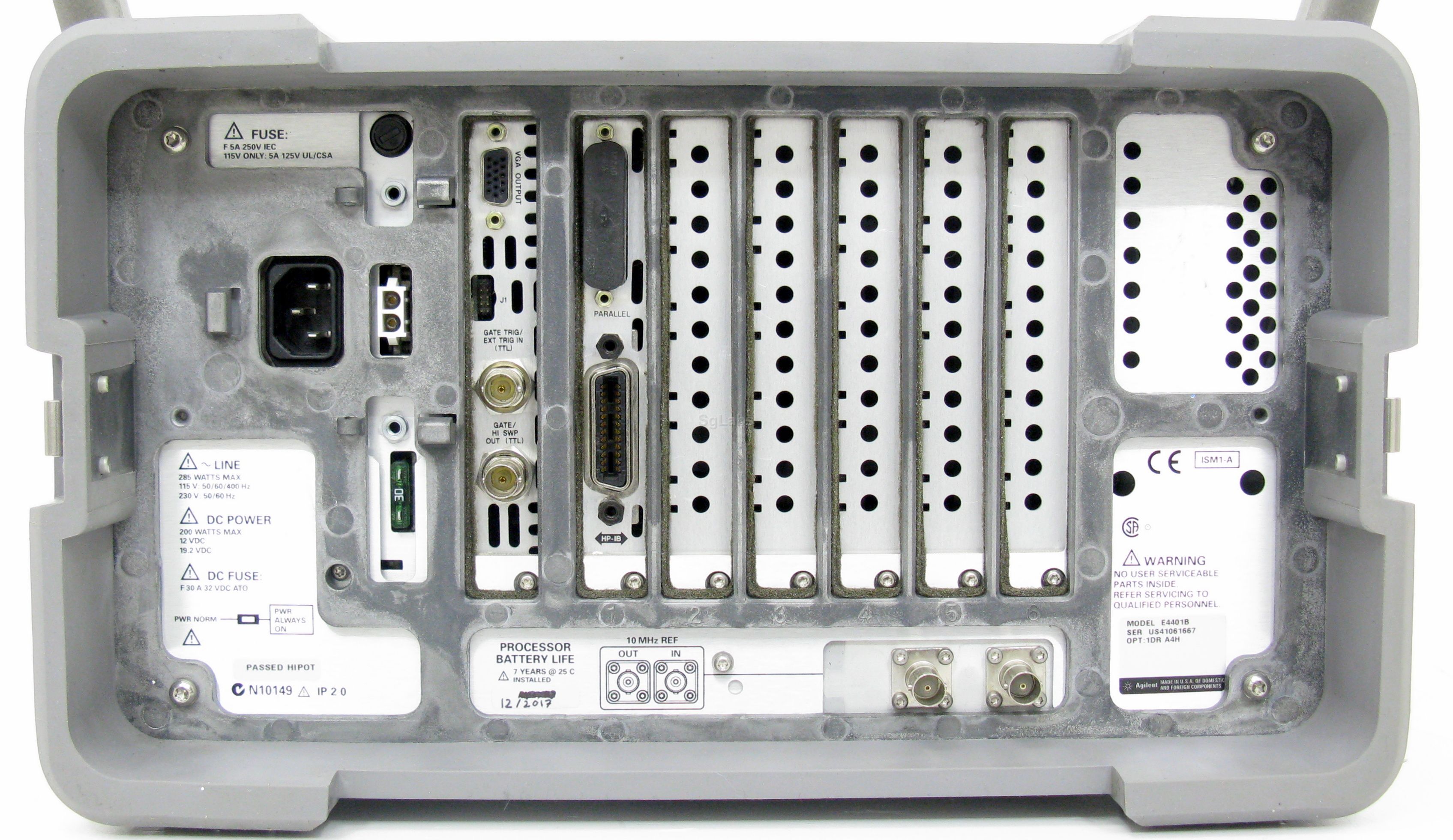

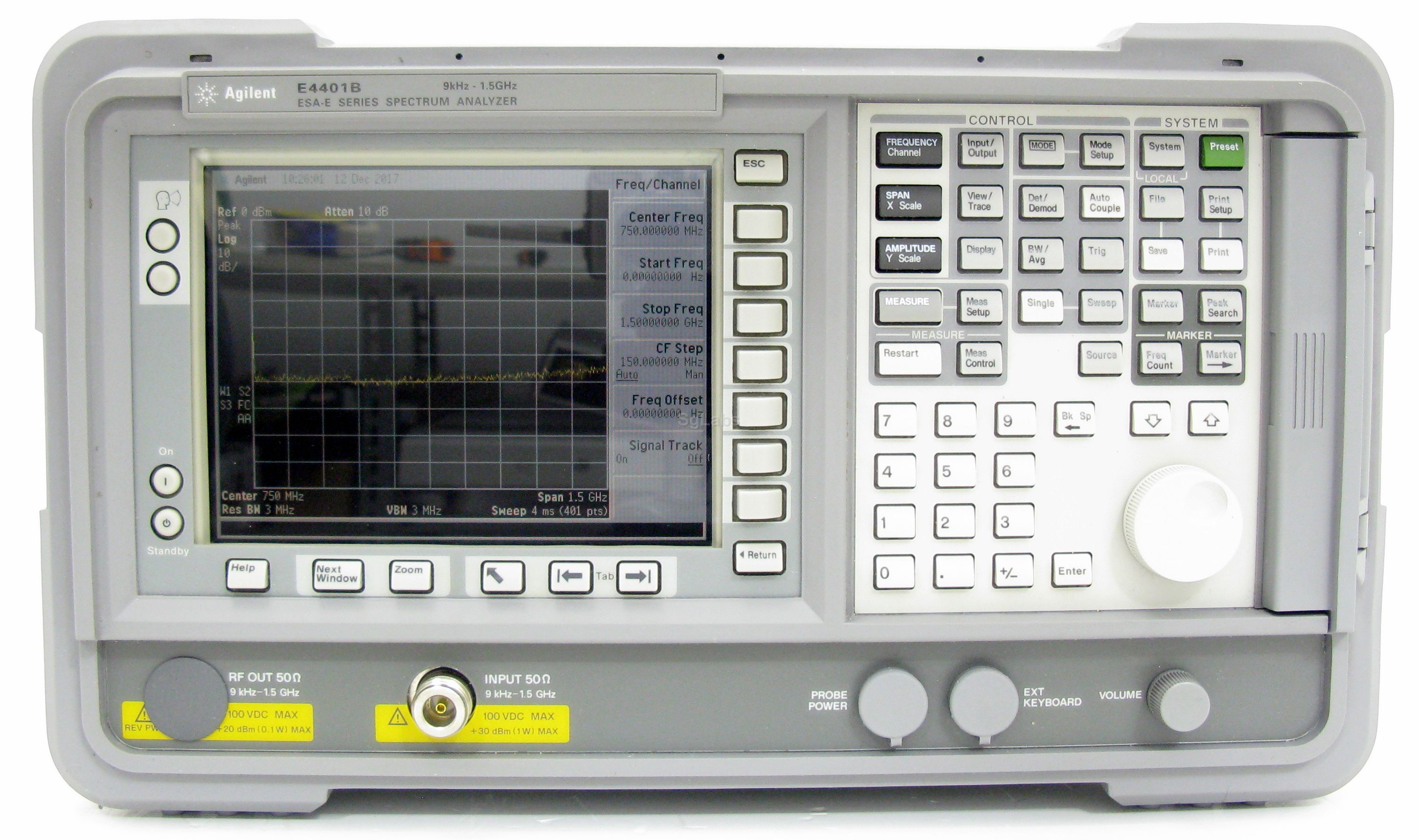

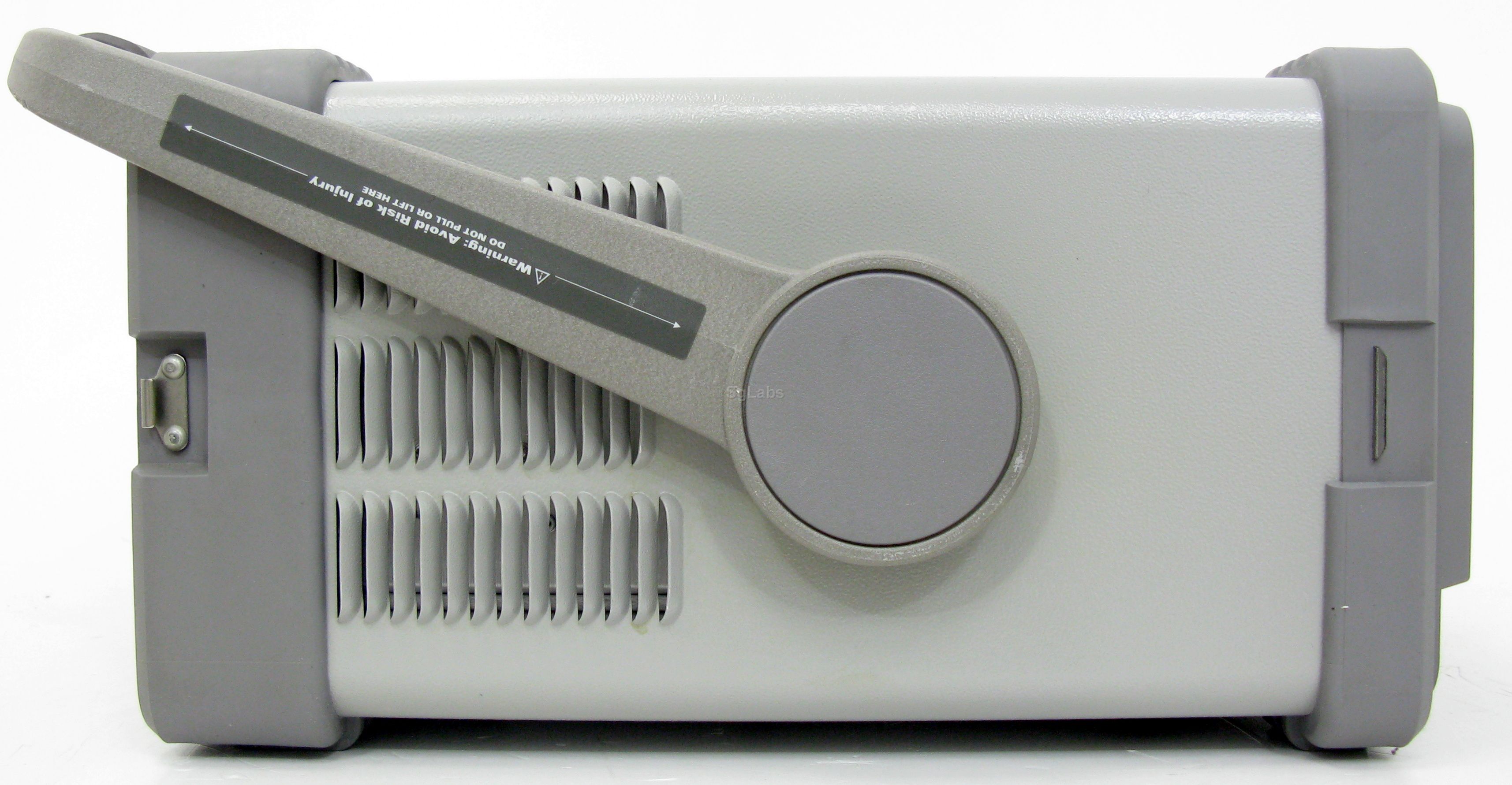

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
HP/AGILENT E4401B is a member of ESA family of spectrum analyzers have proven and guaranteed performance with the flexibility to select the right level of functionality for your test needs. Take advantage of the best overall performance on a mid-performance spectrum analyzer.

Features
  • Frequency Range 9 kHz a 1.5 GHz
  • Frequency Span 0 Hz (zero span),100 Hz to full span
  • Resolution bandwidth 1 kHz to 5 MHz (–3 dB) in step 1-3
  • Filters EMI 9 kHz and 120 kHz (–6 dB)
  • Input attenuator range 0 to 60 dB, in 5 dB steps
  • Maximum safe input level +30 dBm (1 W)

Options descriptions (asks for availability)

  • Option 1AX: Serial interface RS-232, 9-pin D-SUB (m)
  • Option 1DR: Narrow Resolution BW
  • Option A4H: GPIB & Parallel Interfaces
  • Compatibility: EMI
  • Display: VGA TFT
  • Max. Frequency: 1,5 GHz
  • Min. Frequency: 9 kHz
  • Max. Level: 30 dBm
  • Min. Resolution: 1 kHz, 10 Hz with opt 1DR
  • Tracking generator: Option
