HP Agilent Keysight, 8753B

You are here: Network Analyzer » Vector

HP Agilent Keysight, 8753B

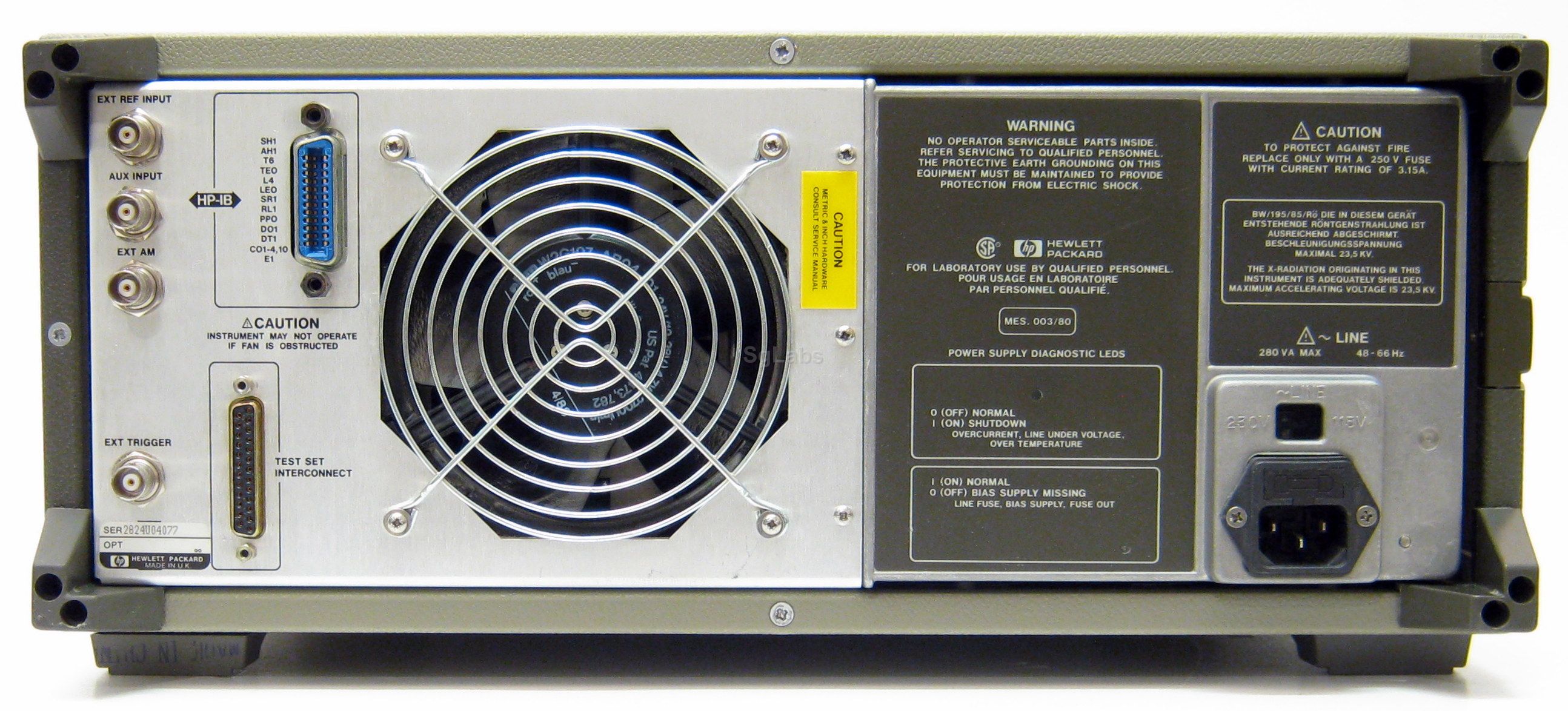

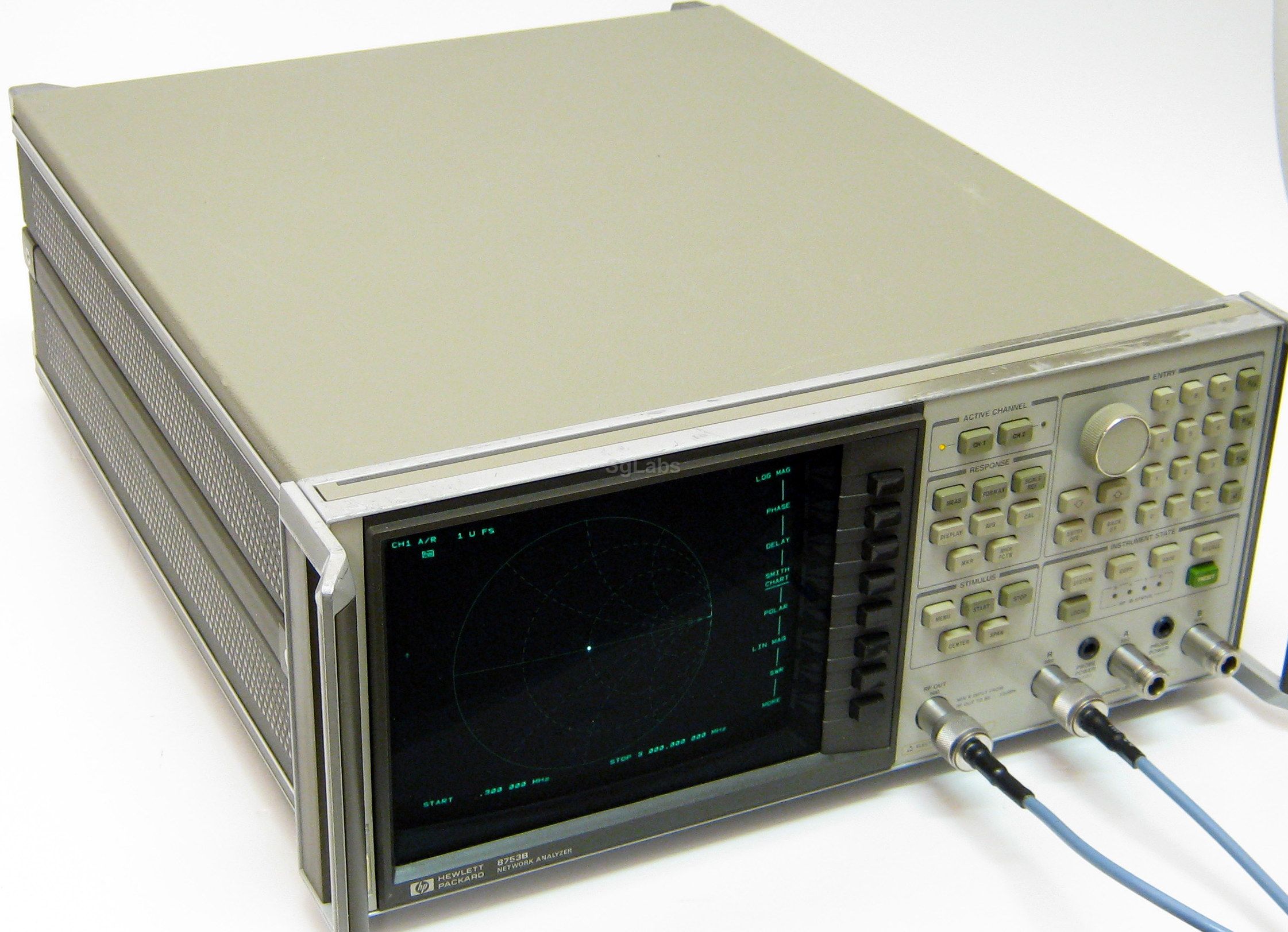

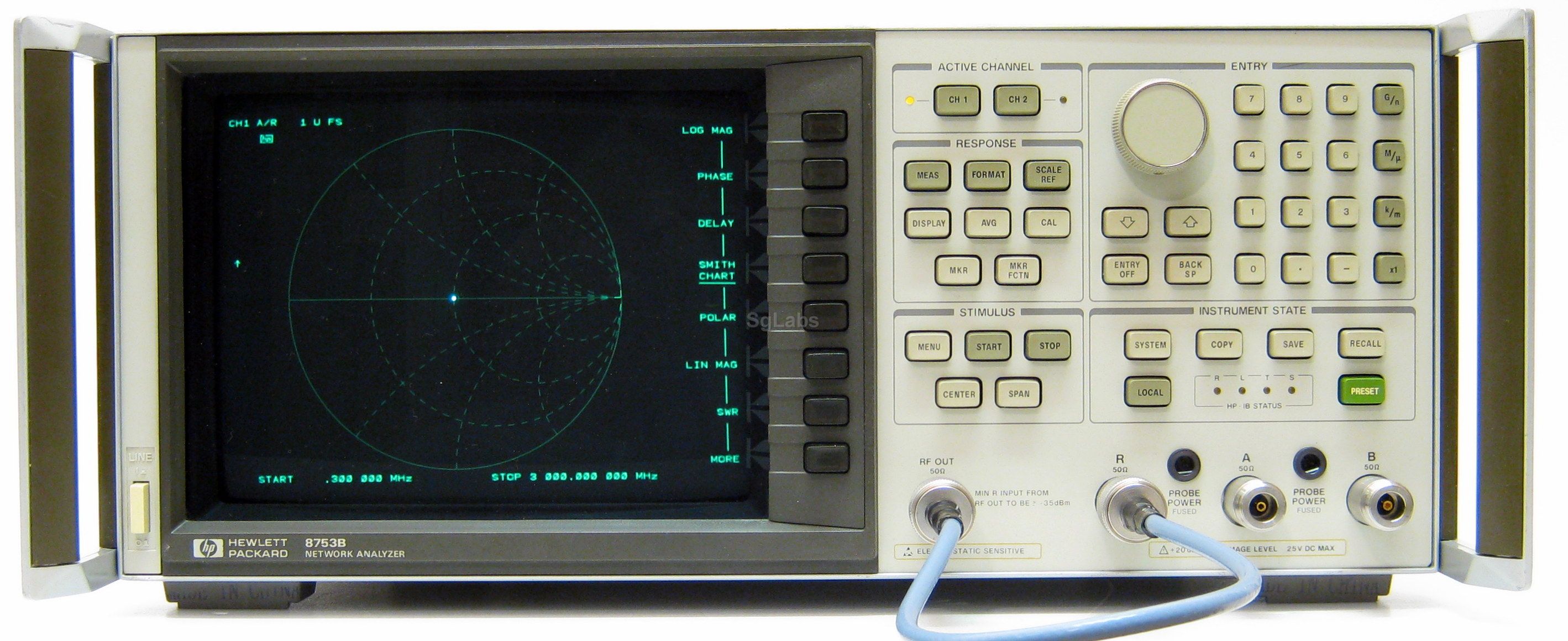

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Min. Frequency 300 KHz Max. Frequency 3 GHz Test set S-parameter external Source internal Channels 2 Interface GP-IB

The 8753B provides excellent RF network measurements for the lab and production test areas. The integrated synthesized source provides 100 mW of output power, 1 Hz frequency resolution, and linear, log, list, power, and CW sweep types. Three tuned, 300 kHz to 6 GHz receivers allow versatile independent power measurements or simultaneous ratio measurements over a 100 dB dynamic range. The instrument has a 0.0-5 dB dynamic accuracy over a 40 dB range. It can also be used for swept harmonic measurements and time domain analysis.

  • Connector: N
  • Max. Frequency: 3 GHz (6 GHz opt.006)
  • Min. Frequency: 300 KHz
  • Channels: 2
  • Source: internal
  • Test set: S-parameter external
  • Interface: GP-IB
