HP Agilent 8664A Sinthesized RF signal generator, 3 GHz high performance
You are here: RF Signal Generator » Digital

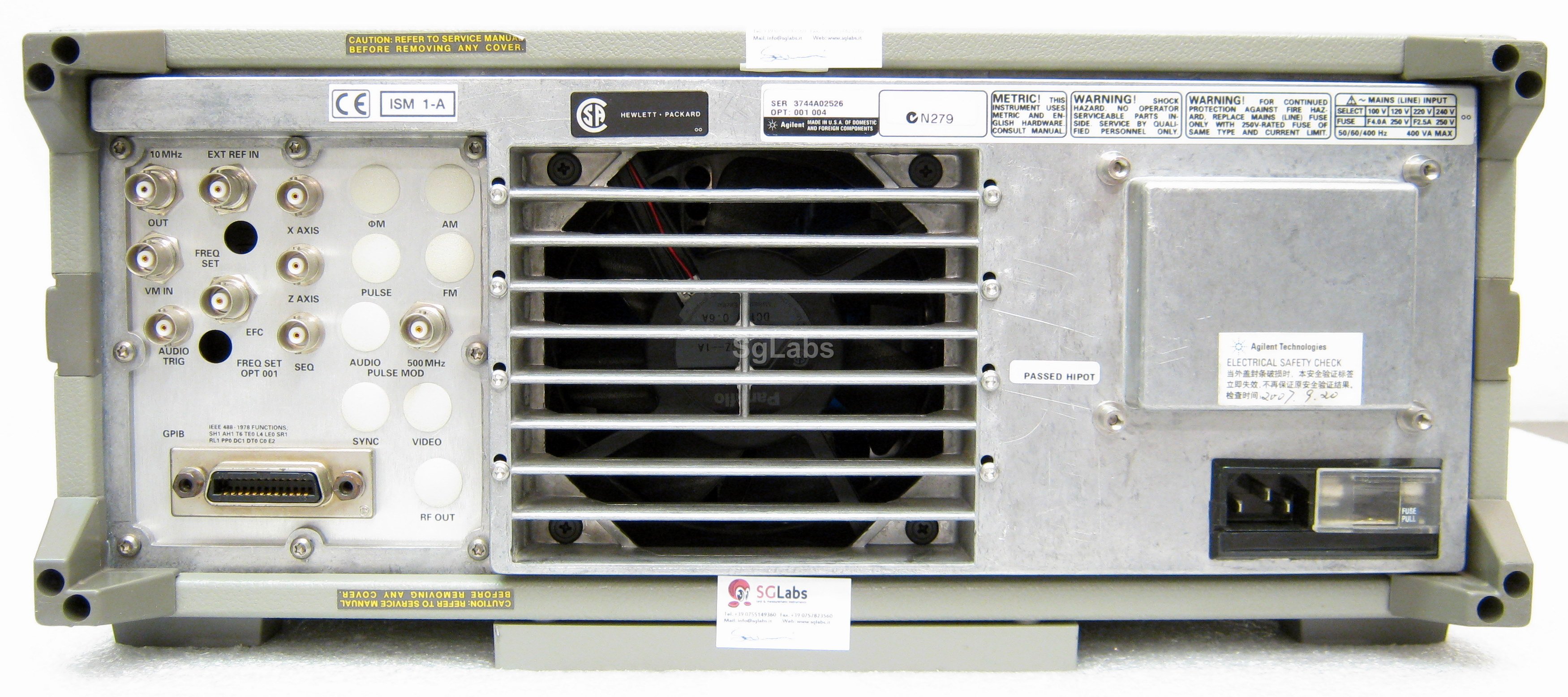

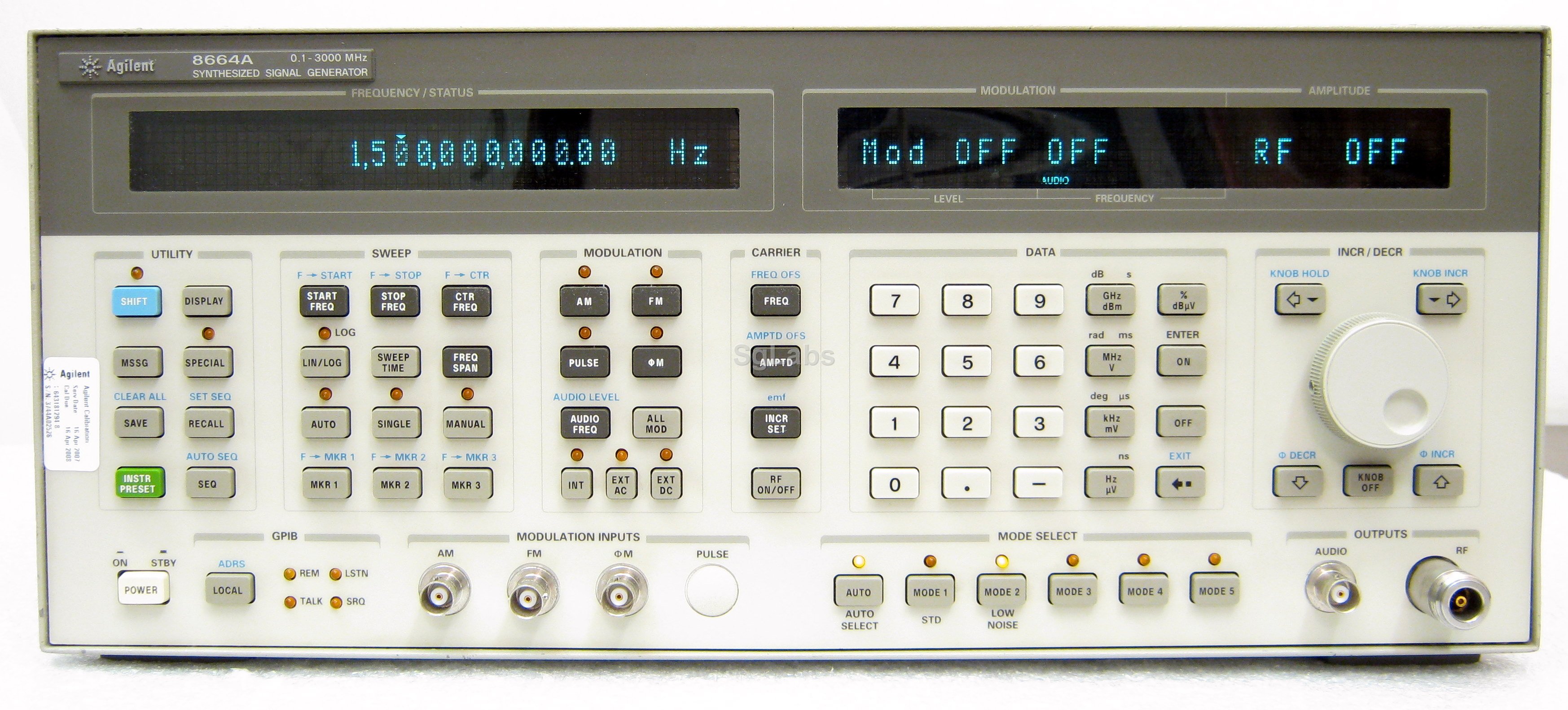

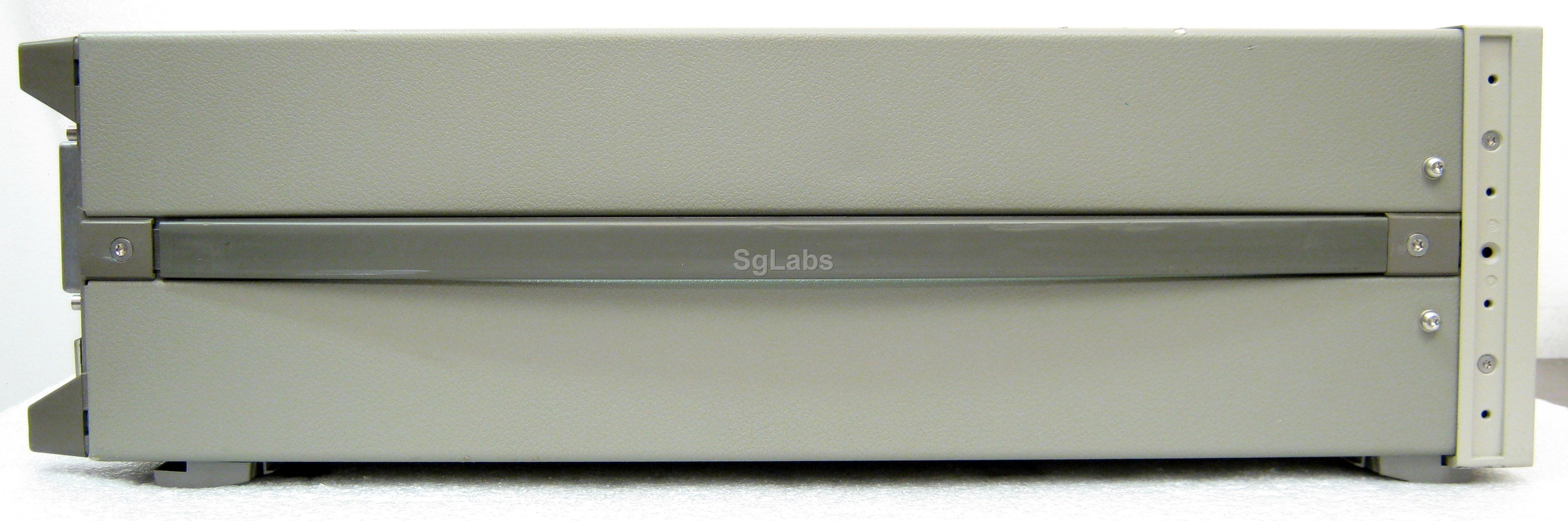

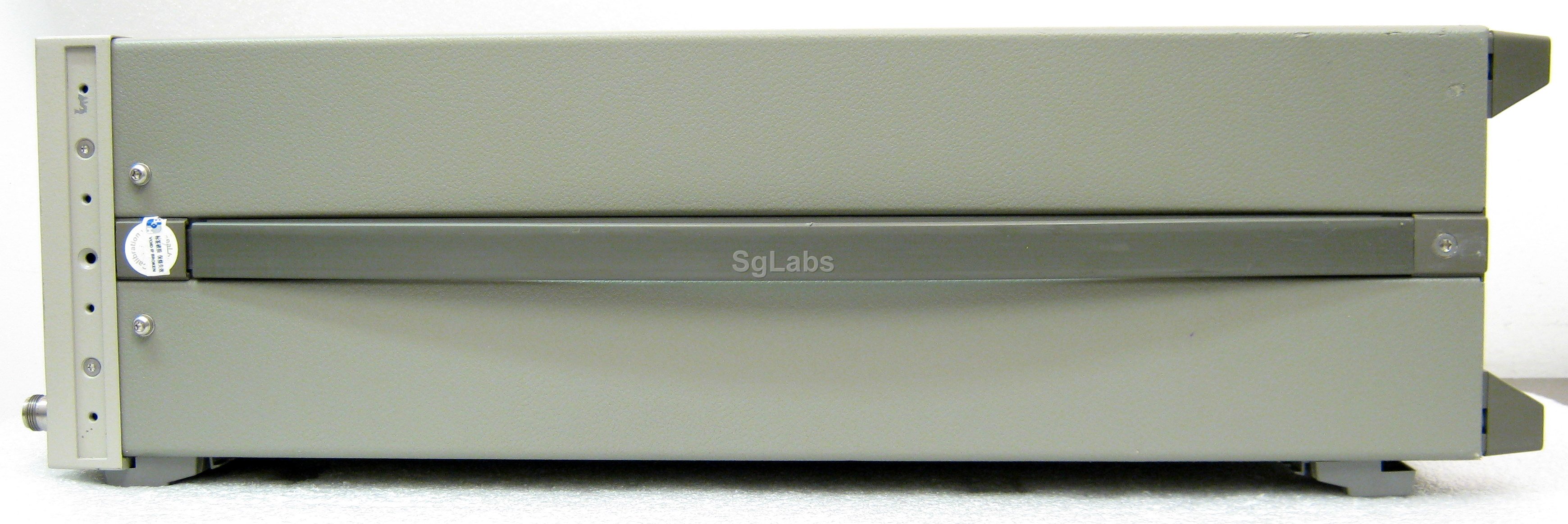

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 8664A signal generator is suited for basic receiver testing up to 3.0 GHz. With Option 004 (low-noise enhancement), it can be used for out-of-channel receiver testing or as a clock source where having the lowest phase jitter is important. Radar testing can be done by adding Option 008 (pulse modulation) . Pulse width and delay can be internally adjusted between 50 ns and 999 ns, eliminating the need for an external pulse generator. Standard FM rates of up to 2 MHz and deviations to 10 MHz are suitable for many applications such as high-speed digital communications.
Features
- Frequency: 3 GHz
- <-100 dBc nonharmonic spurious to 2 GHz reduces error when testing spurious immunity of receivers
- AM, FM, and optional pulse modulation
- 0.01 Hz frequency resolution
- <-140 dBc/Hz typical SSB phase noise at 20 kHz offset at 1 GHz with Option 004
- Max frequency: 3 GHz
- Minimum Frequency: 100 kHz
- Modulation: AM-FM-Pulse
- Max. power: 13 dBm
- Min. output level: -140 dBm
- Resolution: 0.01 Hz
Price
€ 1.200,00
