HP Agilent Keysight, 8660D

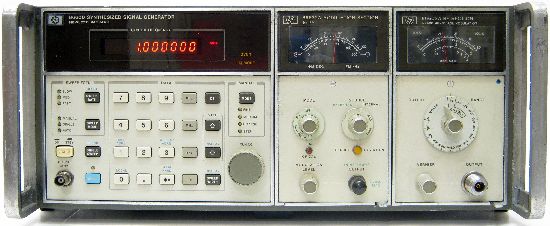

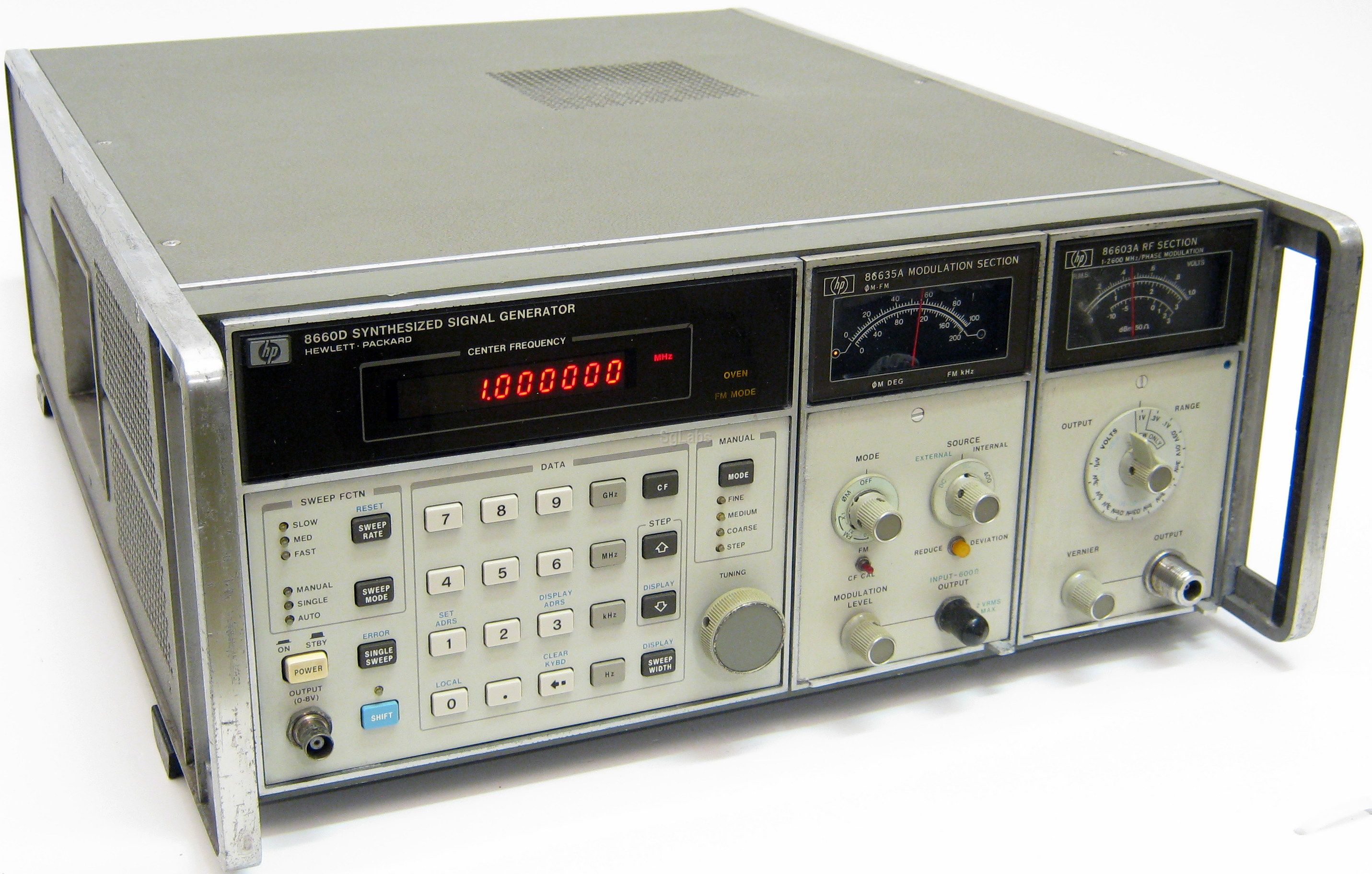

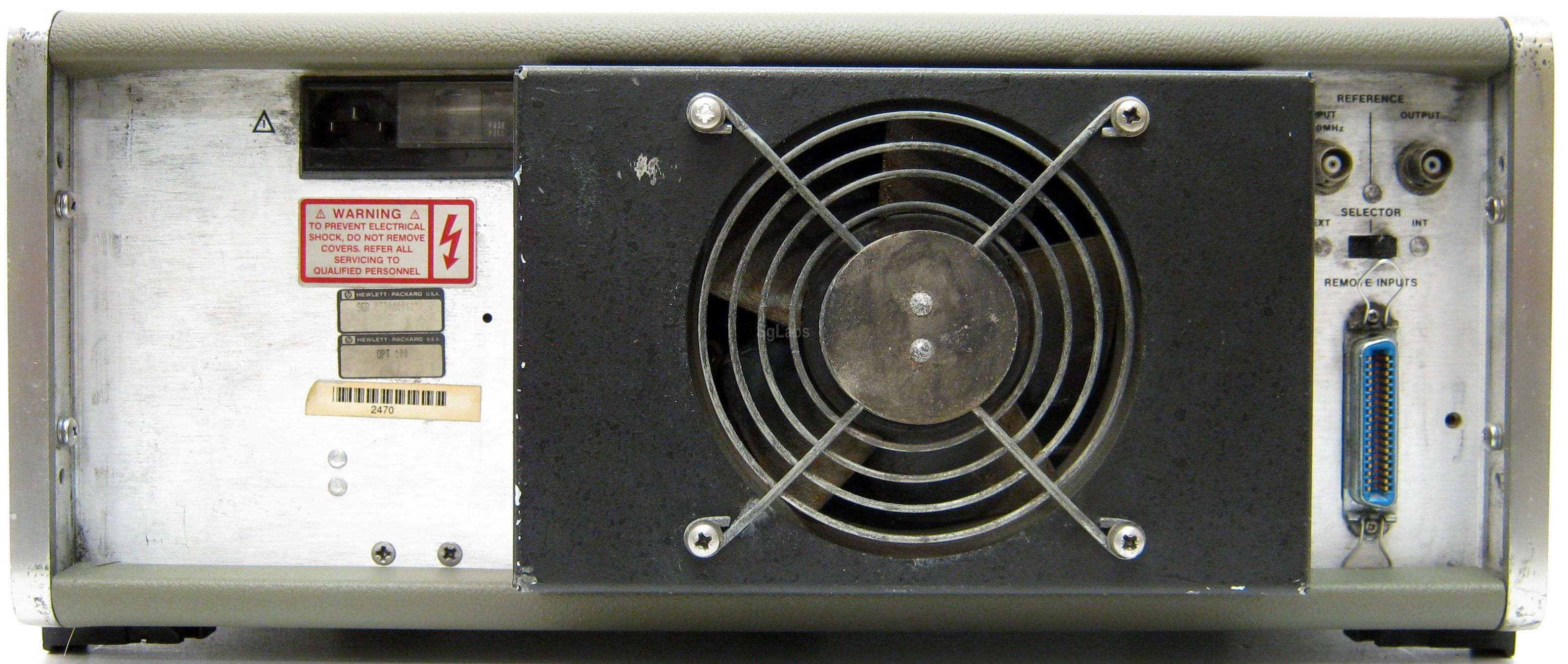

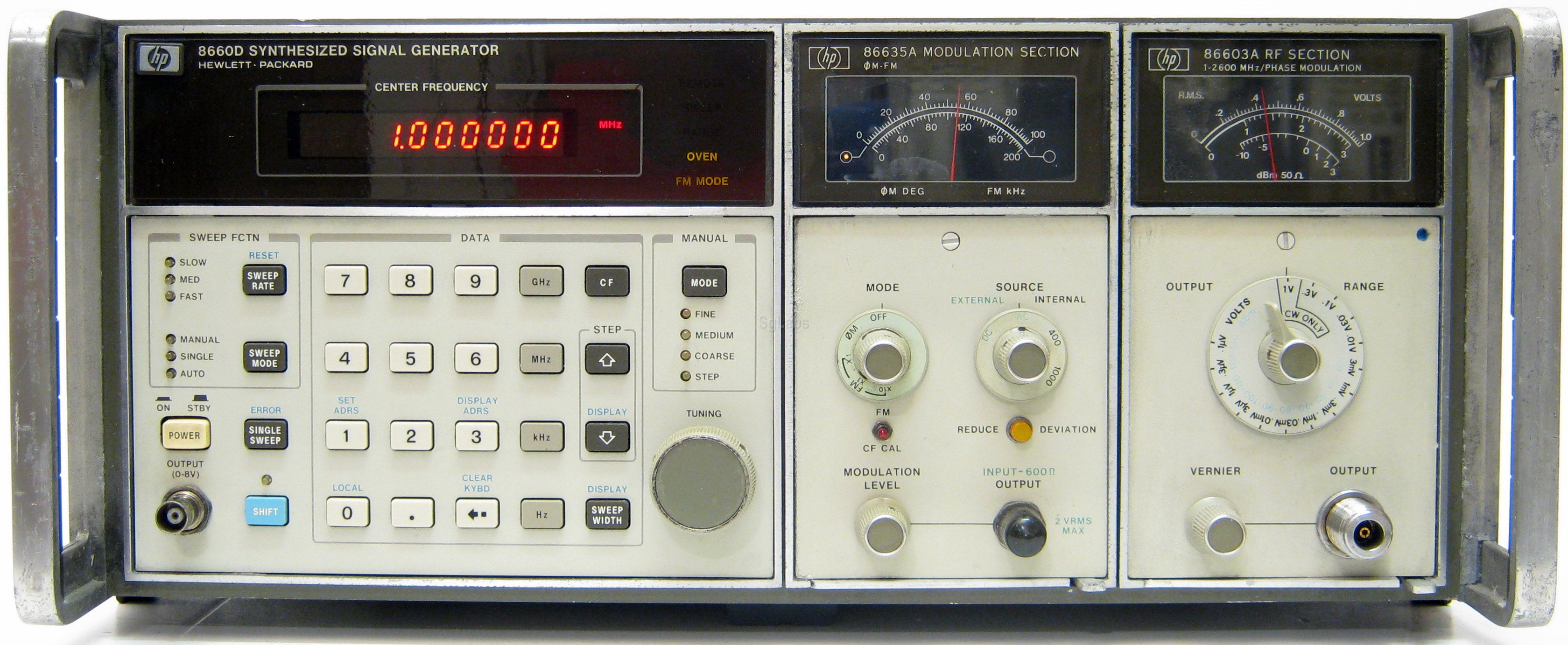

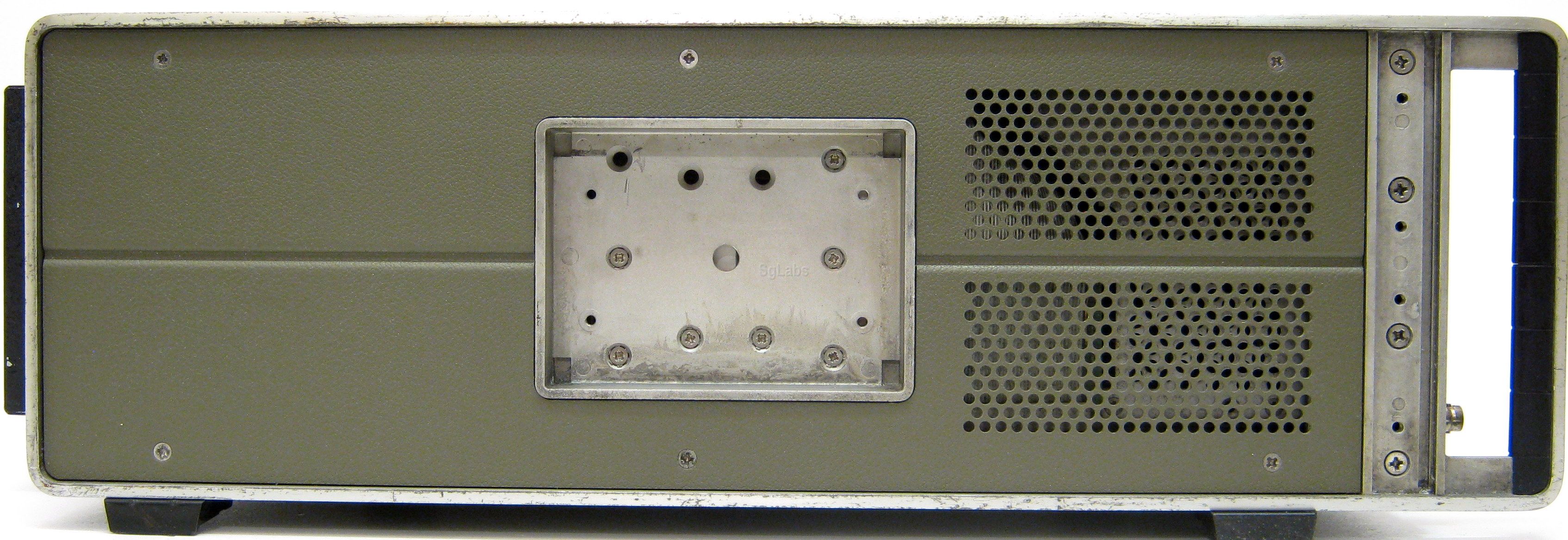

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP Agilent 8660D Synthesized Signal Generator is a modular, solid-state, plug-in system. 10 kHz to 2600 MHz , includes ±3 x 10-9/day Oscillator Option, HP-IB Programmable, Synthesizer stability and accuracy, 10 digit display, 1 Hz resolution (2 Hz above 1300 MHz), Calibrated output over >140 dB range, AM, FM, Phase, or Pulse Modulation

Technical Details:

  • Frequency Range:
    • HP 86601A : 10 kHz - 110 MHz
    • HP 86602B : 1 MHz - 1300 MHz
    • HP 86603A : 1 MHz - 2600 MHz
  • Frequency Resolution:
    • HP 86601A : 1 Hz
    • HP 86602B : 1 Hz
    • HP 86603A : 1 Hz (up to 1300 MHz) - 2Hz (over 1300 MHz)
  • Output Level:
    • HP 86601A : +13 dBm / -146 dBm
    • HP 86602B : +10 dBm / -146 dBm
    • HP 86603A :
      • +10 dBm / -136 dBm (CF< 1300 MHz)
      • +7 dBm / -136 dBm (CF>= 1300 MHz)
  • Modulation: AM - FM - PM - Pulse (depending of modulation section)

  • Max frequency: 2600 MHz
  • Minimum Frequency: 10 KHz
  • Modulation: AM-(FM-PM-Pulse option)
  • Max. Output level: +10 dBm
  • Min. output level: -136 dBm
  • Resolution: 1 Hz (2 Hz from 1.3 GHz)
