HP Agilent Keysight, 8594EM

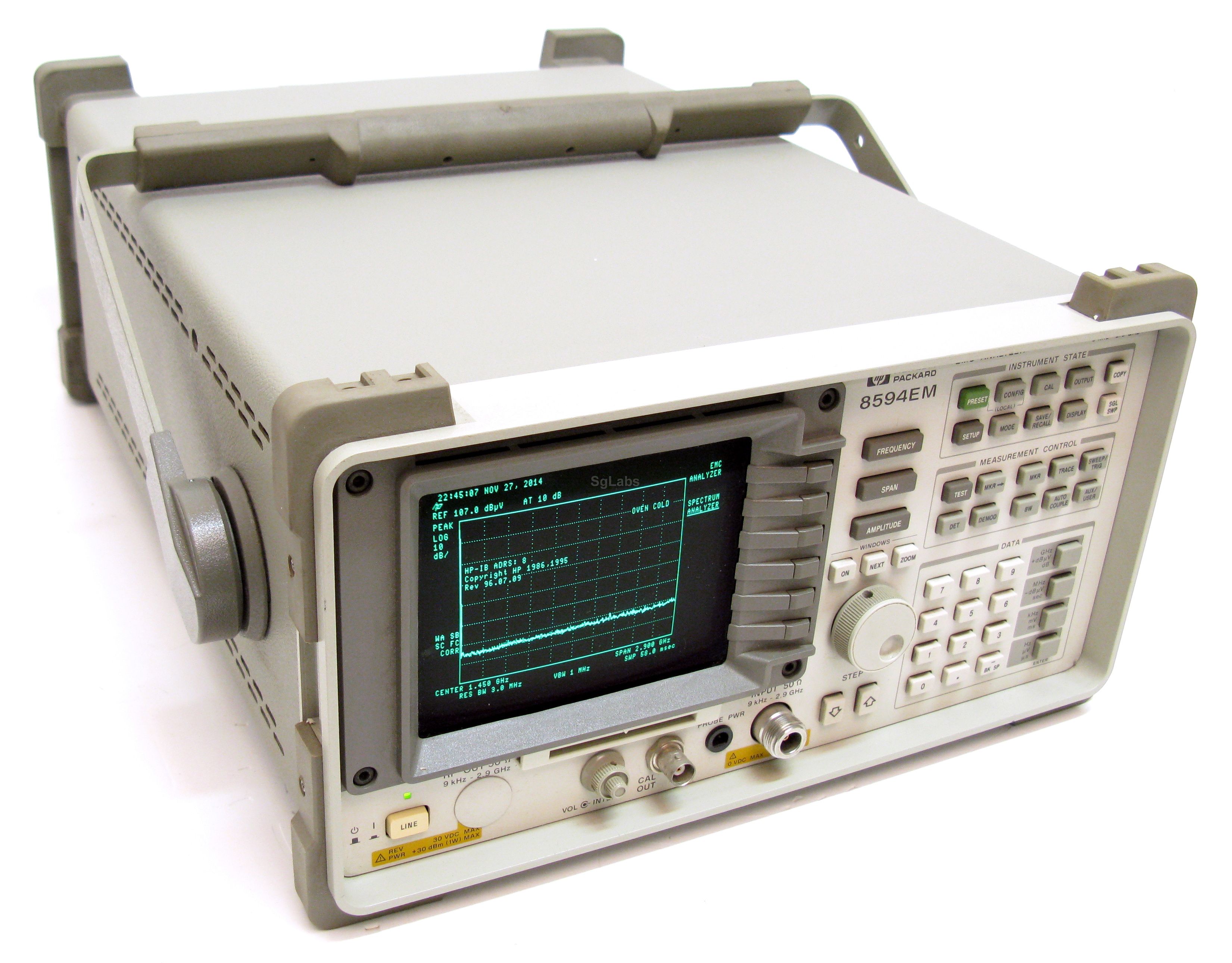

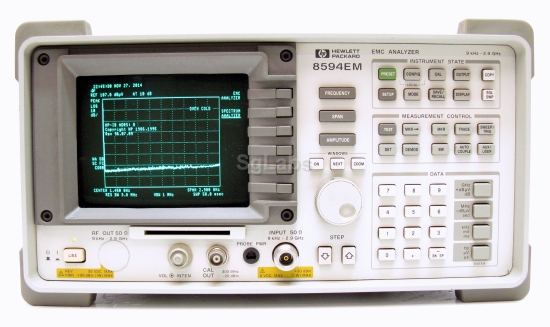

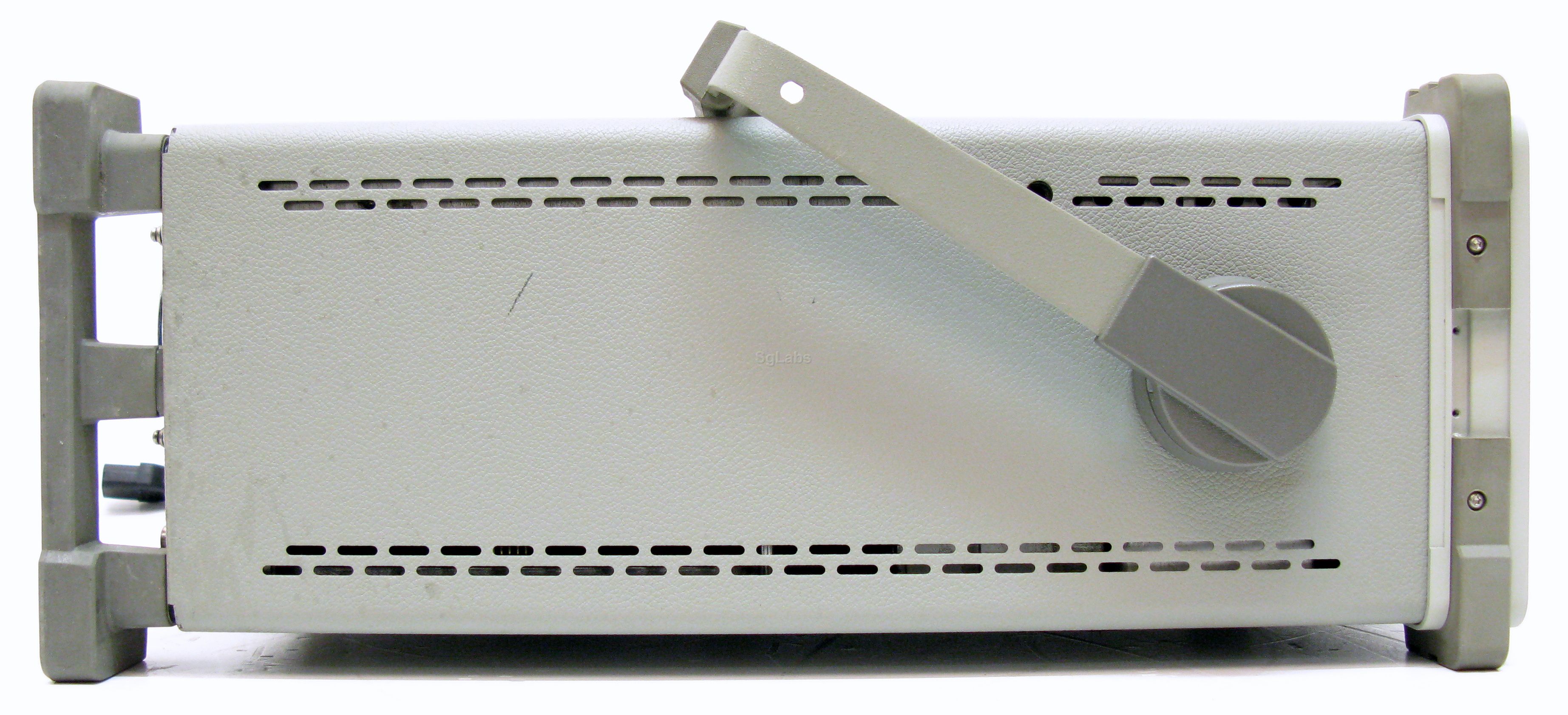

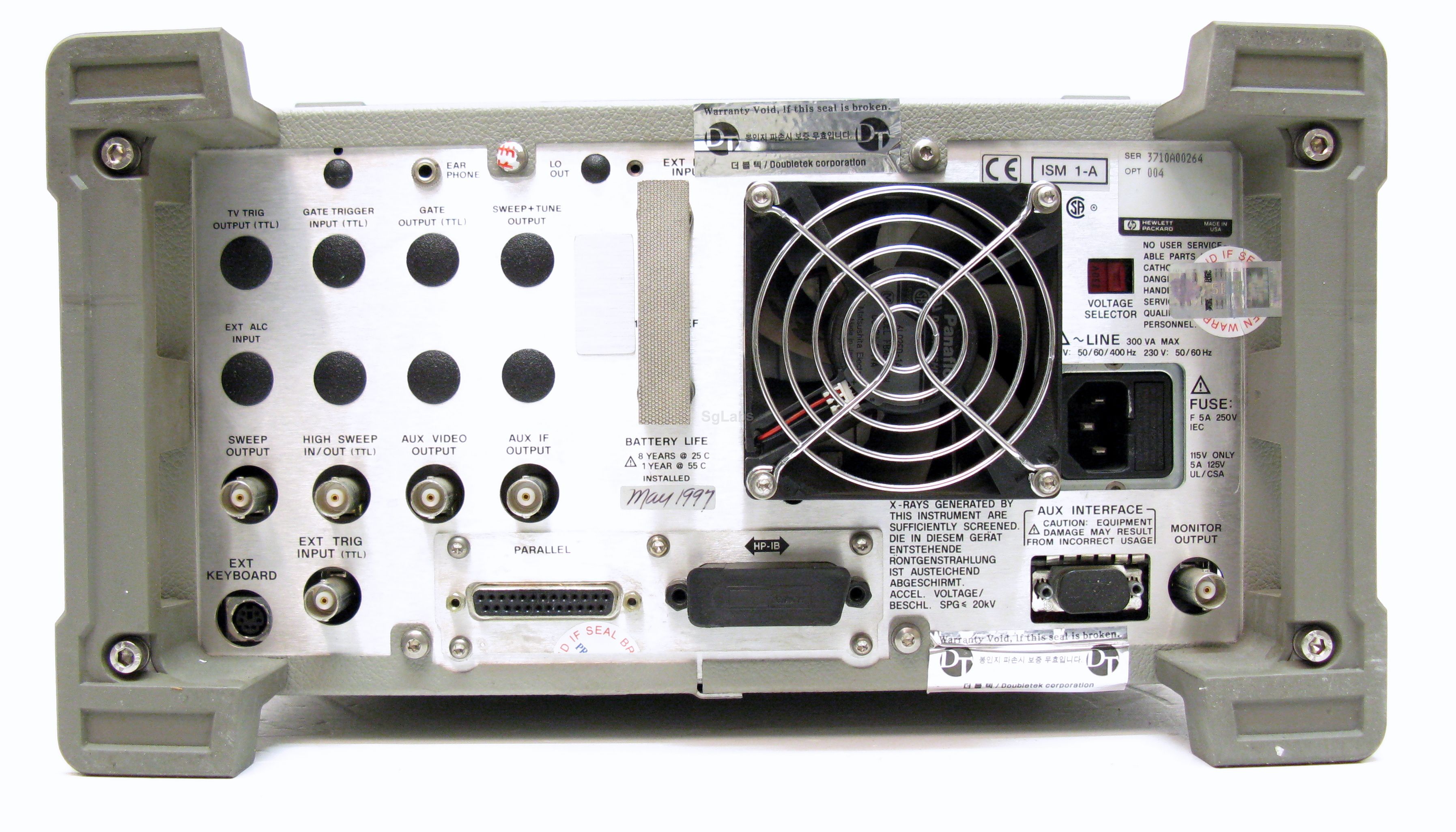

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Keysight 8594EM is a stand-alone, automated EMC precompliance analyzer that reduces the time it takes to find, measure and document radiated and conducted EMI emissions. It belongs to the Keysight 8590EM series of EMC analyzers, which do not require an external computer and automation software to perform automated EMC measurements. With an upper frequency of 2.9 GHz, the Keysight 8594EM can perform precompliance tests on products with clock frequencies up to 500 MHz.

The Keysight 8594EM has two modes of operation: EMI analysis and spectrum analysis. With the press of a key, this analyzer converts from EMC analyzer to full-function spectrum analyzer for use in a wide variety of non-EMC applications. Based on our highly versatile 8590 E-series spectrum analyzers, this EMC analyzer simplifies the EMC measurement process with fully integrated automation features.

  • Display: CRT monochrome
  • Max. Frequency: 2.9 GHz
  • Min. Frequency: 9 KHz
  • Min. Resolution: 30 Hz
  • Tracking generator: optional
