HP Agilent Keysight, 8591E

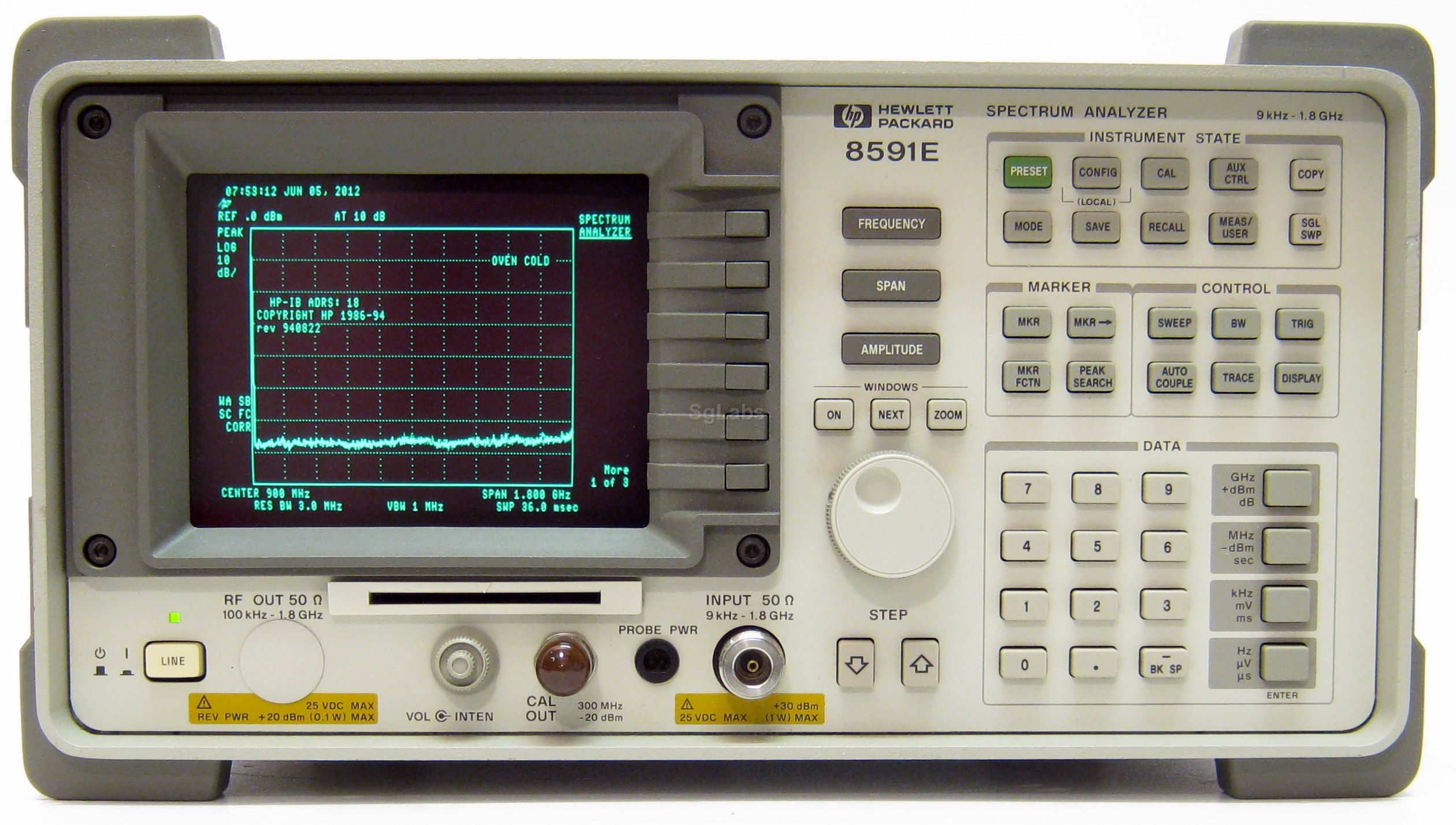

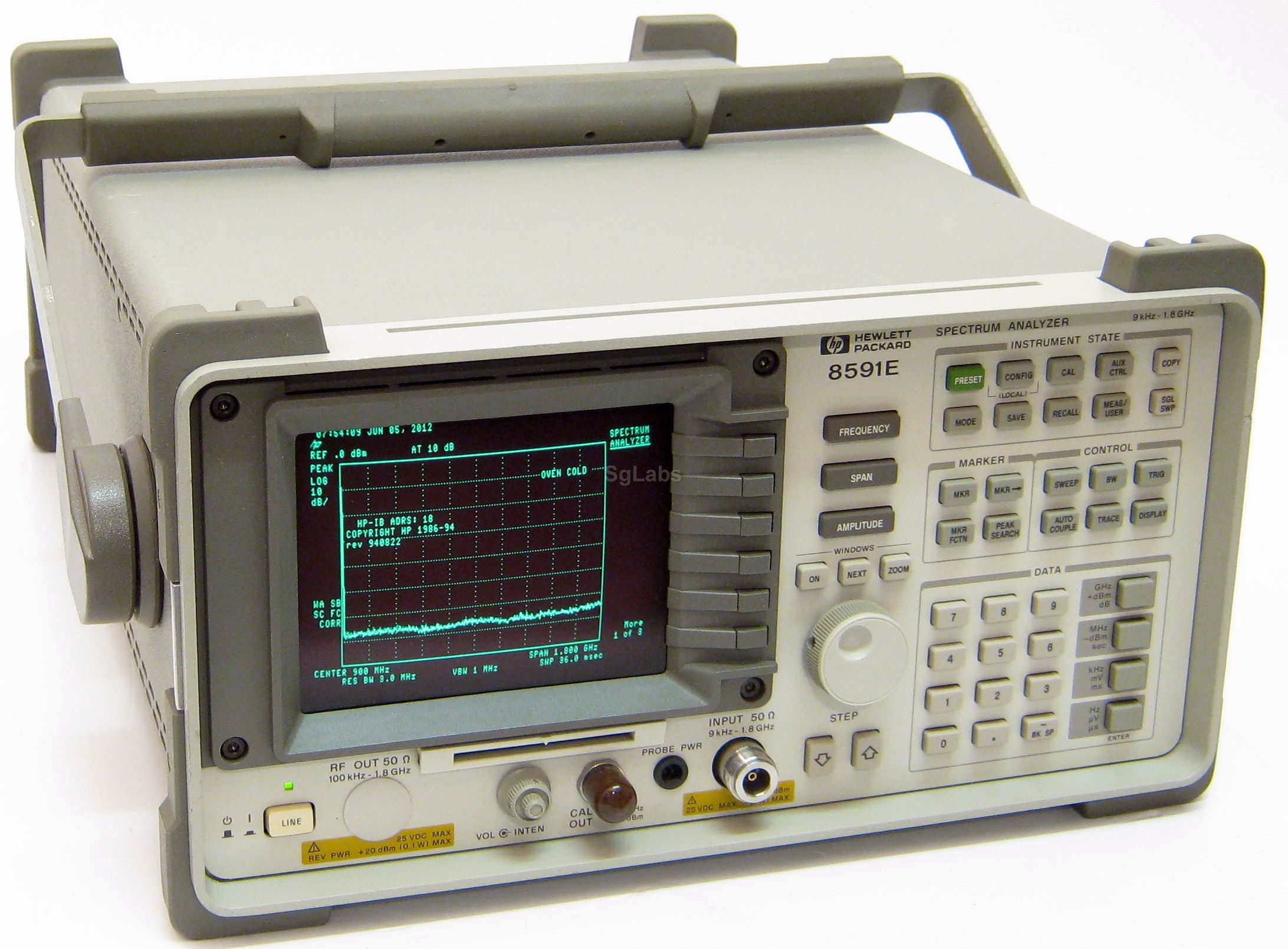

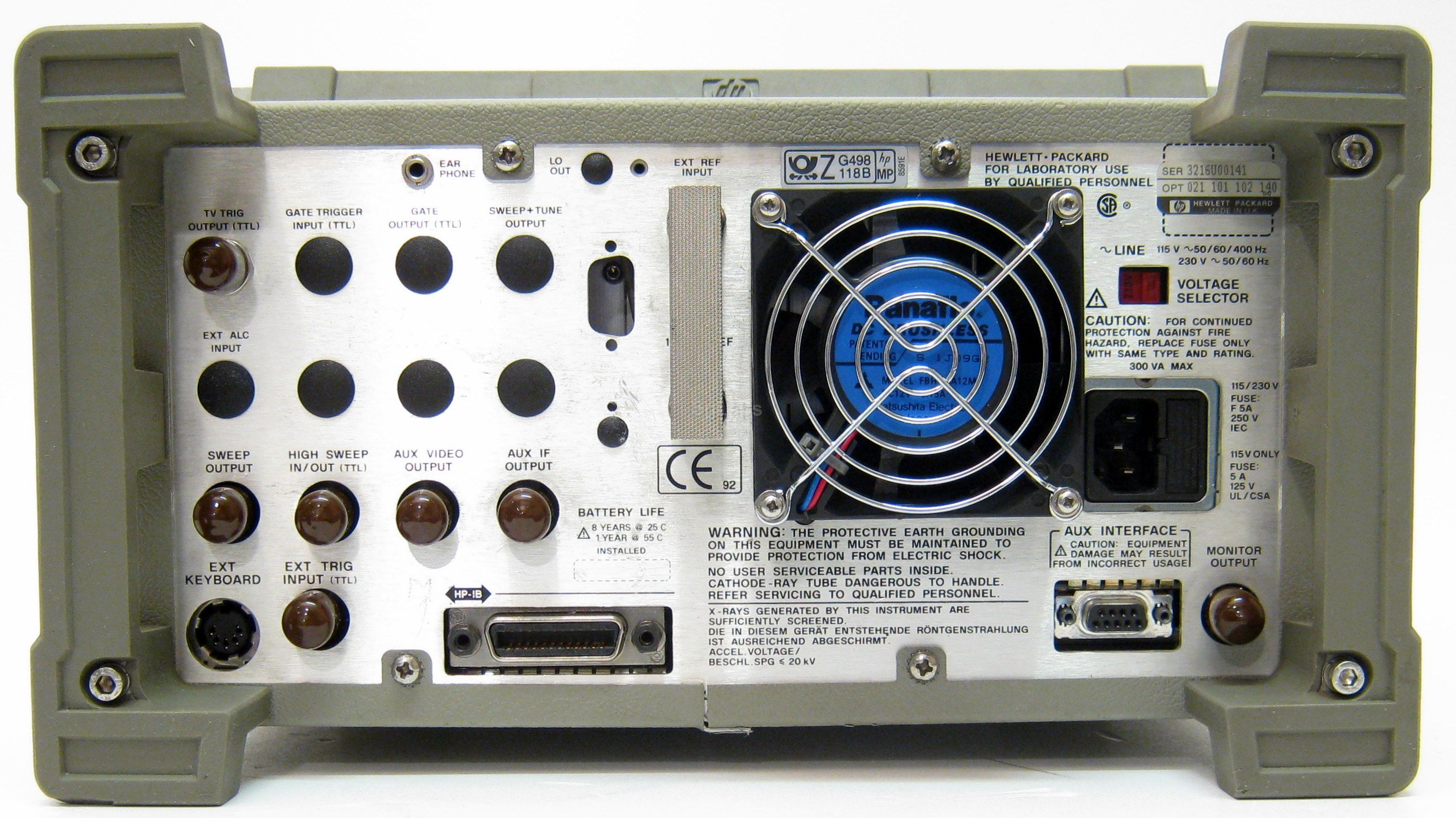

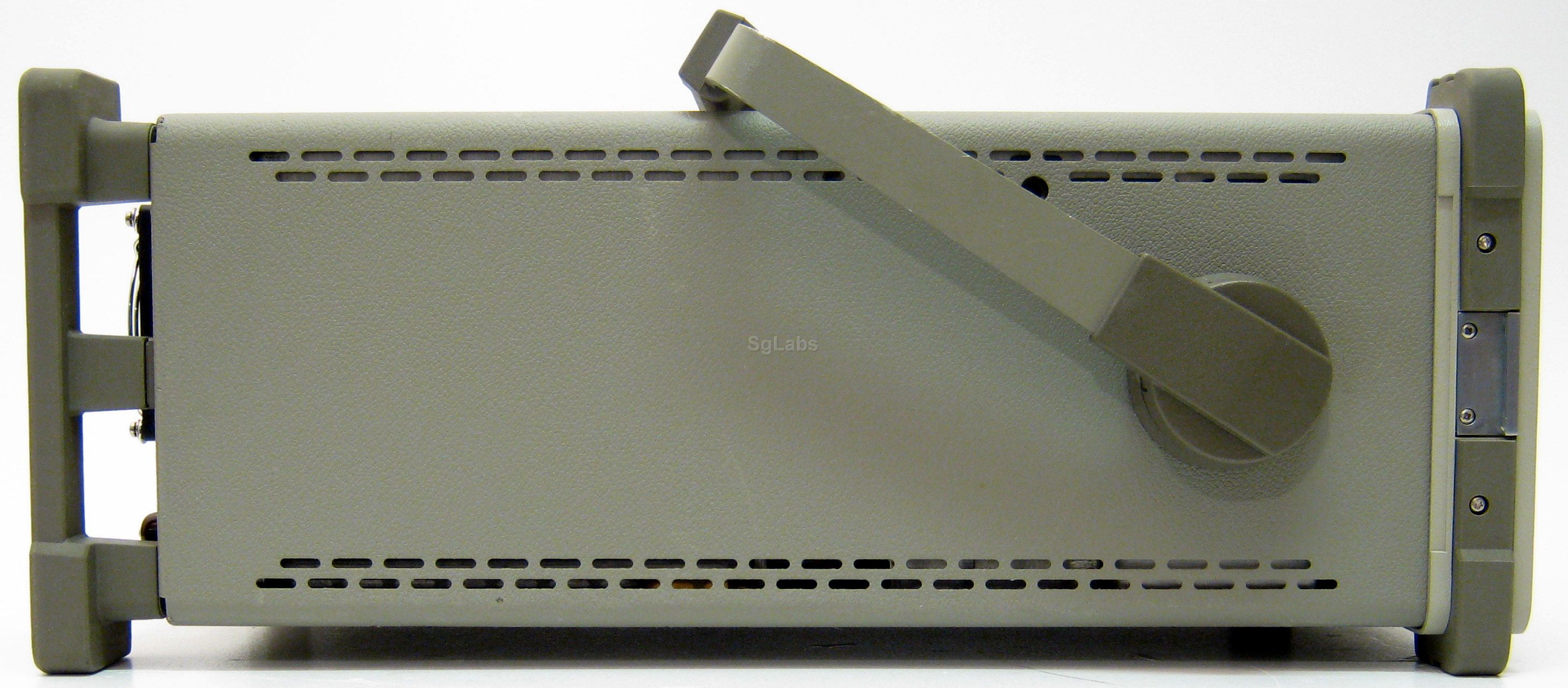

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP / Agilent 8591E is an easy-to-use RF Spectrum Analyzer that offers a wide range of performance, features, and optional capability to meet your measurement needs.

Perform complex tests simply and quickly with measurement personalities that support applications like cable TV/broadcast, component test, electromagnetic compatibility, lightwave, and wireless communications.

The 8591E operates from 9 kHz to 1.8 GHz.
Features
  • Frequency range 9 kHz to 1.8 GHz
  • Range RBW1 kHz to 3 MHz
  • Noise Level < -115 dBm
  • Maximum safe input+30 dBm
  • Digital Display CRT monochrome with read-out

Installable Options: descripions

  • Opt. 004: Precision Frequency Reference
  • Opt.010/011: Tracking generator (50/75 ohm)
  • Opt. 021: HP-IB Interface
  • Opt. 040: GPIB and Parallel printer interfaces
  • Opt. 101: Fast Time Domain Sweeps and Analog + Display
  • Opt. 103: Quasi-peak detector
  • Opt. 105: Time-gated spectrum analysis
  • Opt. 130: Narrow resolution bandwidth (30 to 300 Hz and 200 Hz EMI)
  • Display: CRT monochrome
  • Max. Frequency: 1.8 GHz
  • Min. Frequency: 9 KHz
  • Min. Resolution: 1 KHz
  • Tracking generator: optional
