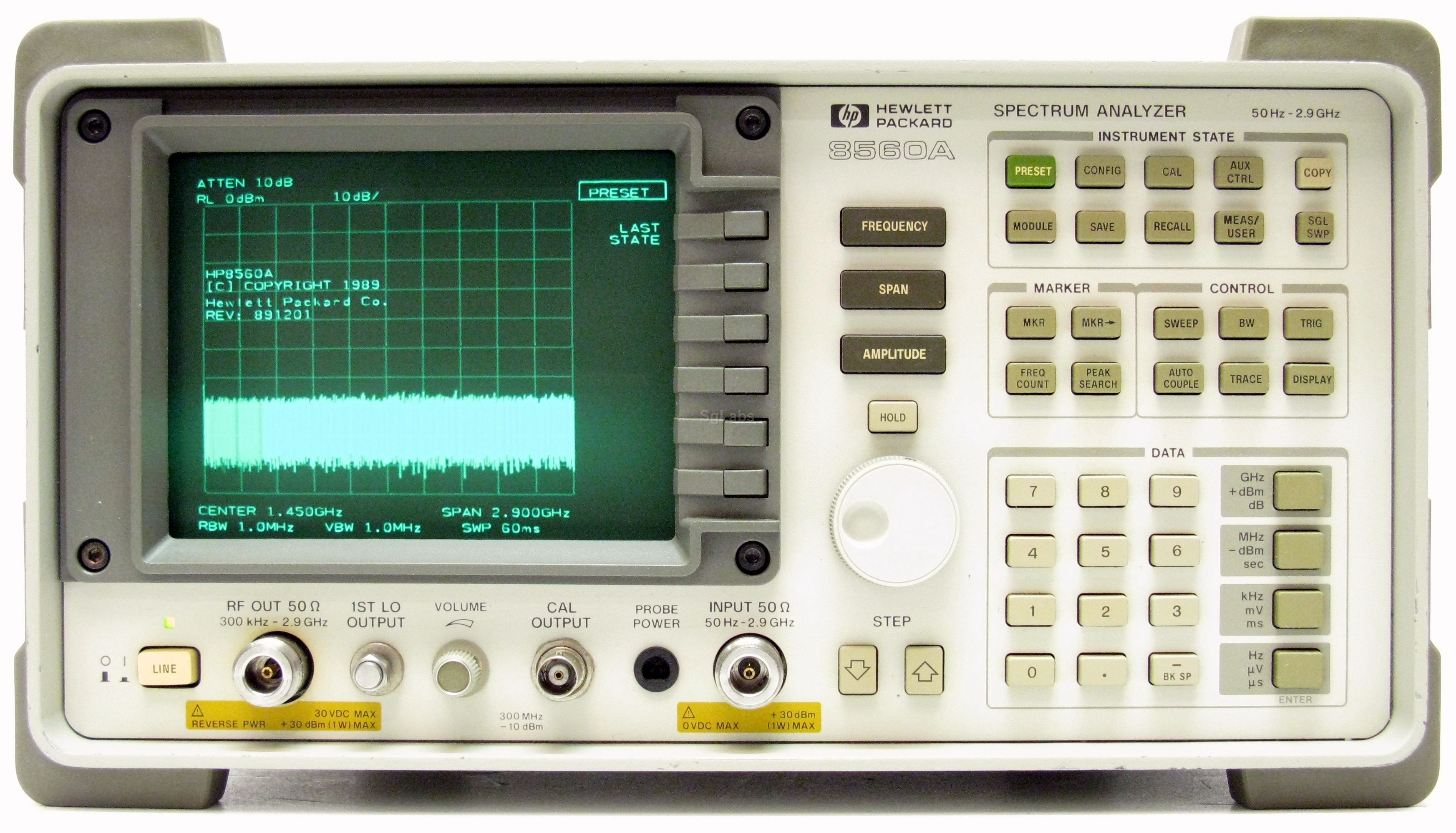

The HP Agilent 8560A Programmable Spectrum Analyzers, offer excellent performance for RF design and service applications. The Agilent HP 8560A, Programmable Spectrum Analyzer, has a frequency range of 50Hz to 2.9 GHz. It has a synthesized tuning for drift-free, accurate measurements. Has a sensitivity of - 130 dBm and digital bandwidths of 10, 30, and 100 Hz.
Technical details :
- Frequency range 50 Hz to 2,9 GHz(dc-coupled), 100 KHz to 2,9 GHz(ac-coupled)
- Range RBW 10 Hz to 1 MHz
- Maximum safe input +30 dBm
- Modulation type AM e FM
- Sweep time range 50 µs to 60 s(zero span), 50 ms to 100 s(span >0)
- Display CRT monochrome
- Tracking generator (Option 002 )
- HP-IB Interface
