The Agilent HP 85046A, S-Parameter Test Set, provides the capability to simultaneously measure the transmission and reflection characteristics of 50 ohm devices.
The HP Agilent 85046A, S-Parameter Test Set, is controlled from the analyzer and includes programmable step attenuators.
The HP Agilent 85046A, S-Parameter Test Set, can be used with the Agilent 8753A/B/C, 8753D/E/ES Option 011, 4395, 4396 and selected 8702 lightwave component analyzer configurations
The HP Agilent 85046A, S-Parameter Test Set, provides the capability to measure reflection and transmission characteristics (including S-parameters) of two-port devices in either direction with a single connection
HP Agilent Keysight, 85046A
You are here: Network Analyzer » Test set

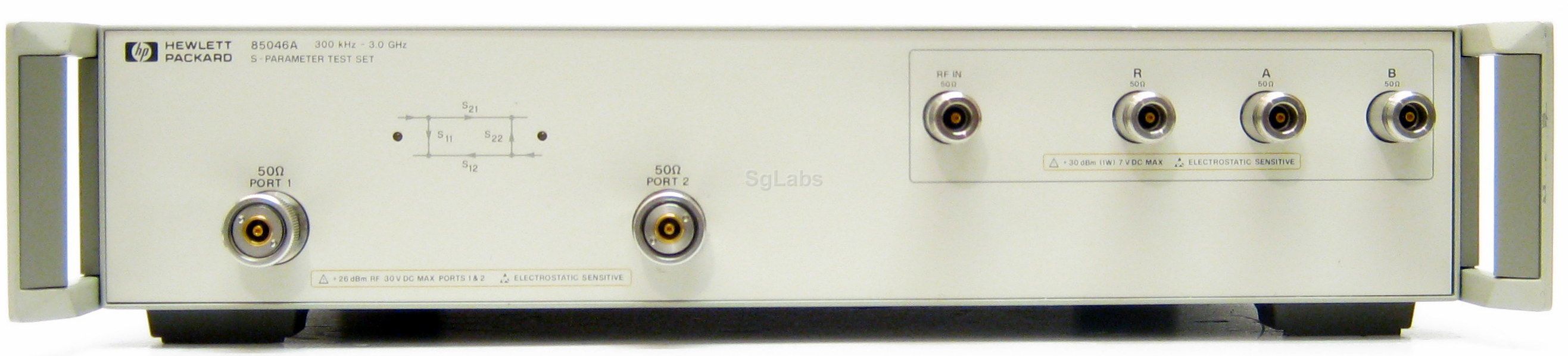

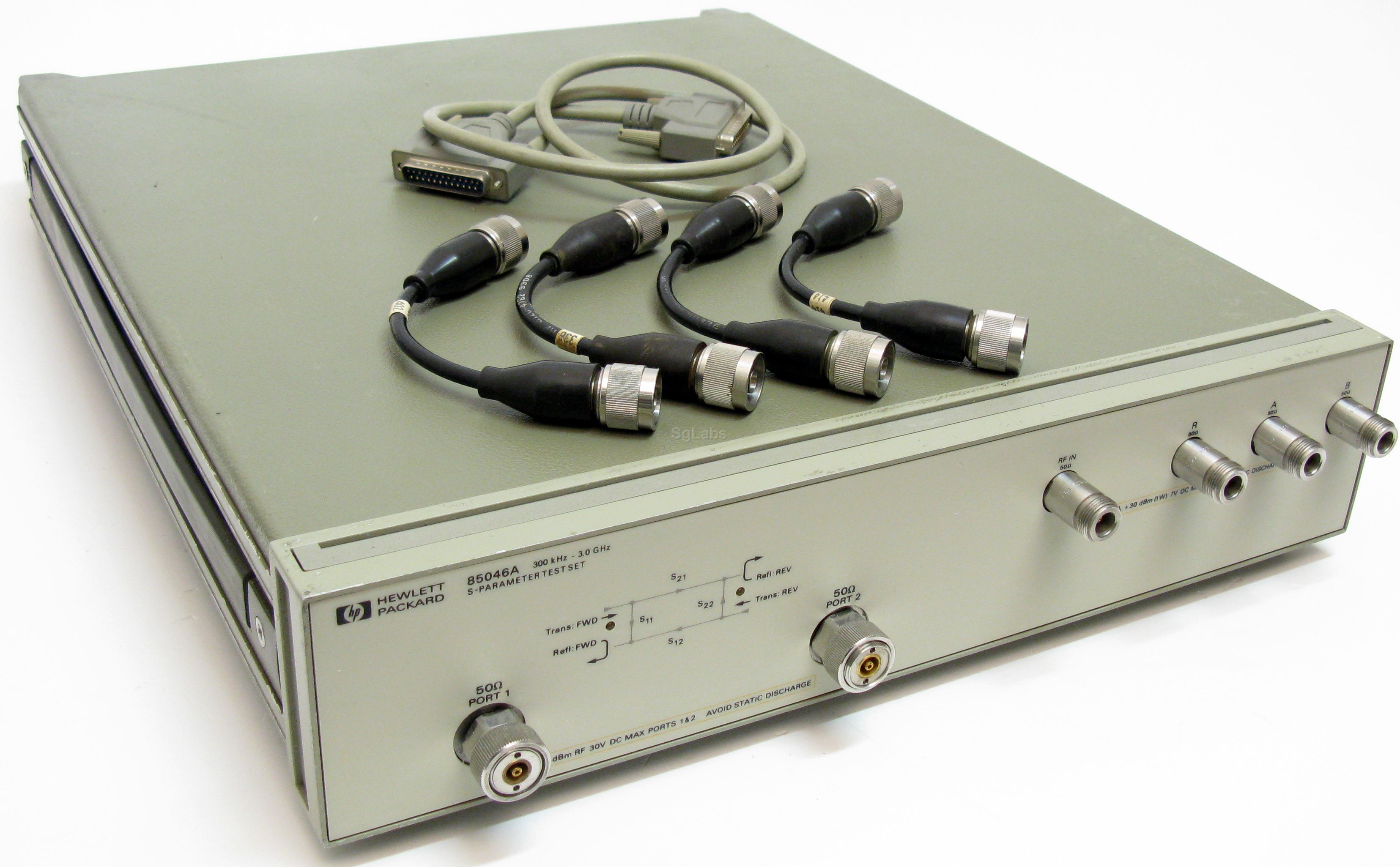

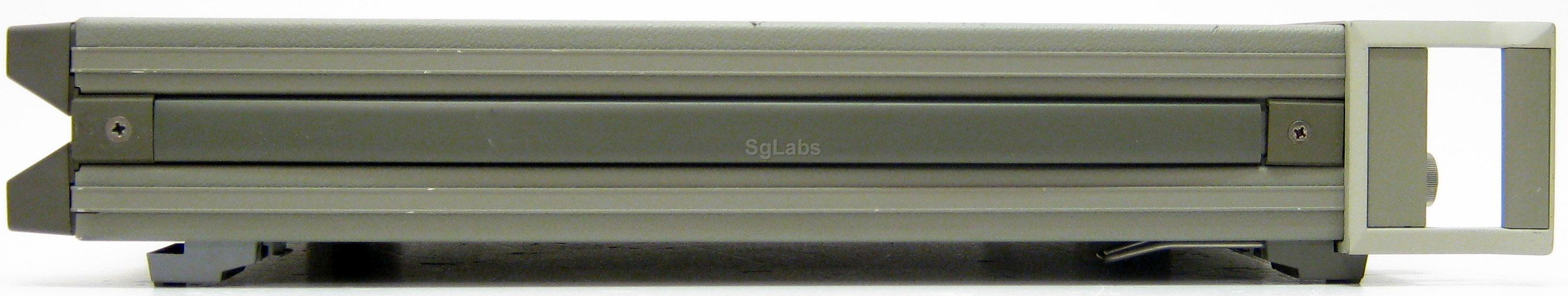

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Includes a programmable step attenuator
- Frequency range 300 kHz to 3 GHz
- Contains precision 7 mm connectors
- Connector: APC7
- Max. Frequency: 3 GHz
- Min. Frequency: 300 kHz
- Channels: 2
- Source: esterna
