HP Agilent Keysight, 83651B

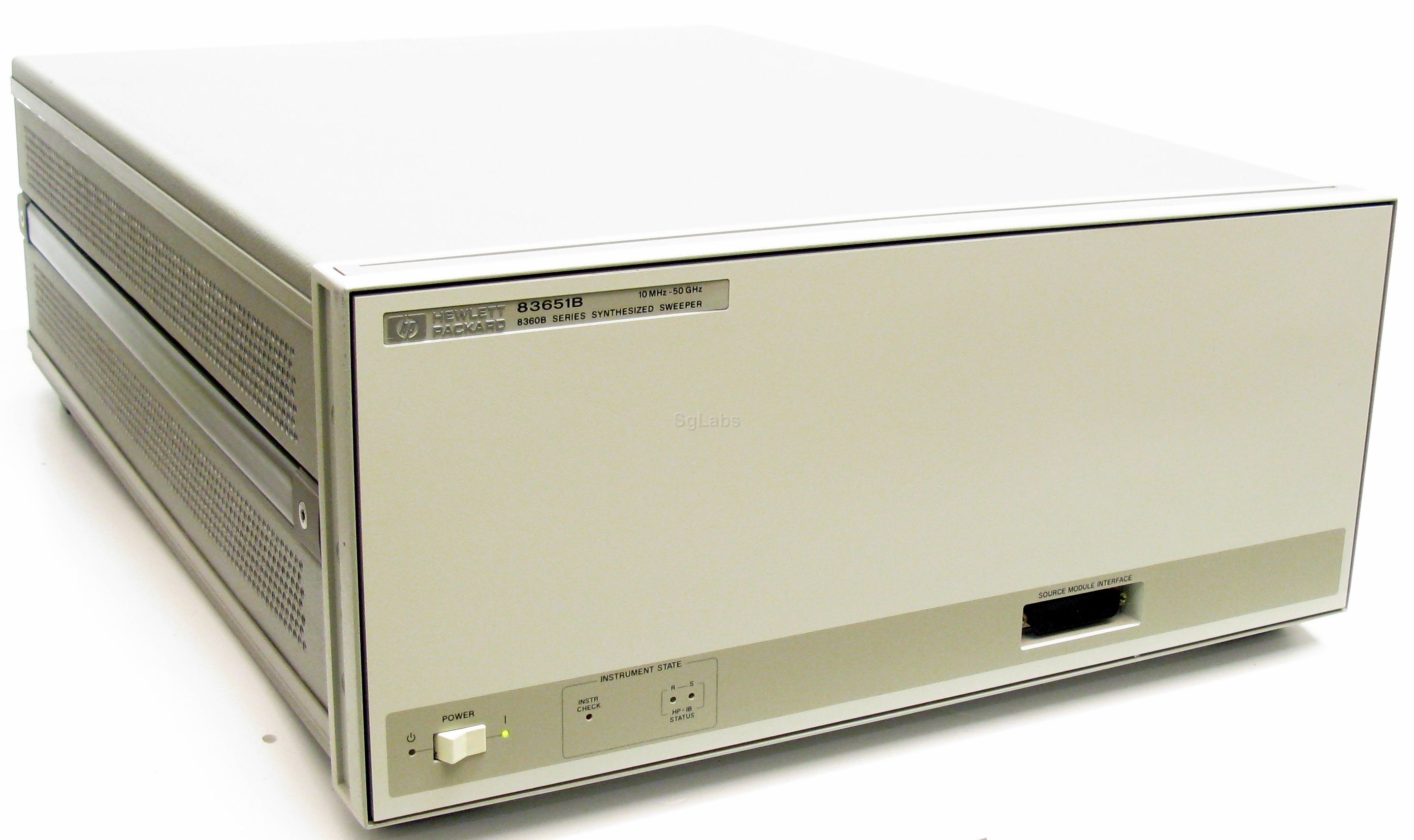

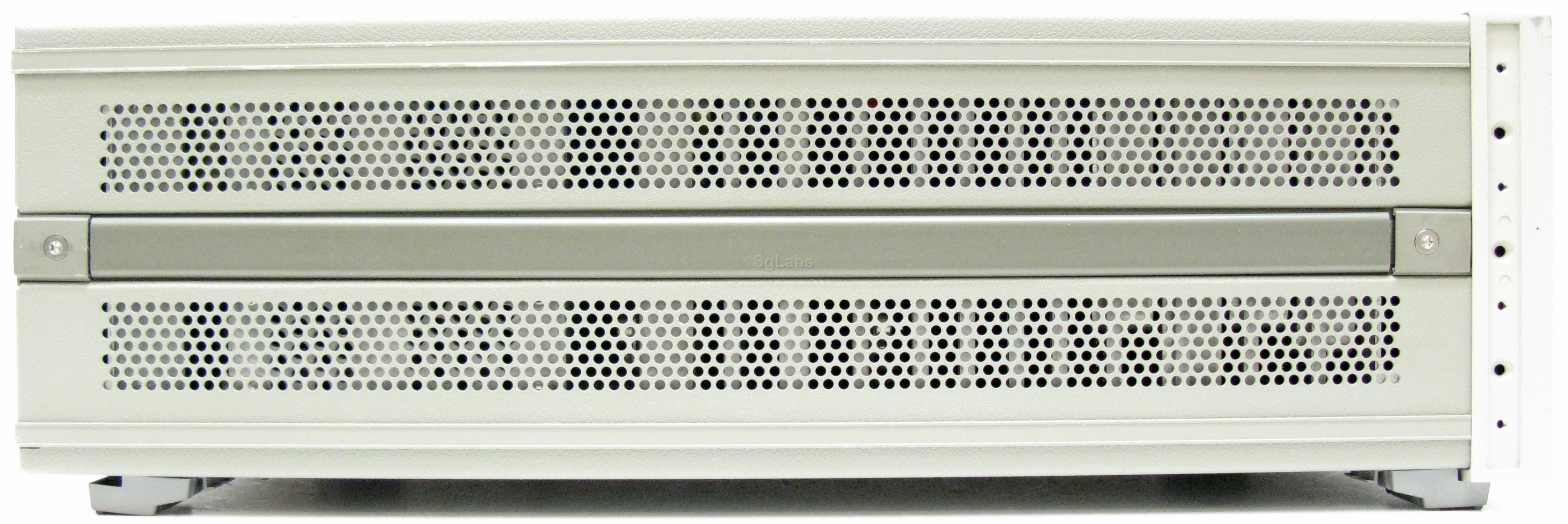

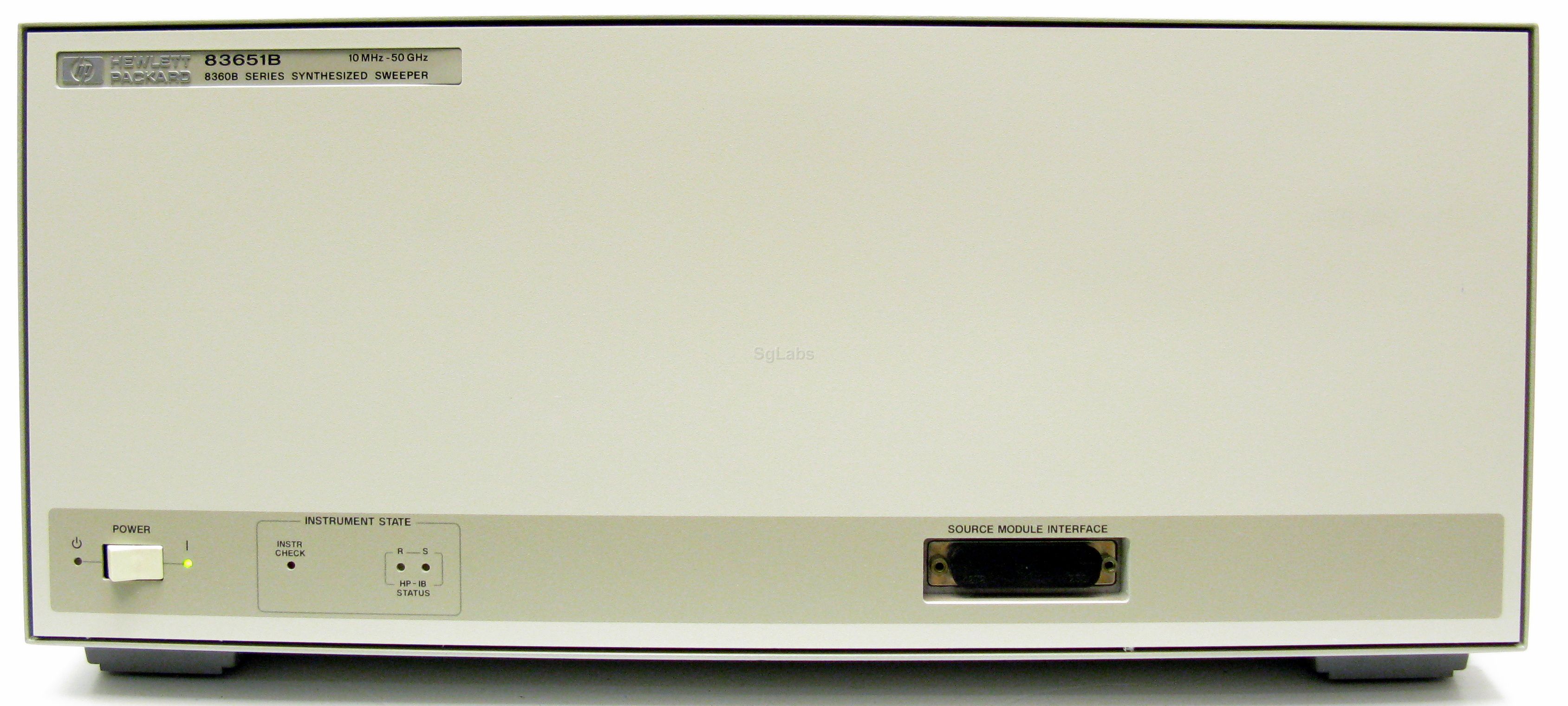

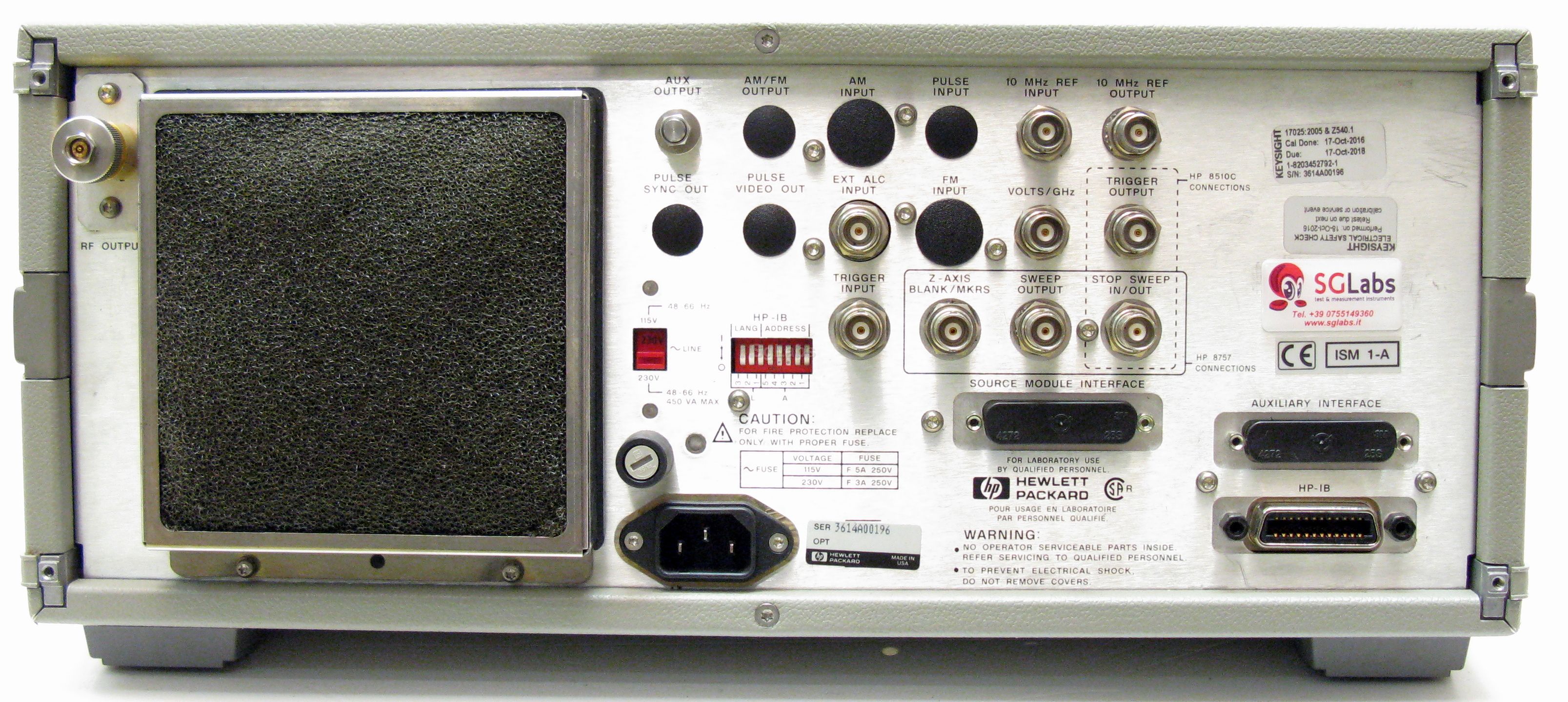

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 83651B is a dedicated source optimized for use with Keysight 8510 systems. It combines the high performance and accuracy of a synthesized source with the speed and versatility of a sweep oscillator. The Keysight 83651B provides broadband frequency coverage (45 MHz to 50 GHz) and precise 1 Hz frequency resolution. This source does not have modulation capabilities or a front panel keyboard and display. The Keysight 83651B comes with a rear panel output.
  • Dedicated source for Keysight 8510 systems
  • working also stand alone with GPIB command
  • 1 Hz resolution
  • Synthesized 45 MHz to 50 GHz coverage
  • Max frequency: 50 GHz
  • Minimum Frequency: 45 MHz
  • Max. Output level: 10 dBm < 20 GHz 0 dBm > 40 GHz
  • Min. output level: -20 dBm
  • Resolution: 1 Hz
