HP Agilent Keysight, 8116A

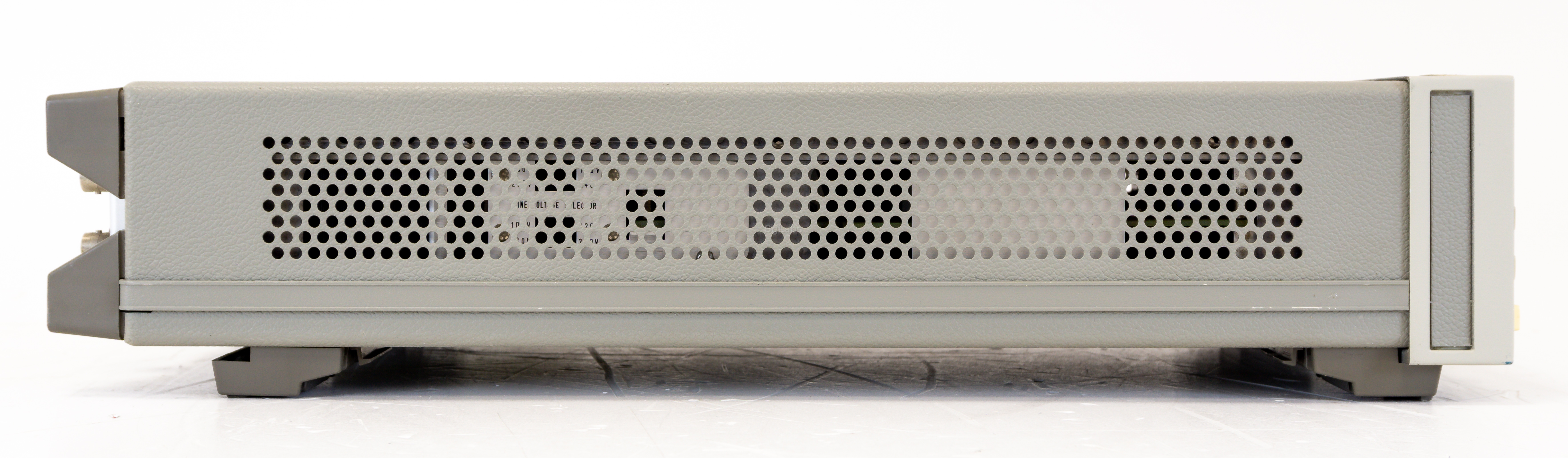

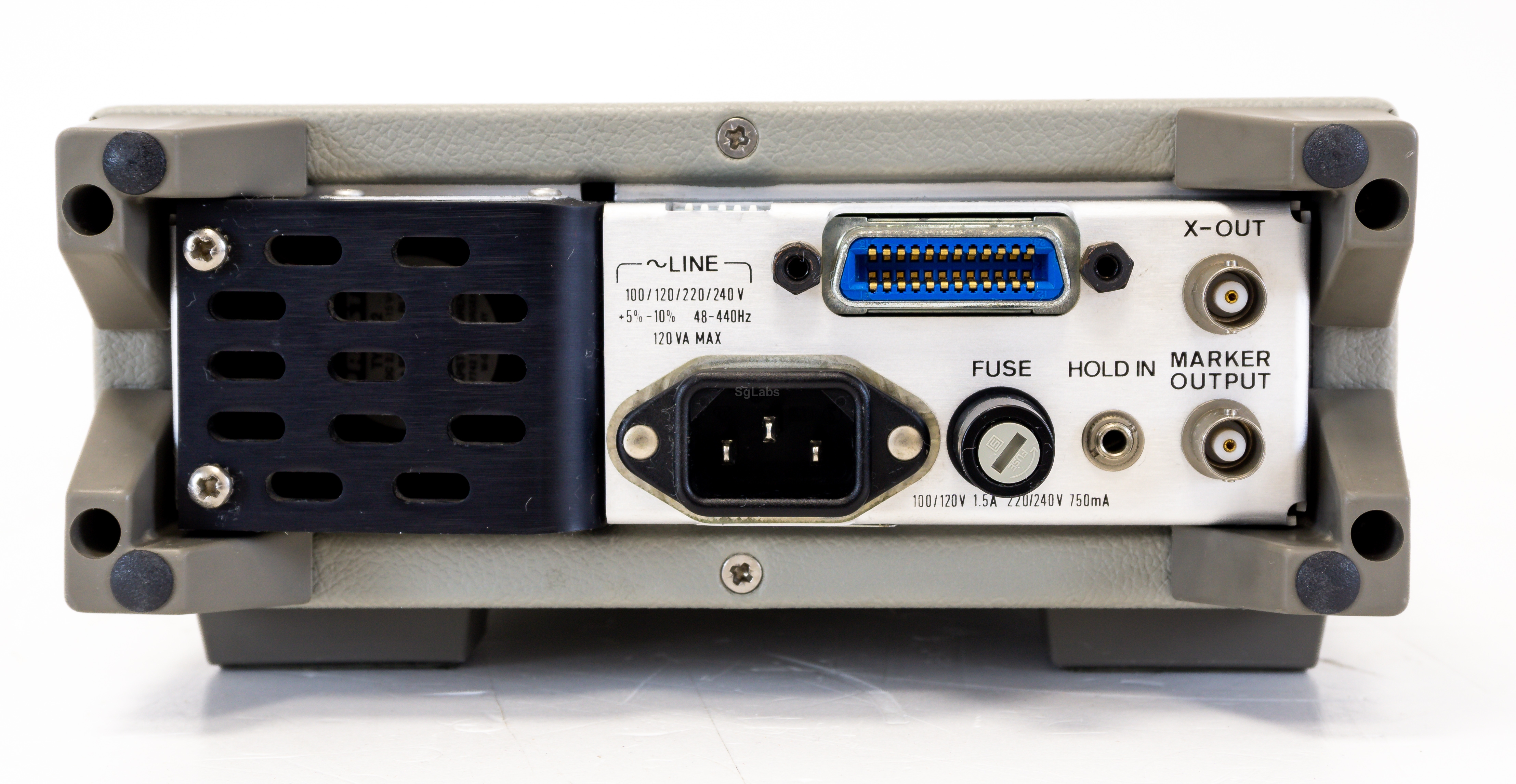

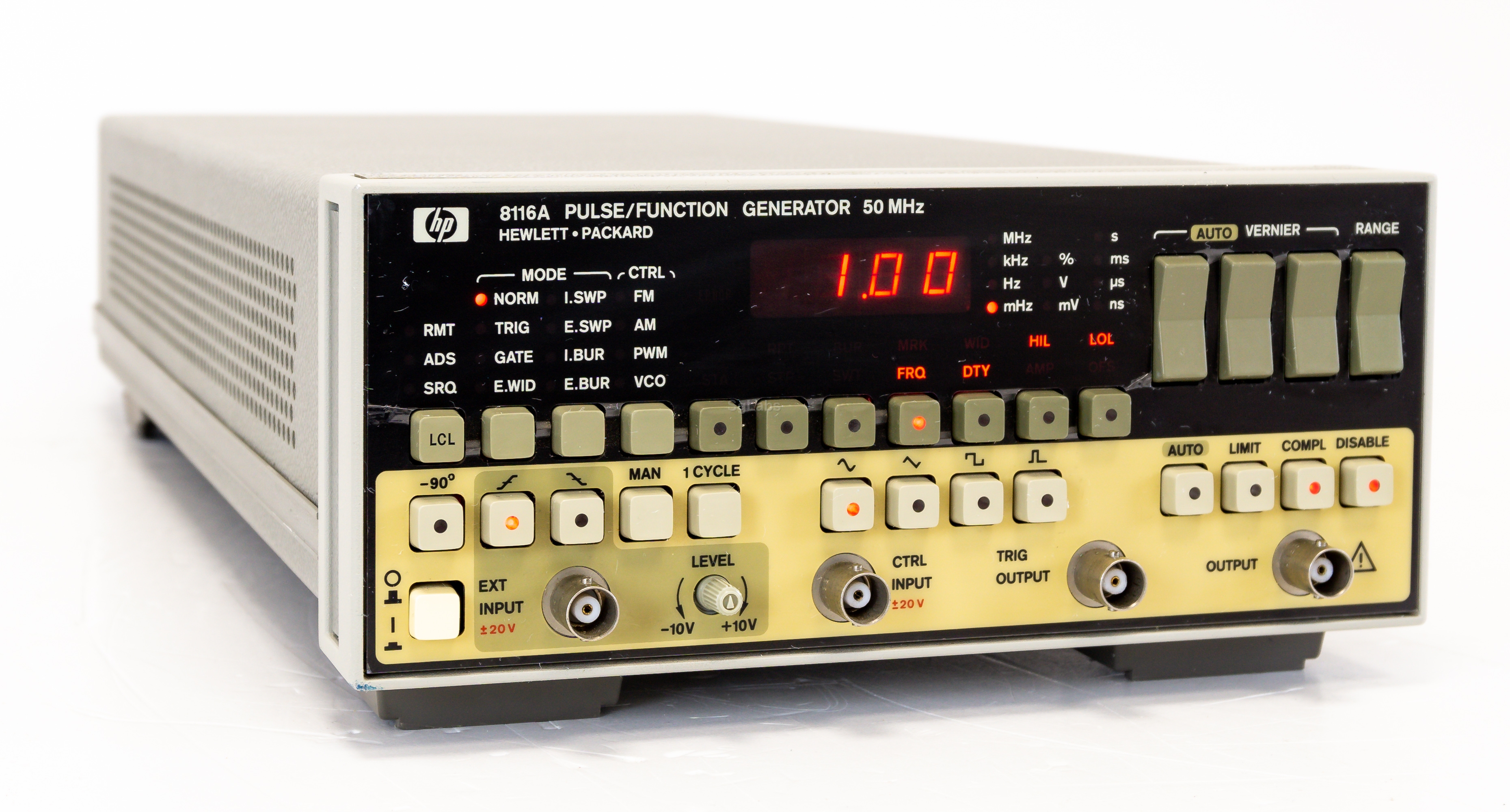

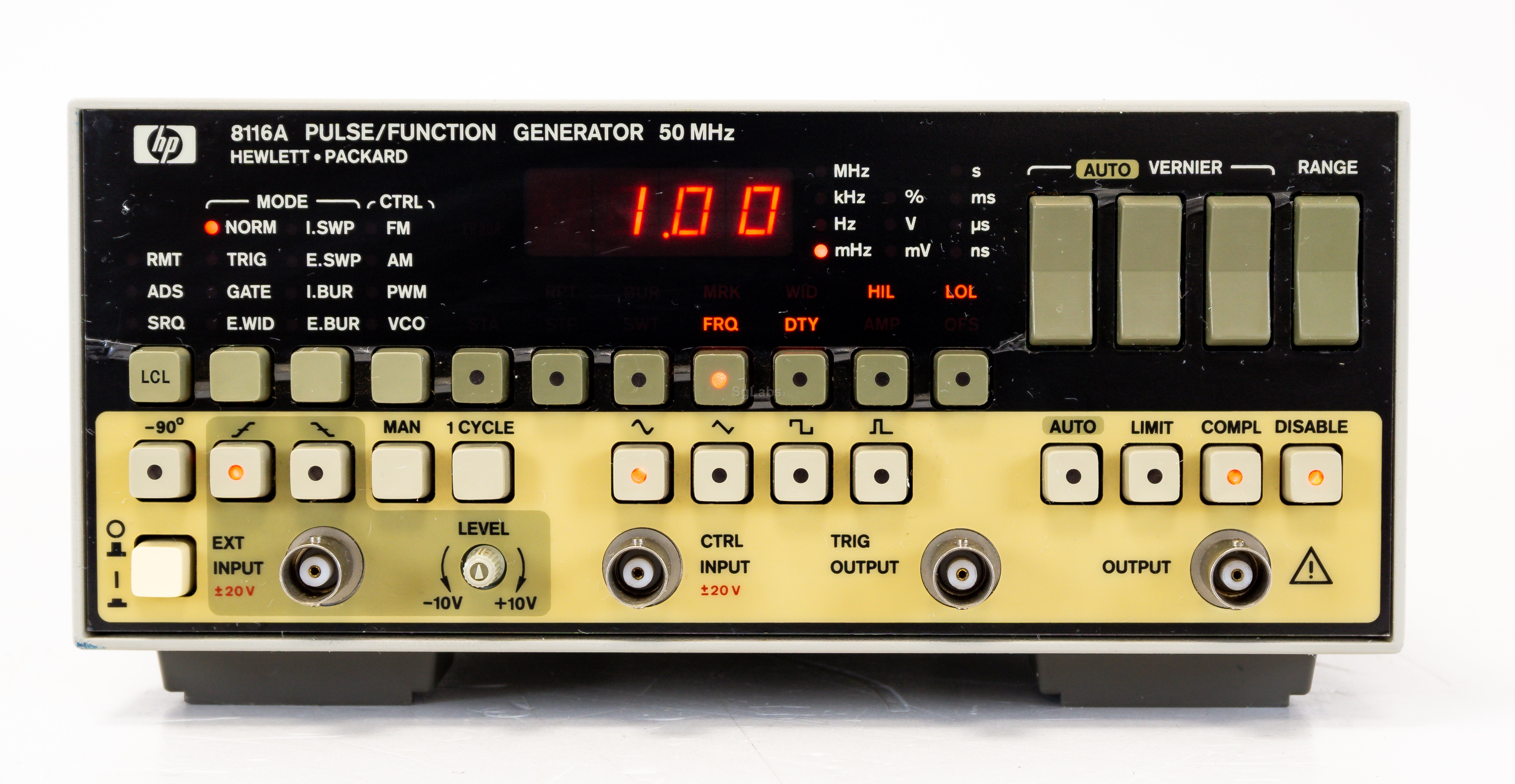

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The 8116A combines the capabilities of a pulse generator with a function generator in a compact, microprocessor-controlled package. Available output modes include sine, square, triangle, haversine, havertriangle, dc, and pulse. All waveforms can be amplitude or frequency modulated and external trigger, gate and burst modes are available. Option 001 adds burst and logarithmic sweep capability. The 8116A operates from 1 mHz to 50 MHz at output levels up to 16 volts pk-pk. An IEEE-488 interface is standard. Full programmability and a wide choice of available outputs and modulation make the 8116A an excellent choice for automatic test systems.

  • Sine, triangle, square, and haverfunctions
  • 1 MHz to 50 MHz, 32 Vpp for all waveforms
  • Variable (10 ns min) pulse width, 6 ns transitions
  • Modulation
  • Self-prompting operating concept
  • Error recognition and self test
  • Max. Frequency: 50 MHz
  • Min. Frequency: 1 mHz
  • Pulse generator: Yes
  • Max. Level: 32 Vpp
  • Min. Level: 10 mVpp
  • Rise time: < 7ns
