HP Agilent Keysight, 8111A

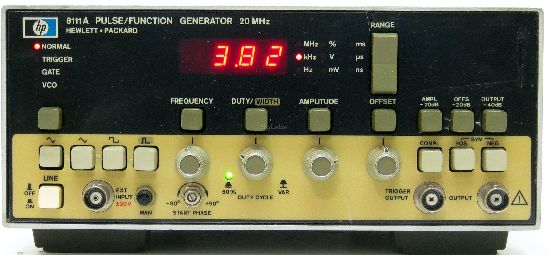

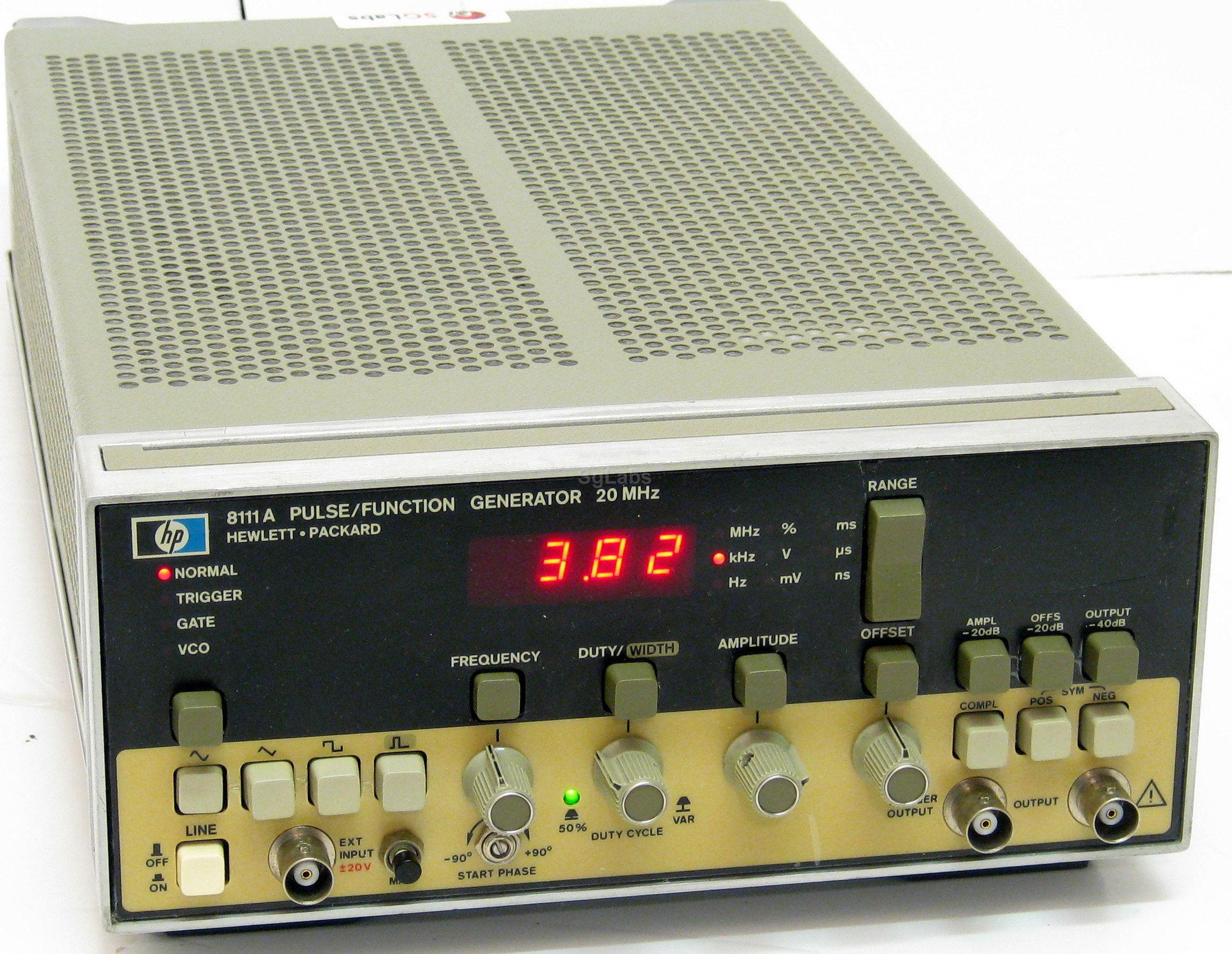

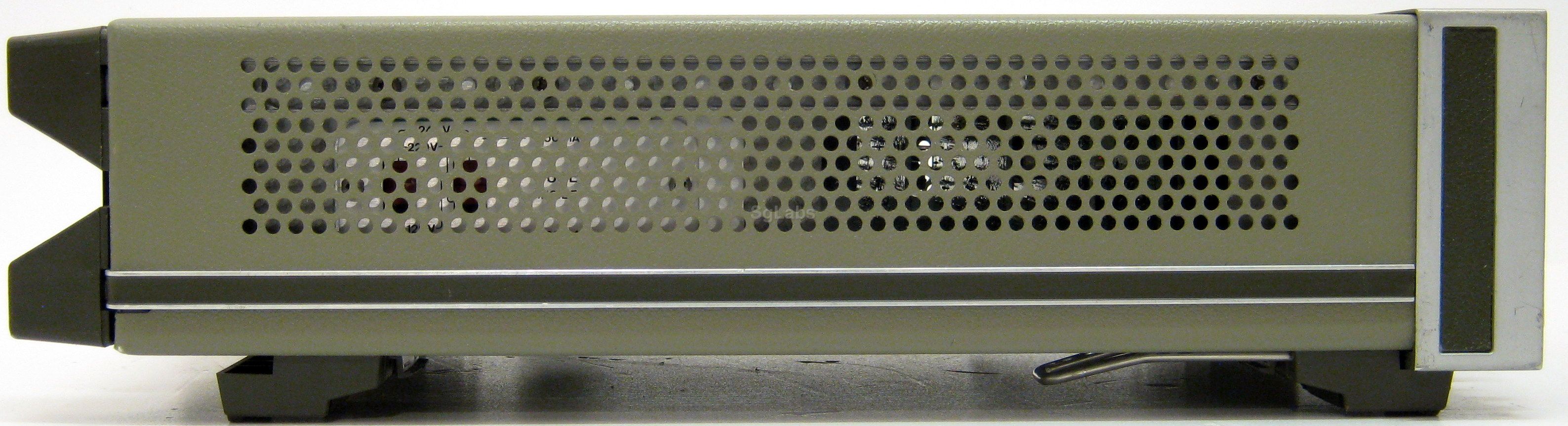

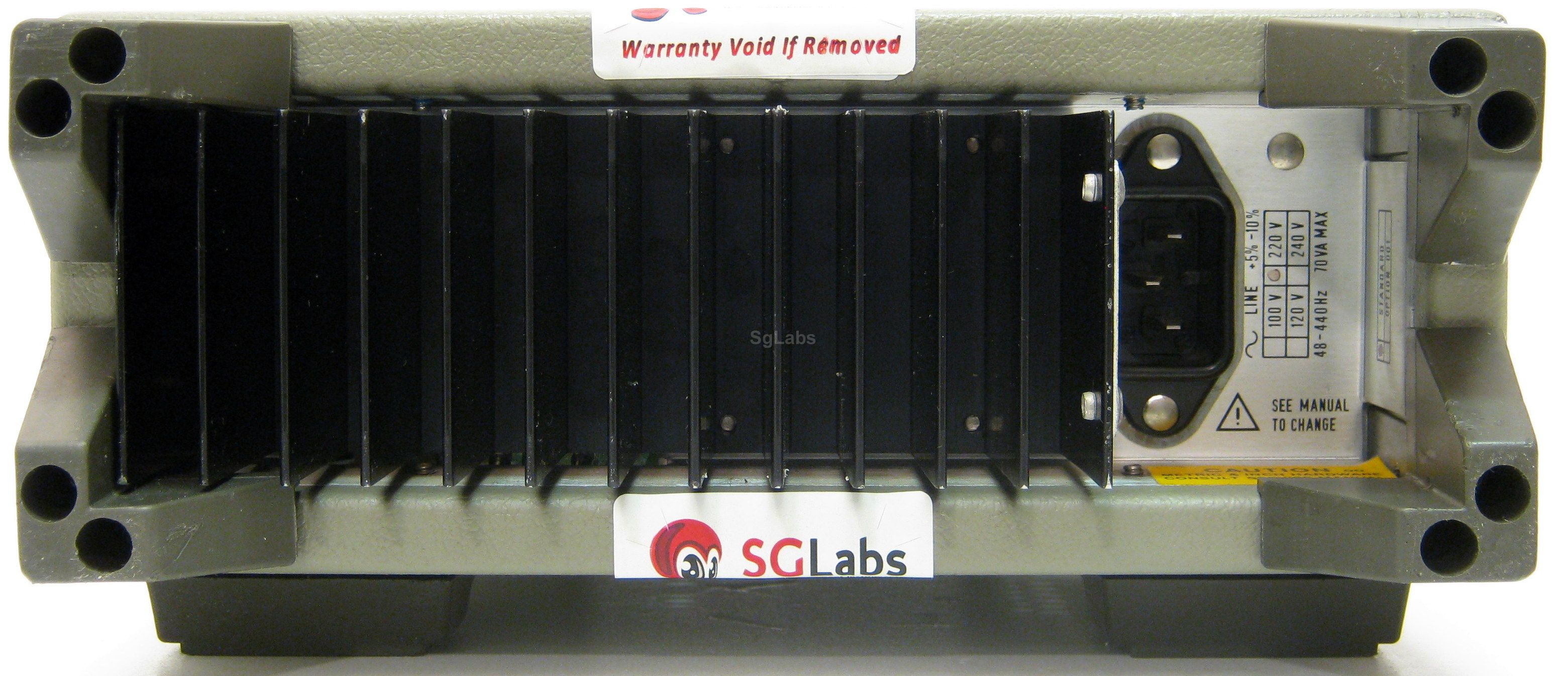

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 8111A is a 20 MHz Pulse/Function Generator suited to bench, production or service applications. The 8111A features a combination of front panel controls, pushbuttons and verniers together with the digital display enables quick and easy setting up of complete waveforms with minimum requirement for additional test equipment.

Signal Generator thecnical details:
  • Waveforms: Sine, Triangle, Ramp, Square, Pulse, Haversine and Havertriangle
  • Fraquency Range: 1 Hz up to 20 MHz
  • Resolution: 3 digit
  • Duty Cicle: variable from 10% to 90 % in frquency range 1 Hz- 999 KHz.  Fixed 50% in frequency range 1 Hz - 20 MHz. Resolution 1%

Pulse Generator technical details:

  • Pulse width: from 25 ns to 100 ms
  • Resoluzion: 3 digit

  • Max. Frequency: 20 MHz
  • Min. Frequency: 100 Hz
  • Max. Level: 16 Vpp
  • Rise time: < 10 ns
