HP Agilent Keysight, 6652A

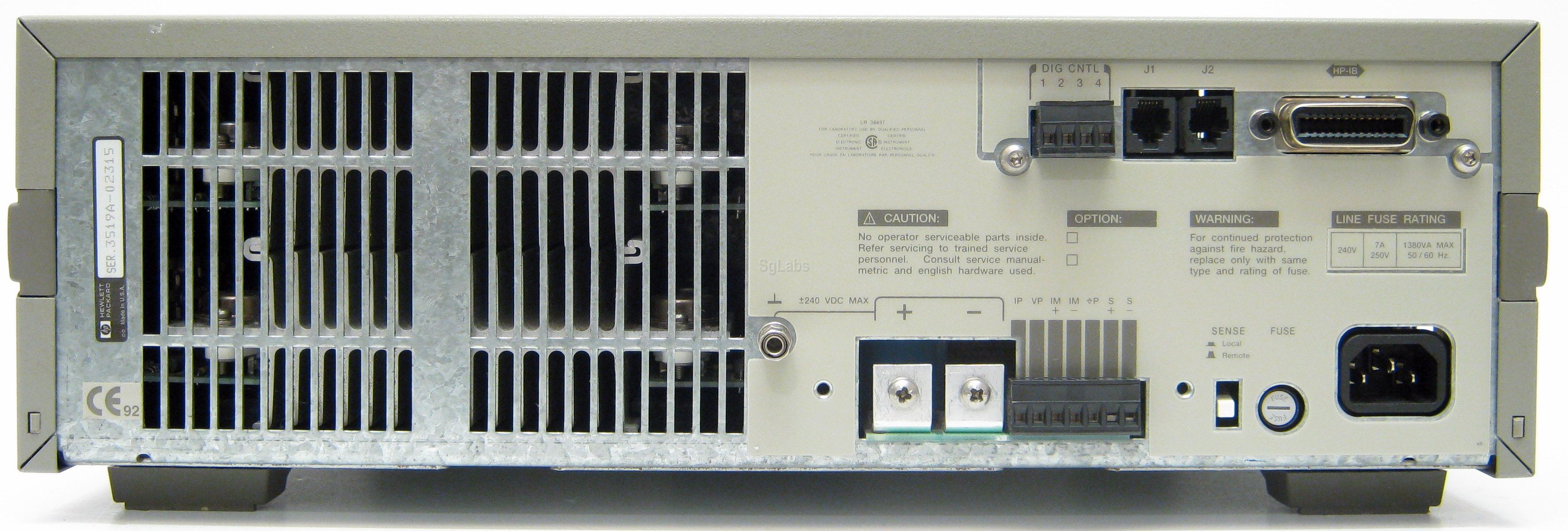

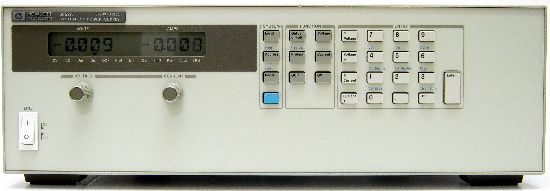

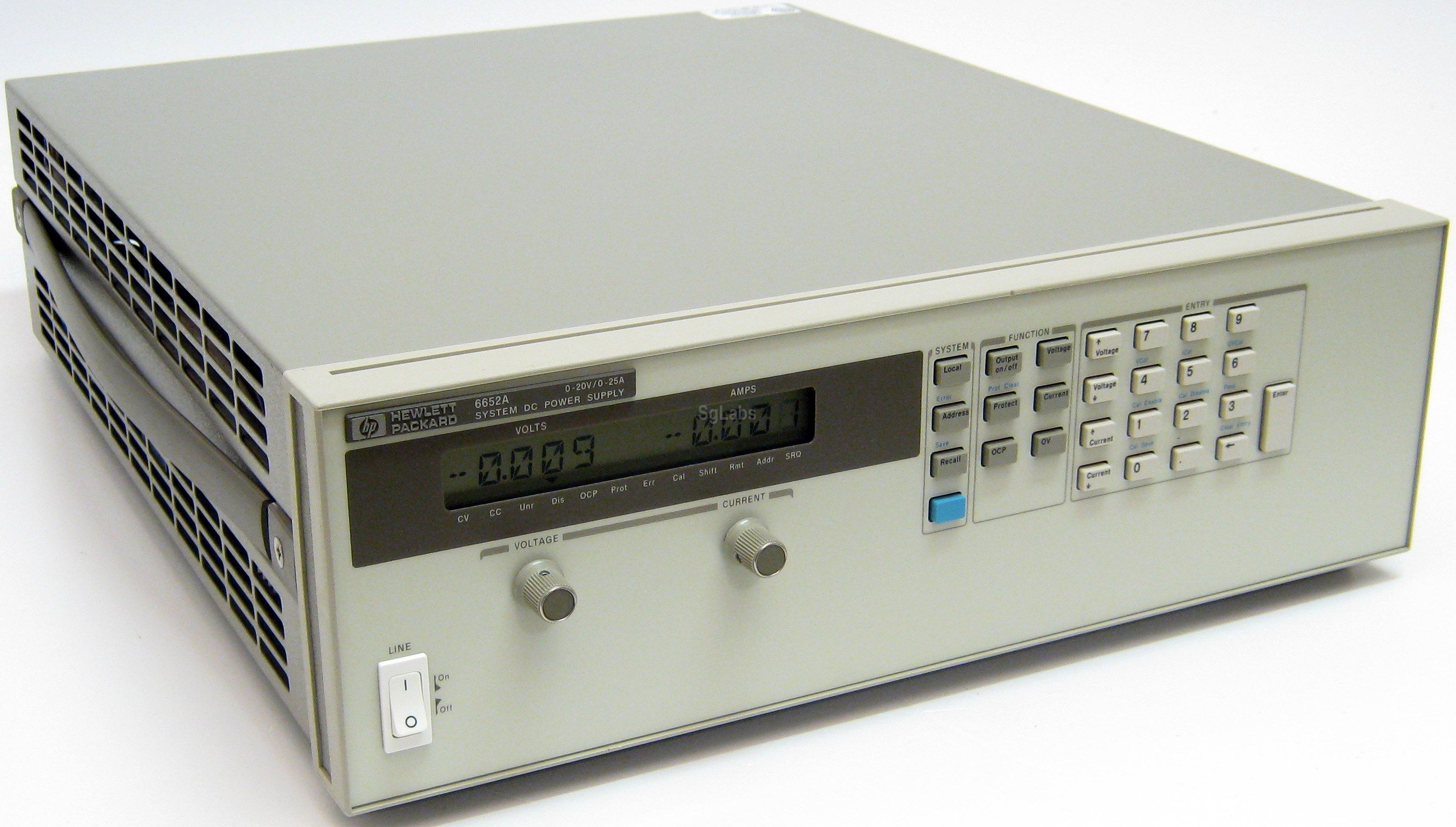

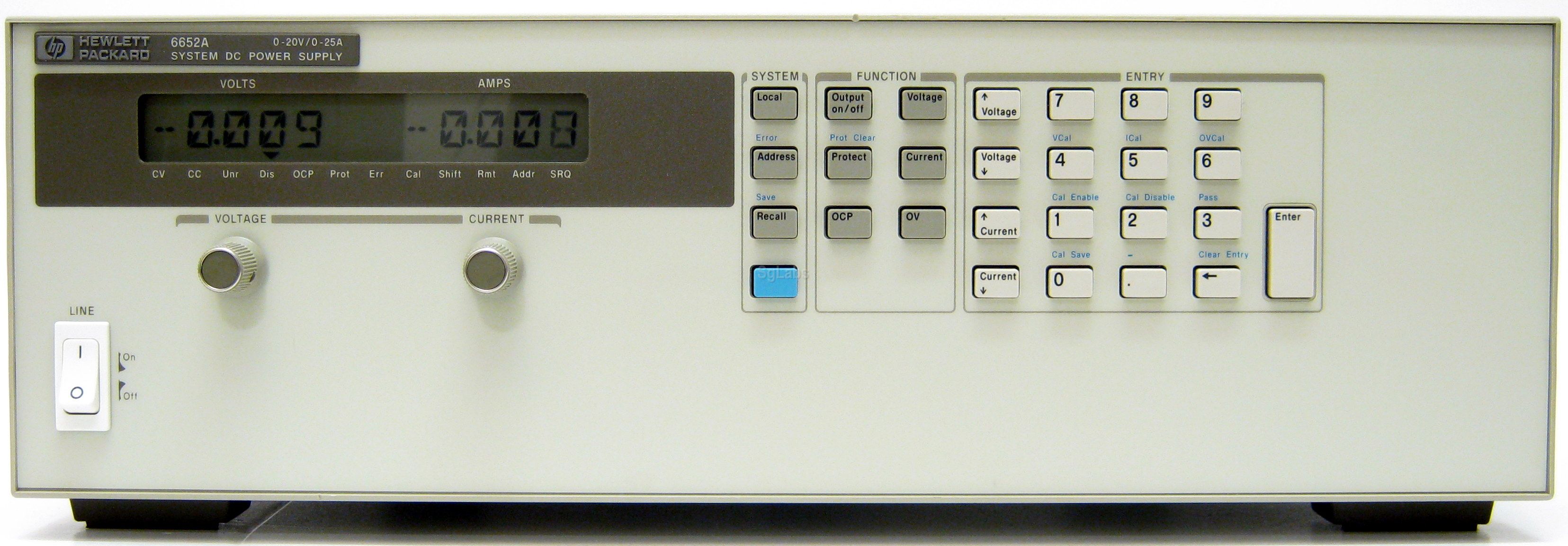

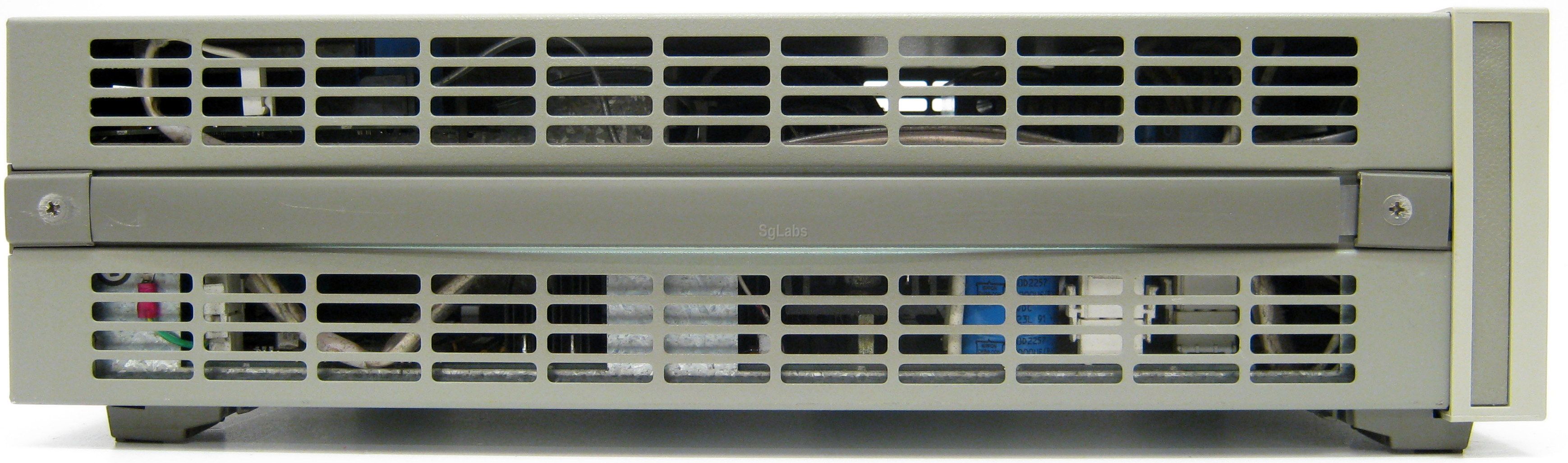

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 6652A is one of the 665x series of 500 Watt, single output, series pass regulated power supplies, with an internal GPIB interface and SCPI programming. These models provide many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values. 16 supplies can be connected to one GPIB interface via a serial link connection. Features Auto-parallel up to three units Outputs can be connected in parallel or in series Programmable over-voltage and over-current protection Over-temperature protection Discrete Fault Indicator/Remote Inhibit (DFI/RI) Self-test occurs at power-on from a GPIB command User definable power-on state VXI plug&play drivers

Output Ratings

  • Output voltage: 0 to 20 V
  • Output current (40°C): 0 to 25 A
  • Maximum current (50°C/55°C): 22.5 A/21.3 A

Programming Accuracy at 25°C ±5°C

  • Voltage 0.06% + 10 mV
  • Current 0.15% + 25 mA

Ripple & Noise from 20 Hz to 20 MHz

  • Voltage rms: 300 µV
  • Peak-to-Peak: 3 mV
  • Current rms: 10 mA
  • Max current: 25A
  • Interface: GPIB
  • Max. Voltage: 20V
  • Min. Voltage: DC
