HP Agilent Keysight, 6614C

You are here: Power Supply (DC) » Single output

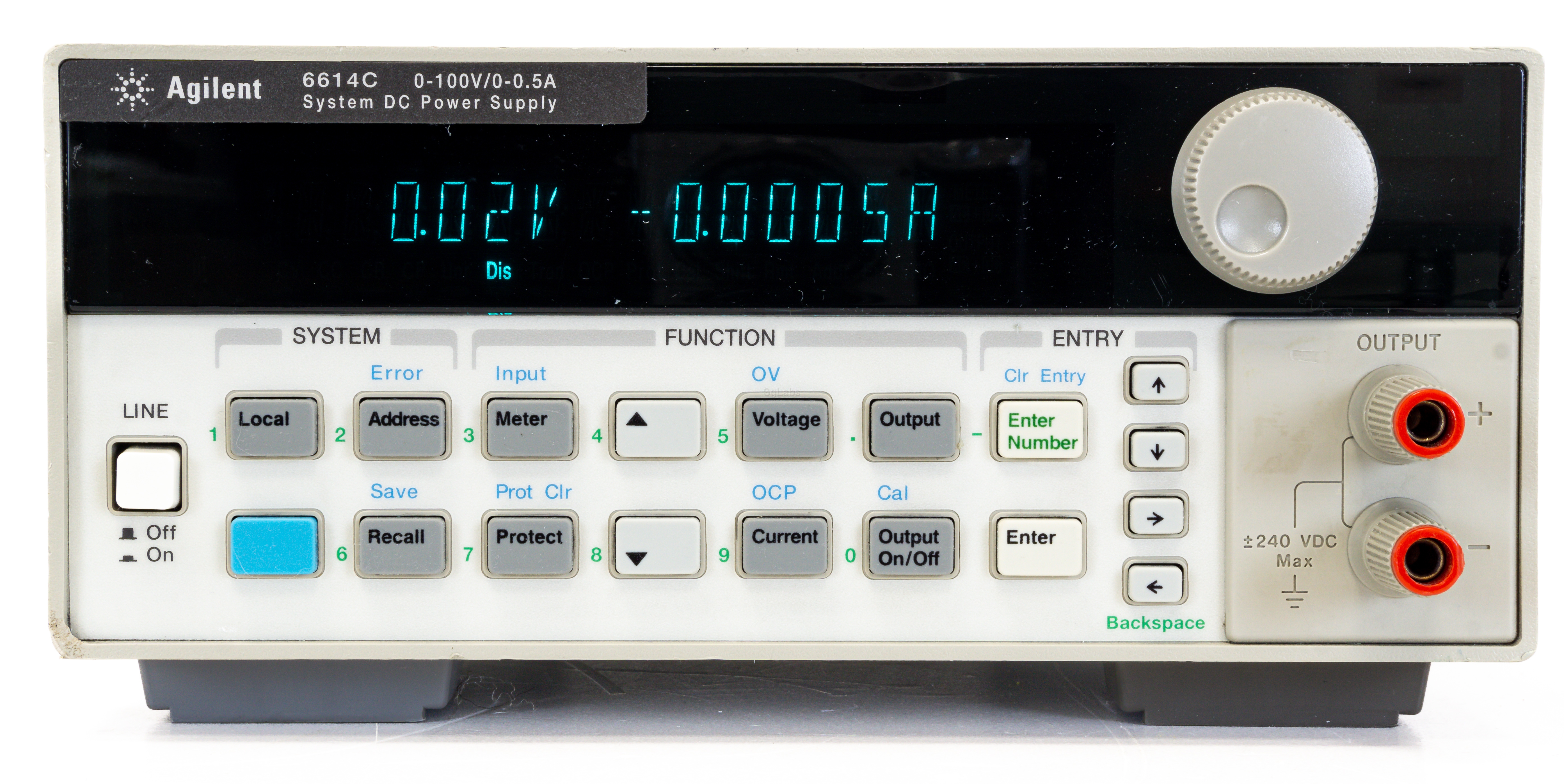

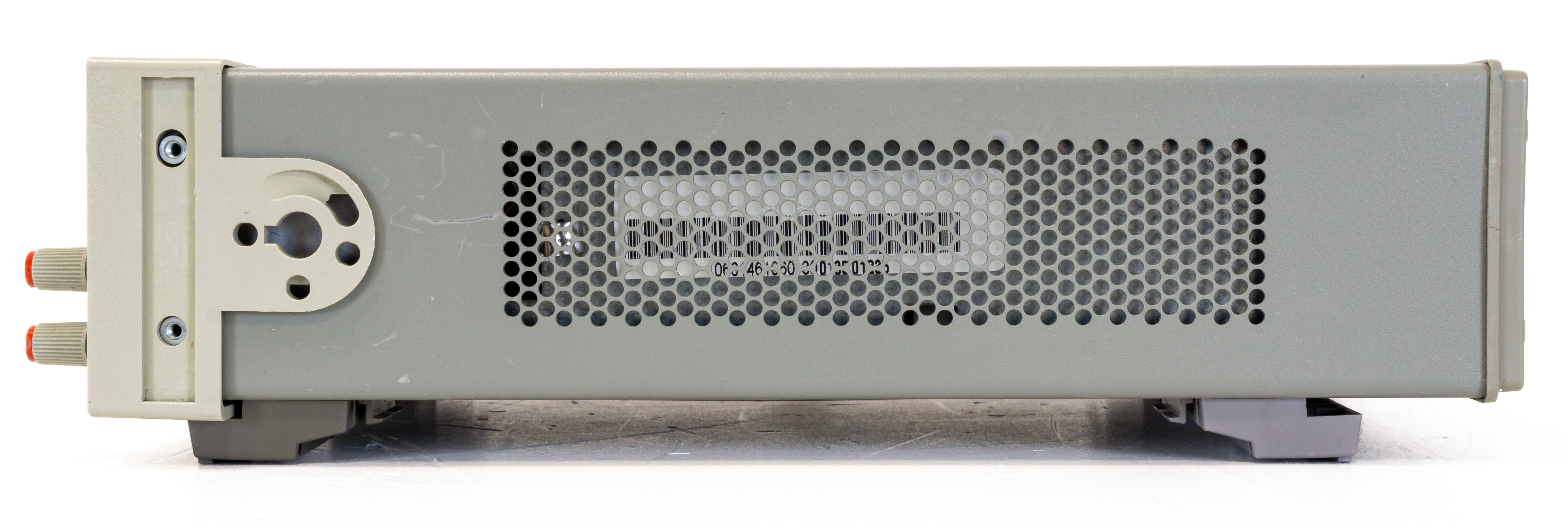

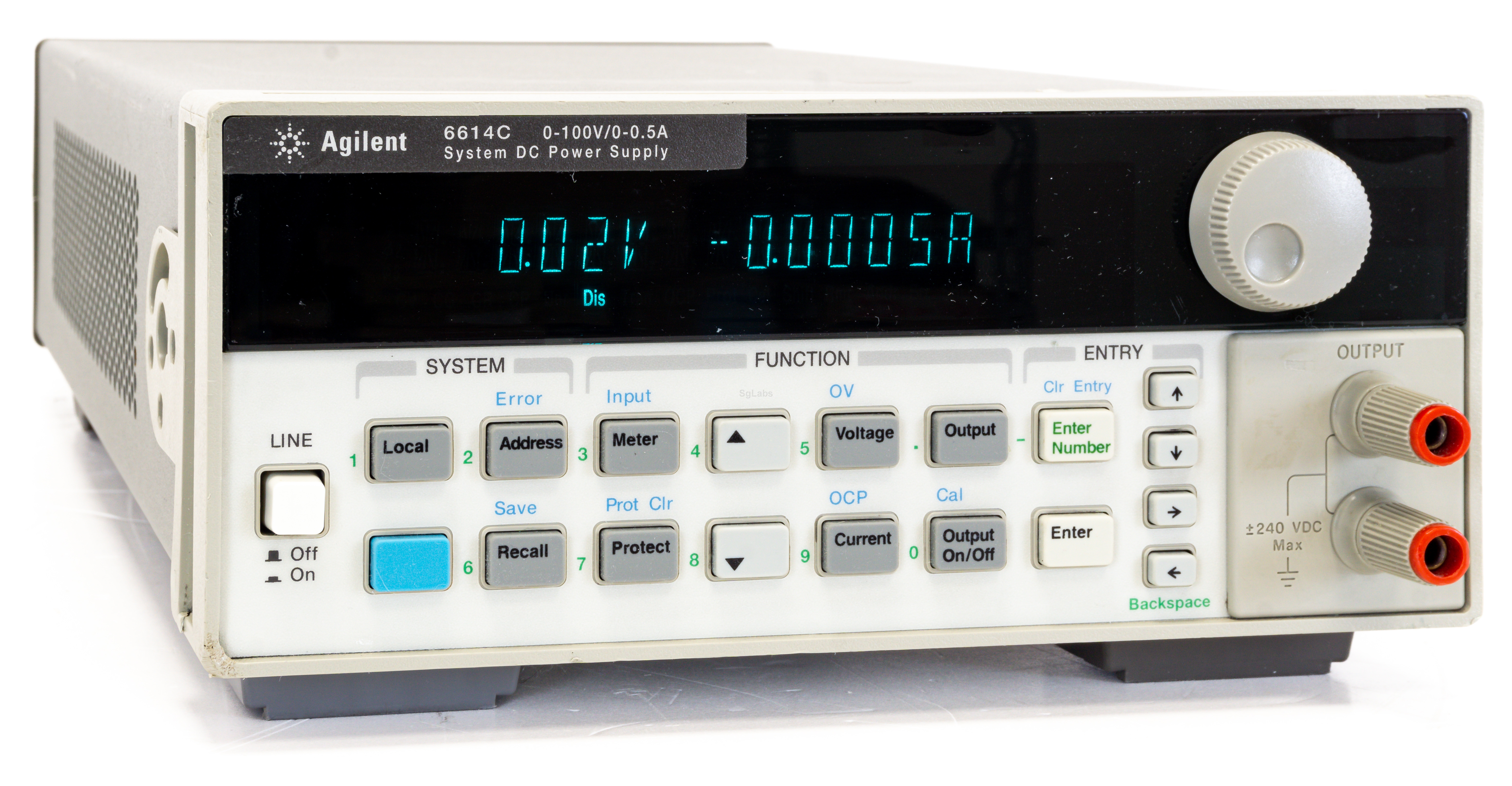

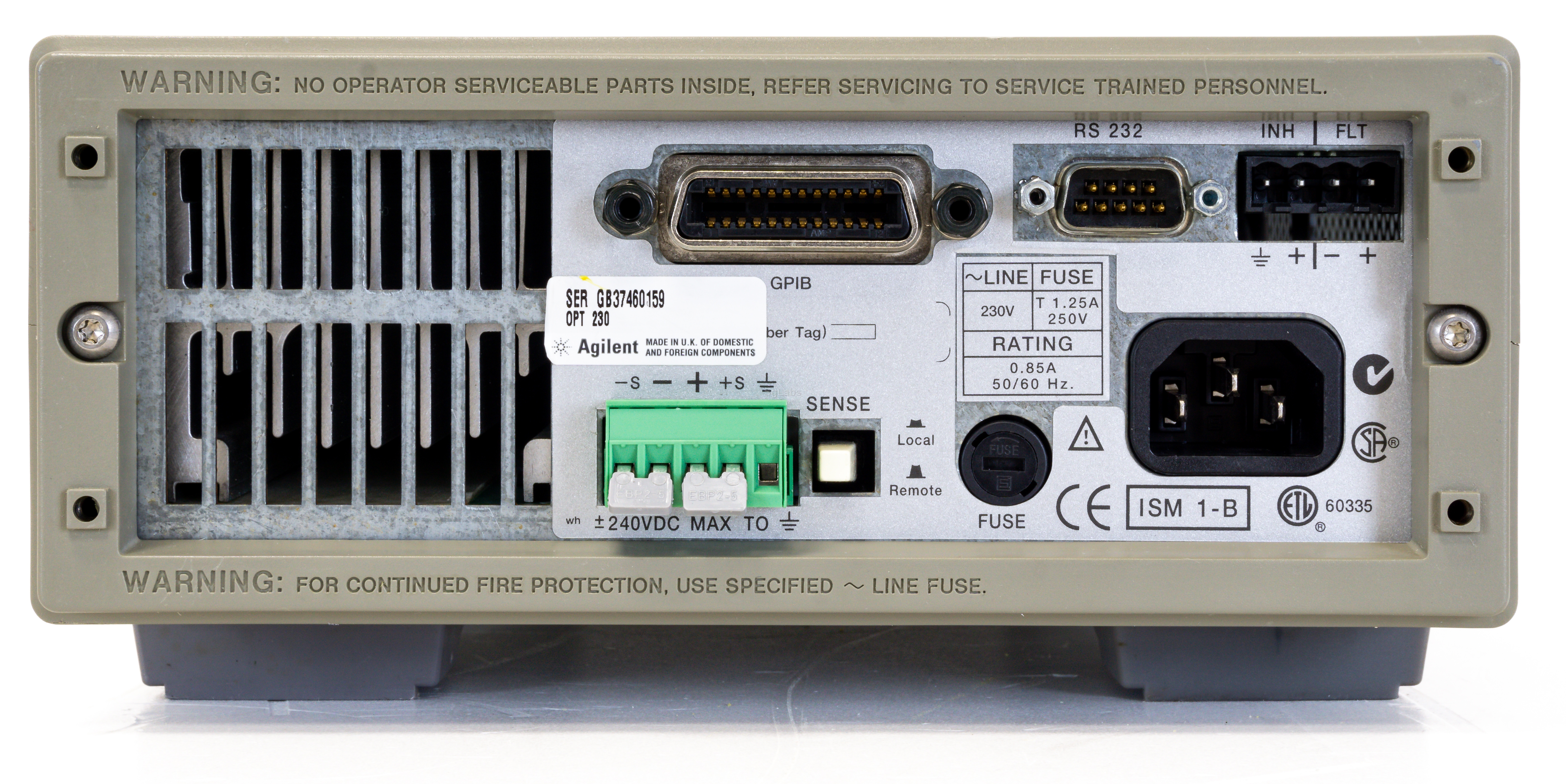

HP Agilent Keysight, 6614C
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Keysight high performance DC power supplies offer speed and accuracy for test optimization. The single output, 40-50 W GPIB 6611C-6614C provide small, compact size for bench and system use; fast, low-noise outputs; and dual-range, precision low current measurement. The Keysight 50W, single output 6614C is a versatile low-power solution designed for demanding applications, and is a one-box solution that includes measurement capabilities and built-in GPIB and RS-232 interfaces.

Output ratings

  • Voltage: 0 to 100 V
  • Current: 0 to 0.5 A

Programming accuracy at 25°C ±5°C

  • Voltage: 50 m V
  • +Current 0.05% + 0.5 m A

Ripple & noise (20 Hz to 20 MHz)

  • Voltage rms: 0.5 mV
  • Voltage Peak-to-Peak: 5 mV
  • Normal mode rms: 1 mA
  • Max current: 0.5A
  • Display: VFD
  • Interface: GP-IB
  • Max. Voltage: 100V
  • Min. Voltage: DC
 € 380,00
