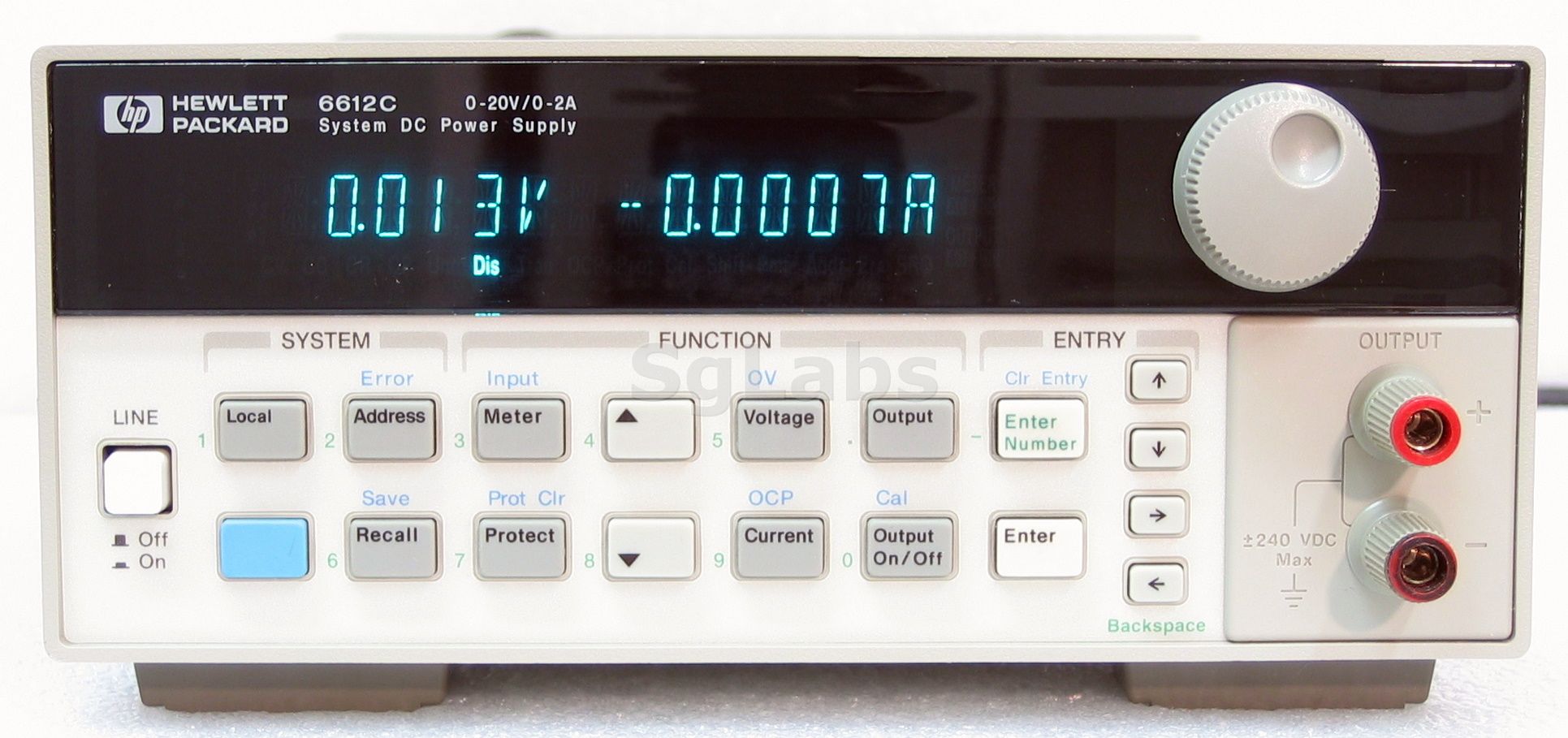

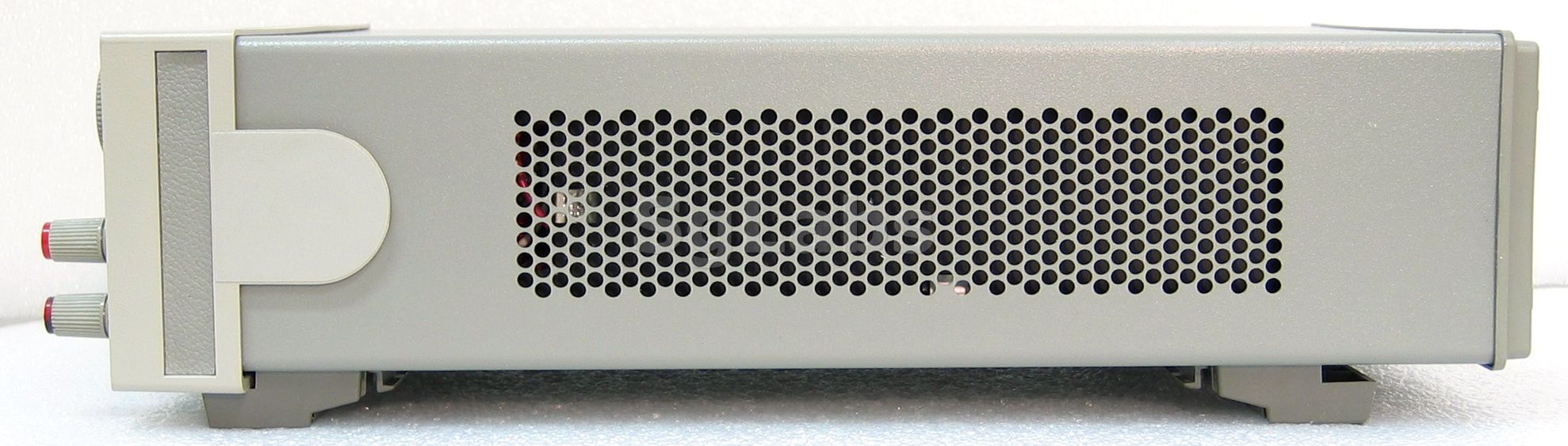

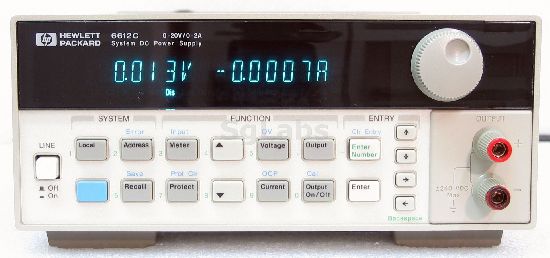

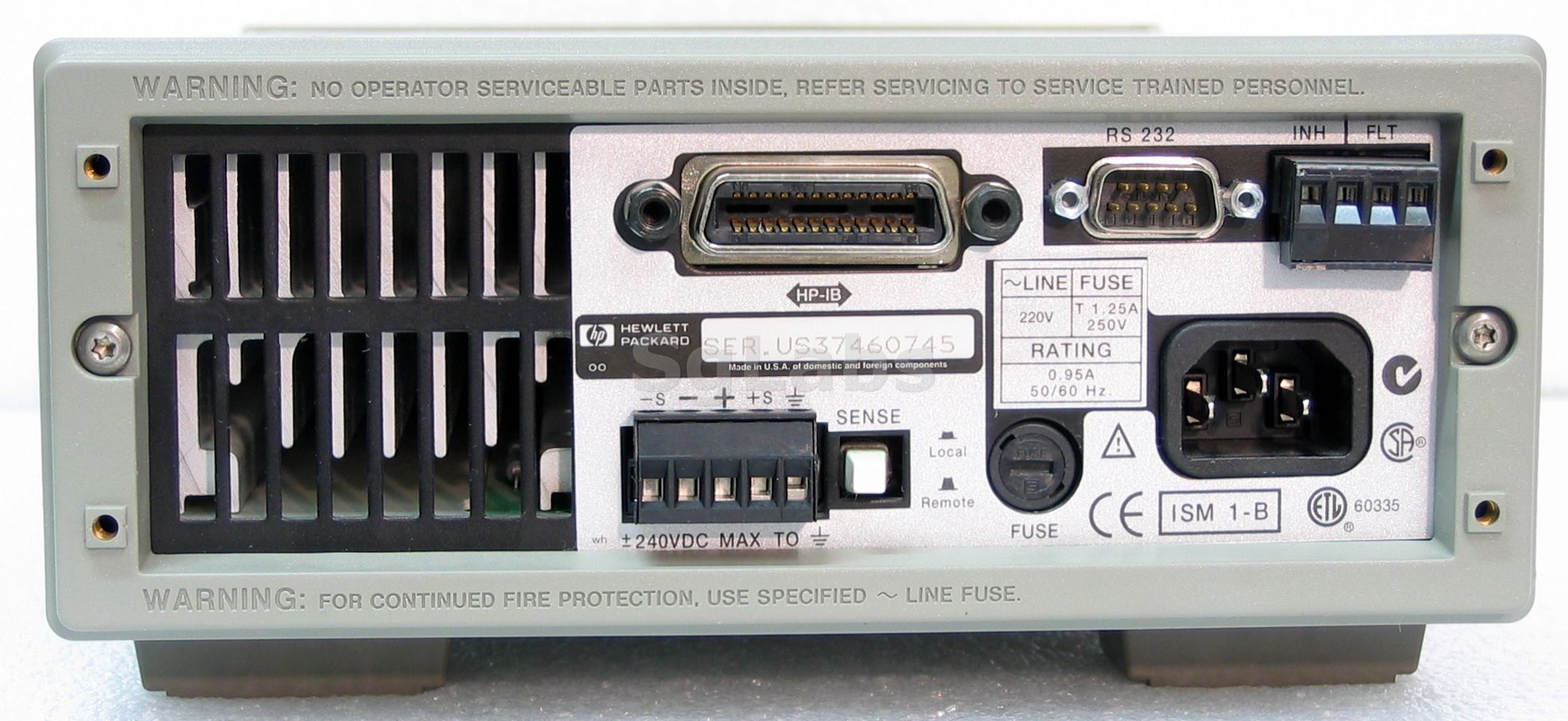

HP Agilent Keysight, 6612C

You are here: Power Supply (DC) » Single output

HP Agilent Keysight, 6612C
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
This Agilent 6612C series of linear-regulated 40-50 W DC power supplies is designed to maximize the throughput of DUTs through the manufacturing test process with fast programming and measurement, and also active downprogramming. It offers many advanced programmable features including stored states and status reporting. Programming is done using industry standard SCPI commands via the GPIB or RS-232. Test system integration is further simplified by using the VXIPlug&Play drivers. The optional relays simplify system design and troubleshooting.

--Technical details:

  • Max output power 40W (20V, 2A)
  • Display LCD
  • constant current (CC), constant voltage (CV)
  • Resolution 0.01 V, 0.001A
