HP Agilent Keysight, 6060B

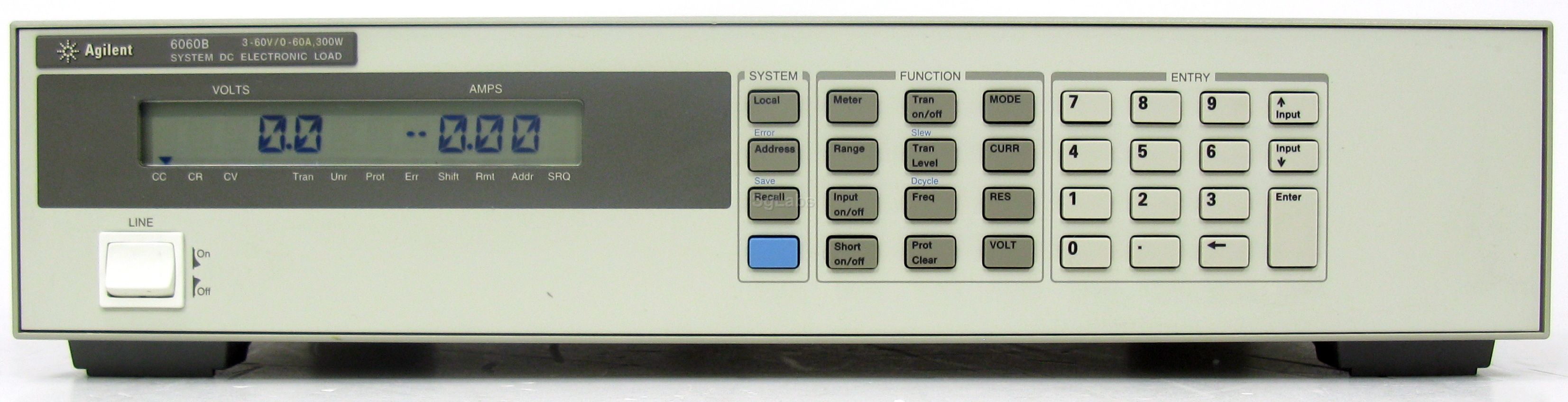

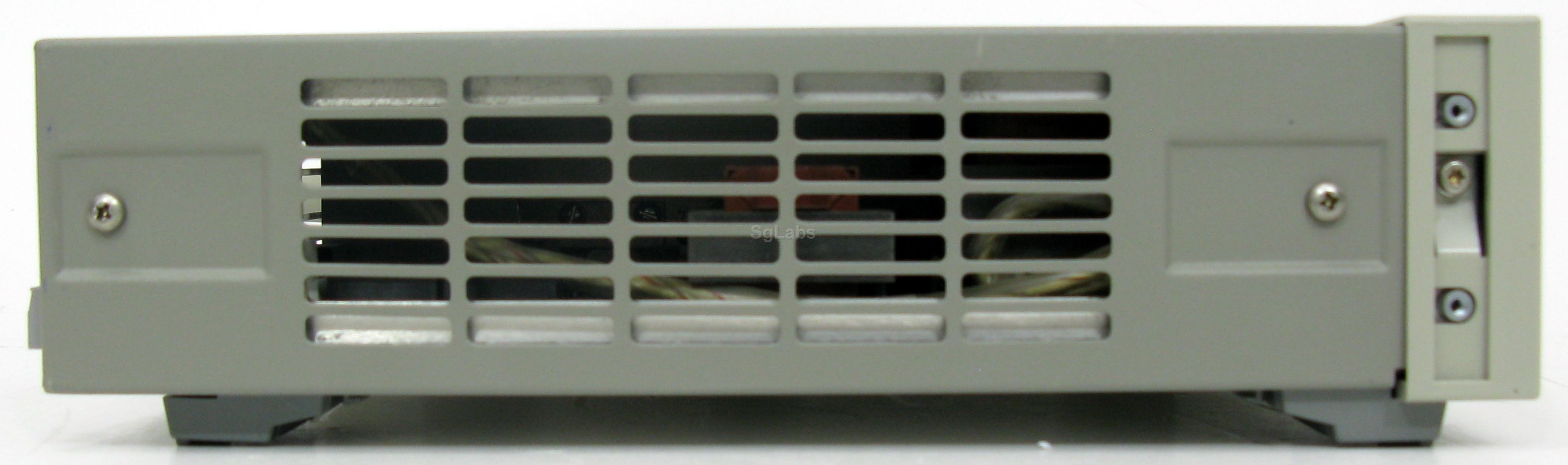

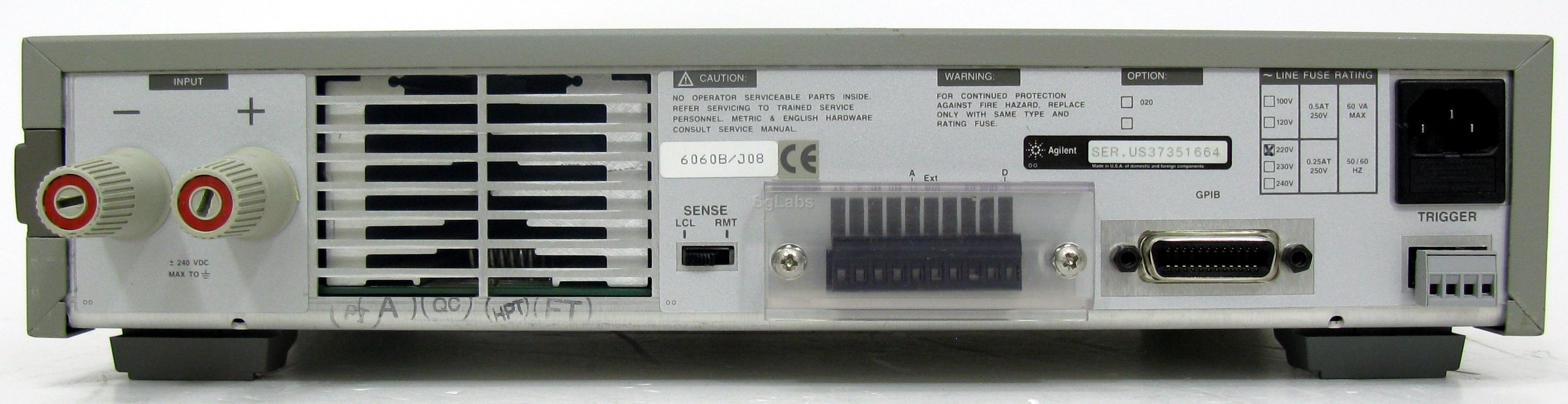

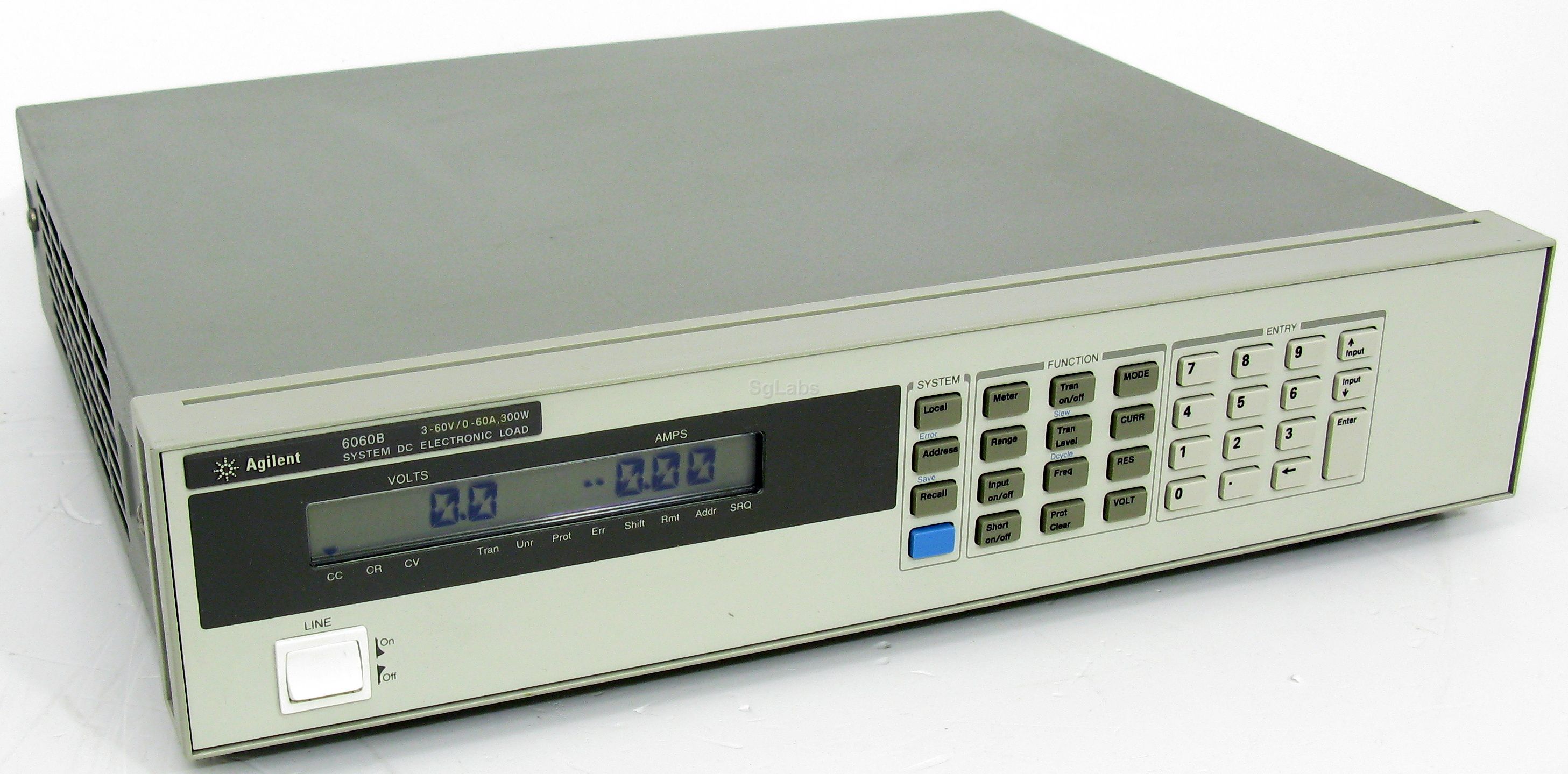

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

These electronic loads are particularly suited for the lab bench. Entering commands manually using the front panel keypad is simpler because the channel does not need to be specified, as in a mainframe configuration. Extensive protection is included to help protect your valuable prototypes under test. This includes overvoltage, over current, over temperature, overpower, and reverse polarity.

The Keysight 6060B is a 300 W, single output electronic load, ideal for evaluation of DC power sources and power components in bench applications. The 6060B has built-in measurement functions that make it convenient for testing single output applications in areas such as research and development, production, and incoming inspection.

The Keysight 6060B loads are suitable for manufacturing test systems where maximizing speed is not critical. They use industry standard SCPI instructions, and also have VXI Plug & Play drivers to simplify system design.
Features

Output Ratings

  • Current: 0 to 60 A
  • Volts: 3 to 60 V
  • Maximum power: 300 W

Constant Current Mode

  • Ranges: 0 to 6 A, 0 to 60 A
  • Accuracy: 0.1% +/-75 mA
  • Regulation: 10 mA

Constant Voltage Mode

  • Accuracy: 0.1% +/-50 mV
  • Regulation (w/remote sense): 10 mV

Constant Resistance Mode

  • Ranges: 0.033 to 1 Ω/ 1 to 1,000 Ω / 10 to 10,000 Ω
  • Accuracy: 1 Ω and 10 KΩ: 0.8% ±8 mΩ (with ≥6A at input) / 1 KΩ: 0.3% ±8 mS (with ≥6V at input)
