HP Agilent Keysight, 54540A

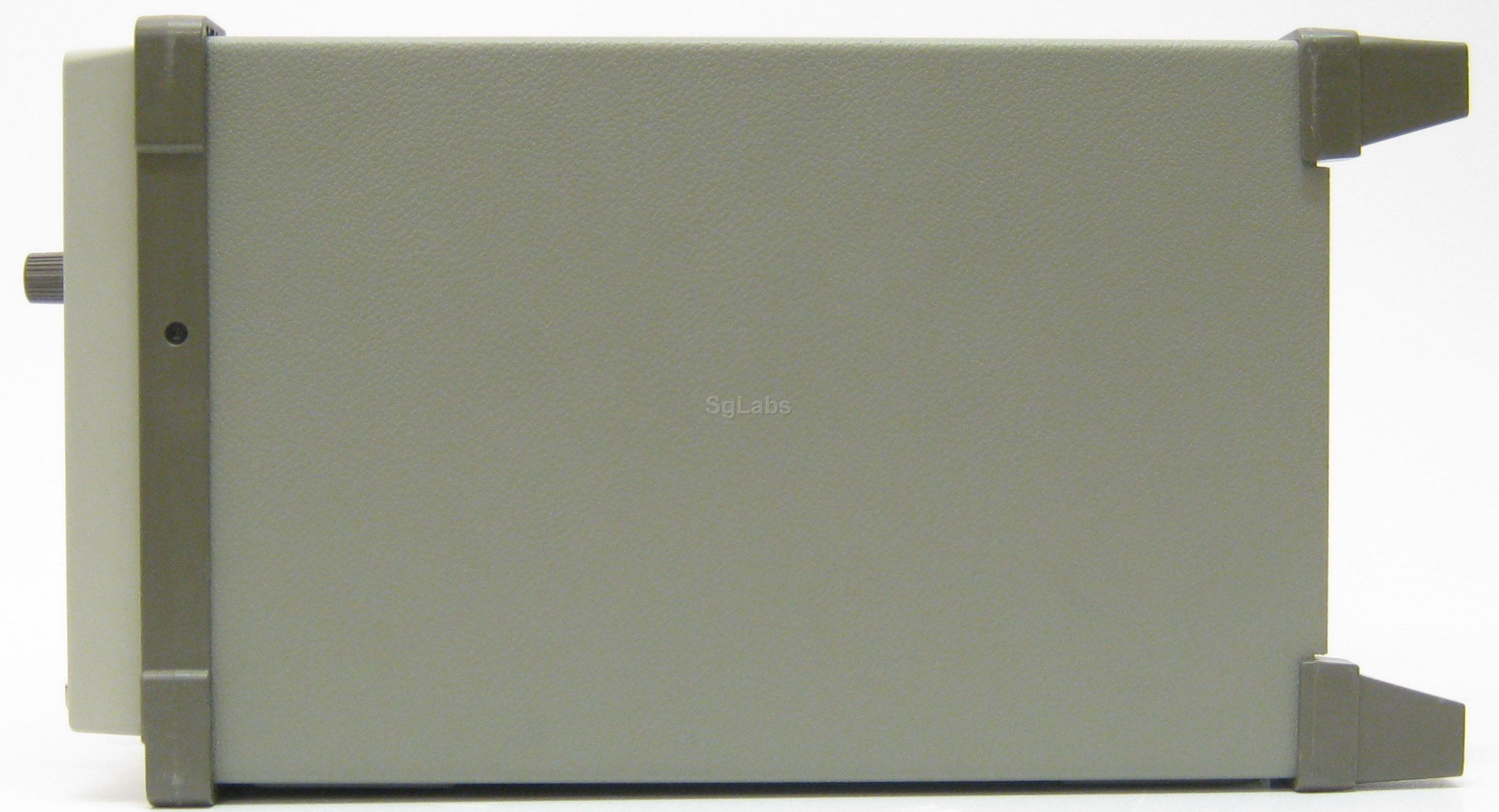

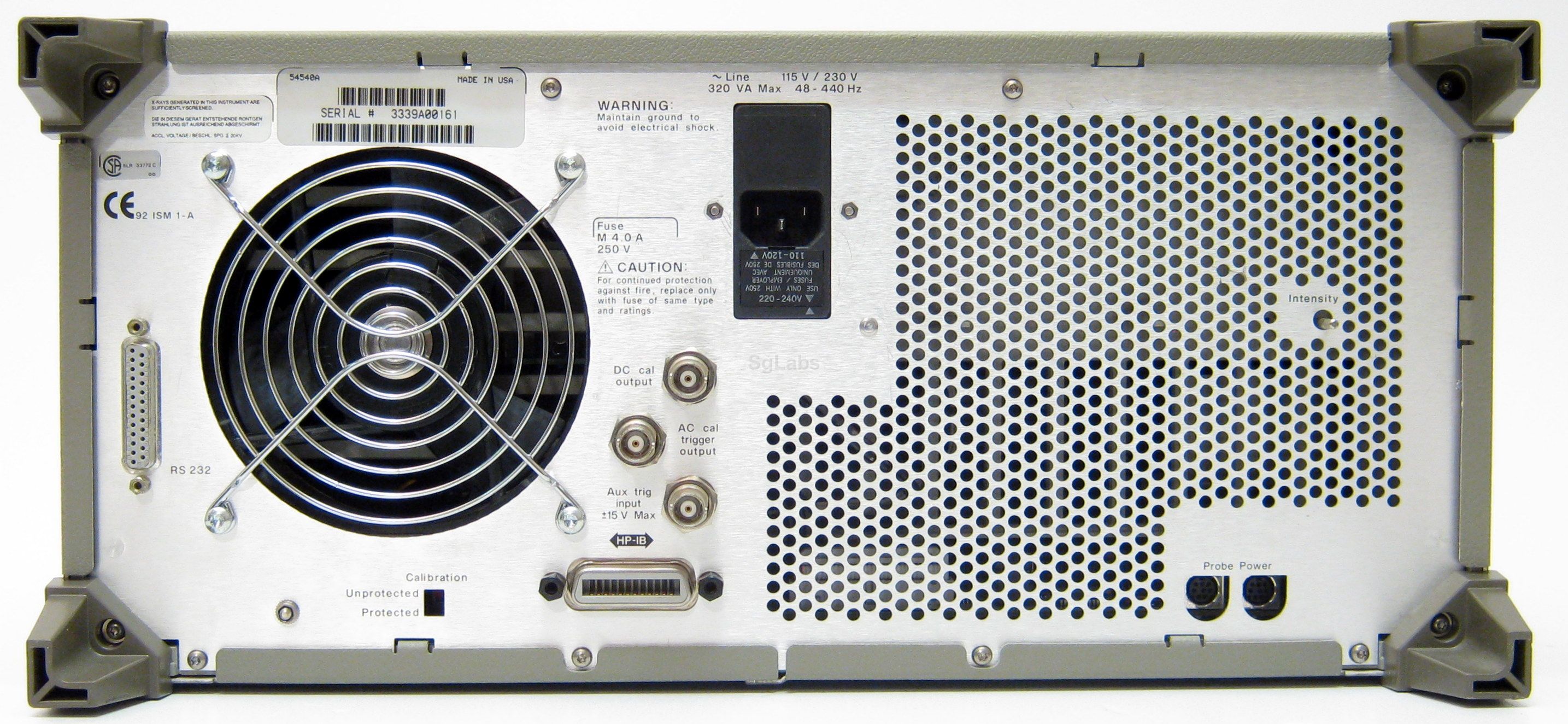

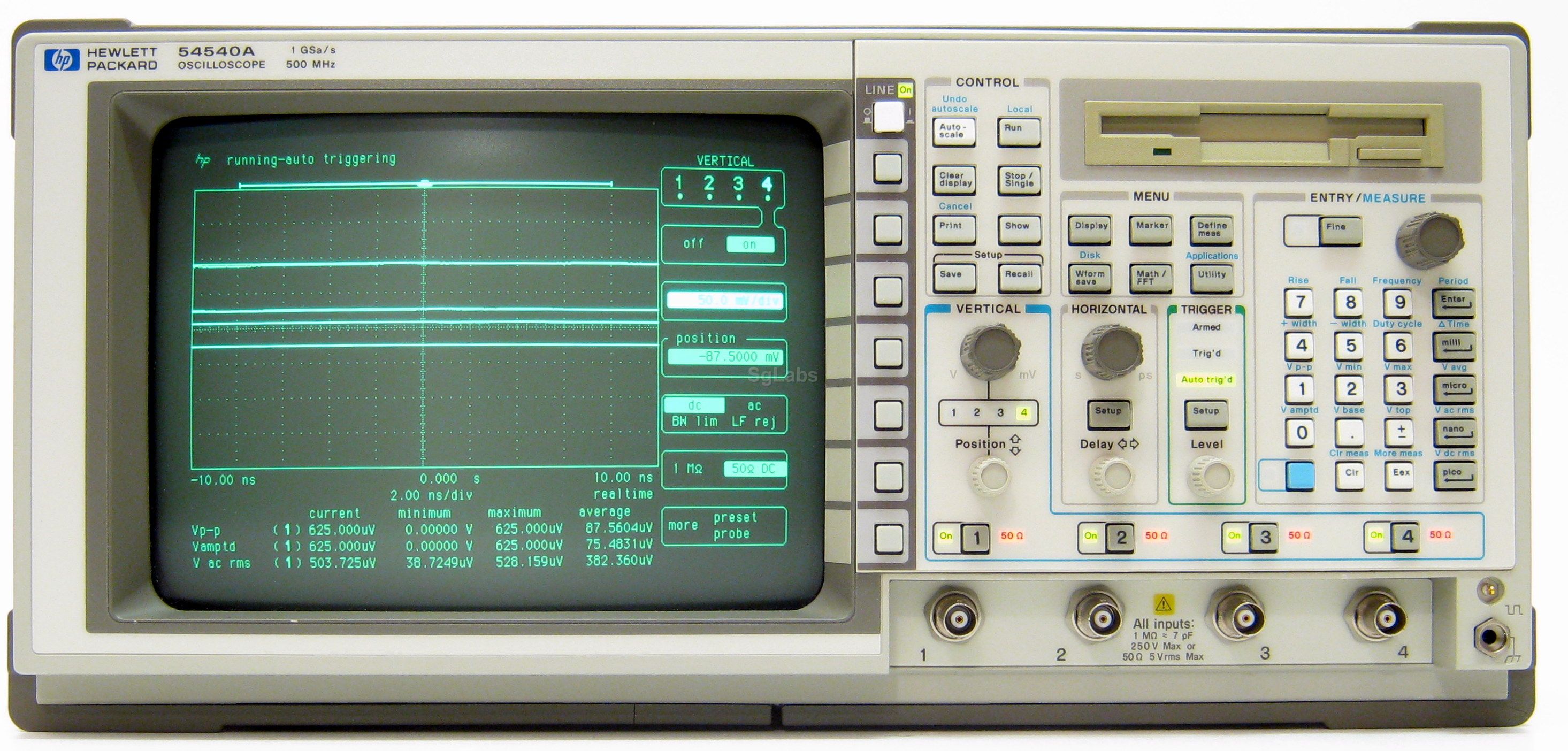

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

 The Agilent 54540A 500 MHz realtime oscilloscopes have the extra performance and features that you need to get an accurate view of the high frequency signals you encounter, whether you do analog or digital design, R&D or manufacturing test. With 32 K memory per channel, 4 channels, sample rate up to 2 GSa/s, 1 ns peak detect, and sophisticated triggering, you can be confident that you will not miss critical signal activity. These feature rich digitizing scopes also include standard FFT, floppy disk drive, and sequential single shot acquisition for better analysis and characterization of your signals. Choose between a color flat-panel display (54540C) or monochrome display (54540A).



Technical details:

  • Frequency Range/ Bandwith: 500 MHz
  • Max. Vertical Sensitivity: 5 V/Div
  • Min. Vertical Sensitivity: 1 mV/Div
  • Number of Channels: 4 CH
  • Max sample rate 2 Gs/s
  • 1 ns peak detect
  • 32 K of acquisition memory per channel
  • Input impedance 50 ohm or 1 Mohm
  • Auto Setup



  • Channels: 4
  • Display: CRT
  • BandWidth: 500 MHz
  • Sampling: up to 2 GSa/s
