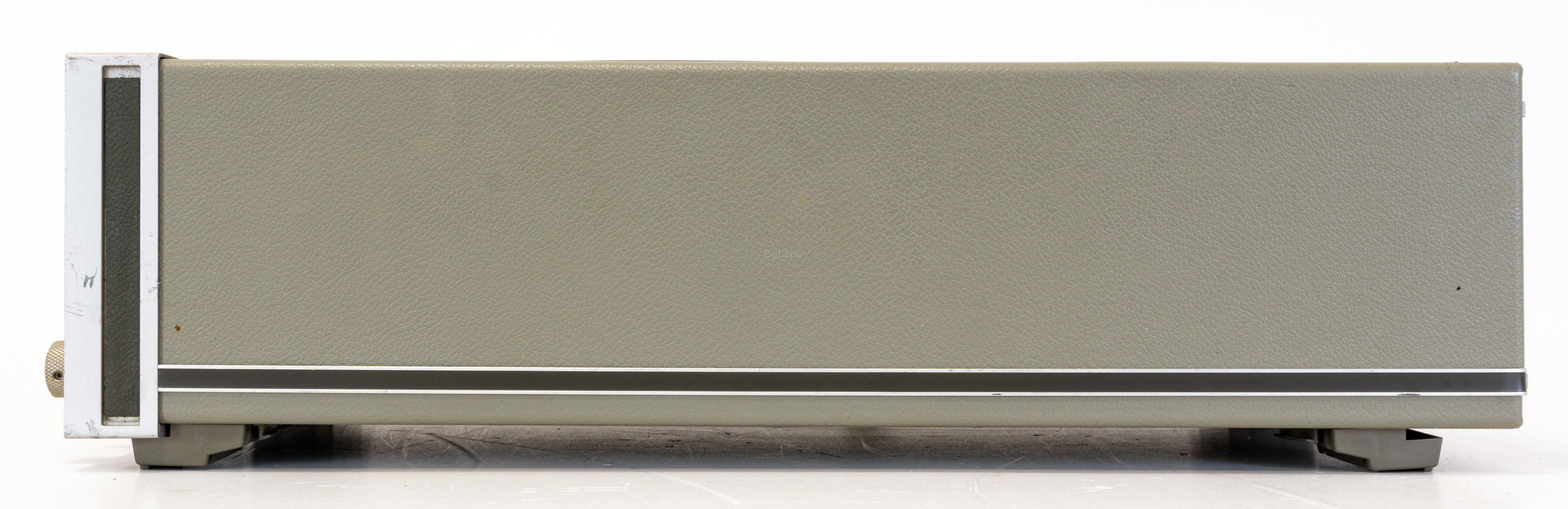

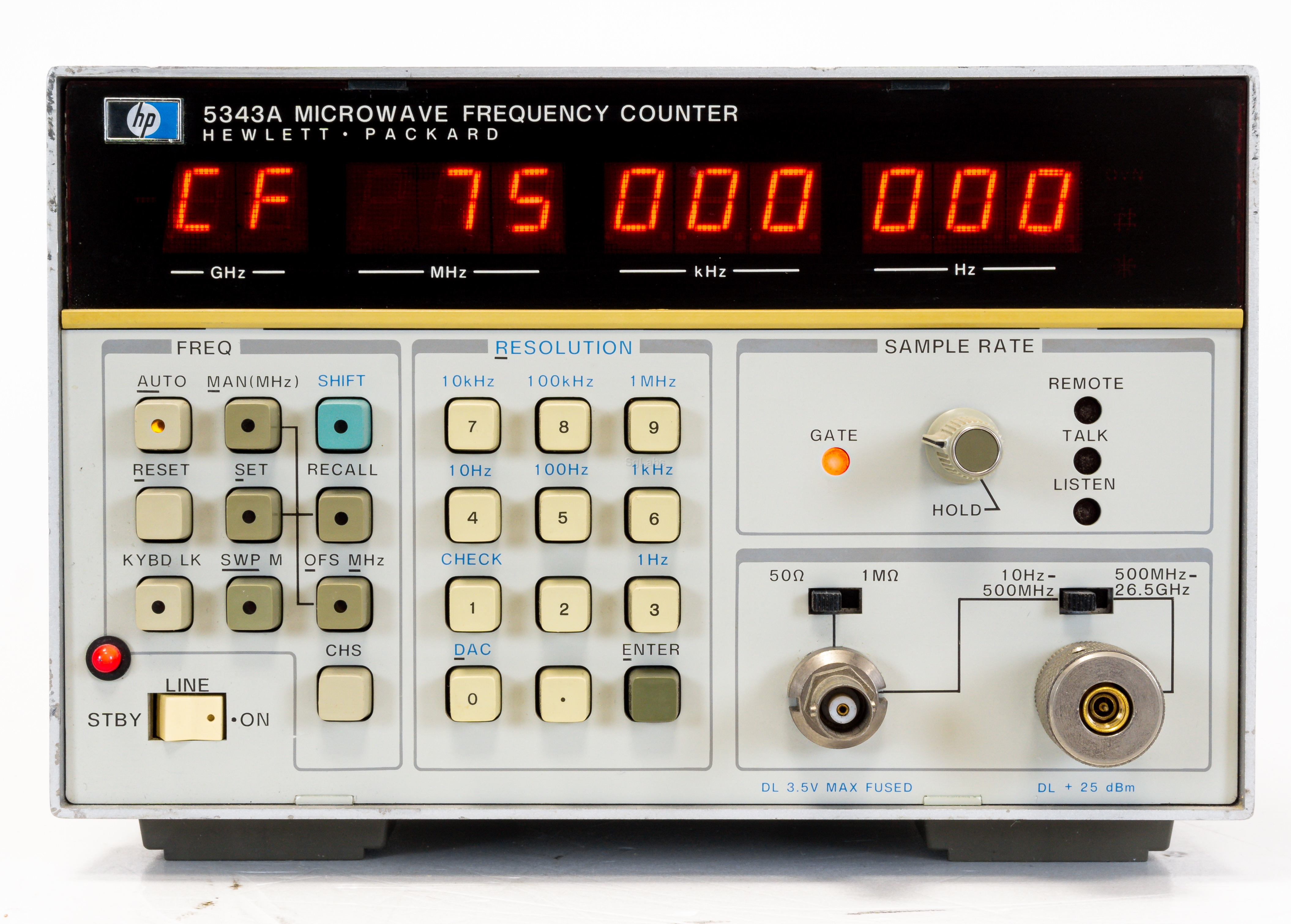

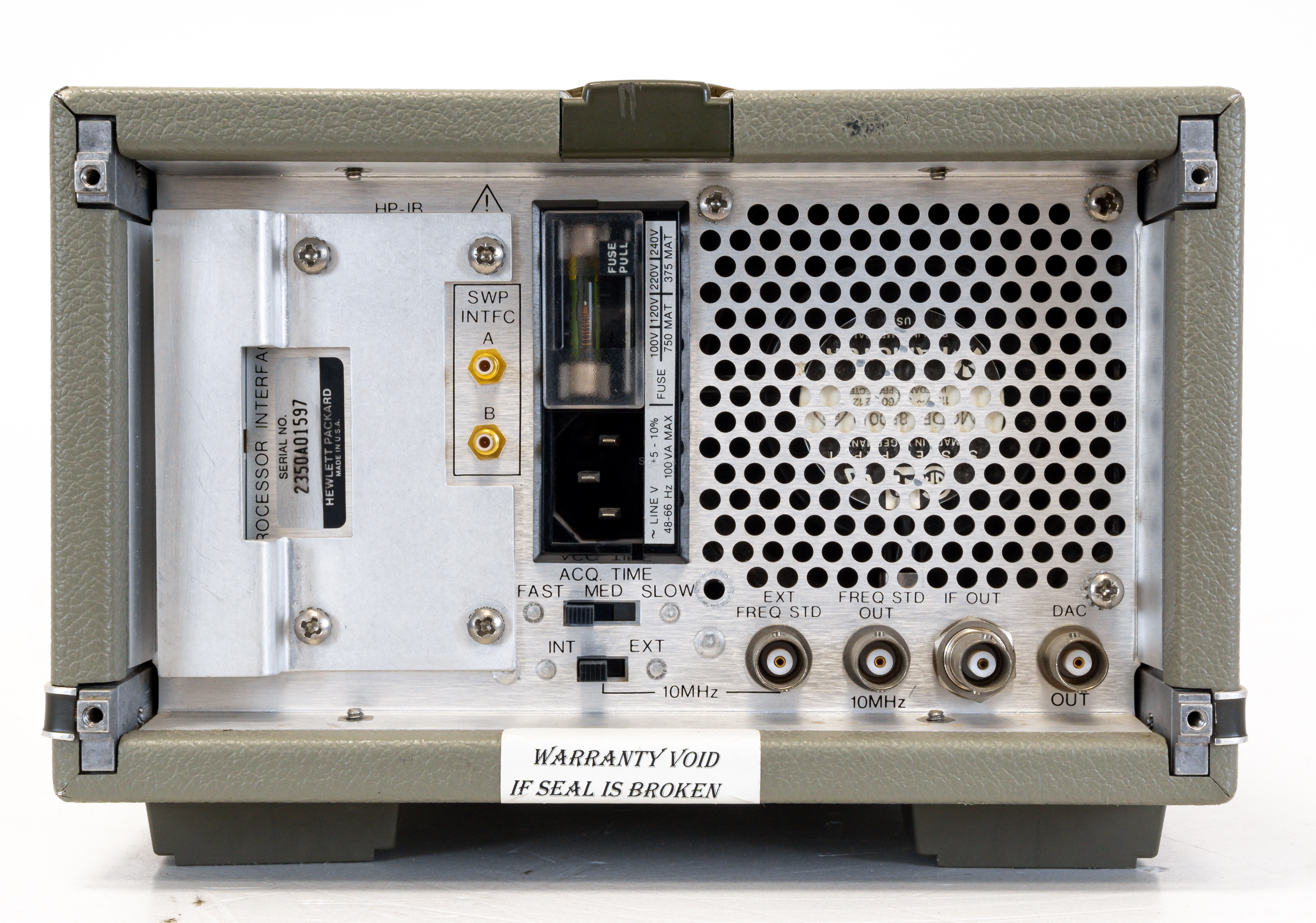

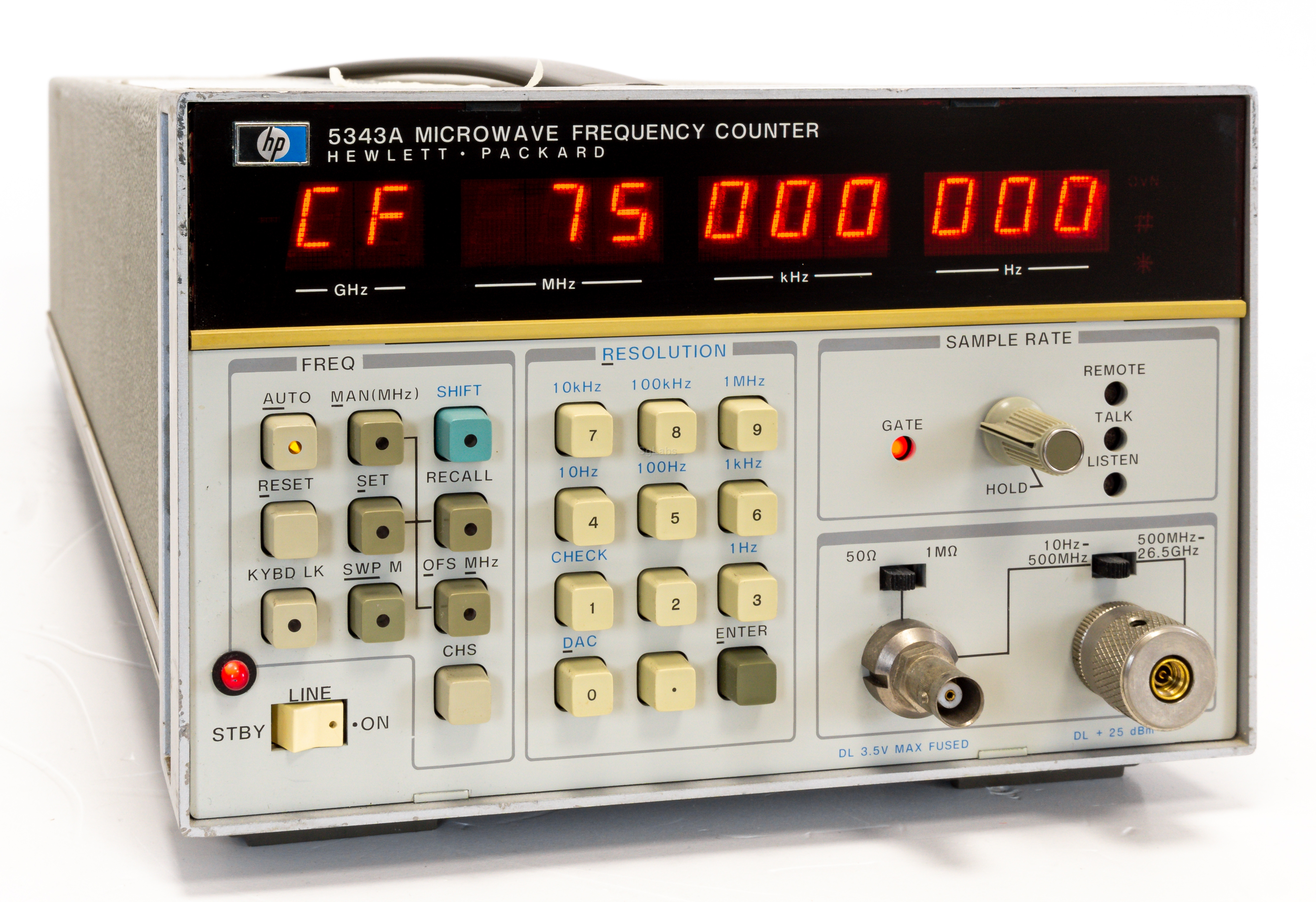

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP / Agilent 5343A is a Microwave Frequency Counter operating from 10 Hz to 26.5 GHz. It features automatic frequency measuements, high FM tolerance, and portable packaging. Options include gpib interface, high stability time base, input limiter protection, and digital-to-analog converter.

The HP 5343A is particularly useful in the communication field since it can tolerate an FM carrier frequency of up to 50MHz peak to peak. Because it utilizes microprocessor technology, the keyboard allows you to perform various math functions to allow for such things as IF offsets. An 11-digit display is sectionalized for easy readout to 1Hz resolution.

-Selectable input attenuation of 50 ohms and 1 Mohm.
-Two input frequency ranges: 10Hz to 500MHz & 500MHz to 26.5GHz.
  • Frequency range 10 HZ to 26.5 GHz
  • Resolution 11 digit
  • Connector N-type and BNC-type
  • Resolution 1 Hz
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: 10 Hz
  • Channels: 2
  • Digit: 11
  • Resolution: from 1 Hz to 1 MHz
  • Sensibility: -30 dBm @12,4 GHz; >-24 dBm @18 GHz; >-18 dBm @26,5 GHz
