HP Agilent Keysight, 53152A

You are here: Frequency Counter » > 18 GHz

HP Agilent Keysight, 53152A

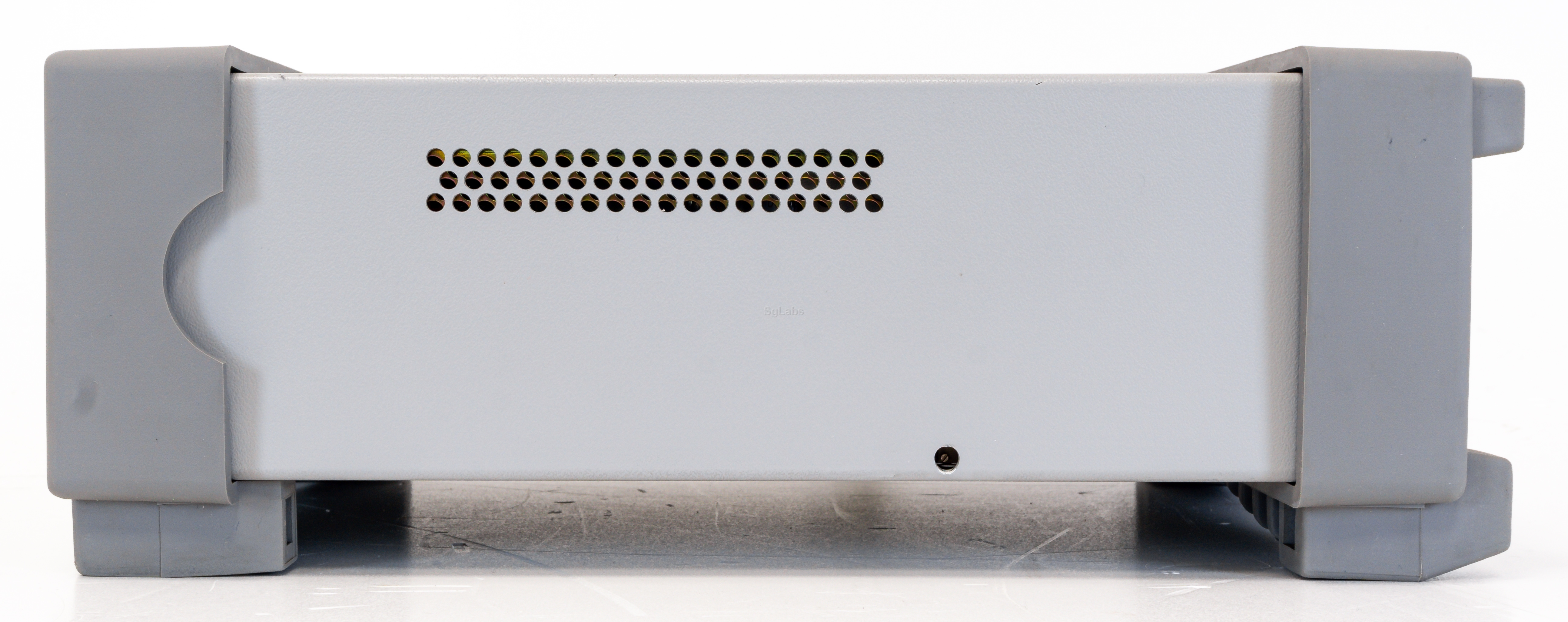

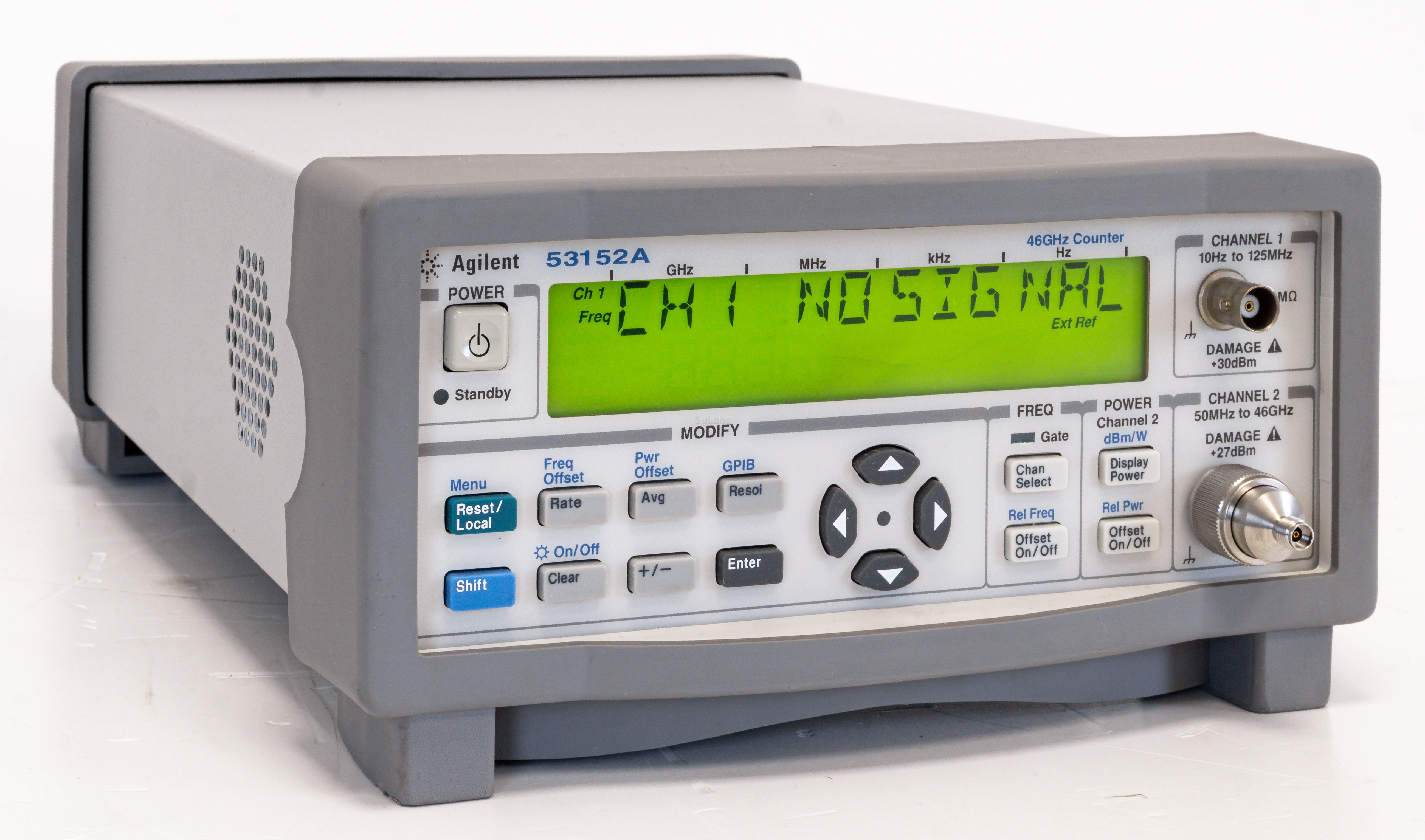

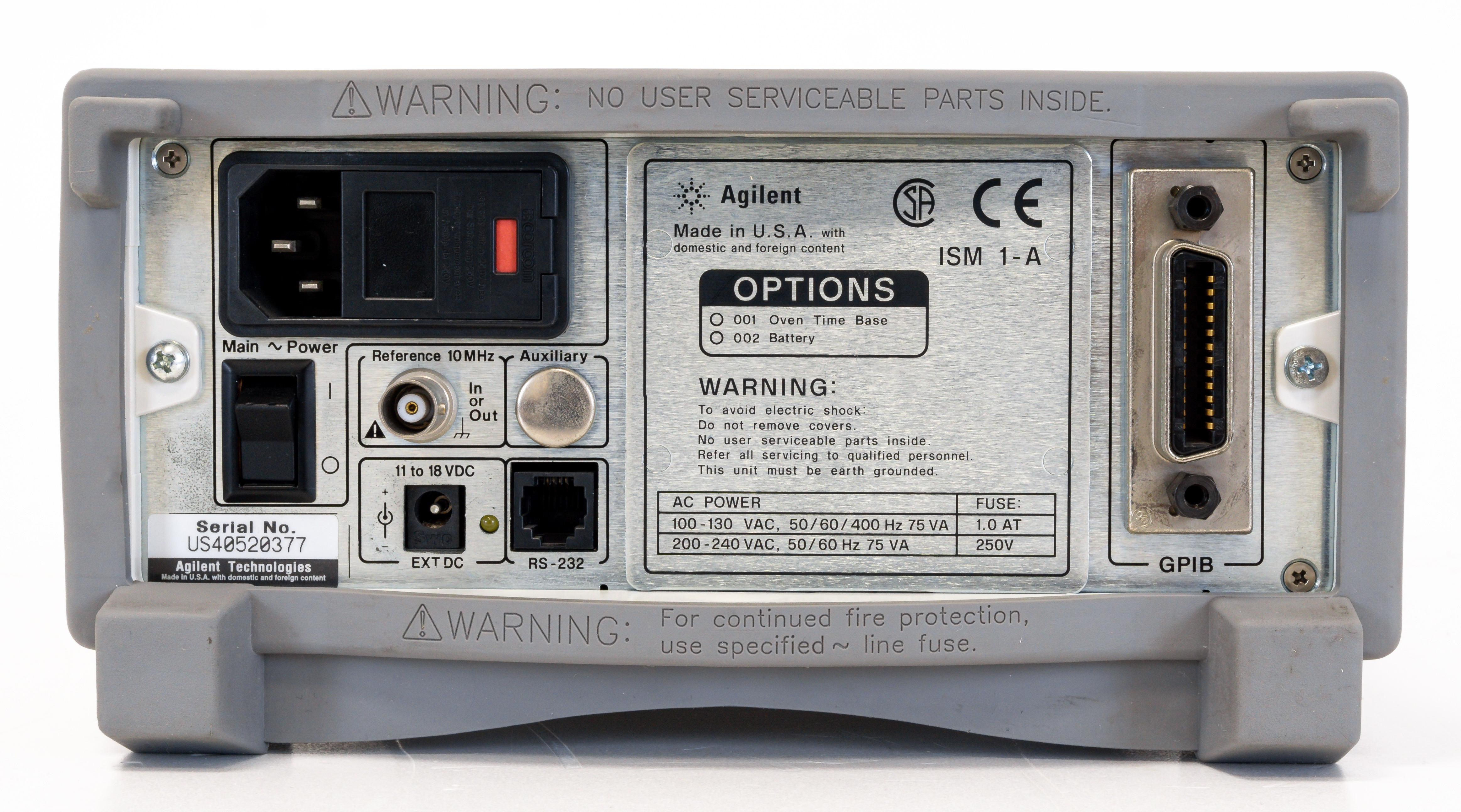

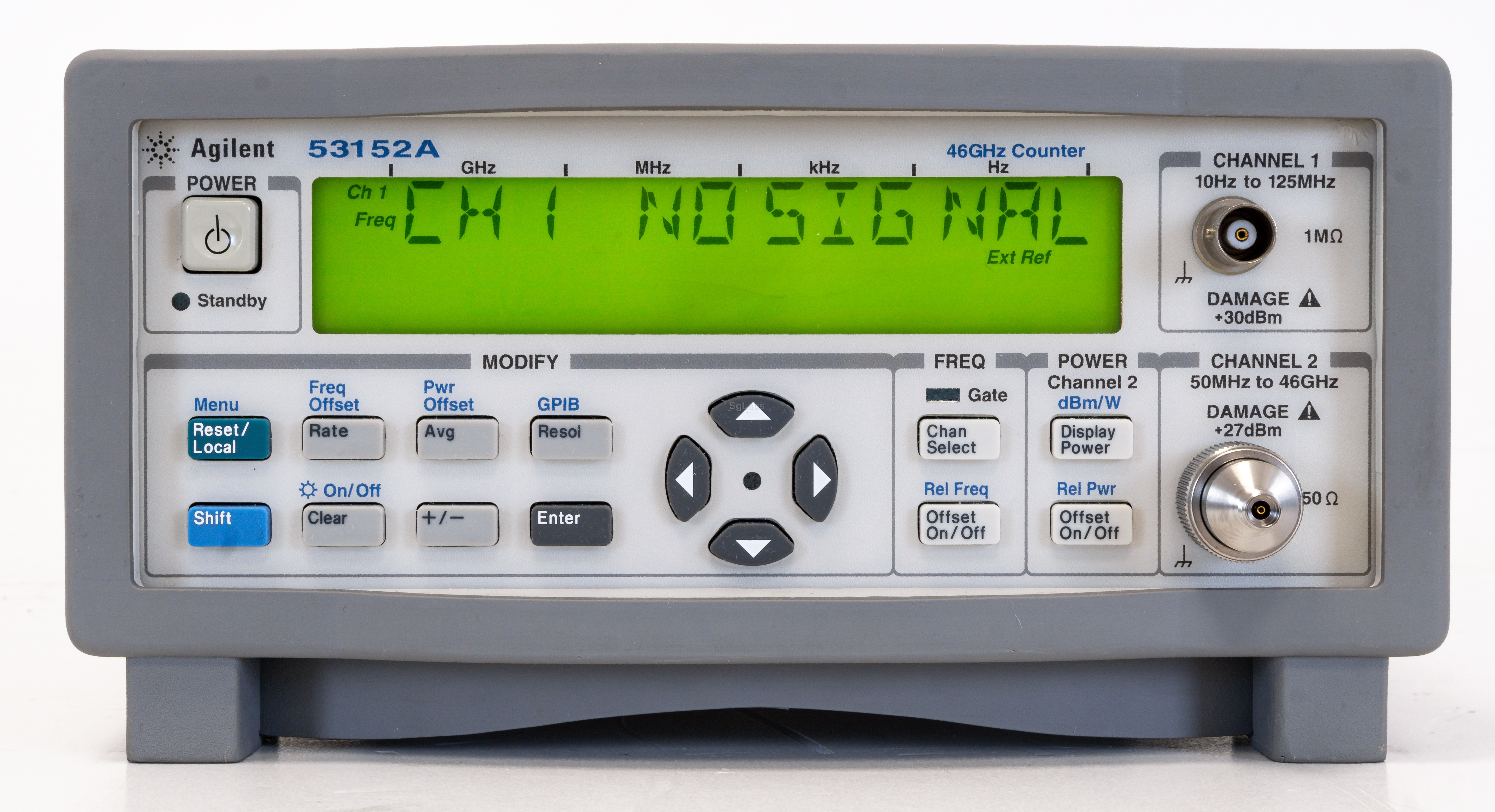

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Agilent 53152A is a full-featured 46 GHz CW microwave counter and power meter that is perfectly suited for bench top or ATE environments, yet is tough enough to handle the most rugged field applications. It offers high performance with an extra-wideband input that covers the RF and microwave spectrum from 50 MHz to 46 GHz. Frequency and power are measured simultaneously with this same input.
  • Ultra-wideband, single input from 50 MHz to 46 GHz (Ch.2)
  • Channel 1: 10 Hz - 125 MHz
  • Simultaneous frequency and power measurement with analog peaking indicator
  • Accuracy: +/-1 LSD +/- residual stability +/-(timebase error x frequency)
  • GPIB and RS-232 interfaces standard
  • Max. Frequency: 46 GHz
  • Min. Frequency: 10 Hz
  • Channels: 2
  • Digit: 11
  • Resolution: 1 Hz to 1 MHz
  • Sensibility: 40 mV
