HP Agilent Keysight, 3577A

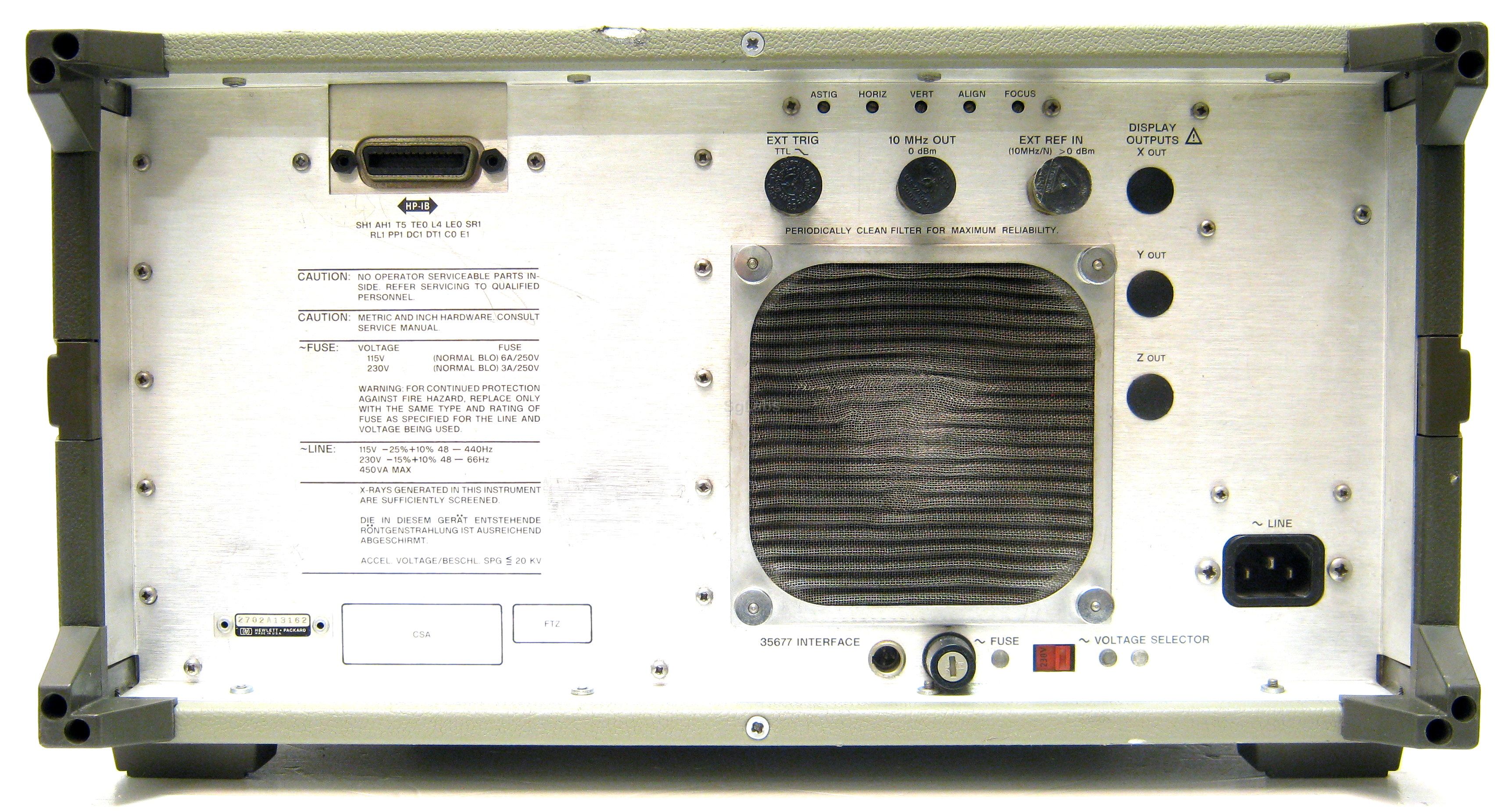

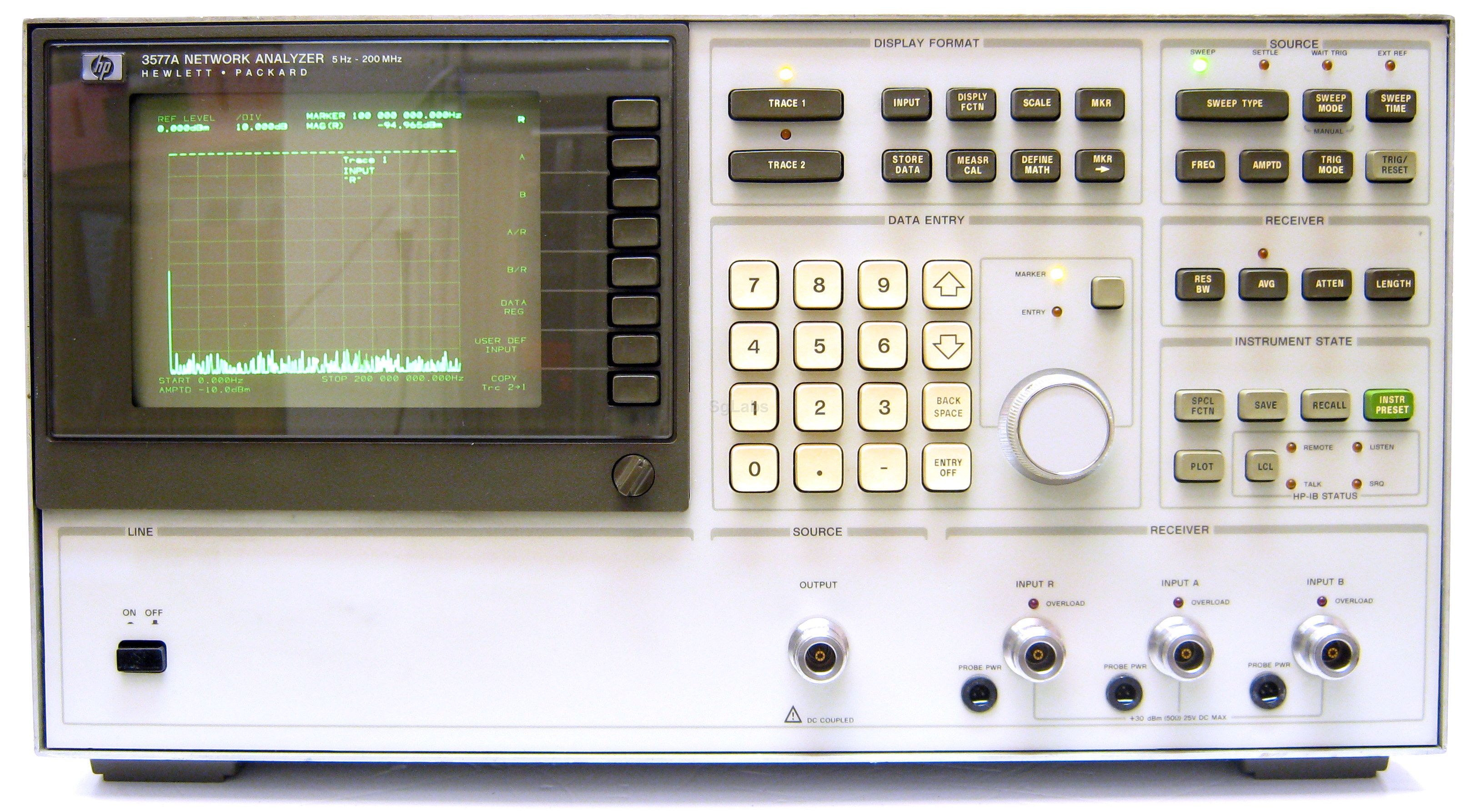

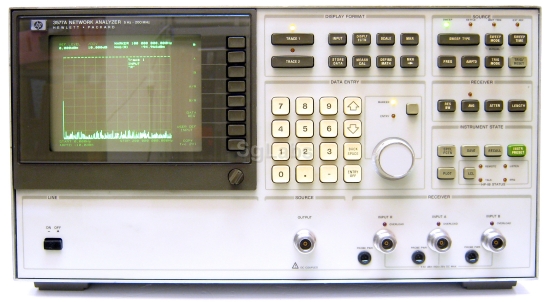

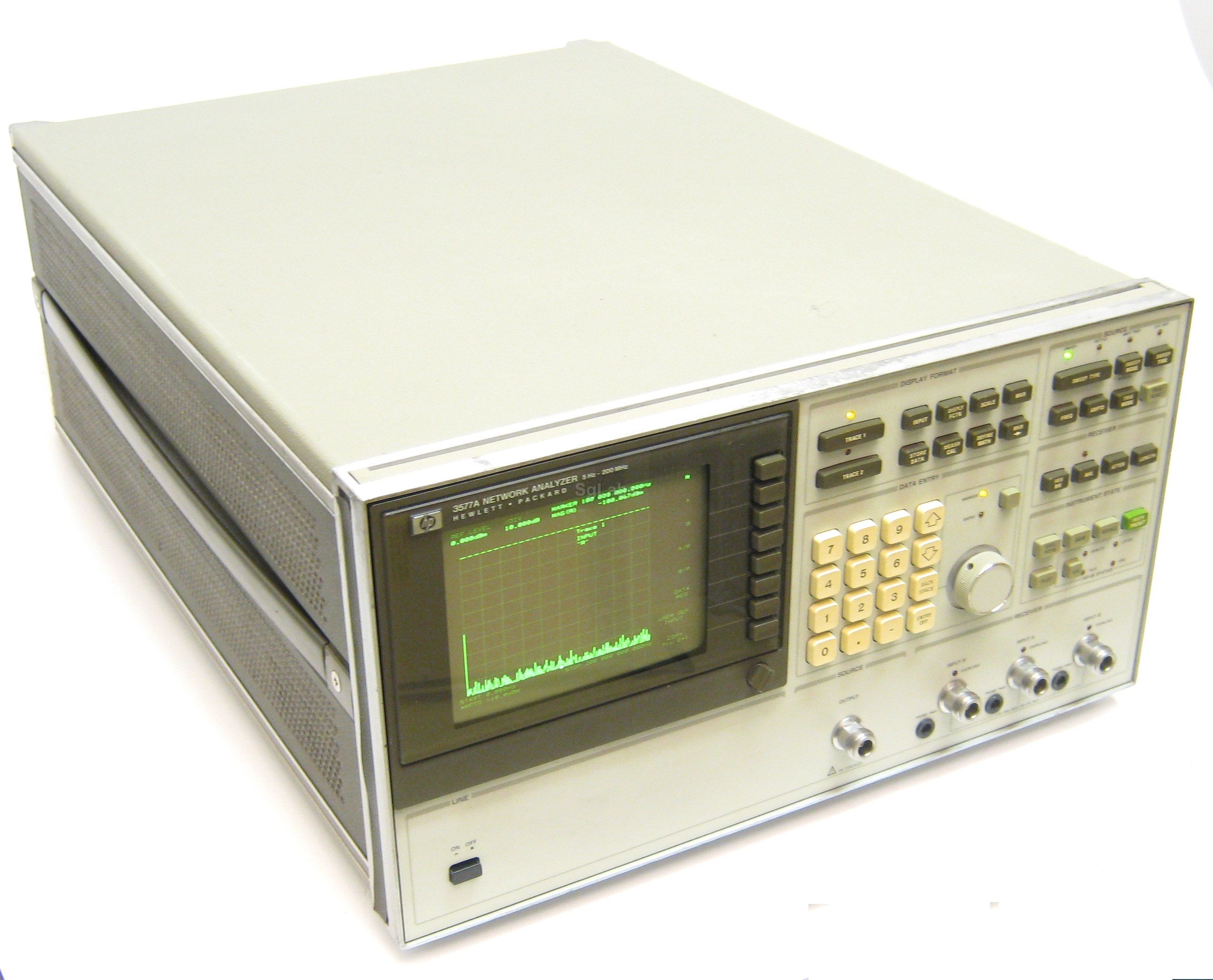

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The HP 3577A Network Analyzer provides cost-effective, high performance network measurements from 5 Hz to 200 MHz for higher productivity in design and production.  The companion HP 35677A/B S-Parameter Test Sets and full line of accessories ensure a complete measurement solution.  Innovative analog and digital design are combined for superb accuracy, resolution and operational simplicity.

Convenient soft-key selection of measurement functions allows you to quickly measure transfer functions, magnitude/phase, insertion loss/gain, attenuation, electrical length and gain compression.  In addition, measurement of phase distortion parameters such as group delay and deviation from linear phase can be made with high resolution.  With the HP 3577A's flexible receiver input impedances, you can measure in either 50-Ωor high impedance (1 MΩ) environments.  Use the HP 35677B S-Parameter Test Sets with the HP 3577A to make reflection measurements such as return loss, reflection coefficient and impedance in 50-Ω  or 75-Ω  systems, while simultaneously displaying transmission parameters.

Features
  • Frequency Range: 5 Hz - 200 MHz
  • Extern Test set S-parameter
  • Channels: 2
  • GP-IB port

  • Connector: N
  • Max. Frequency: 200 MHz
  • Min. Frequency: 5 Hz
  • Channels: 2
  • Test set: S-parameter external
  • Interface: GP-IB
