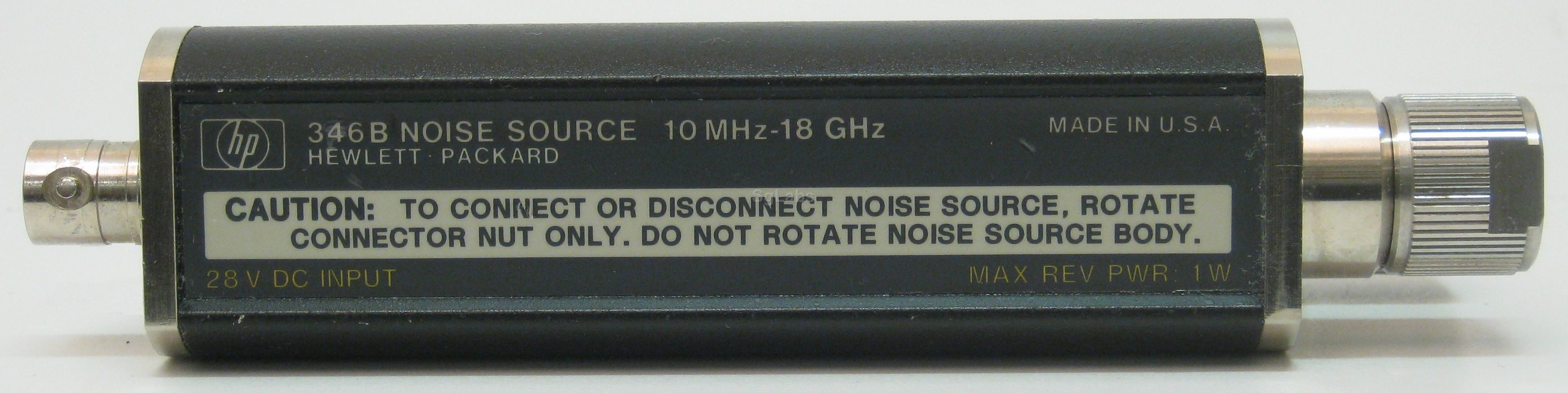

HP Agilent Keysight, 346B
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Agilent 346B noise source is the ideal companion to Agilent's noise figure solutions. Since it is broadband (10 MHz to 18 GHz), it eliminates the necessity for several sources at different frequency bands. The low SWR of the noise source reduces a major source of measurement uncertainty; reflections of test signals. The 346B's high ENR, low SWR, and variety of connectors make it a general-purpose noise source. Add special option H01 for high ENR (21 dB typical) to measure high noise figure devices, or option H42 for measuring Direct Broadcast Satellite (DBS) low noise block converters.

Features
  • Frequency range: 10 MHz to 18 GHz
  • VSWR: < 1.3:1

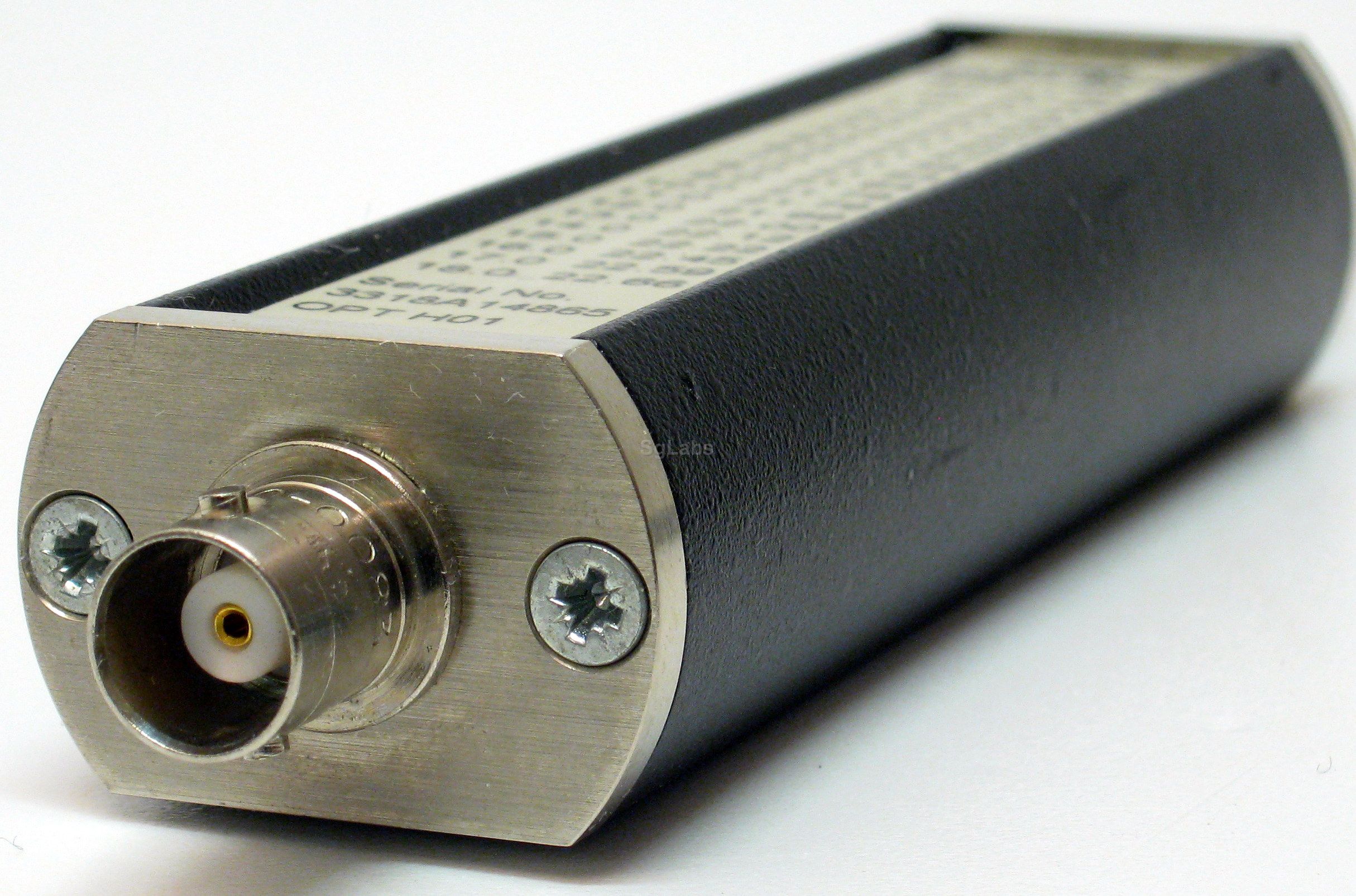

  • Connectors: BNC (f) input bias / 3.5 mm (m)
  • Low SWR for reducing noise figure measurement uncertainty
  • Opzione H01: Alto ENR (21 dB tipico)

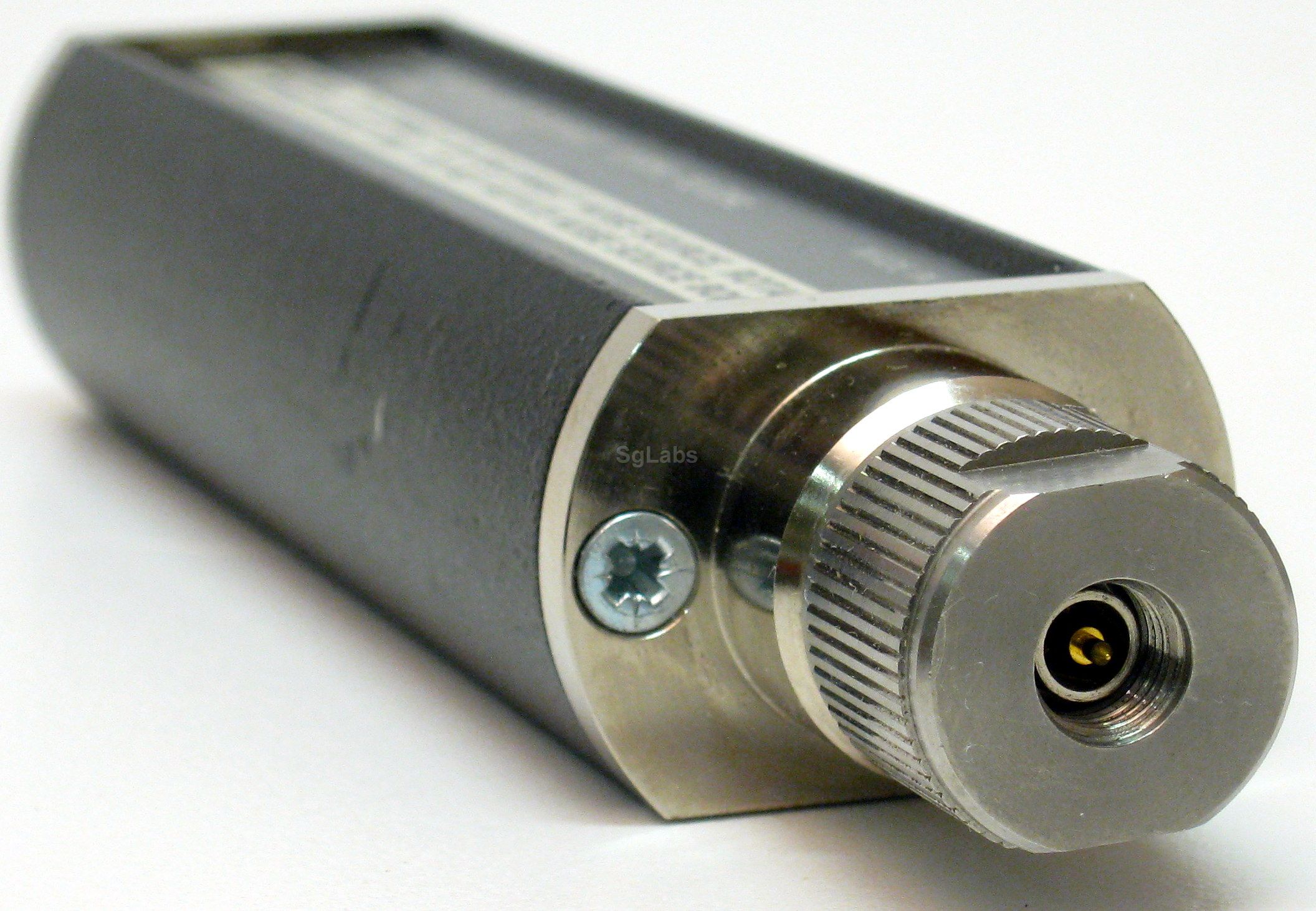

  • Connector: APC 3.5 mm (m)

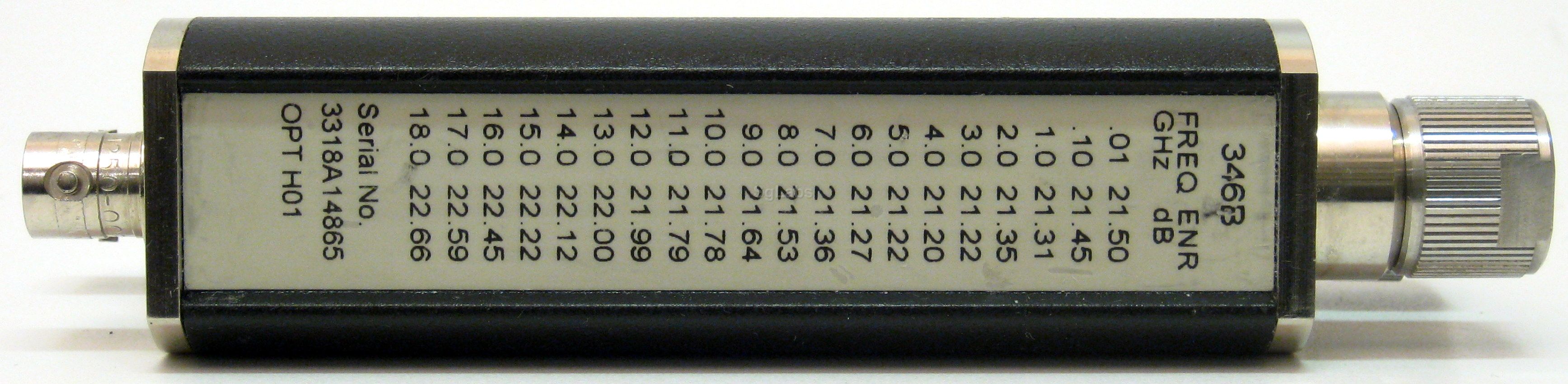

  • ENR: 15 dB (21 dB opt.H01)
  • Max. Frequency: 18 GHz
  • Min. Frequency: 10 MHz
  • NF Range: up to 30 dB
Price
 € 950,00
