HP Agilent Keysight, 33220A

You are here: Function Generator » Digital Arbitrary

HP Agilent Keysight, 33220A

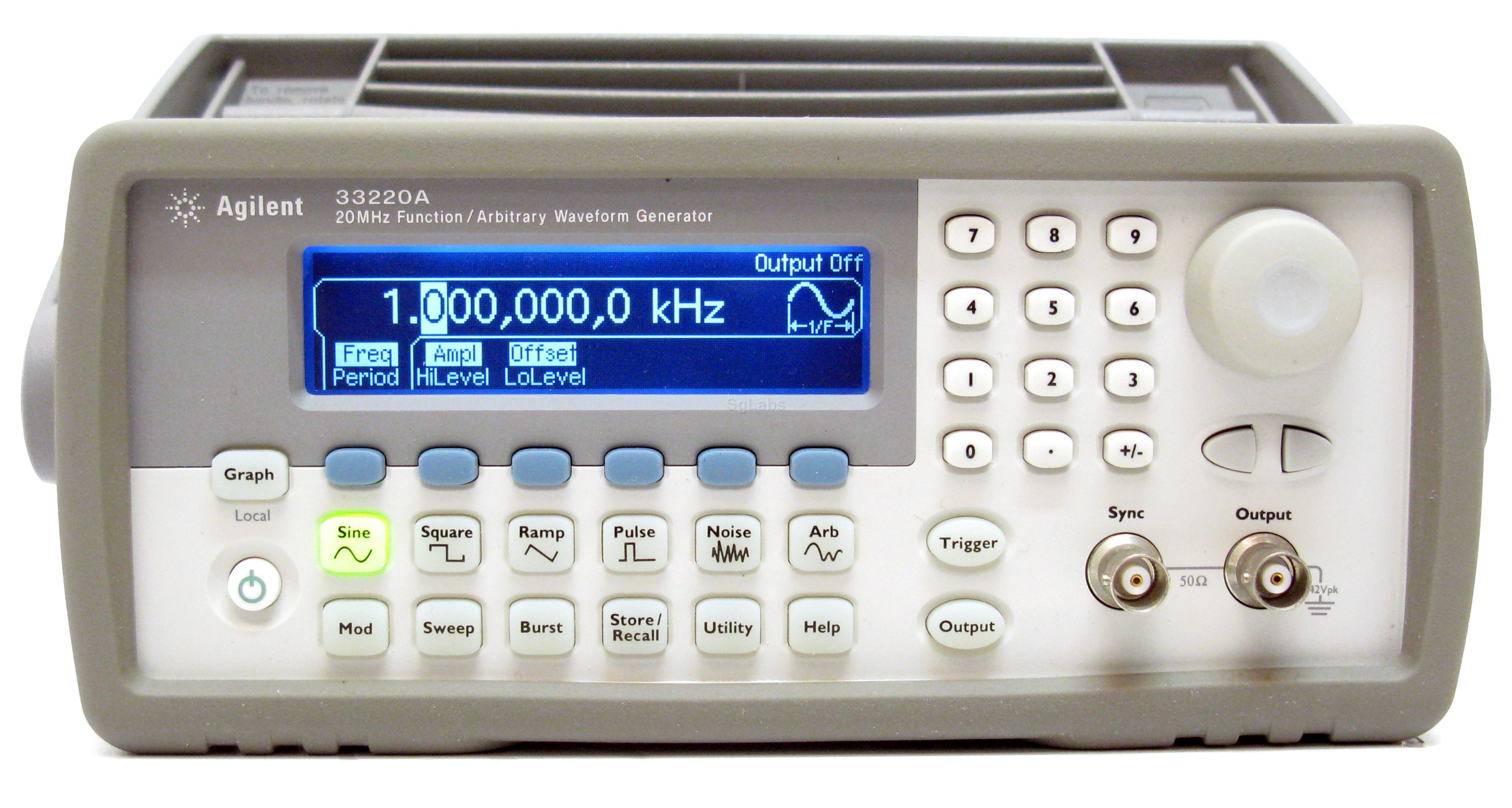

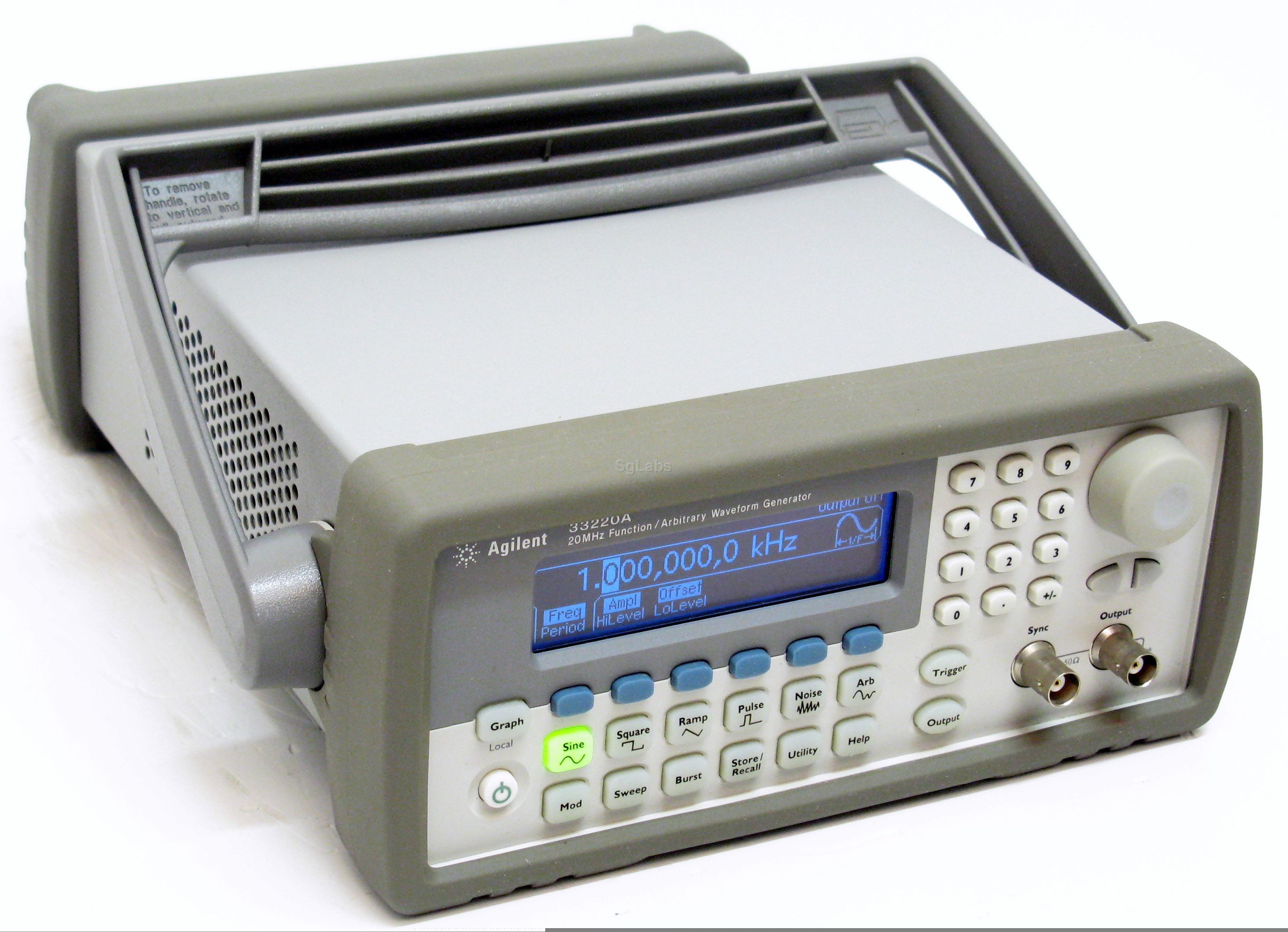

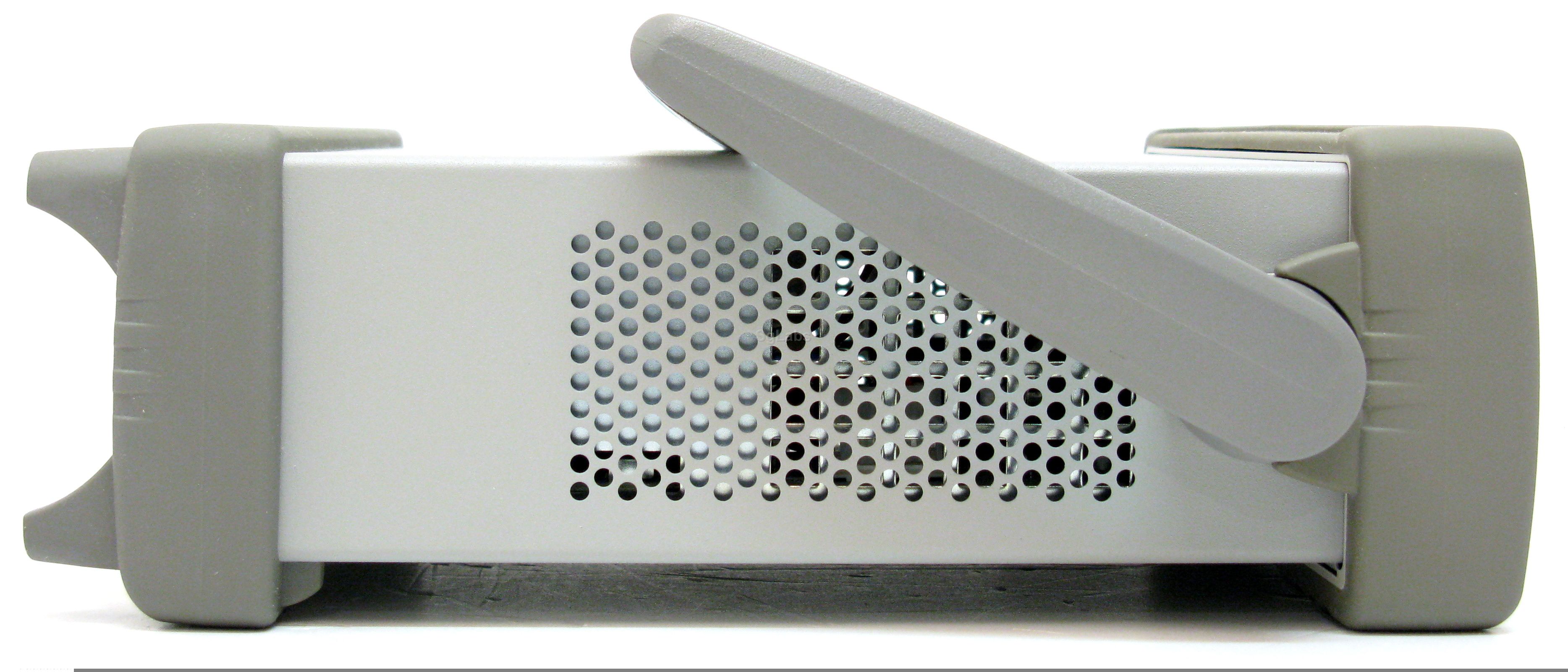

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent Technologies 33220A function/arbitrary waveform generator uses direct digital synthesis (DDS) techniques to create a  stable, accurate output signal for clean, low distortion sine waves. It also gives you square waves with fast rise and fall times up to 20 MHz and linear ramp waves up to 200 kHz.
  • 20 MHz sine and square waveforms
  • Ramp, triangle, noise, pulse generation with variable edge, and DC waveforms
  • 14-bit, 50 MSa/s, 64 Kpoint arbitrary waveforms
  • AM, FM, PM, FSK, and PWM Modulation, Linear & logarithmic sweeps and burst all standard
  • Max. Frequency: 20 MHz
  • Min. Frequency: 1 uHz
  • Max. Level: 10 V p-p
  • Min. Level: 10 mV p-p
  • sweep: yes
