Working with Gigatronics 8541C Power meter
Technical details :
- Frequency from 10 MHz up to 18 GMHz
- Power range -67 dBm up to +20 dBm
Giga-tronics, 80601A
You are here: Power Meter / Sensor (RF) » Power sensor
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

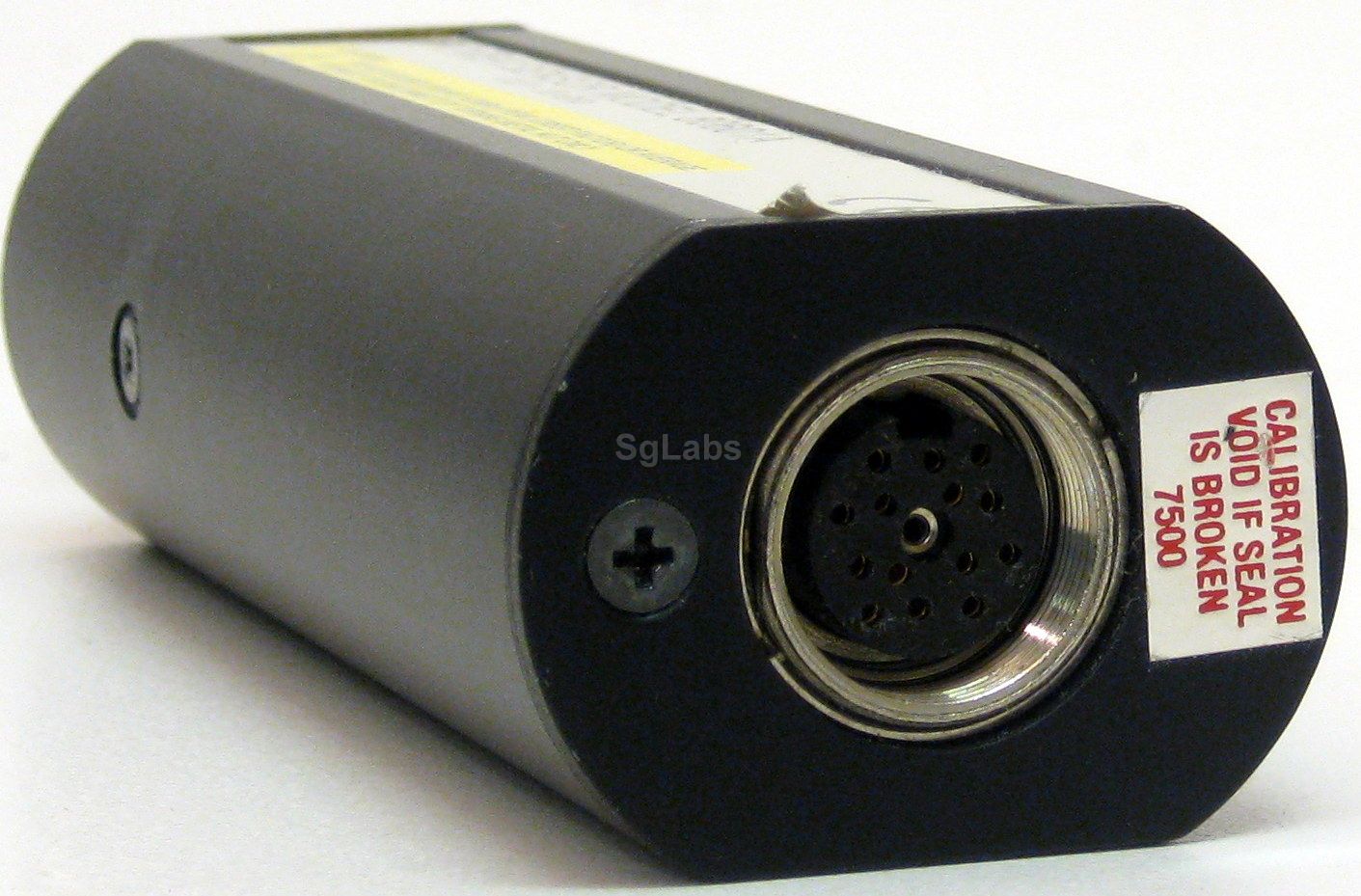

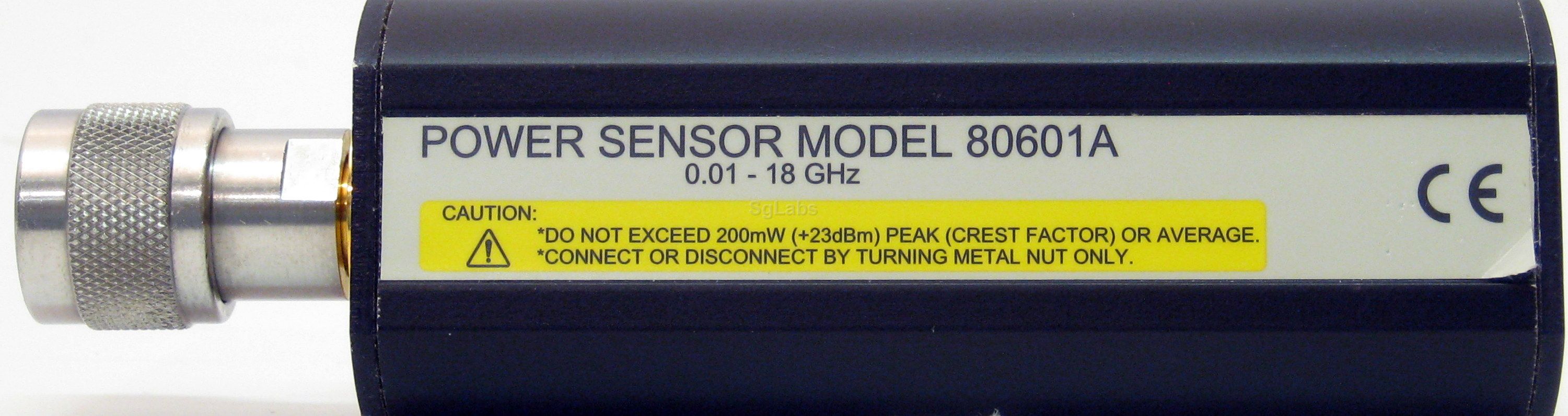

The Gigatronics 80601A Modulated Power Sensor lets you measure the average power of amplitude modulated, burst modulated and other complex modulated signals, such as TDMA, at bandwidths up 1.5 MHz. With a frequency range of 10 MHz to 18 GHz, the 80601A measures signal levels from -67 dBm to +20 dBm.
Working with Gigatronics 8541C Power meter
Working with Gigatronics 8541C Power meter
- Max. Frequency: 18 GHz
- Min. Frequency: 10 MHz
- Max. power: 20 dBm (23 dBm peak)
- Min. Power: -67 dBm
