Fluke, PM6685

You are here: Frequency Counter » Up to 1 GHz

Fluke, PM6685
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

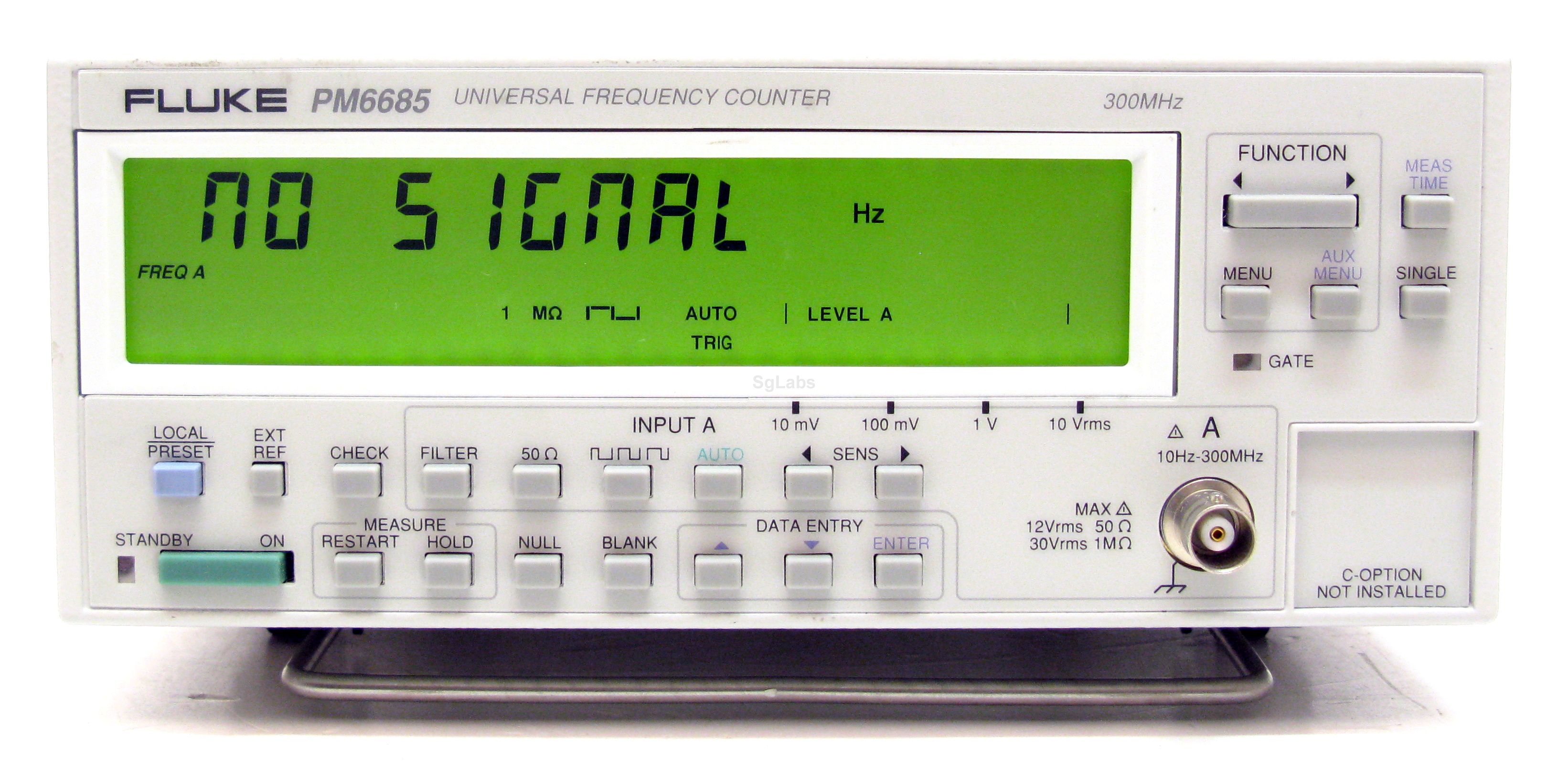

The PM 6685 frequency counter from Fluke brings cal lab accuracy to field measurements. With 10 digits per second, plus overflow (displays 11th and 12th digits), it delivers high-accuracy measurements instantly. The PM 6685 is easy to use, compact and - most important of all - it has today's smartest input triggering for frequency measurements. The battery option for the PM 6685 maintains oven stability for 20 hours, giving you instant oven performance even after long transportation.
  • Frequency range: 10 Hz - 300 MHz
  • Ultra High Stability Oven: up to 5 x 10-9 within 10 min
  • Displays 10 digits in a second
  • Smart AUTO trigger eliminates guesswork, provides error-free measurements
  • Analog Bar Graph displays signal strength and input sensitivity to assist instrument setup and RF tuning
  • Max. Frequency: 300 MHz
  • Min. Frequency: 10 Hz
  • Channels: 1 (2 opt)
  • Digit: 10
  • Resolution: 6 ns to 100 ms
  • Sensibility: 10 mV
