Fluke PM6681R Rubidium frequency counter

You are here: Frequency Counter » Up to 1 GHz

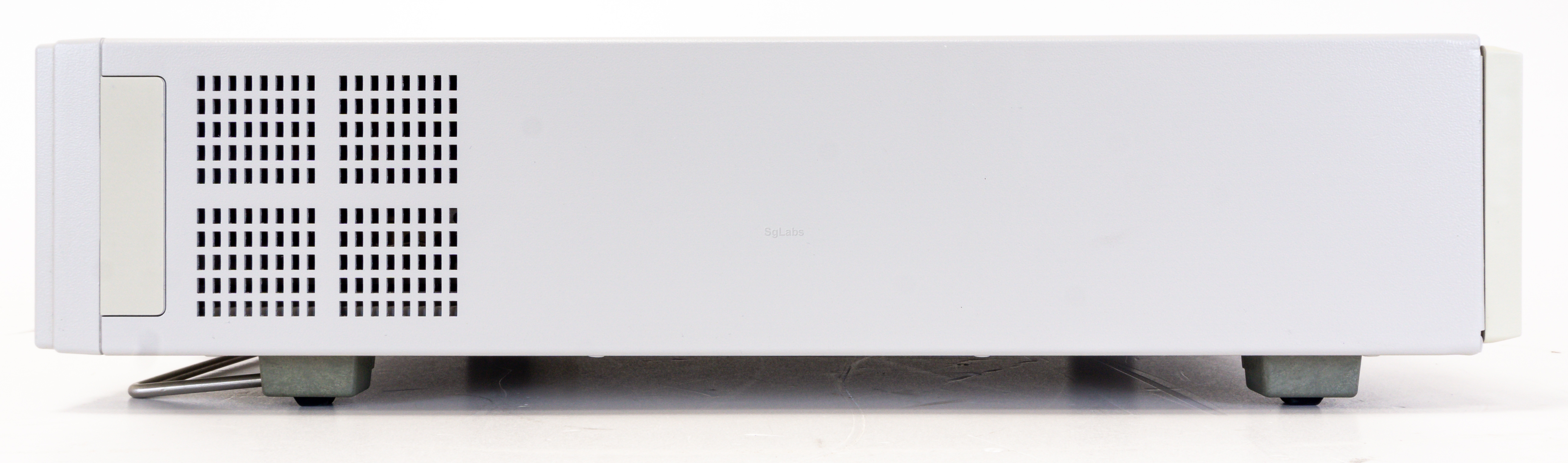

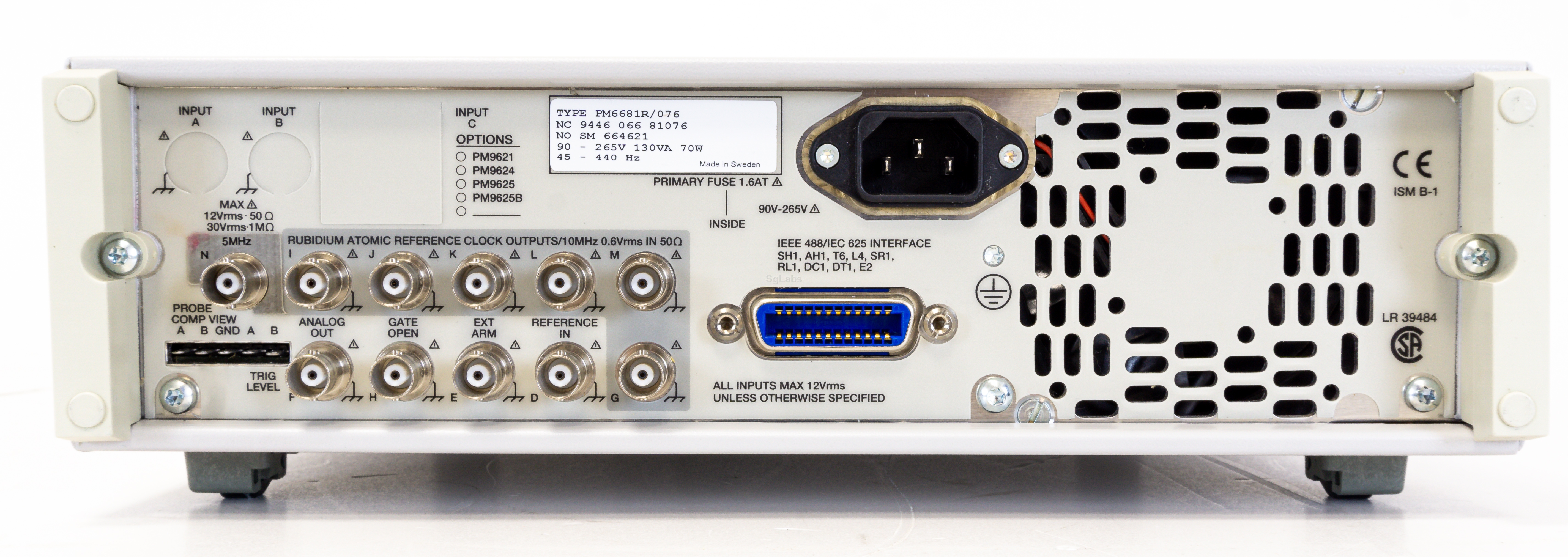

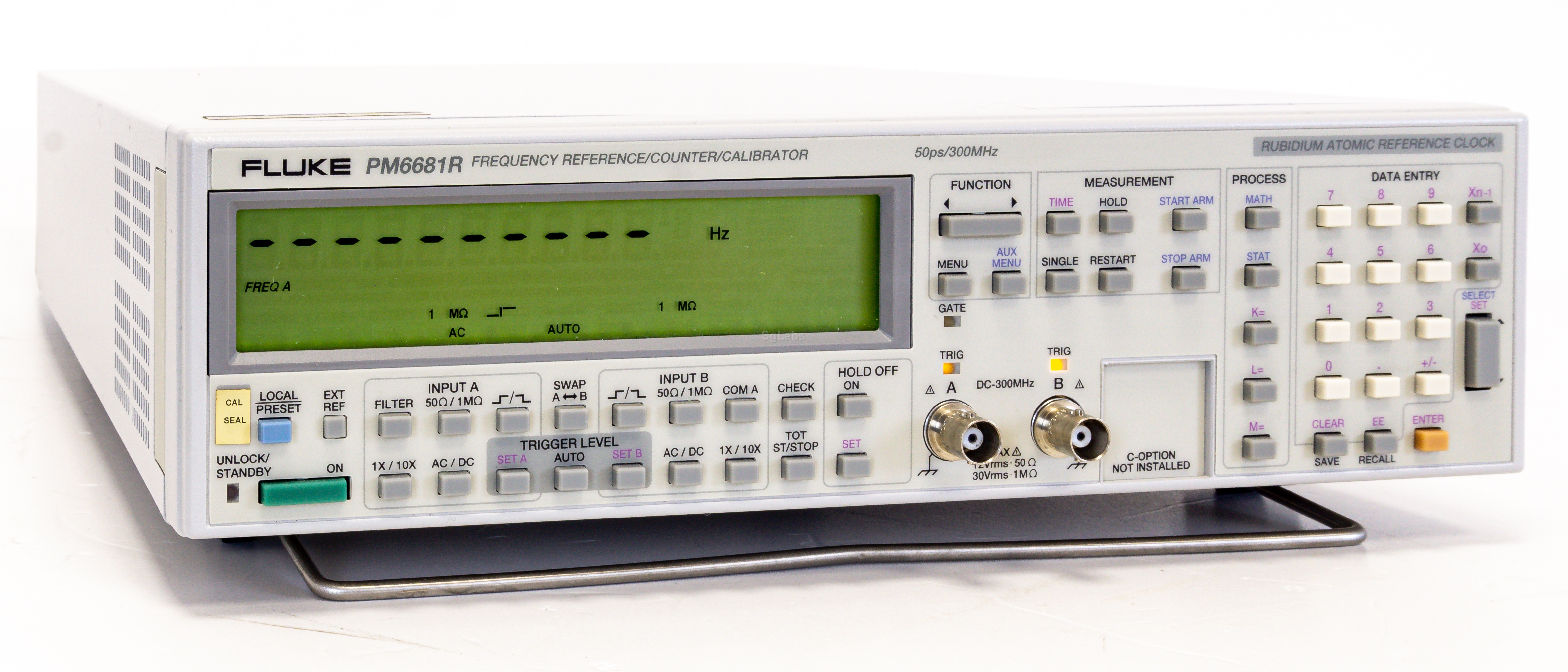

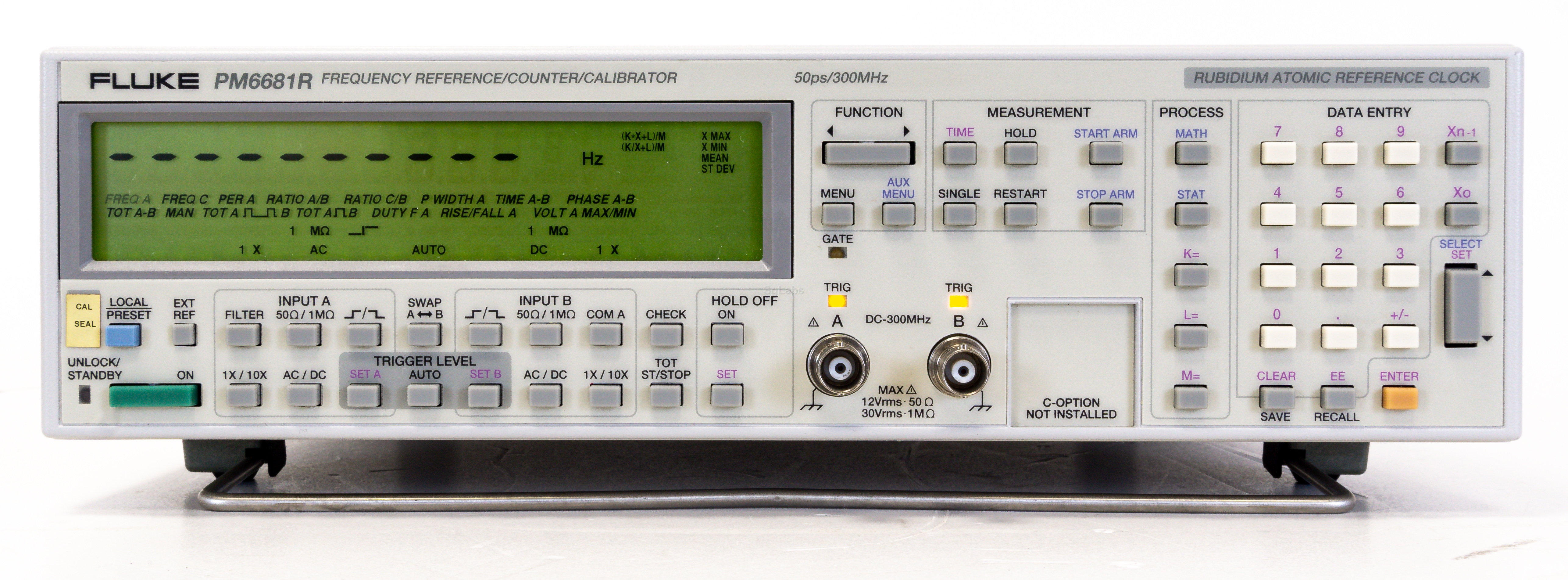

Fluke PM6681R Rubidium frequency counter
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Fluke PM 6681 timer/counter spans a frequency range of up to 8 GHz, which enables calibration of microwave links, communications and radar equipment. You can make frequency measurements accurately and easily, not only on continuous carrier waves, but also on burst signals. Resolution With the high resolution/speed performance of 11 digits/s, these counters are ideal tools for frequency measurements on telecom systems. Time interval measurements down to 1ps average and 50 ps single shot are supported.
PM6681R makes this instrument the most accurate Frequency Reference(Counter/Calibrator for the calibration of frequency, time or phase
Features
  • 50 ps single-shot time interval resolution (1 ps averaged)
  • 1.25 mV vertical resolution
  • 300 MHz range, options to 4.5 GHz
  • 8k readings/s to internal memory
  • 250 readings/s over GPIB
  • Continuous single-period measurements at up to 40k readings/s
  • Unique hold-off and arming delay facilities to measure any part of any complex signal
  • Max. Frequency: 300 MHz standard
  • Min. Frequency: 10 e-10 Hz
  • Channels: 2
  • Digit: 11
  • Sensibility: 20 mV rms, <100 MHz
