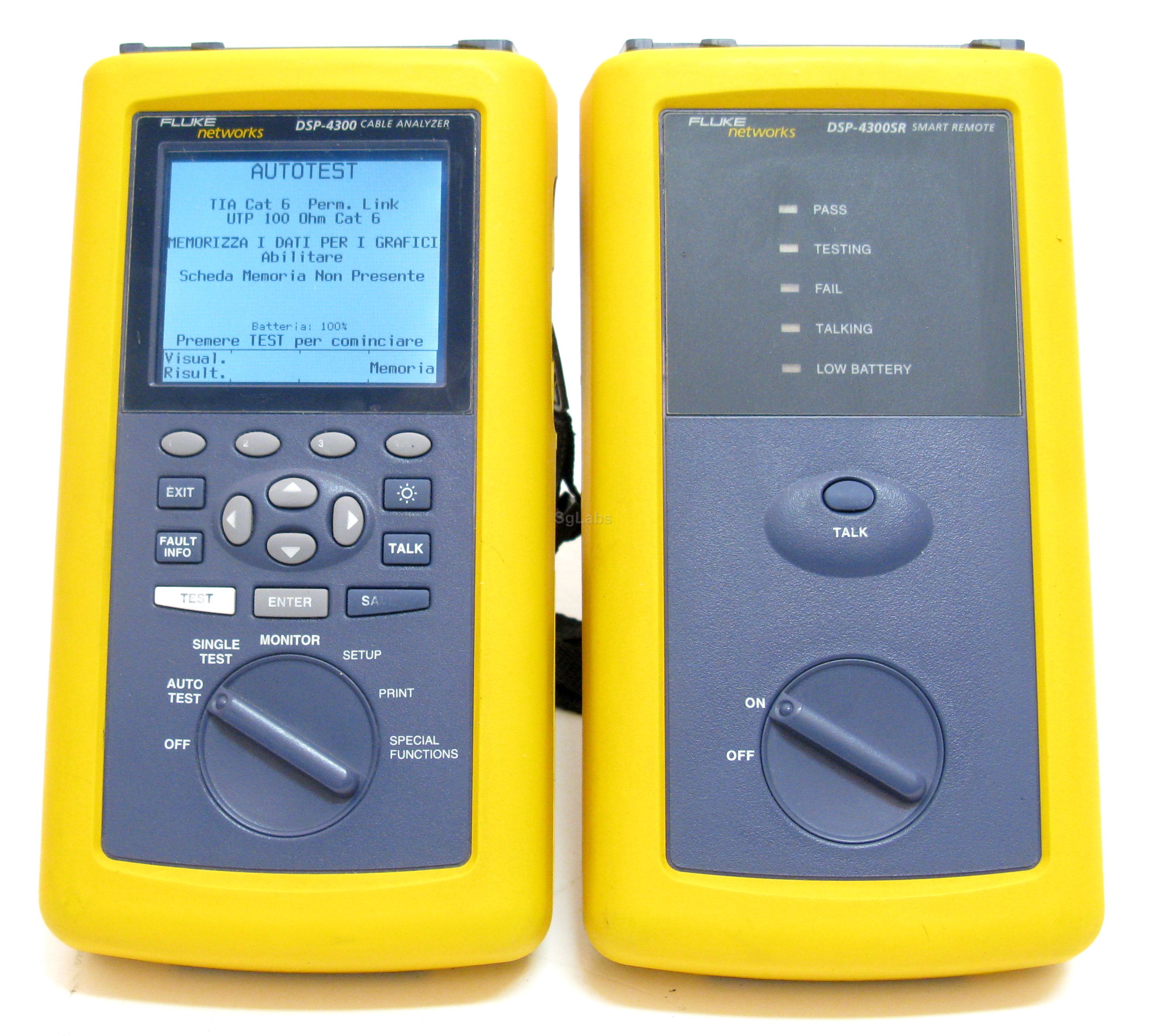

The DSP-4300 is Fluke's latest digital cable analyzer. Designed for cable installers and network owners who need to certify high-speed copper and fiber cabling to today's - and tomorrow's - standards. It supports all the tests specified in the new standards, including Near-End Crosstalk (Next), Equal Level Far-End Crosstalk (ELFEXT), Power Sum NEXT, Power Sum ELFEXT, Attenuation, Attenuation to Crosstalk Ratio (ACR), Propagation Delay, Return Loss and Delay Skew.
Fluke, DSP-4300
You are here: LAN Certifier » Cat 6
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

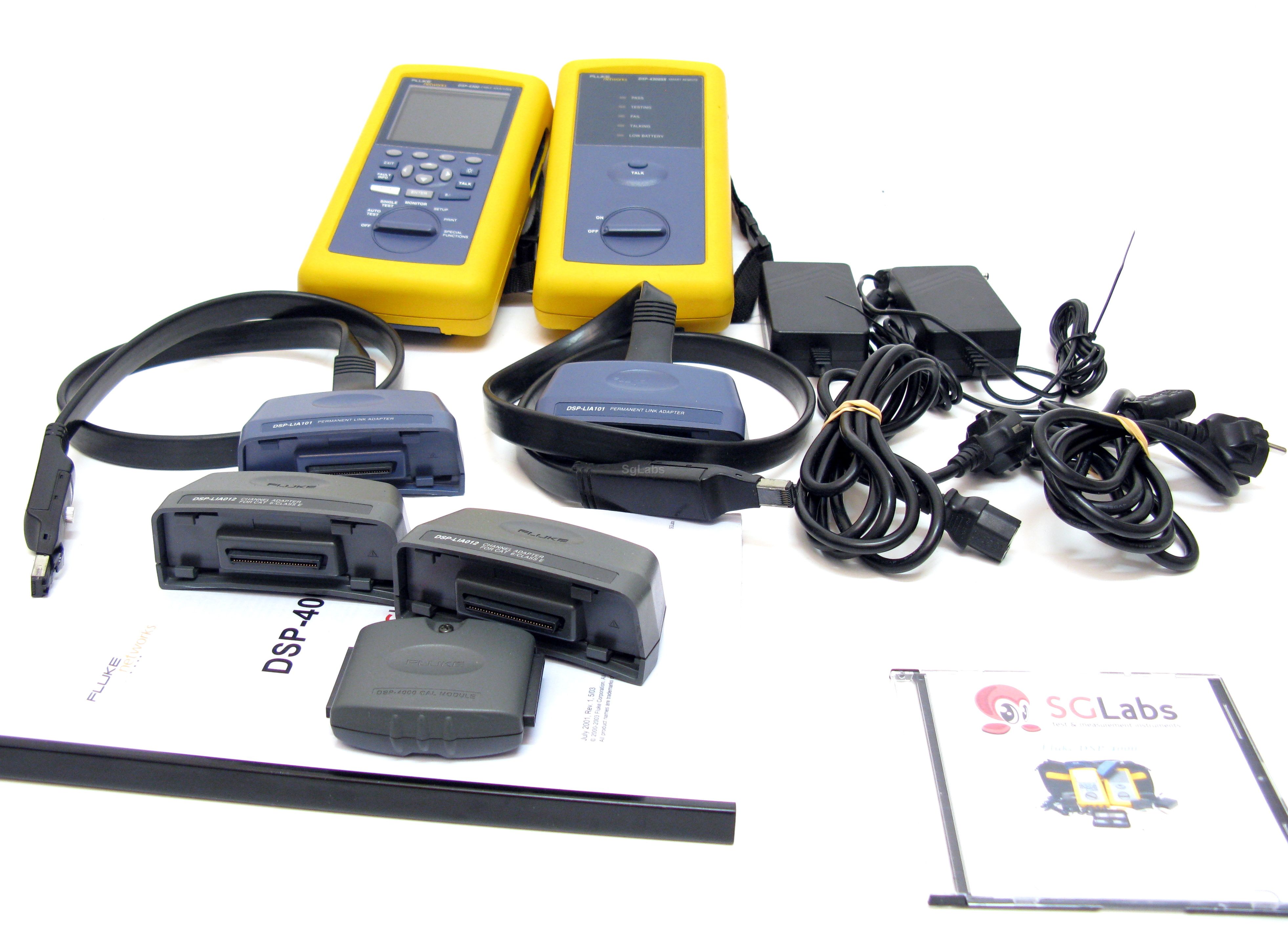

DSP-4300 offers the most comprehensive cable testing and certification solution for high-speed copper and fiber networks. Expanded on-board memory, increased productivity and accuracy with convenient cable ID download, enhanced Cat 6 Channel adapters and Permanent Link adapters - are all included in the standard DSP-4300 toolset.
Features
Test Standards
- TIA Category 3 and 5E per Addendum #5 to TIA/EIA-568A
- TIA Category 5 (new) per TIA TSB-95
- TIA Category 6 per TIA Addendum #1 to TIA/EIA-568B (draft)
- ISO/IEC 11801 Class C and D (new)
- ISO/IEC 11801-2000 Class C and D (new)
- STP cabling, (IBM Type 1, 150 W)
- ANSI TP-PMD
- IEEE 802.3 10BASE5, 10BASE2
- IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T
- IEEE 802.5
Supported Tests (Range of test is determined by network or selected standard)
- NEXT, NEXT @ Remote
- Wire Map
- Characteristic Impedance
- Length
- DC Loop Resistance
- Propagation Delay
- Return Loss (RL), RL @ Remote
- Delay Skew
- Attenuation
- Attenuation-to-Crosstalk Ratio (ACR), ACR @ Remote
- Power Sum ACR, PSACR @ Remote
- ELFEXT, ELFEXT @ Remote
- Power Sum ELFEXT, PSELFEXT @ Remote
- Power Sum NEXT, PSNEXT @ Remote
- Cat.: cat. 6
- Optical measurement: yes (Optional)
