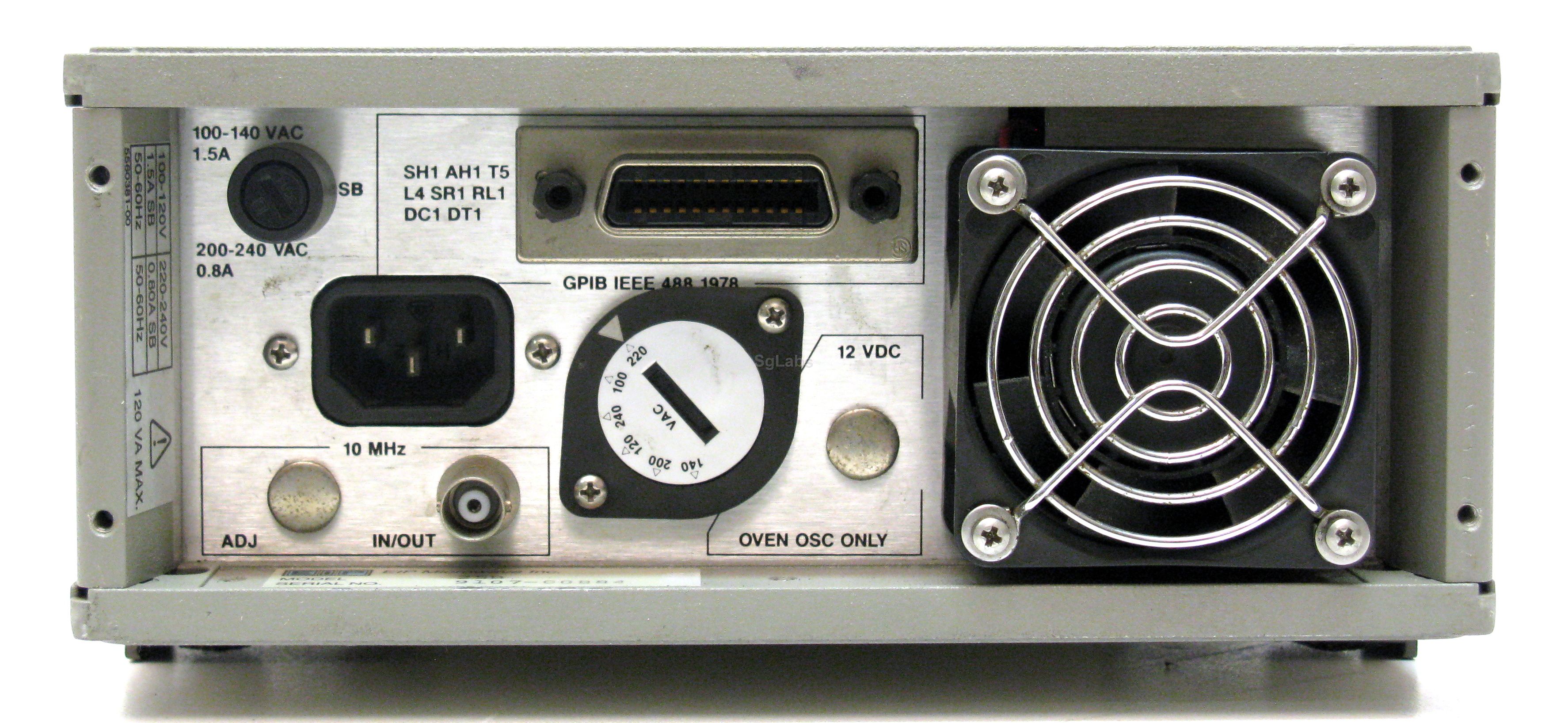

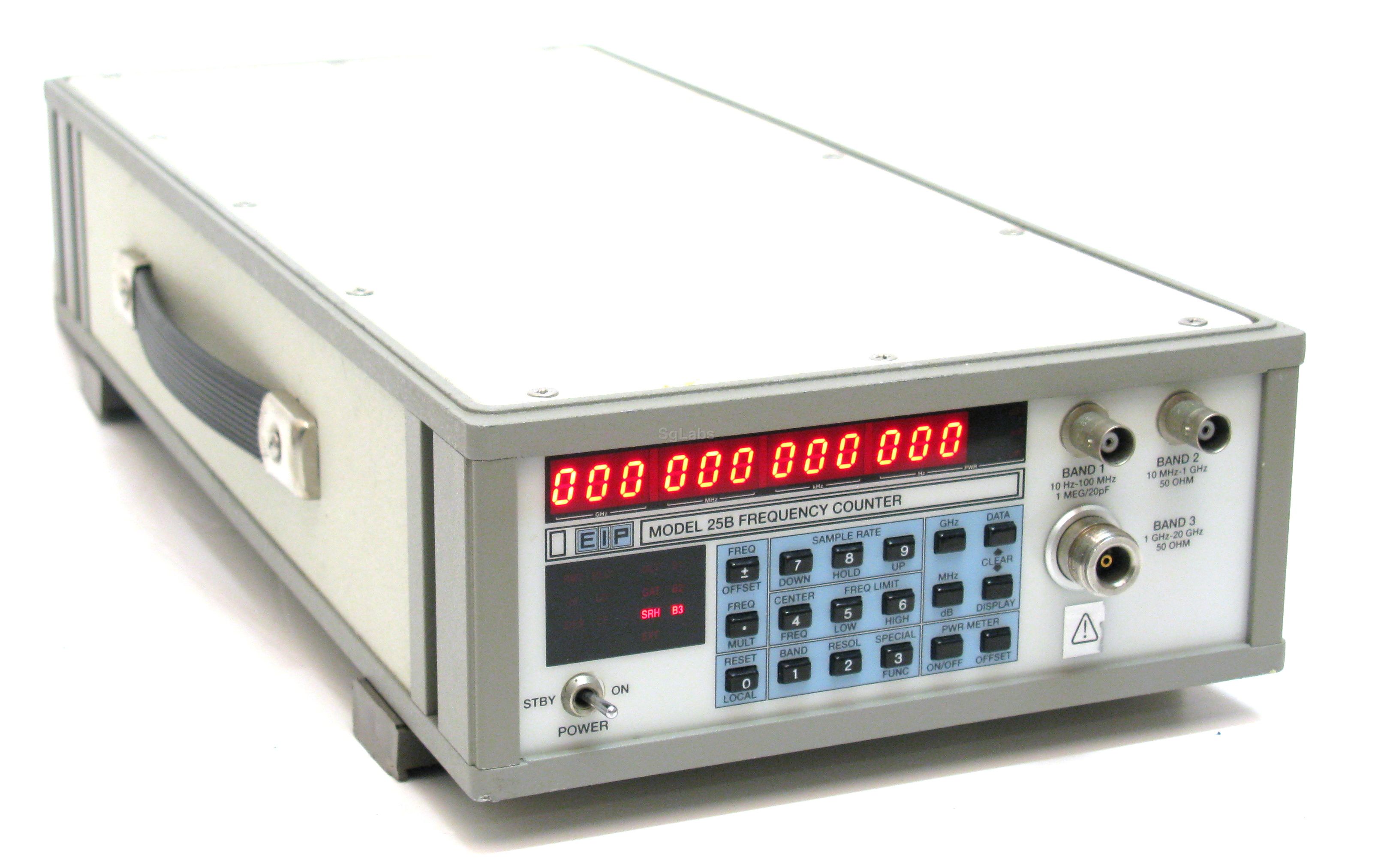

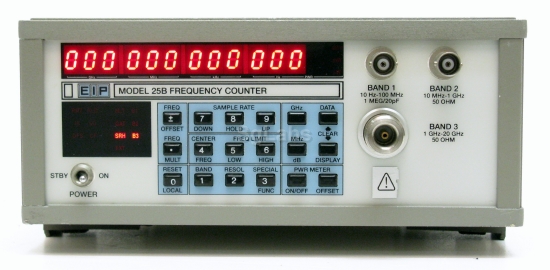

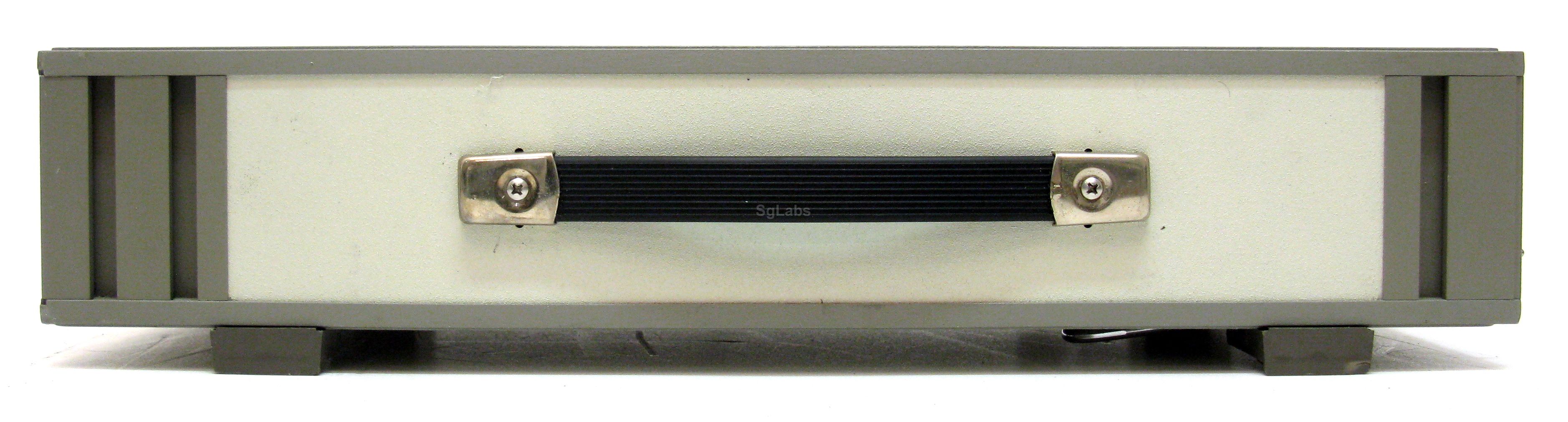

EIP Phase Matrix, 25B
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The 25B and 28B CW frequency counters are ideal for communications applications. These portable, rugged, all-die-cast-body units combine durability and small size with high-performance features typically found in larger, benchtop instruments. The 25B measures CW, FM, AM as well as complex modulated frequencies from 10 to 20 GHz, and the 28B extends the range up to 26.5 GHz.

• Carrier Signal Measurement
• Transmitter Frequency / Power Verification
• Channel-Specific Signal Measurements
• Microwave Link Alignment and Testing
• ATE Measurements

  • Frequency range: 10 Hz - 20 GHz
  • 3 channels
  • Measure Frequency and Power Level with a single connection
  • Analyze Individual Signals in a Multi channel spectrum
  • Max. Frequency: 20 GHz
  • Min. Frequency: 10 HZ
  • Channels: 3
  • Digit: 12
  • Sensibility: 25 mVrms (Band1), -20dBm ( Band2), -30/-25dBm (Band3)
 € 800,00
