The Chroma 63103 is a DC Electronic Load Module. The Chroma 63103 is suitable for the test and evaluation of multi-output AC/DC power supply, DC/DC converter, charger and power electronic components and good for application in areas such as research and development, production, and incoming inspection.
Chroma 63103 DC Electronic Load Module 300W 80V 60A
You are here: ELECTRONIC LOAD » MODULE

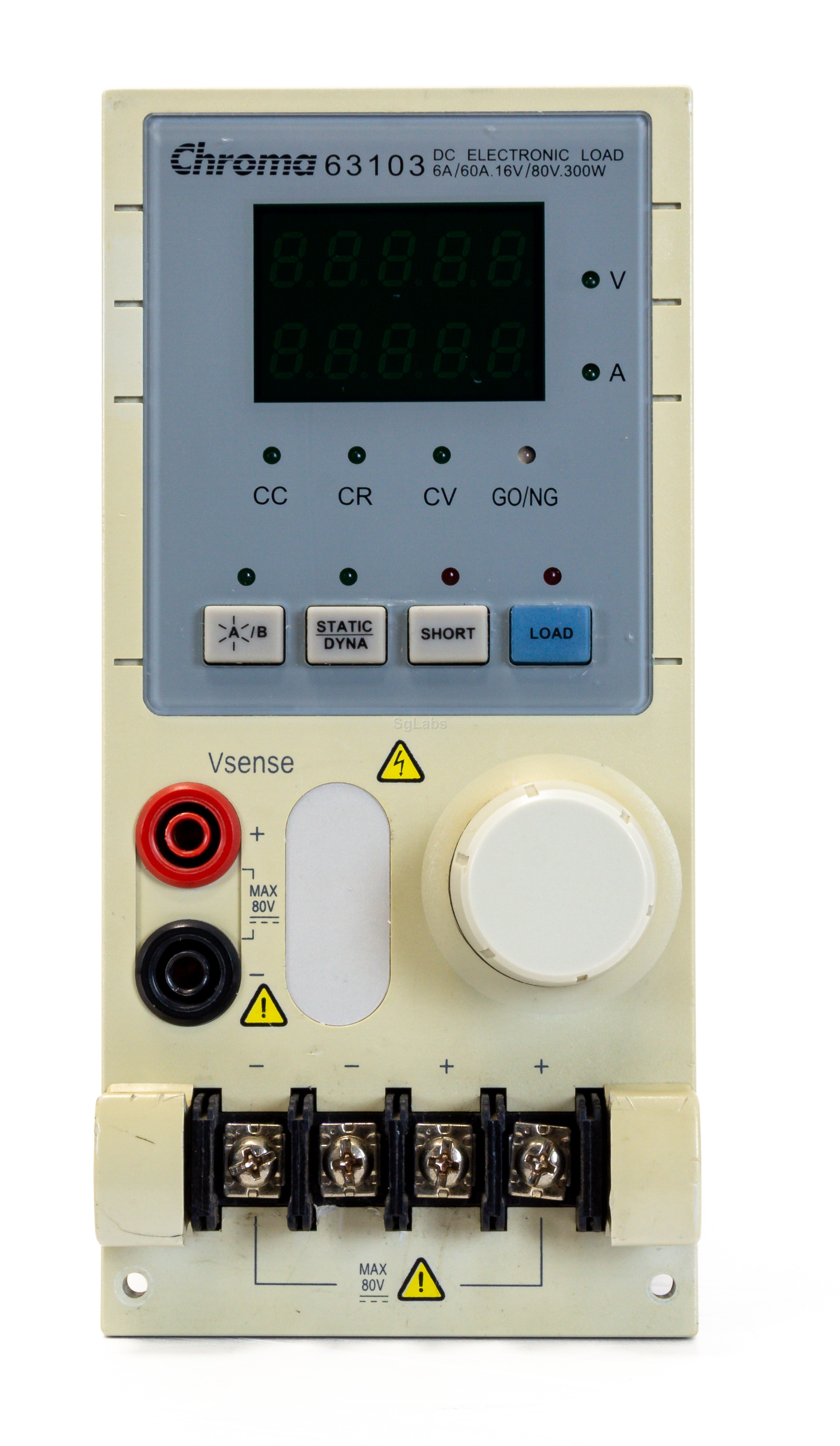

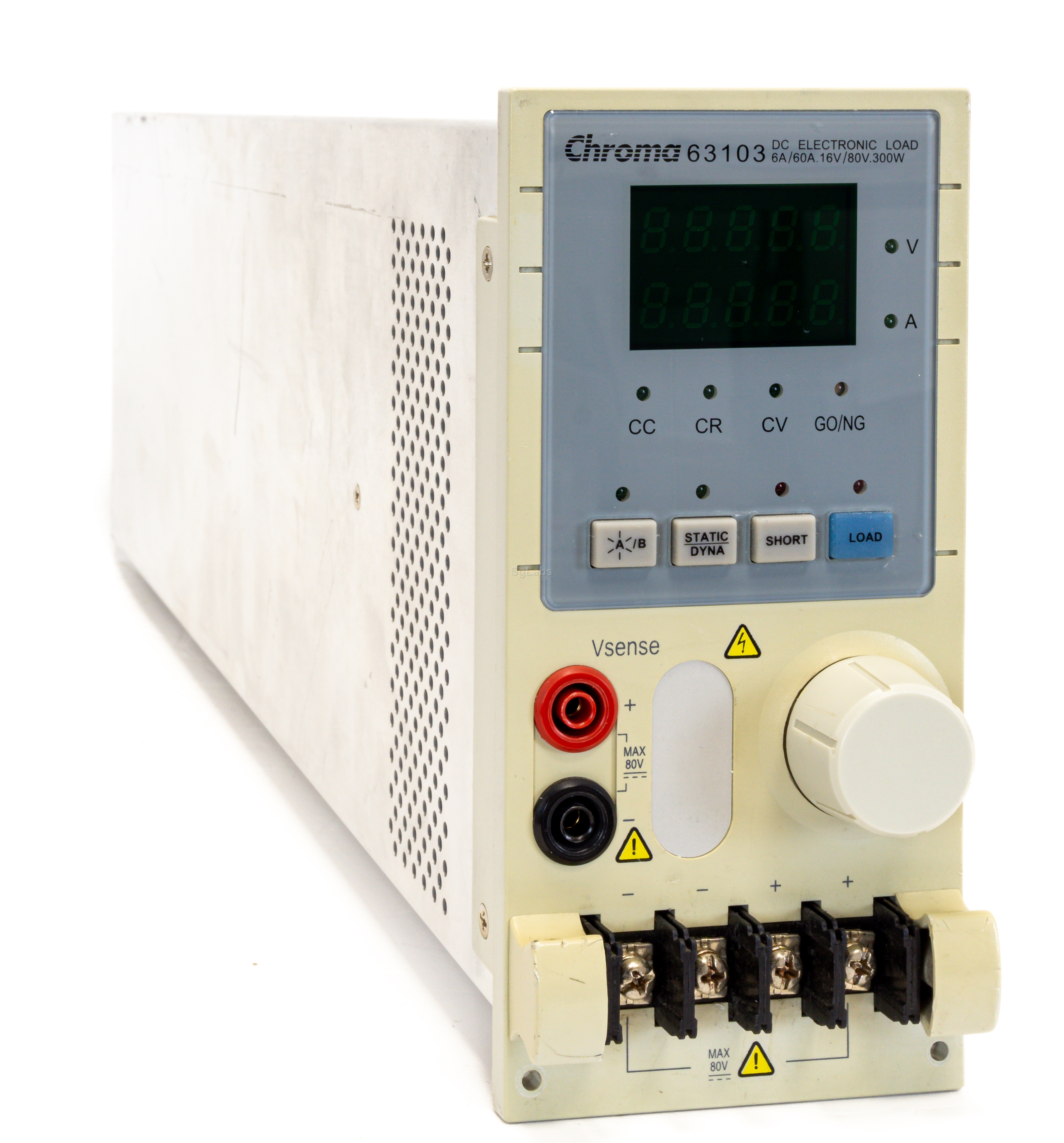

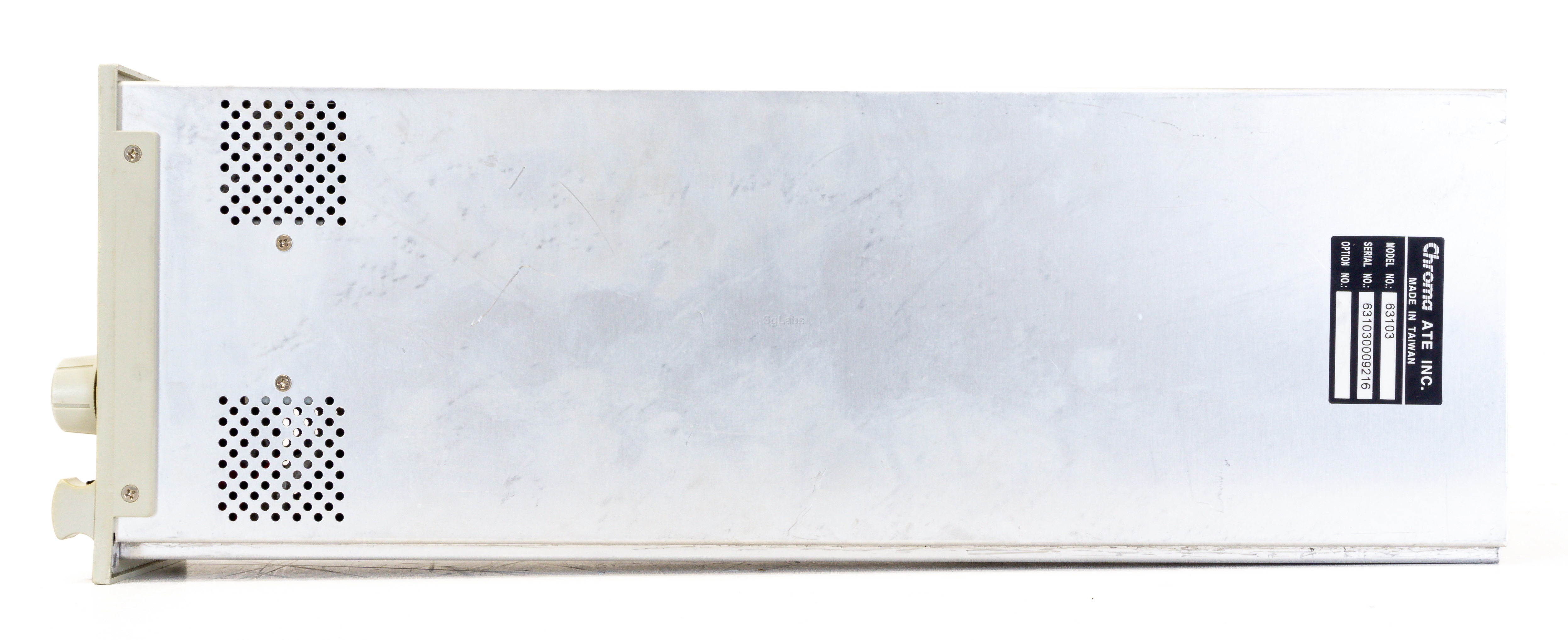

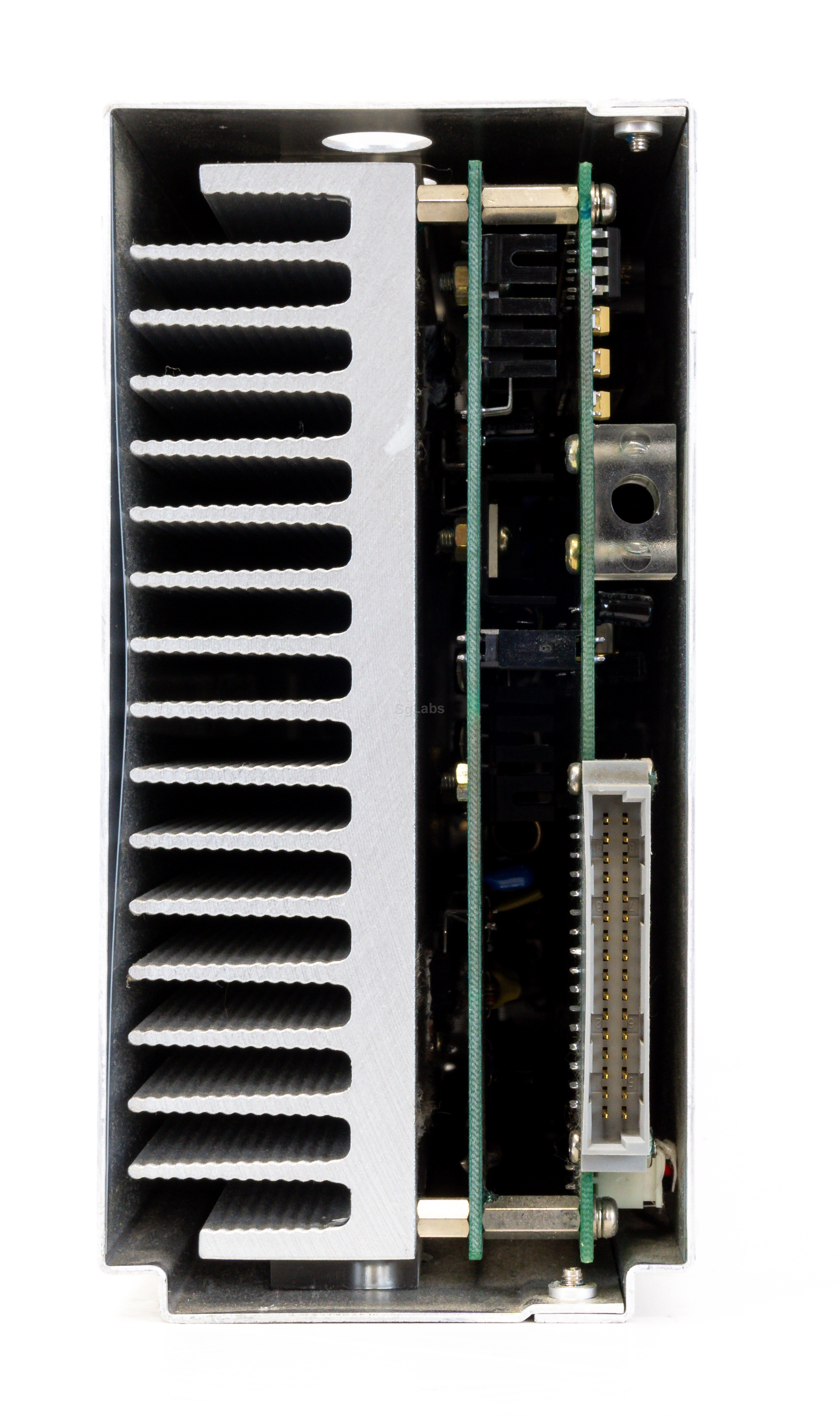

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Power: 300W
- Voltage: 80
- Current: 60
- Mainframes holds four or two modules, up to 8 loads total
- Parallel load modules up to 1,200 W total power, 240 A total current
- Constant Current, Constant Resistance, Constant Voltage, Short Circuit modes
- Dynamic loading from 0.1 Hz to 20 kHz with internal pulse generator
- Fast, adjustable slew rate from 0.32 mA/µS to 5 A/µS
- User programmable 100 sequential front panel setups
- Built-in voltage, current, & power measurement
- Remote sensing capability
- RS-232 and GPIB Interfaces
Price
€ 350,00
