Chauvin Arnoux CA8336 Power Quality Analyzer

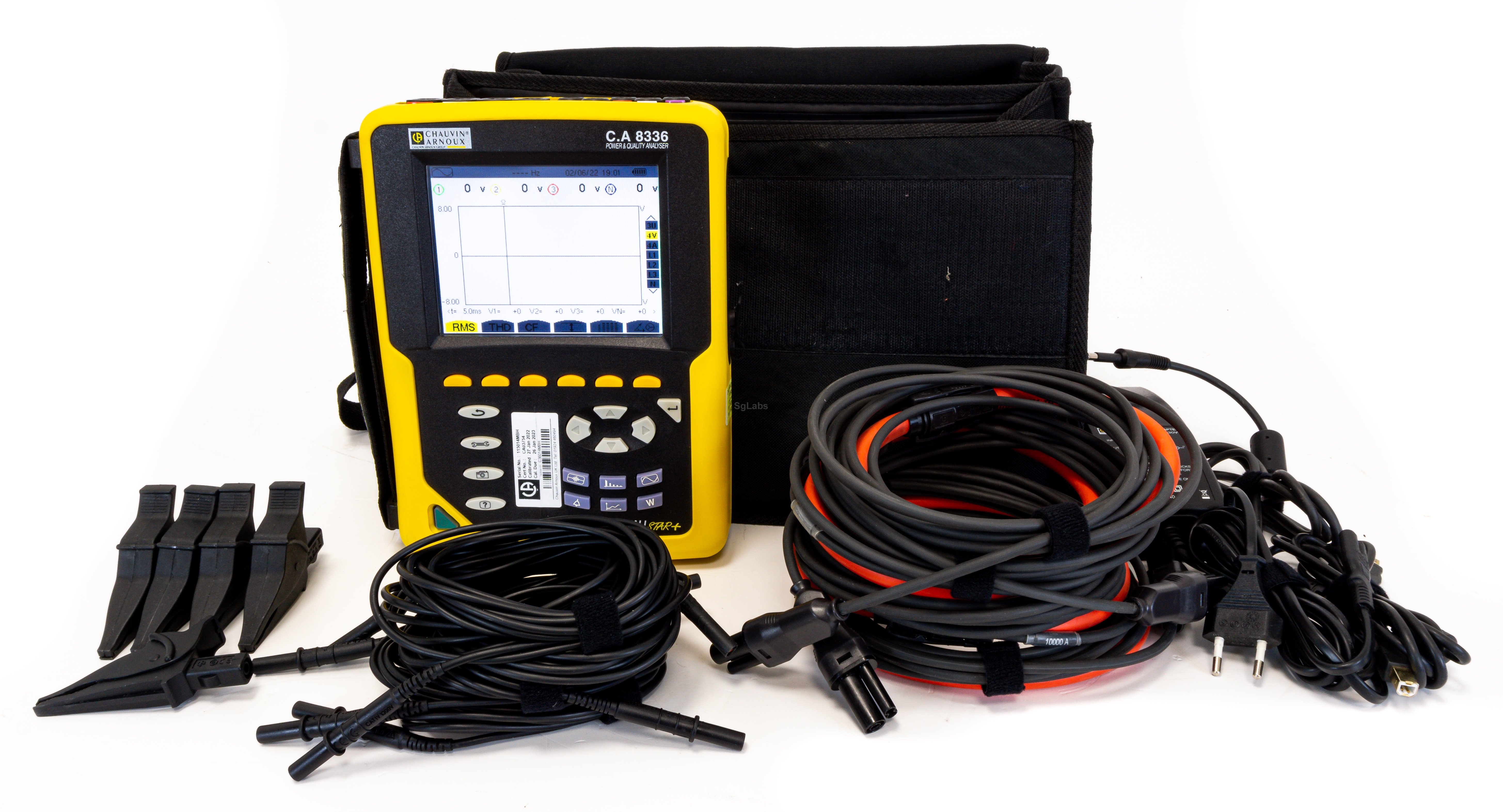

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
All parameters at a glance!

The Qualistar+ C.A 8336 is particularly suitable for maintenance and inspection services in industrial and commercial plants. It provides an instant image of the most important power quality parameters. With its functions, this analyzer is particularly suitable for maintenance and repair. The complete energy balance of a system can be created. The C.A 8333 has the Inrush and TrueInrush functions for sizing electrical equipment and detecting switching errors.

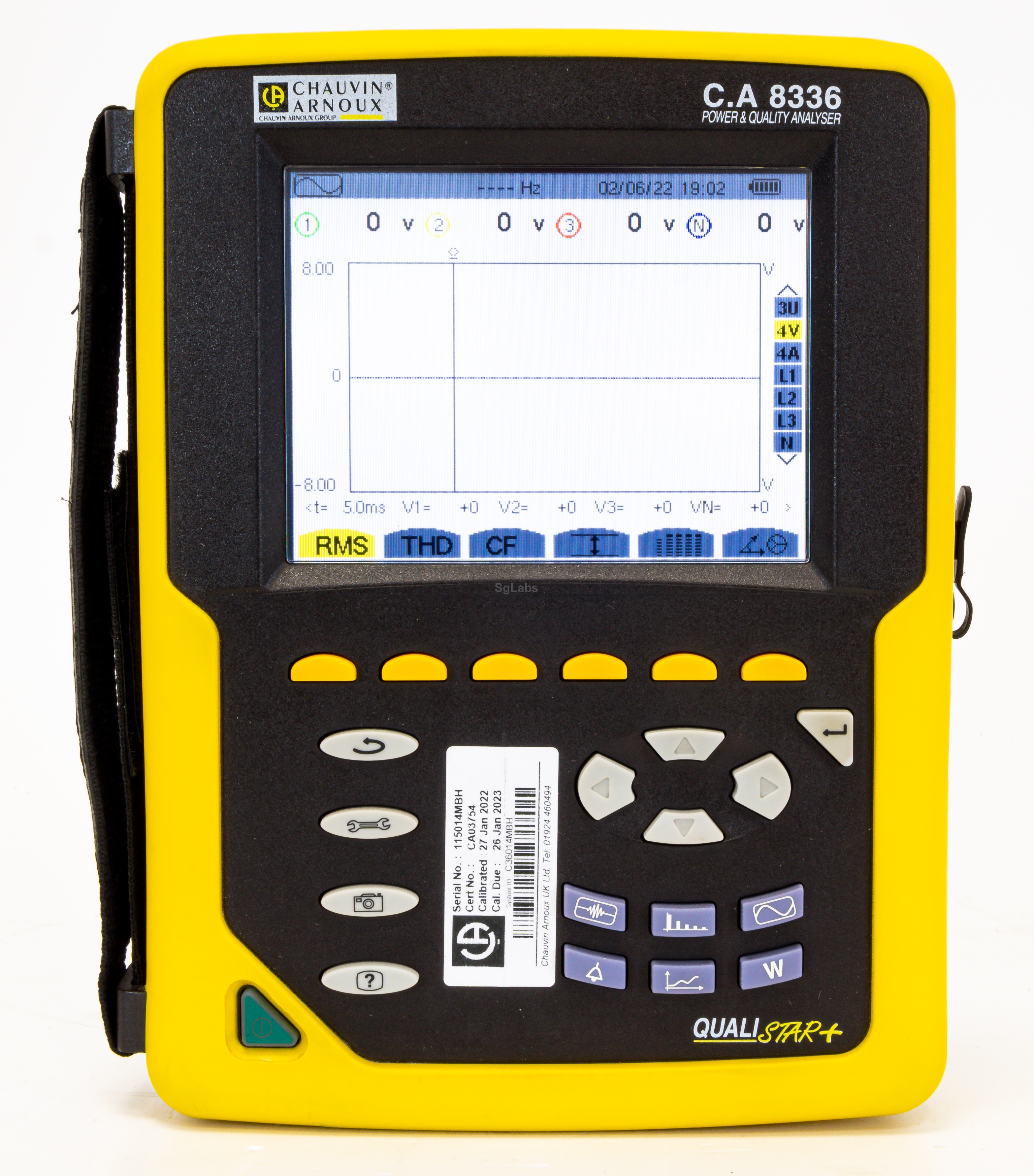

The compact, handy device offers additional calculation and operating functions. The C.A 8336 has 4 voltage and current measurement channels each. The C.A 8336 captures and stores all parameters, transients, alarms and waveforms simultaneously.

The current transformers used are automatically detected by your C.A 8336 connection. Various current transformers can be connected and the setting of the gear ratios enables a direct reading of the measured values.

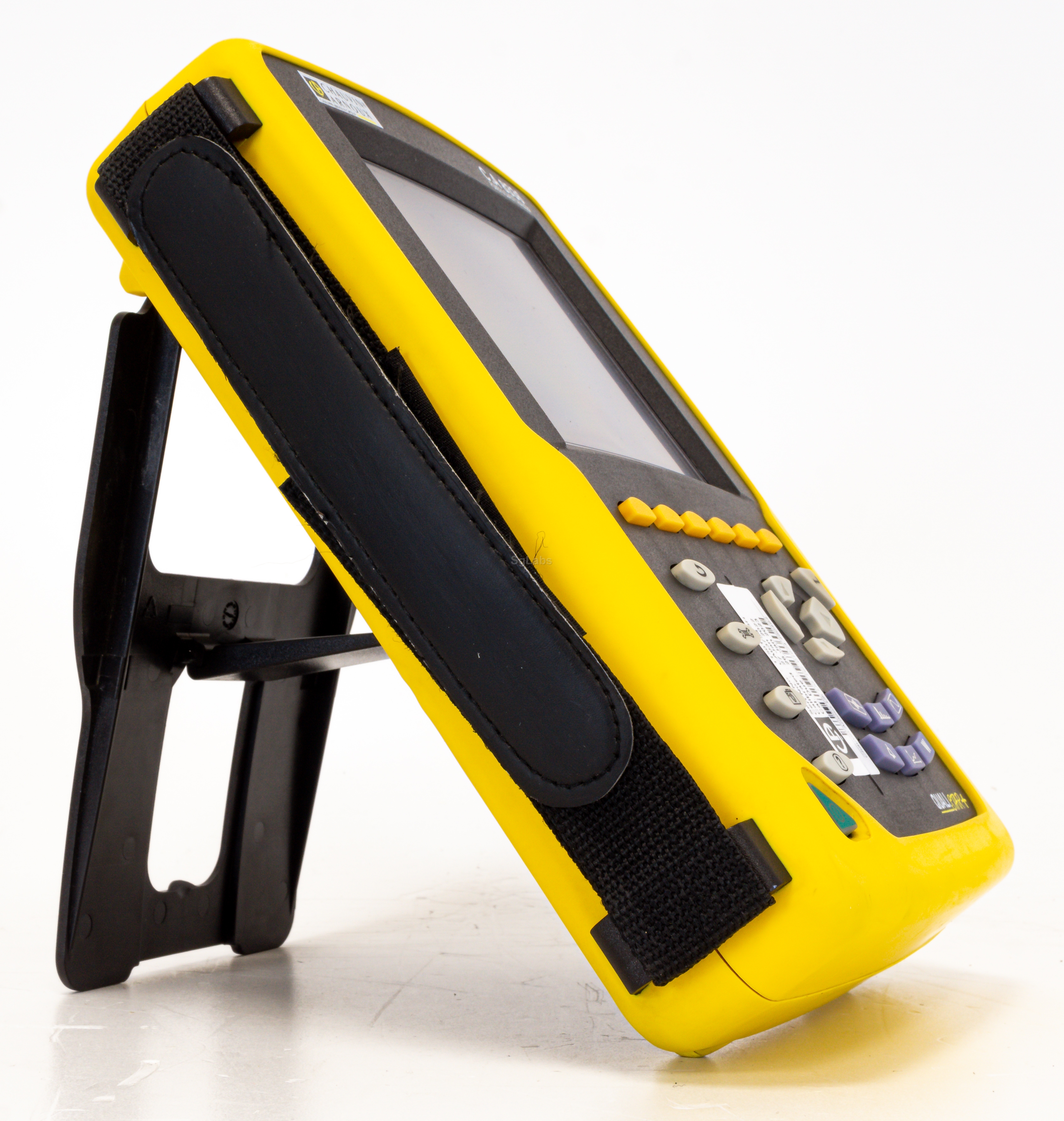

The device is designed for on-site work:

  • Direct access to the most important functions (settings, etc.)
  • Direct access to measuring functions (harmonics, flicker etc.)

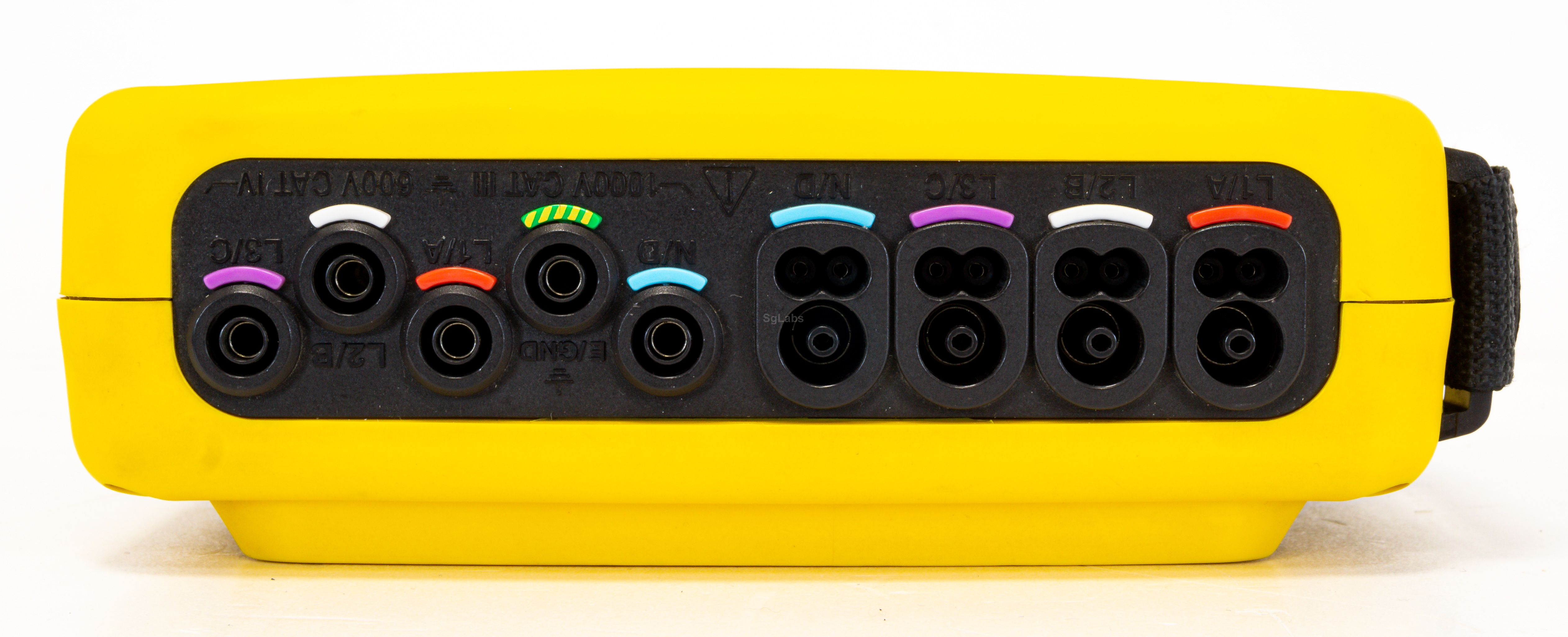

  • Voltage and current inputs with color markings
  • Easy-to-read, large TFT color screen
  • Mains-independent for 13 h


Advantages:

  • One device for all measurements
  • Proven operational convenience in use
  • Alarms for events of more than half a period
  • Acquisition of transients of a few µs
  • Inrush current mode with waveform display


Due to its variety of functions, the Qualistar + C.A 8336 is versatile. It can be used in category CAT III up to 1000 V and CAT IV up to 600 V category.

Software

For the processing of the values ??measured with the Qualistar, the software PAT as standard and the software Dataview® are optionally available. They allow you to make settings, transfer and process data, and analyze. In addition, Dataview® can be used to create standardized test reports on the voltage quality characteristics.

Specifications:


  • Voltage (TRMS AC + DC): up to 1000 V
  • Current (TRMS AC + DC): 5 mA to 10 kA depending on current transformer
  • Frequency
  • Services: W, VA, var, VAD, PF, DPF, cos ?, tan ?
  • Energy values: Wh, varh, VAh, VADh, BTU, TEP, toe, joule
  • Harmonics of ranks 0 to 50 with phasing, expert mode
  • Transients: up to 210
  • Flicker (Pst and Plt)
  • Inrush with waveform over a period of> 10 minutes
  • TrueInrush function
  • Recording of a parameter selection with maximum measured value acquisition from 2 weeks to several years
  • Alarms: 10,000 alarms for 40 alarm types
  • Determination of peak values
  • Representation as a vector diagram
  • IP53 / IK08
  • USB interface
  • IEC 61000-4-30
  • Dimensions: 240 x 180 x 55 mm; Weight: 1.9 kg
Features
  • 5 voltage and 4 current inputs
  • All measurements for a complete power balance and calculation of distortion reactive power
  • Harmonic measurement up to 50. Order
  • Transient acquisition with waveform
  • Adjustable alarms
  • Inrush mode (inrush currents) up to 10 minutes
Price
 € 2.900,00
Available for rent
Price per week € 190,00
