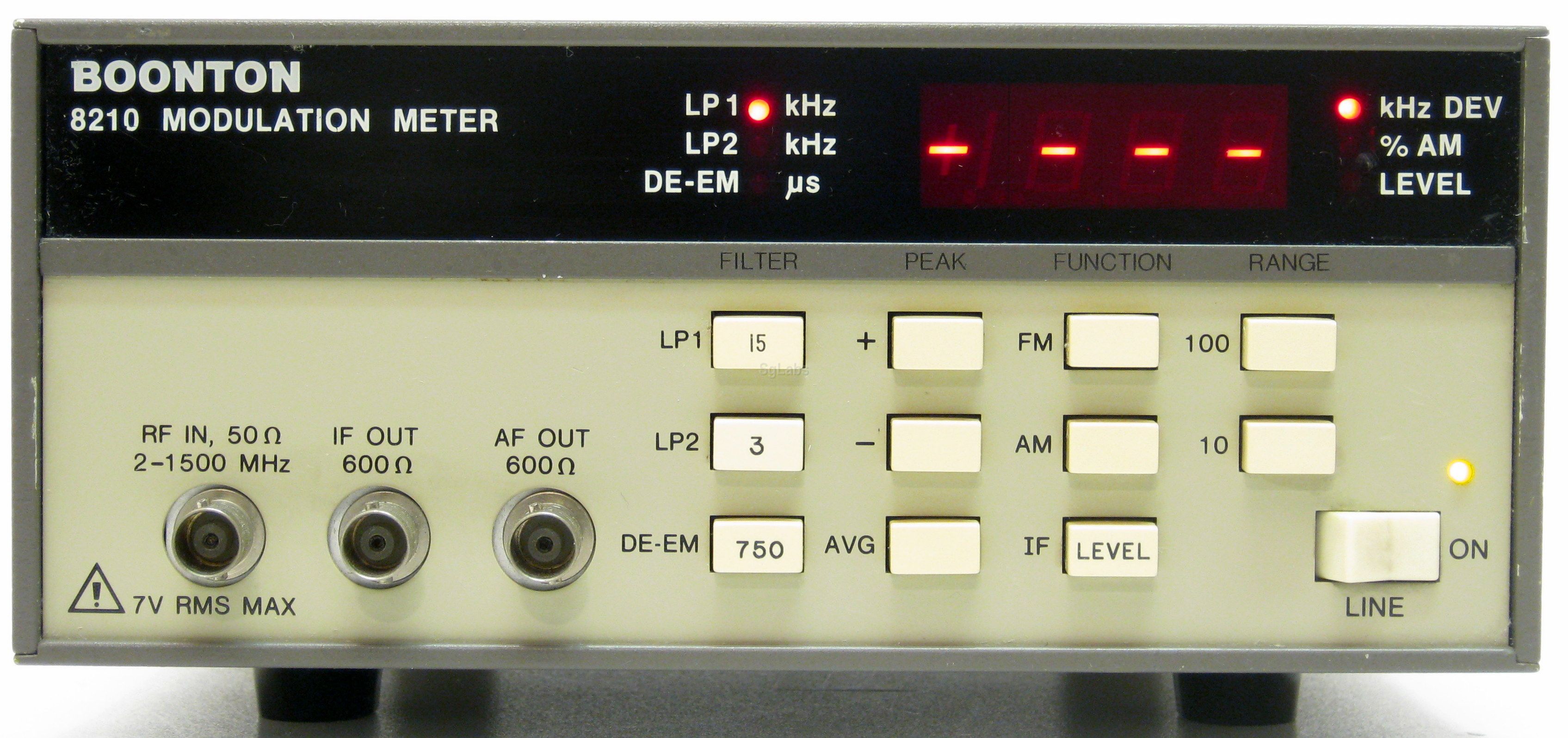

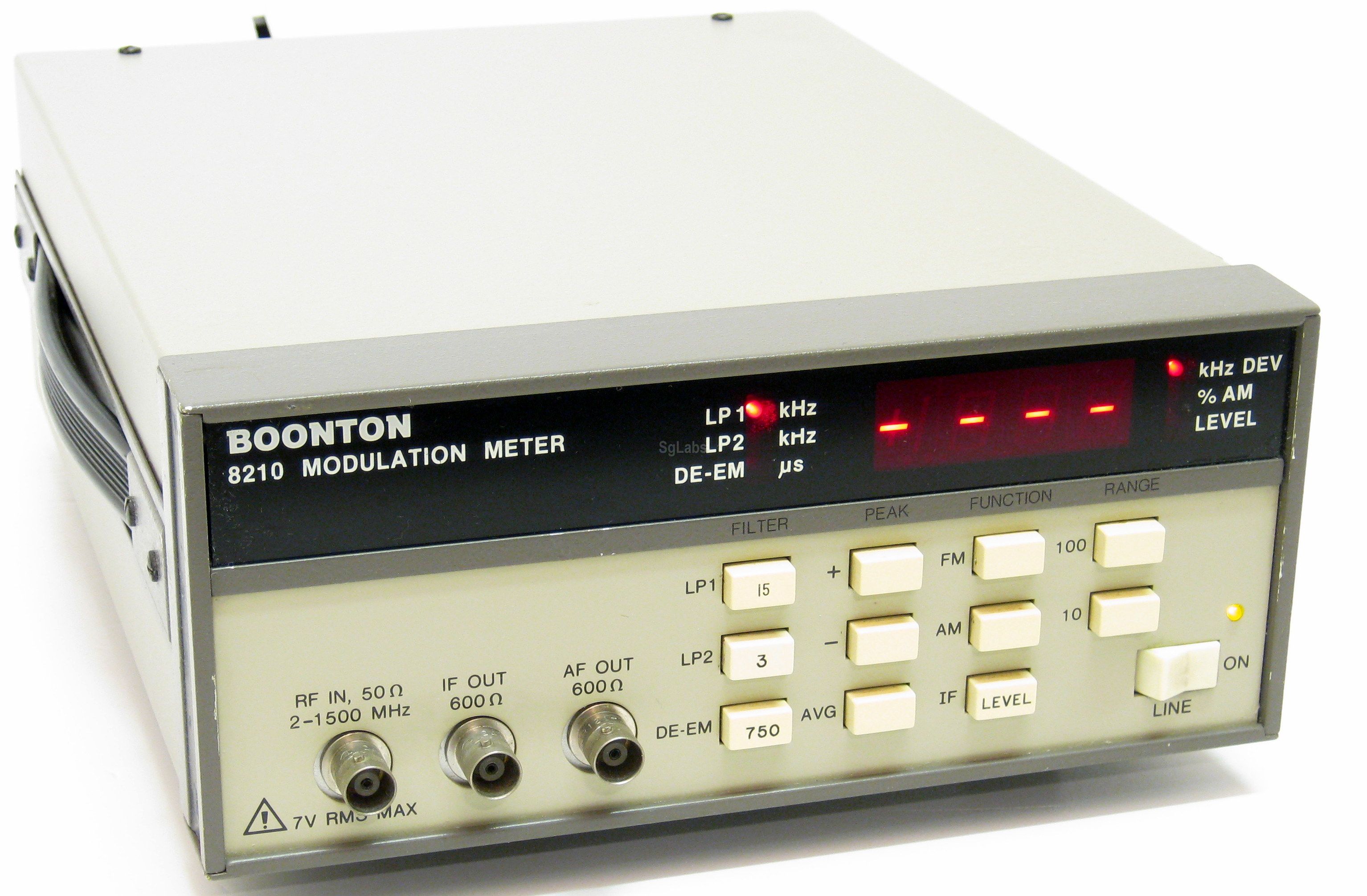

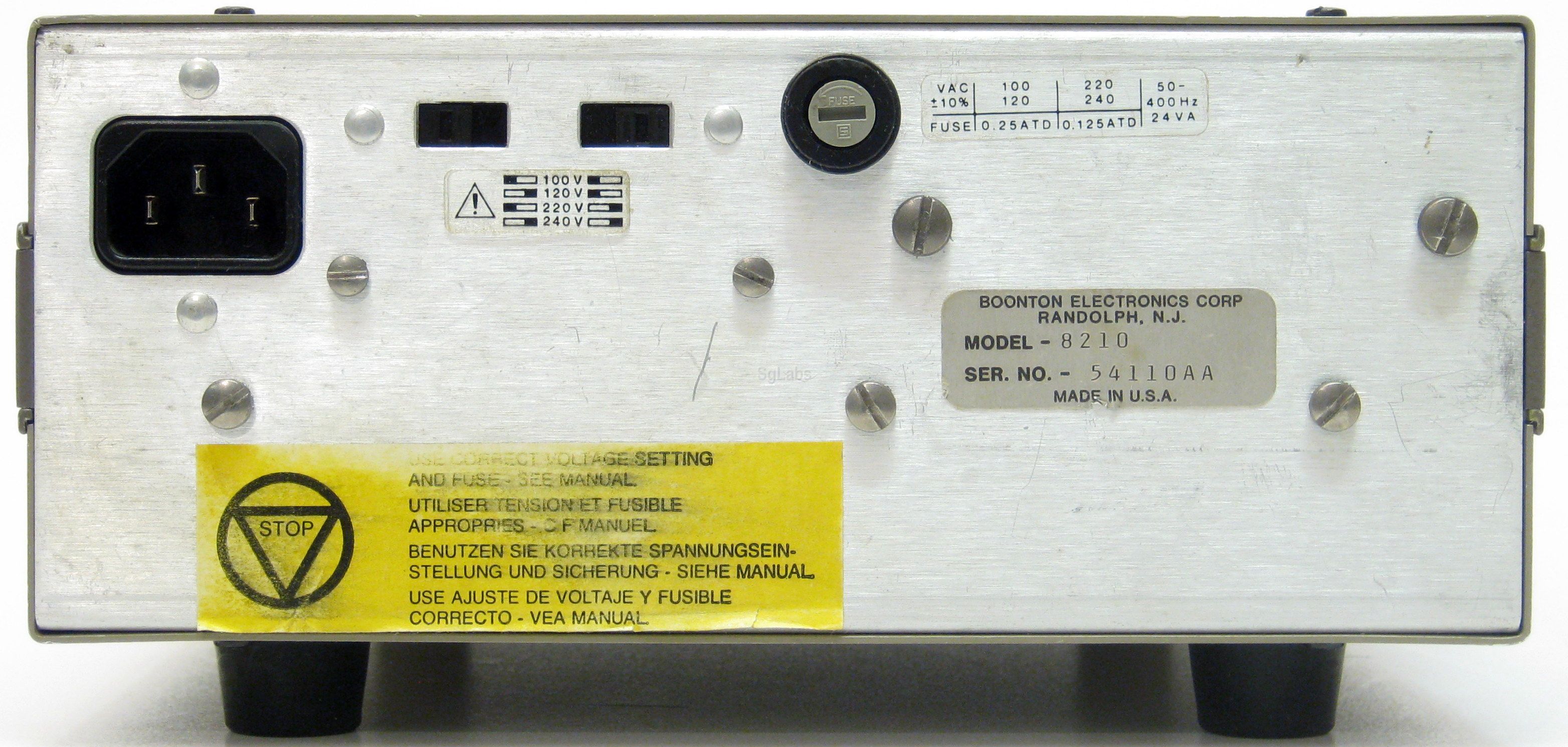

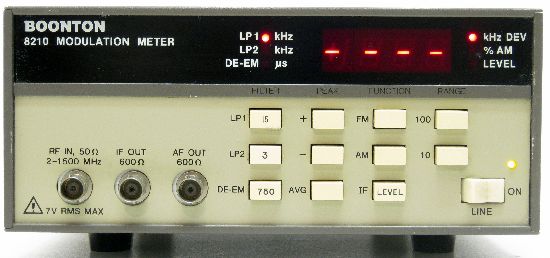

Features:
- Carrier Frequency Range, 2 MHz to 1.5 GHz
- Self-Calibrating
- Automatic Tuning and Leveling
- Low Residual Modulation
- True Peak Detection
- Digital Display
RF Input
- Carrier Frequency Range: 2 MHz - 1.5 GHz
- Tuning: Automatic
- Sensitivity: 10 mV RMS, 2 MHz to 520 MHz. 30 mV RMS, 520 MHz to 1.5 GHz
- Input Impedance: 50 ohm, nominal
Frequency Modulation
- Maximum Deviation: 150 kHz, peak
- Full Scale Ranges: 10 and 100 kHz
Modulation Bandwidth
Standard: < 30 Hz to 15 kHz
Amplitude Modulation
Modulation Depth Ranges: 10% and 100%, full-scale
Modulation Bandwidth
Standard: < 30 Hz to 15 kHz
Audio Frequency Response
- Filters - Standard: 3 kHz LP, 15 kHz LP, and 750 µs de-emphasis
- Output Level: 1 V RMS nominal into 600 ohms at 1000 counts on display for FM, 1 to 1.2 V RMS for AM
Display
- Modulation: LED display; 1000 counts + 50% overrange; true peak, + peak, - peak, or peak average indication
- Annunciators: Display of filter and mode switch settings. Digital display indicates level high, level low and unlock conditions
IF Output
- Frequency: 400 kHz, nominal
- Level: 300 to 350 mV nominal into 600 ohm load
