Boonton, 4220A + 51100 (9E)
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

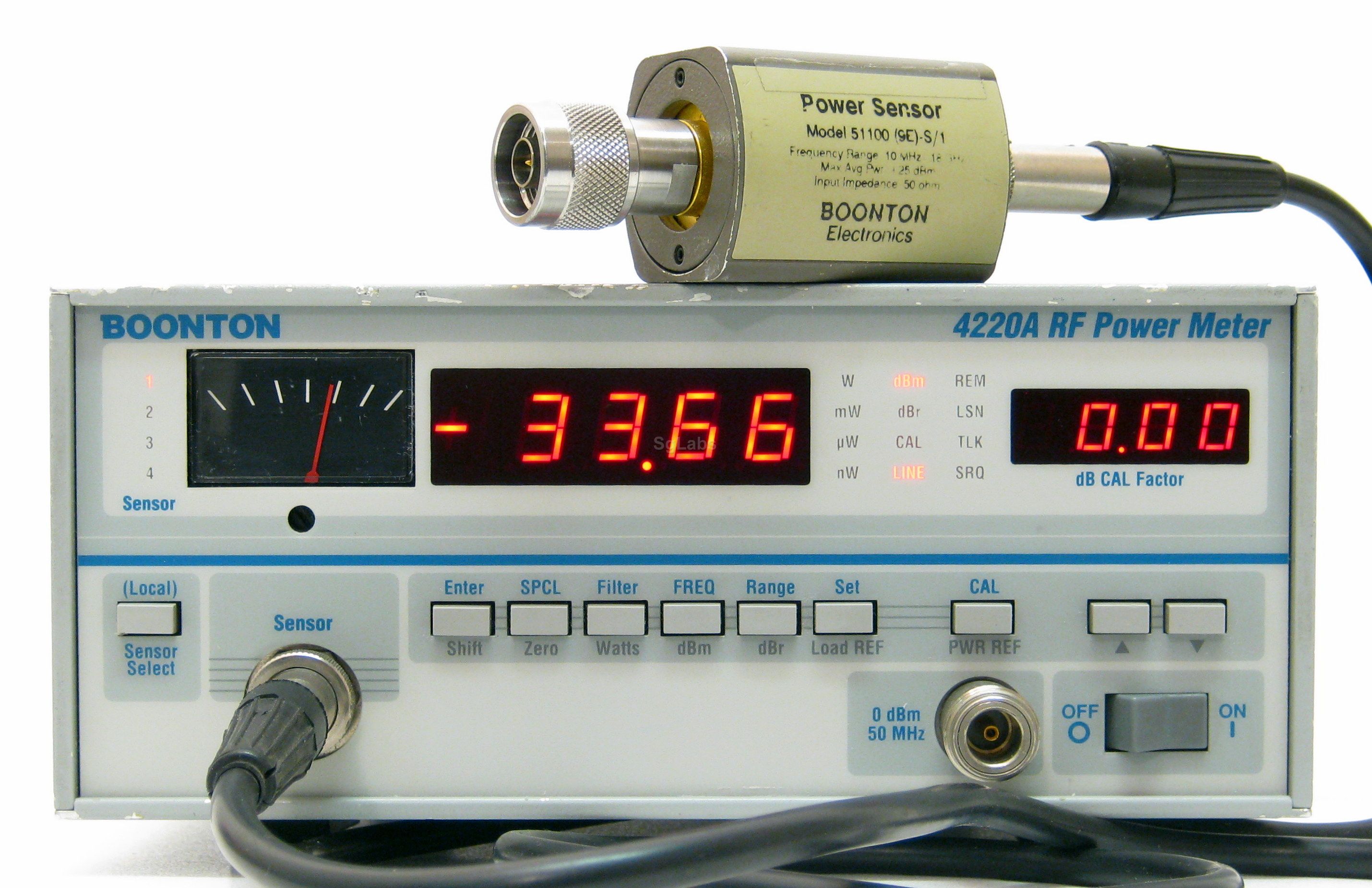

The Model 4220A is a single-channel power meter that can cover from -70 dBm to +44 dBm over a frequency range of 10 kHz to 100 GHz depending on sensor selection. (Sensors sold seperately.) The meter's ability to store complete calibration information for up to four interchangeable sensors means that a variety of applications involving different levels and frequencies can be met without the need for recalibration.

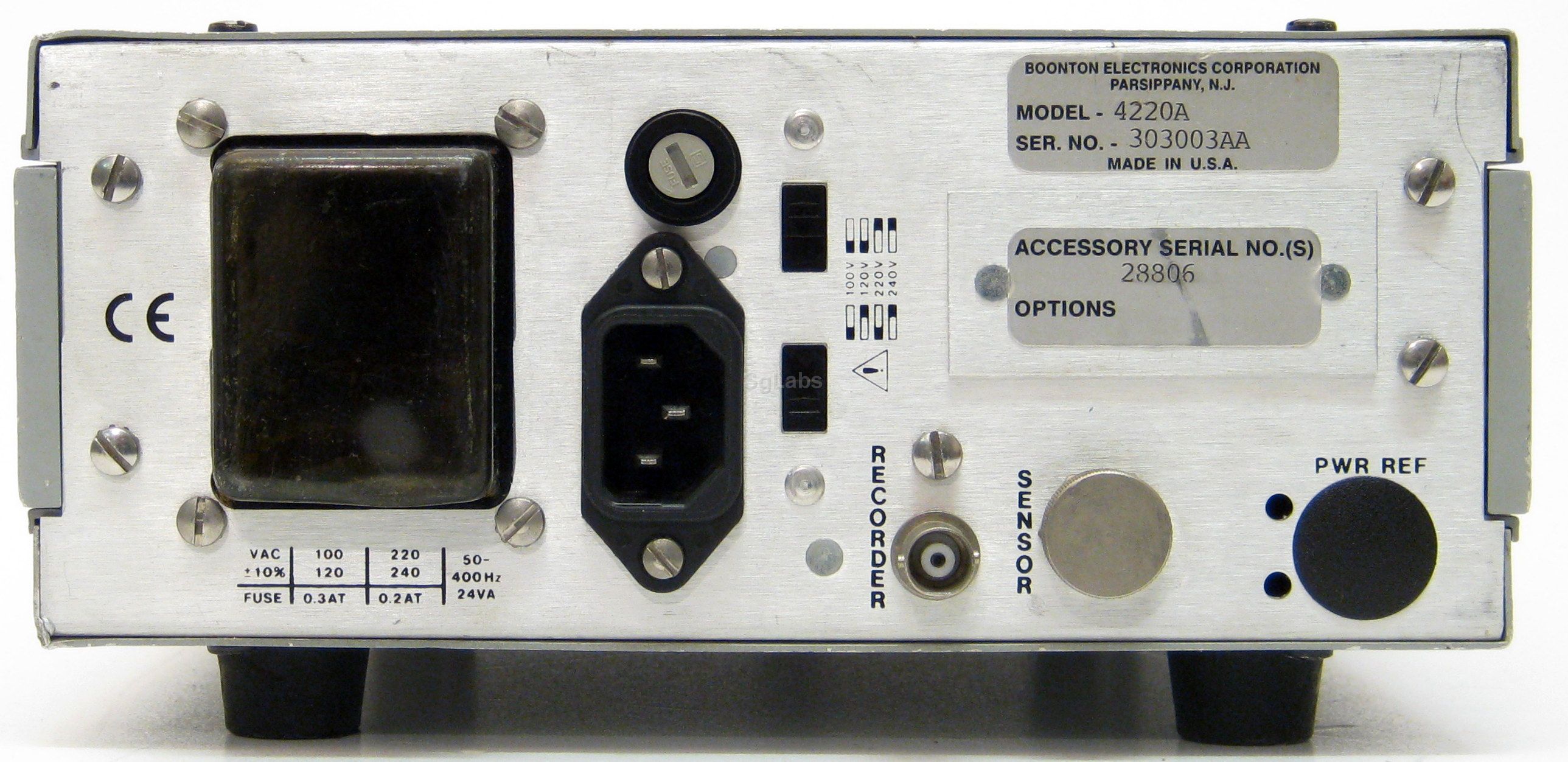

Technical details 4220A:

  • Frequency from 10 kHz to 110 GMHz
  • 1 Channel
  • Power Range from -70 dBm to +37 dBm
  • Display resolution 1 dB up tp 0.001 dB
  • Dynamic Range up to 90 dB

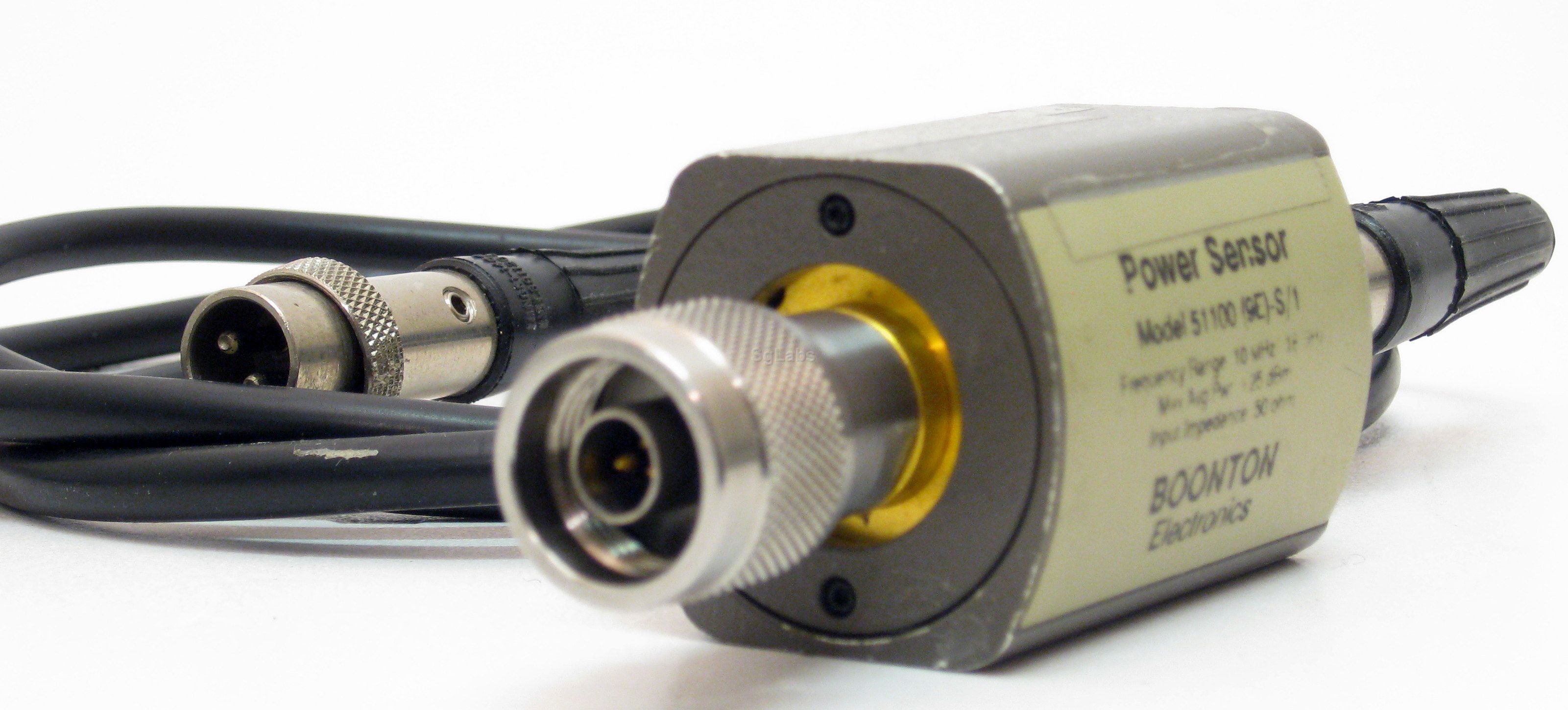

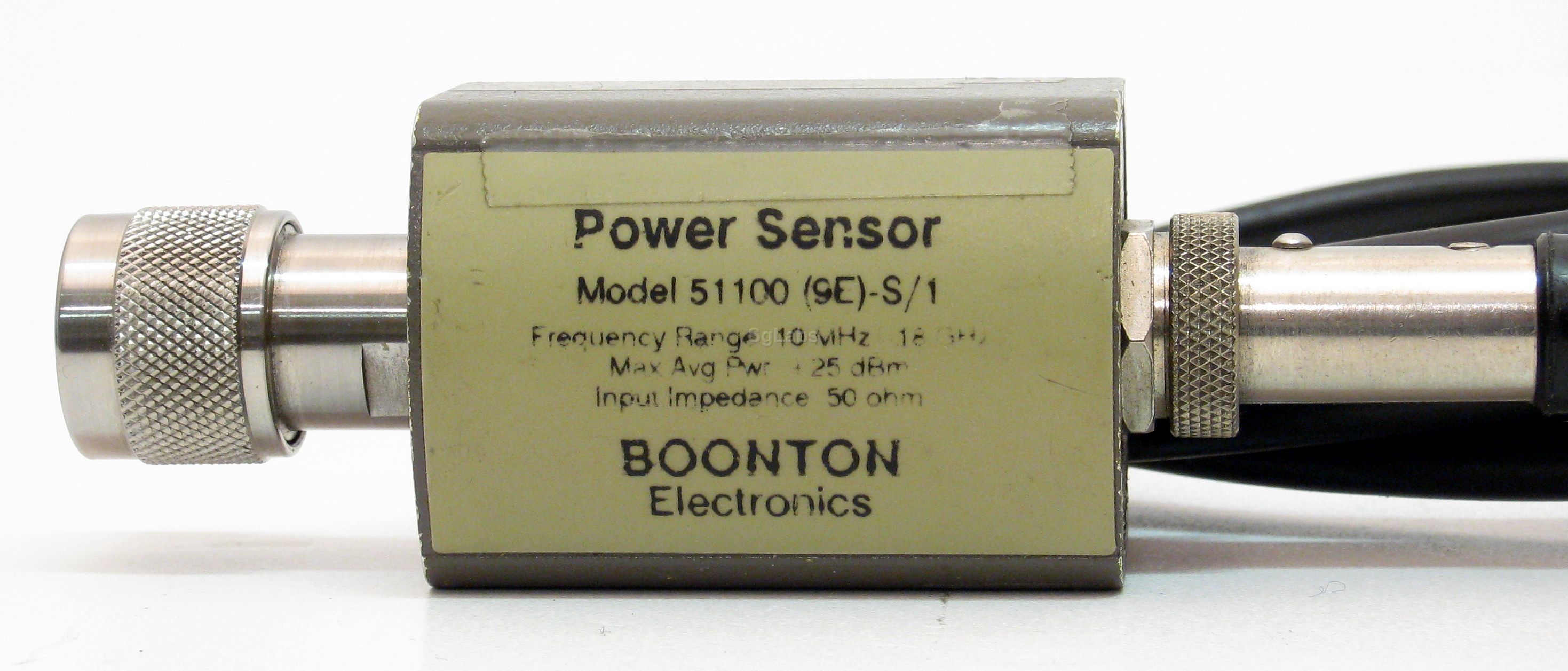

Technical details 51100 (9E):

  • Frequency from 10 MHz to 18 GMHz
  • Power Range from -20 dBm to +20 dBm
  • Conector type N (m)



  • Max. Frequency: 18 GHz
  • Min. Frequency: 10 MHz
  • Channels: 1
  • Max. power: 20 dBm
  • Min. Power: -20 dBm
