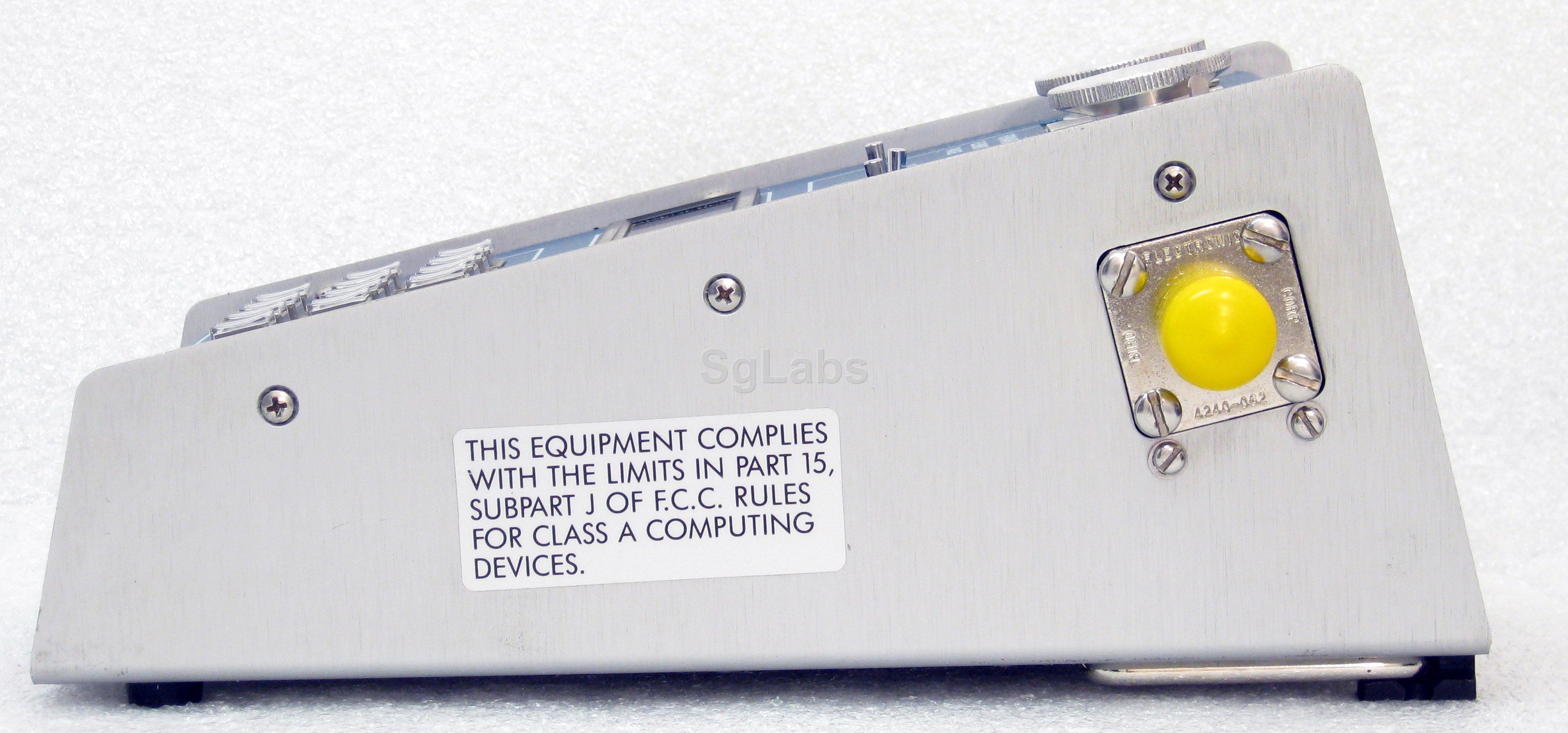

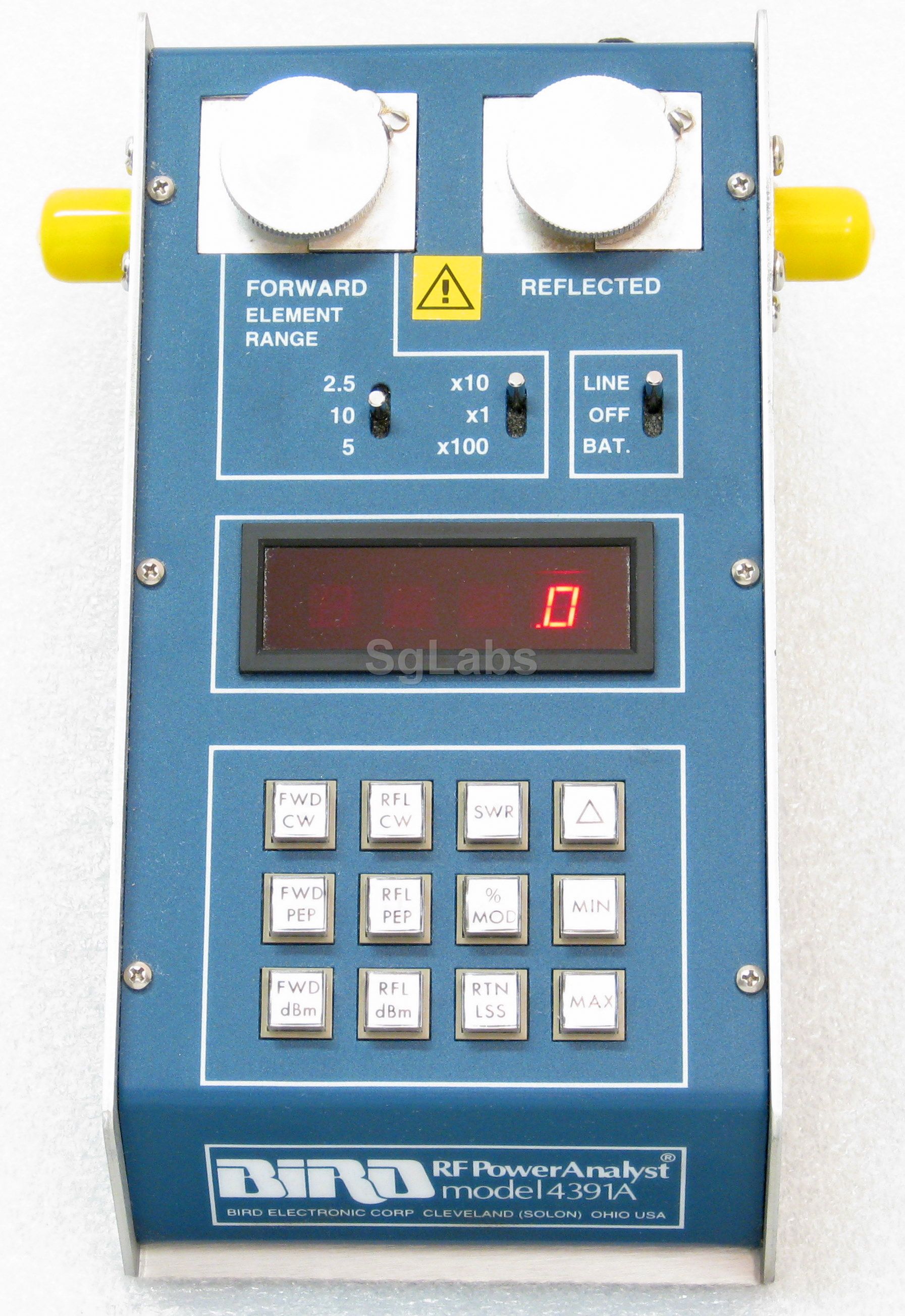

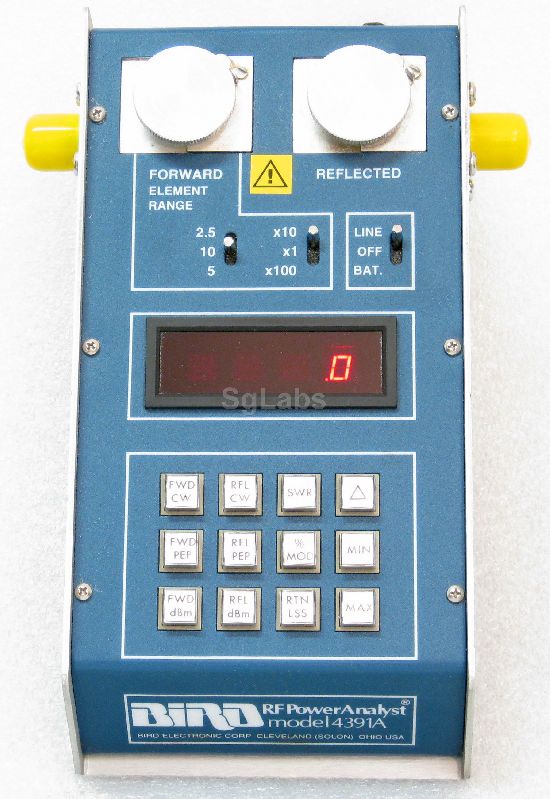

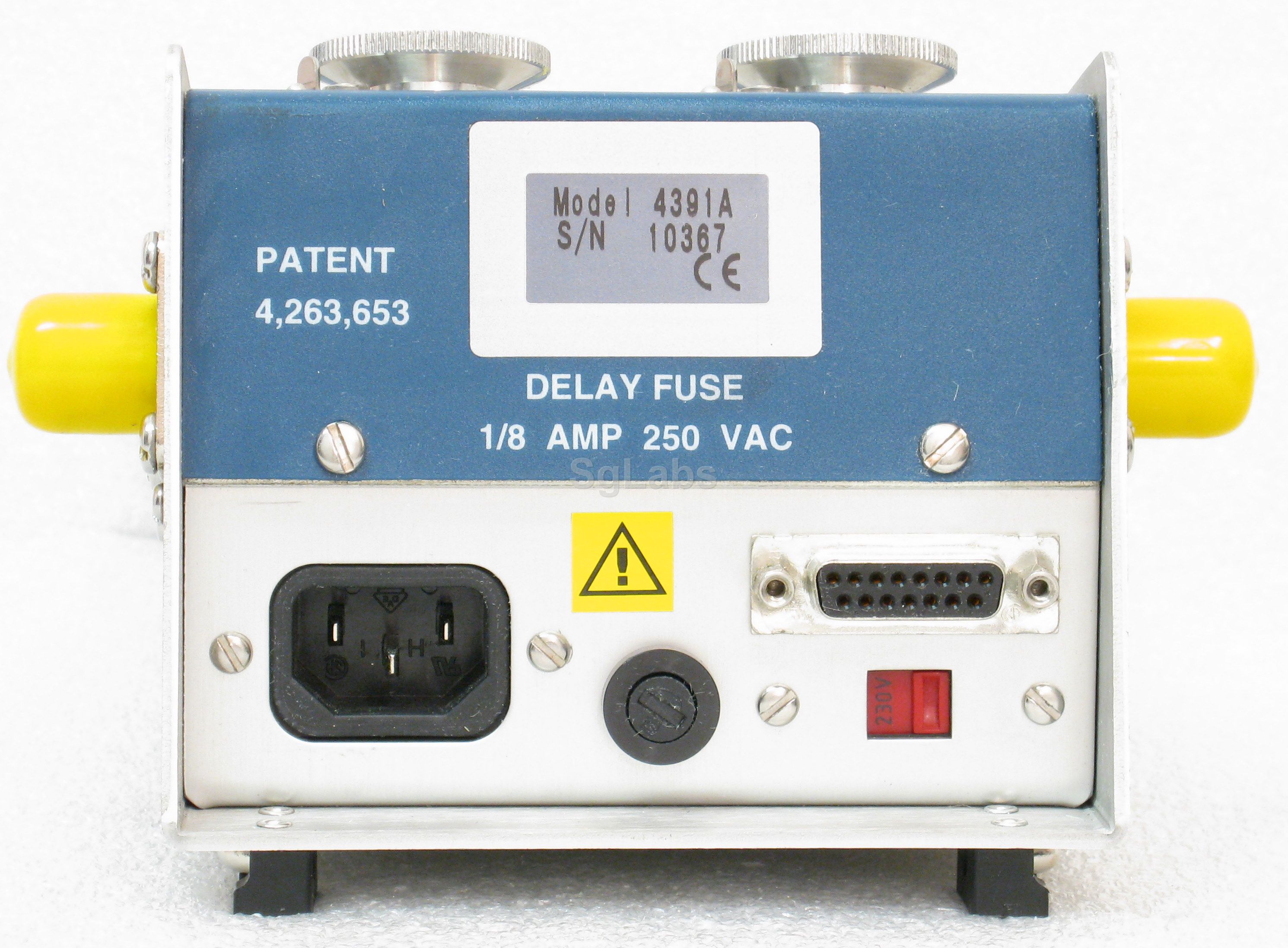

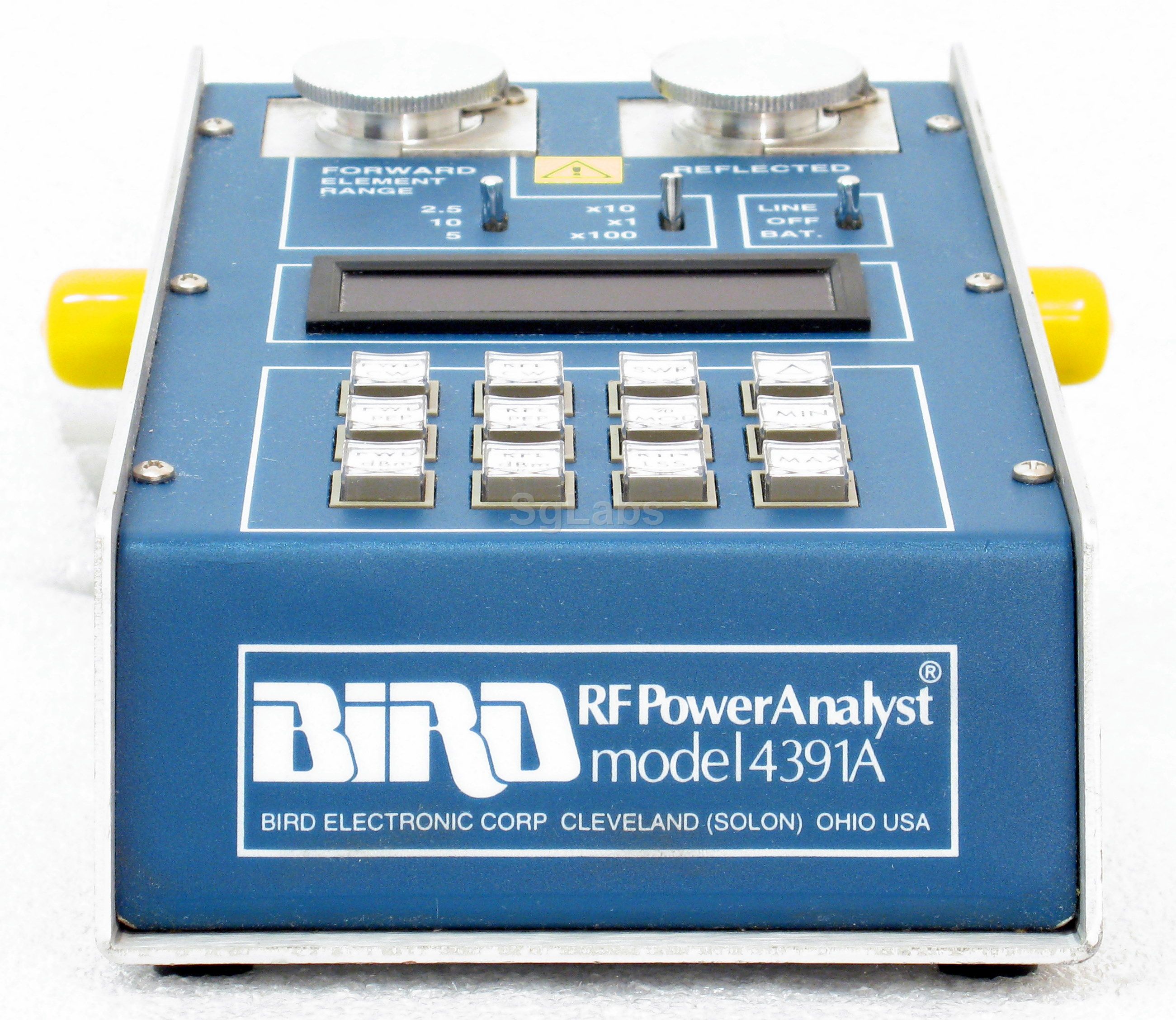

Bird, 4391A

You are here: Power Meter / Sensor (RF) » Digital

ZOOM

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

The Model 4319Ais a Rugged RF Power Analyst that monitors Peak Pulse Power, Peak Envelope Power, or CW Power during normal equipment operations in the forward or reflected direction. Designed for air navigational aids DME, ATC and other pulsed RF systems such as telemetry, radar, commandand control, etc. They need no attenuators, directional couplers or charts..

Technical details:

• Impedance 50Ω
• Power levels: 100 mW a 10 kW (dipends to plug-in elements)
• Frequency range 0.45 MHz to 2.7 GHz (dipends to plug-in elements)
• Connector N(f) type
• Peak Pulse Power, Peak Envelope Power, and CW Power

• Type: Bench
• Min. Frequency: 450 kHz
• Max. power: 10 kW
• Min. Power: 100mW
• Measure: Forward and reflected peak power SWR

Download datasheet: SgLabs_bird 4391A.pdf (638 kb)
