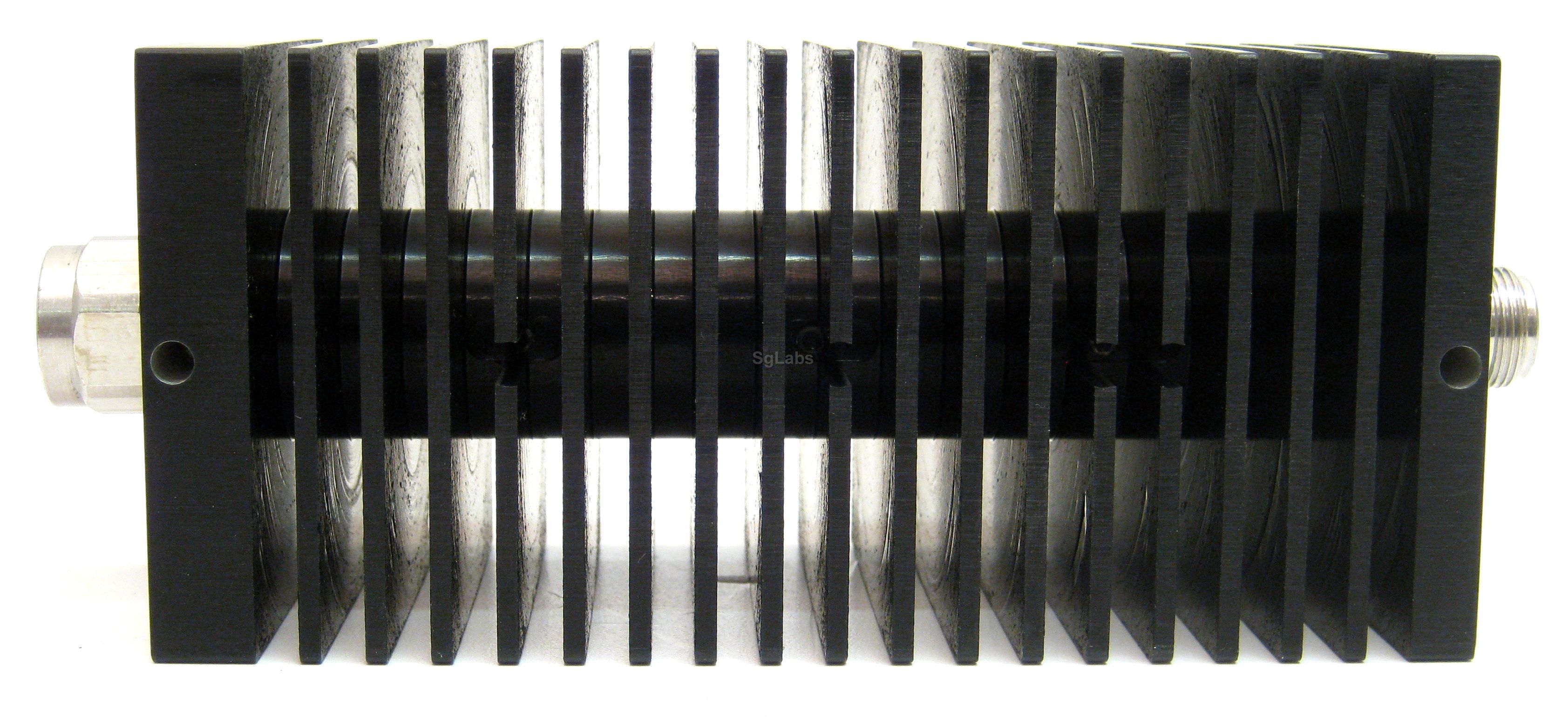

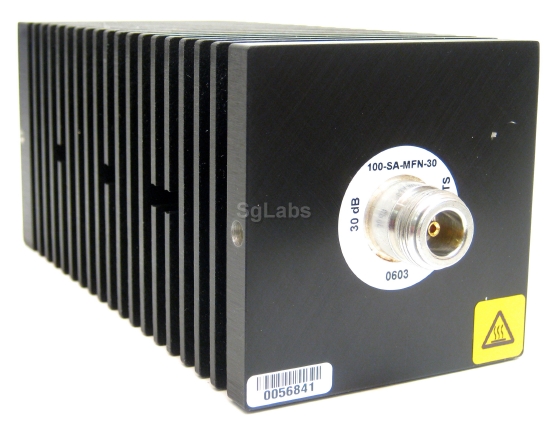

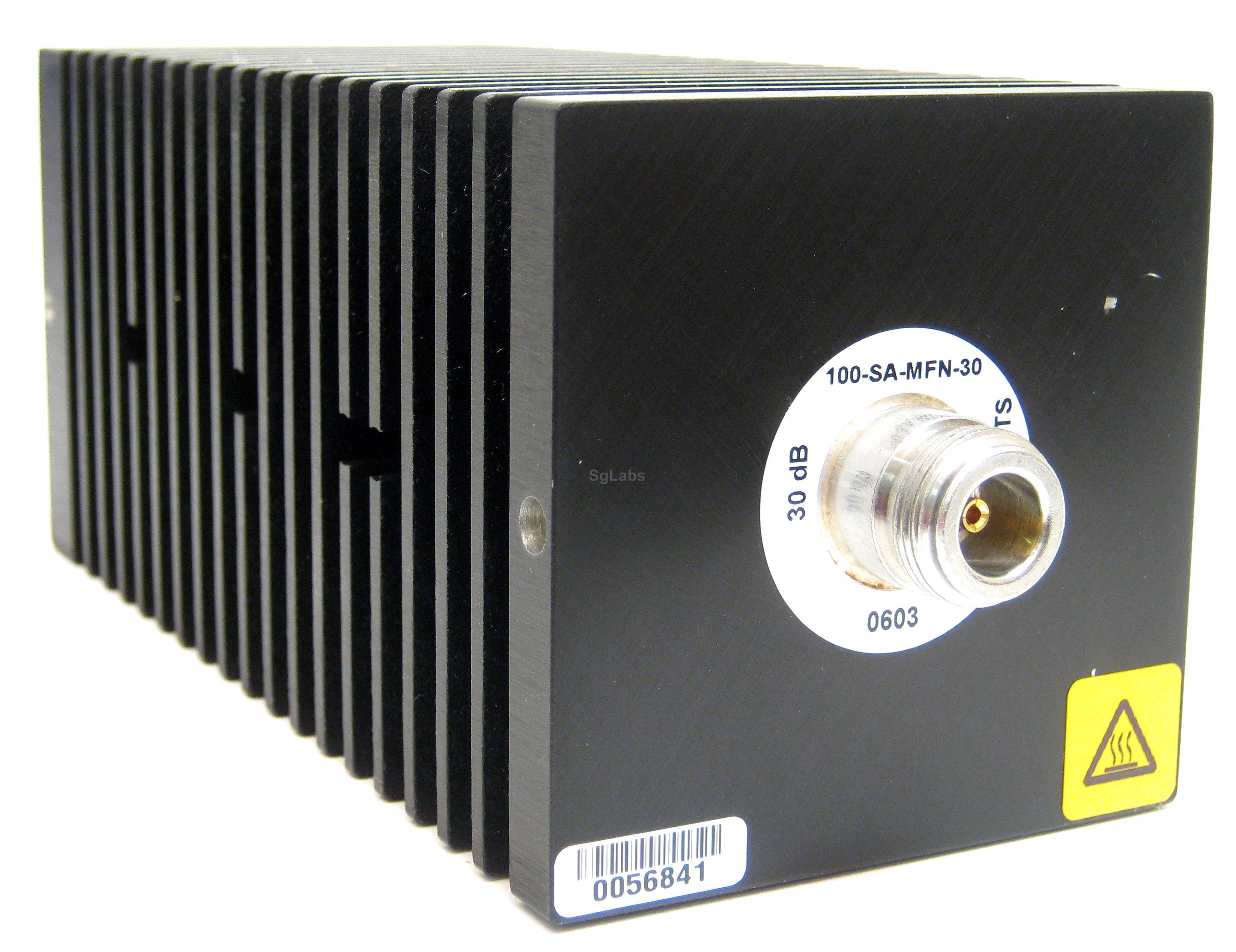

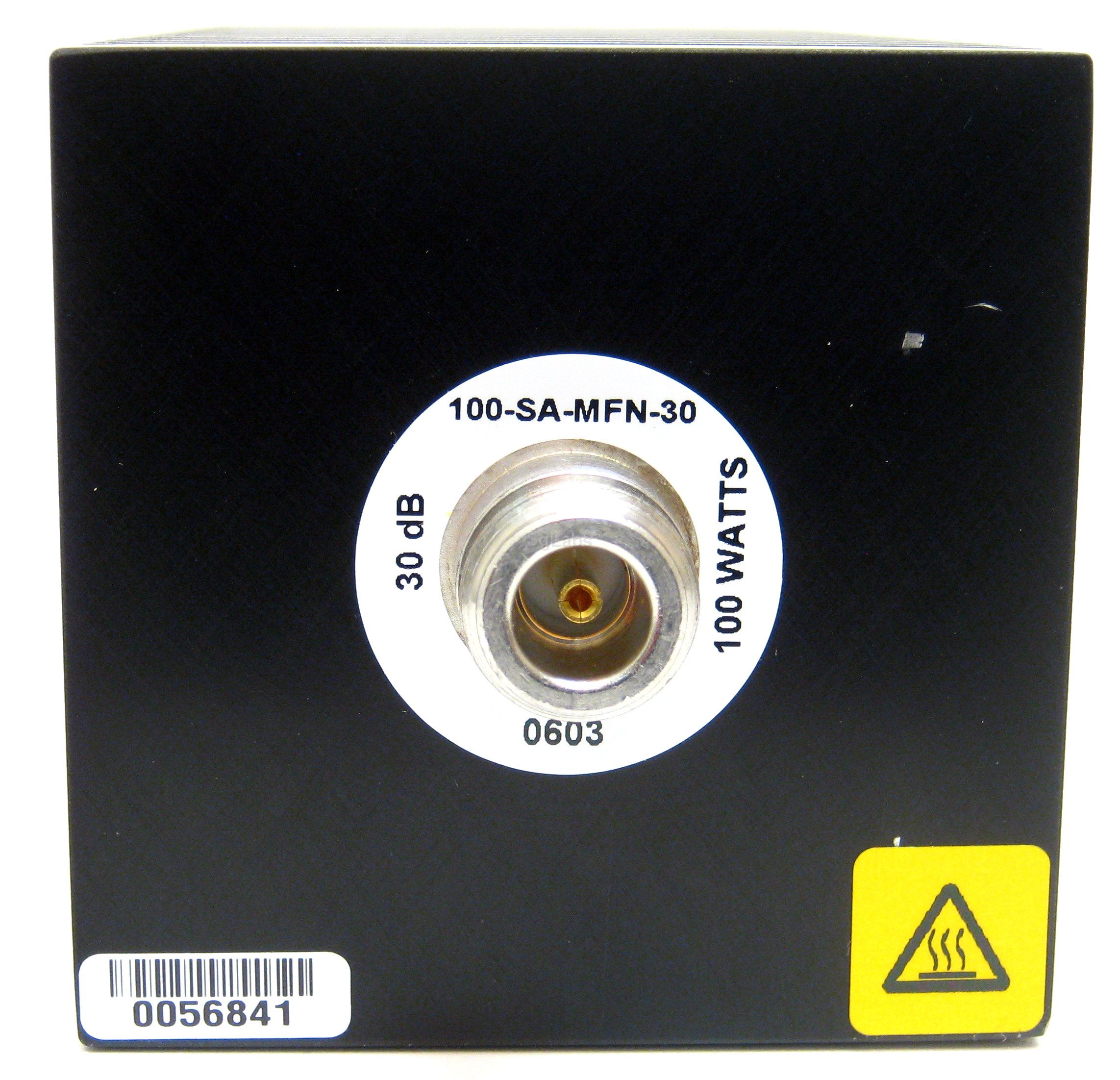

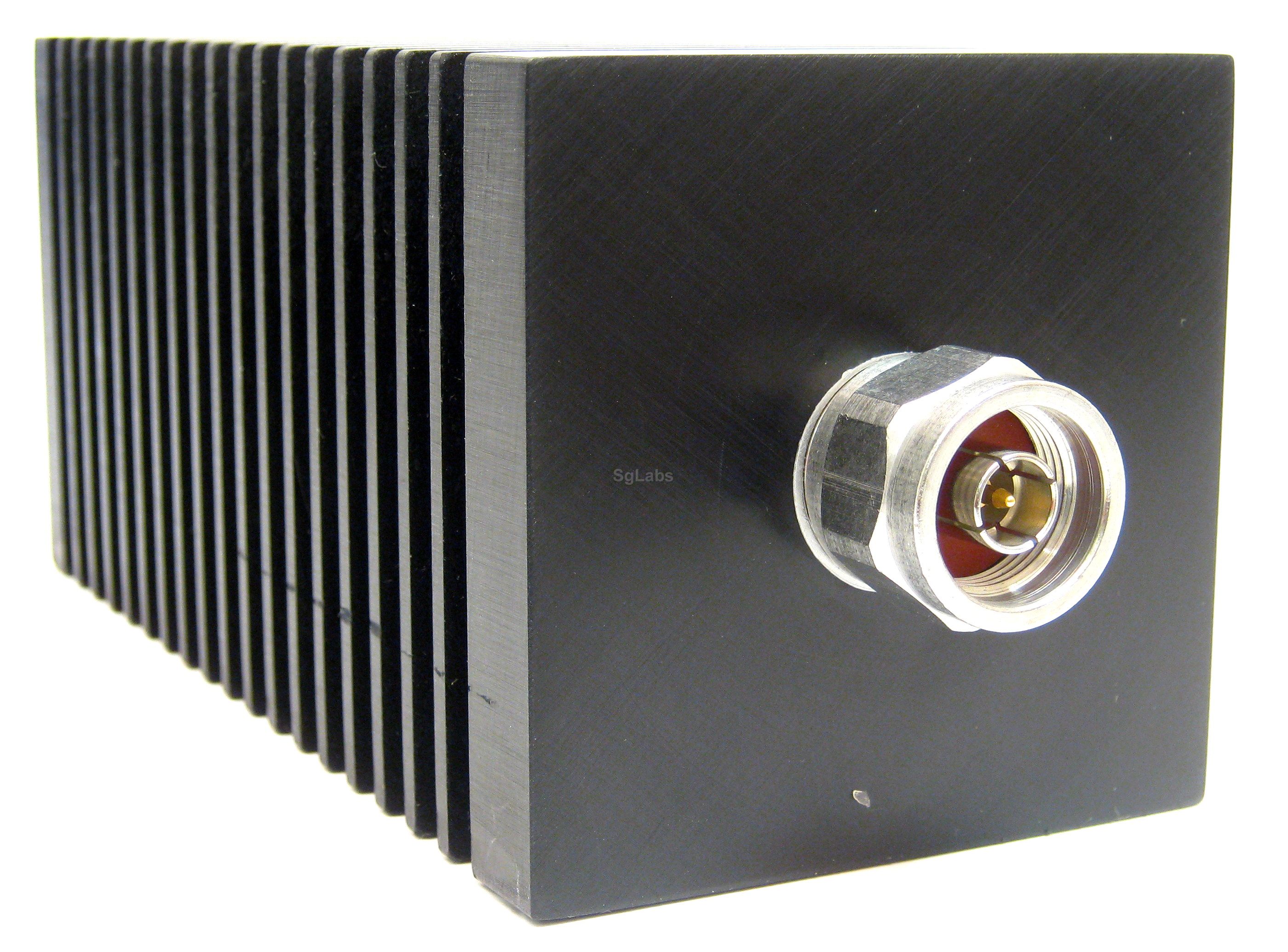

Bird,100-SA-MFN-30
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
100-SA Series, 100 Watt Bi-Directional RF Attenuatorsare a valuable and reliable accessory for reducing power levels, for isolating components under test, for harmonic signal analysis, and as comparison standards. They are world renowned for their high-quailty, robust construction and conservative power ratings.
  • Self cooling design, needs no cooling plate.
  • Fully shielded against production of extraneous radiation.
  • Rugged construction.
  • Broadband operation.
  • Other attenuation values available upon request.
  • Models to cover all LTE frequencies.
Features
  • Attenuation 30 dB
  • Maximum Power 100 Watts
  • Connectors N Male - N Female
  • VSWR 1.25:1
  • Frequency Range DC - 3 GHz (tested up to 4 GHz)
  • Accuracy : 0.8 dB under 1 GHz, 1.3 dB up to 3 GHz

  • Attenuation: 30 dB
  • Connector: N
  • Max. Frequency: 3 GHz
  • Min. Frequency: DC
  • Max. power: 100 Watt
  • VSWR / RL: 1.25:1
