Anritsu (Wiltron), MT8801B

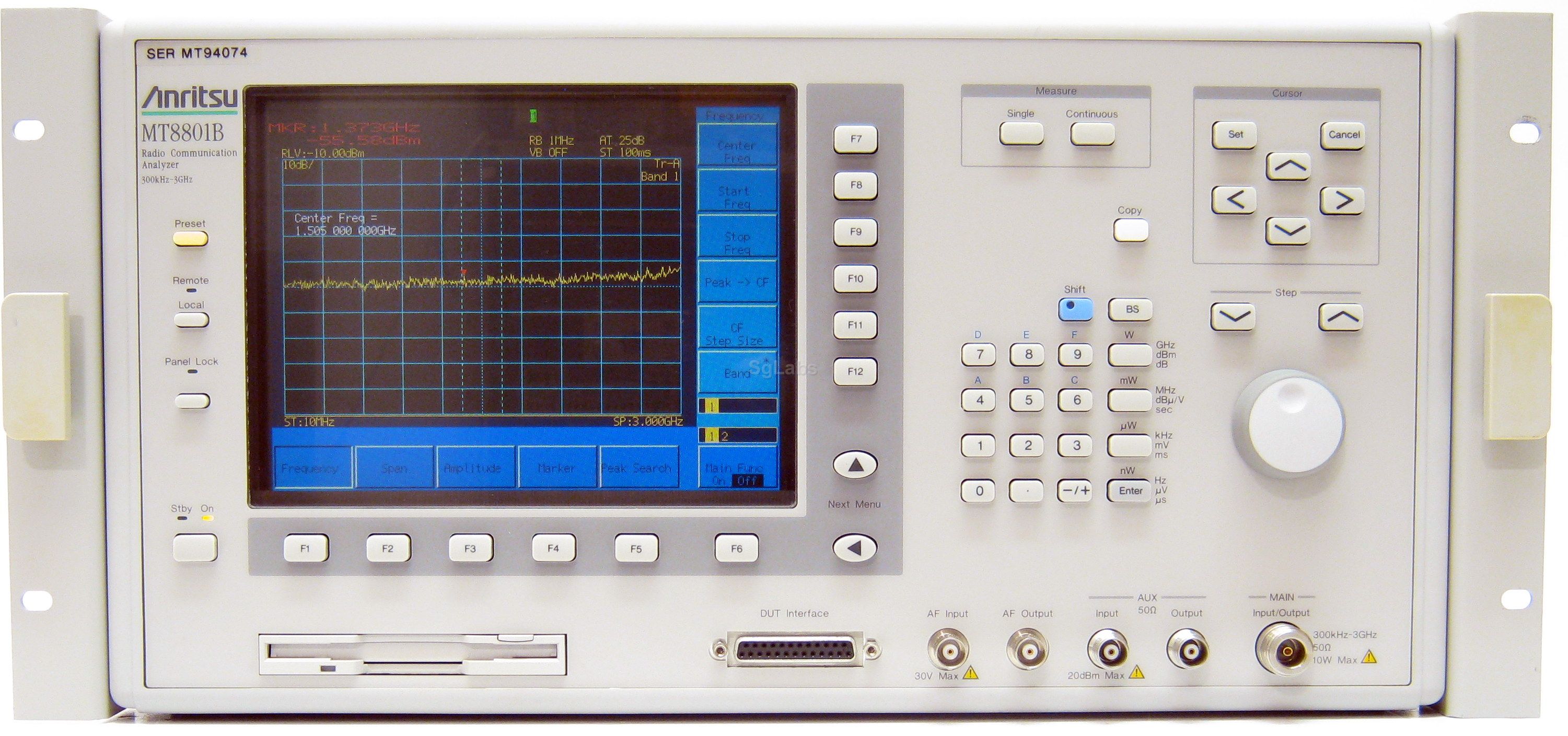

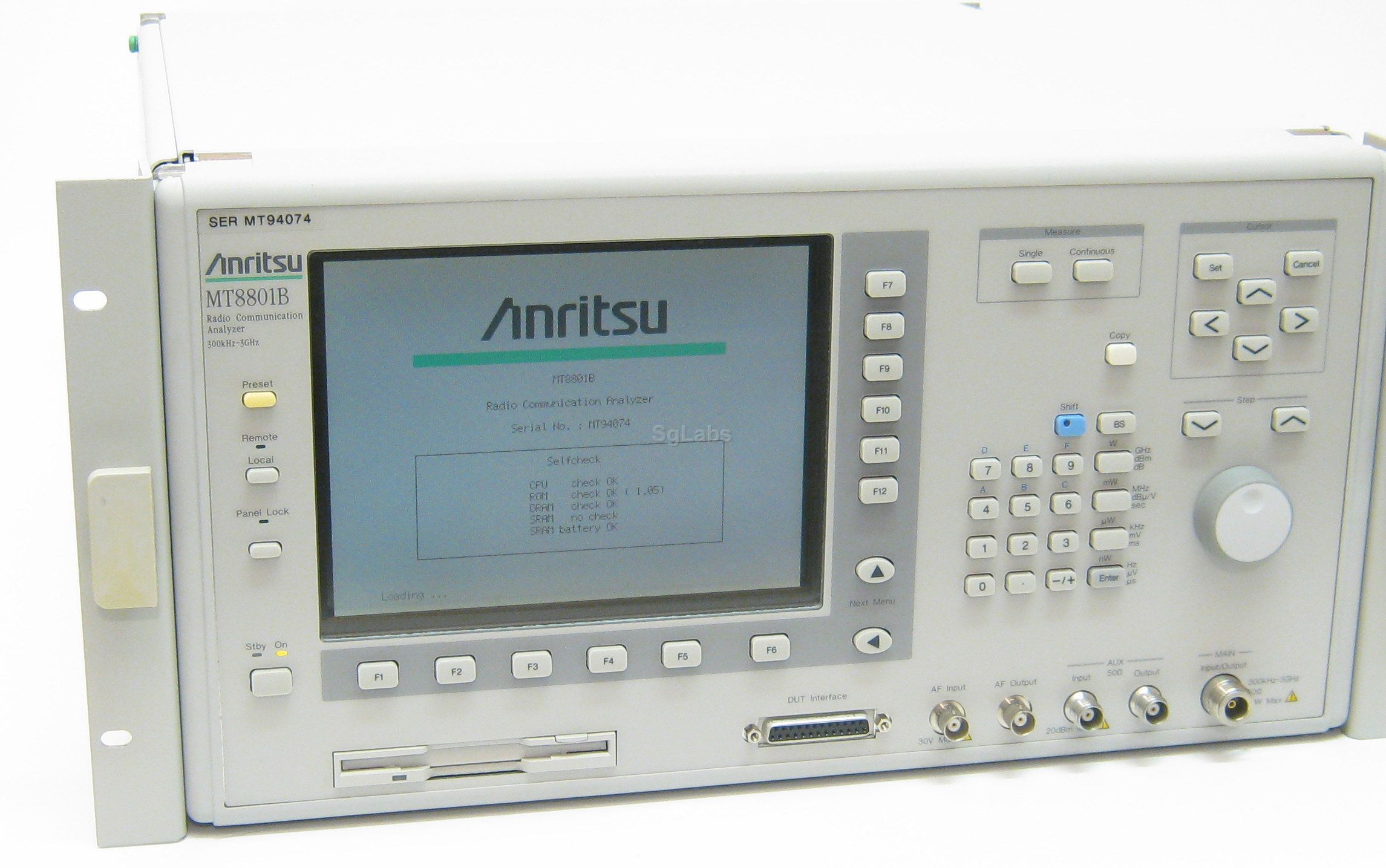

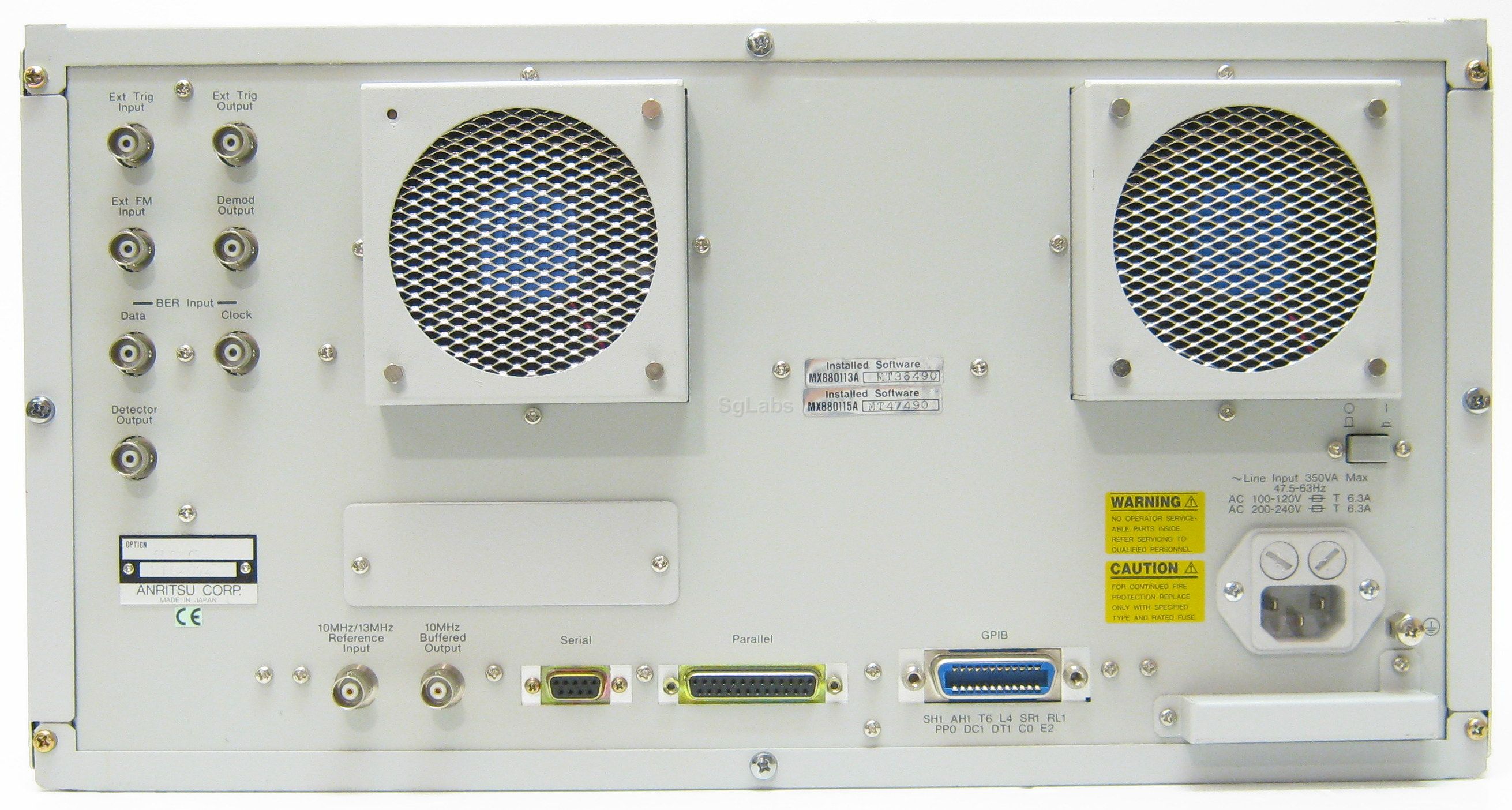

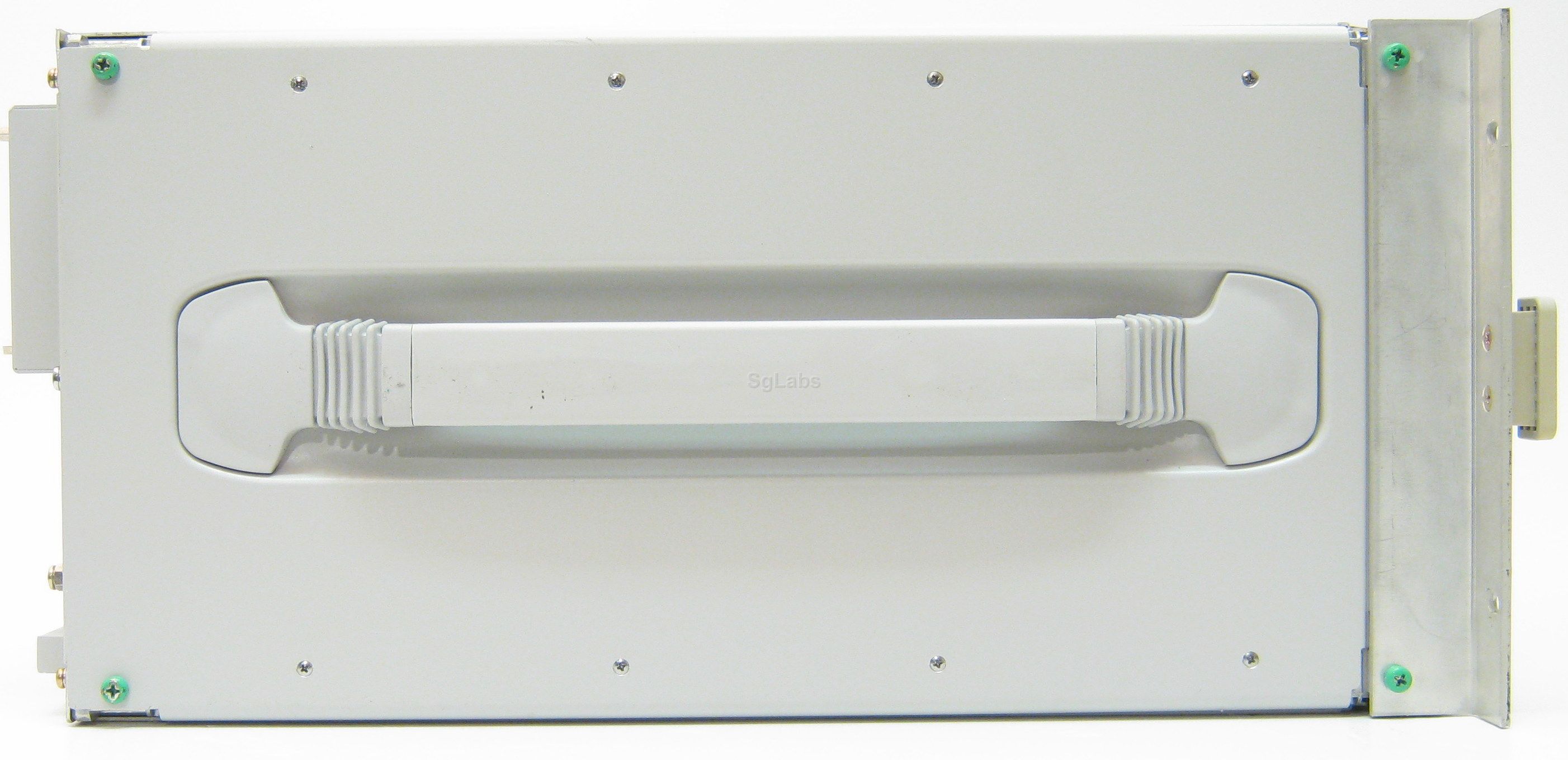

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Radio Communication Test set 3 GHz Synthesized Generator 3 GHz Spectrum Analyzer 3 GHz Generatore Audio Analizzatore di modulazione (FM)


Analog Measurement Function (Option 01)

The MT8801B has general analog measurement functions too. Efficient FM TX/RX testing is made easy by built-in signal generator, AF oscillator, RF analyzer (power meter, frequency counter, FM measurement) and audio analyzer functions.

Transmission Measurement

Characteristics such as frequency, power, and frequency deviation can be measured easily.

Transmission Measurement with SG Function

Transmission characteristics can be measured by outputting an FM RF signal from the built-in signal generator.

Reception Measurement

An FM modulated signal is output to permit measurement of the frequency and level of the AF signal from a receiver, as well as SINAD and distortion.

AF Measurement

An AF signal is output to measure the frequency, level and distortion of the AF signal at the DUT.

Spectrum Analyzer Function (Option 07)

The spectrum analyzer with synthesized local covers a frequency range of 10 MHz to 3 GHz with a resolution of 1 Hz. In addition to a C/N of –115 dBc (100 kHz offset), the RBW can be set to 300 Hz to 1 MHz, the VBW to 3 to 100 kHz, and the sweep time in the frequency domain to 100 ms to 1000 s (1 ms to 1000 s in time domain).

High-Accuracy Measurement

The total level accuracy is an astonishing ±1.5 dB due to the analyzer’s excellent linearity, and the level calibration function. Moreover, the average noise level is just –85 dB max. (at 10 MHz to 1 GHz), and the secondary harmonic distortion is –60 dB max. (100 MHz to 1.5 GHz).

Convenient Functions

The analyzer has a full lineup of useful functions including marker, delta marker, and gate sweep functions. It also has advanced displays such as average, max. hold, cumulative and overwrite. Trace A and Trace B can be measured on a dual screen in the frequency domain, along with noise power, C/N, occupied bandwidth, adjacent channel power, and average power of burst signal.


Caratteristiche tecniche :

  • Frequency Range  300 kHz -  3 GHz
  • Maximum Power Input 10 W
  • Power meter 0 dBm 40 dBm
  • Signal Generator 10MHz 3GHz 1Hz resolution -143 -3 dBm
  • AF Generator  20 Hz up to 20 kHZ risolution 0.1 Hz
  • Modulator, demodulator FM, ØM,GSM
  • Spectrum Analyzer 3GHz with RBW max 300HZ (Opt. 07)
  • Demodulator: FM and Digital
  • Display: TFT-LCD Color
  • Max. Frequency: 3 GHz
  • Min. Frequency: 300 KHz
  • Max. Level: 10 W
  • Min. Level: -40 dBm
  • Modulation: FM - GSM digital
  • Max. Output level: -3 dBm
  • Min. output level: -143 dBm
  • Resolution: 1 Hz
  • Min. Resolution: RBW 300 Hz
