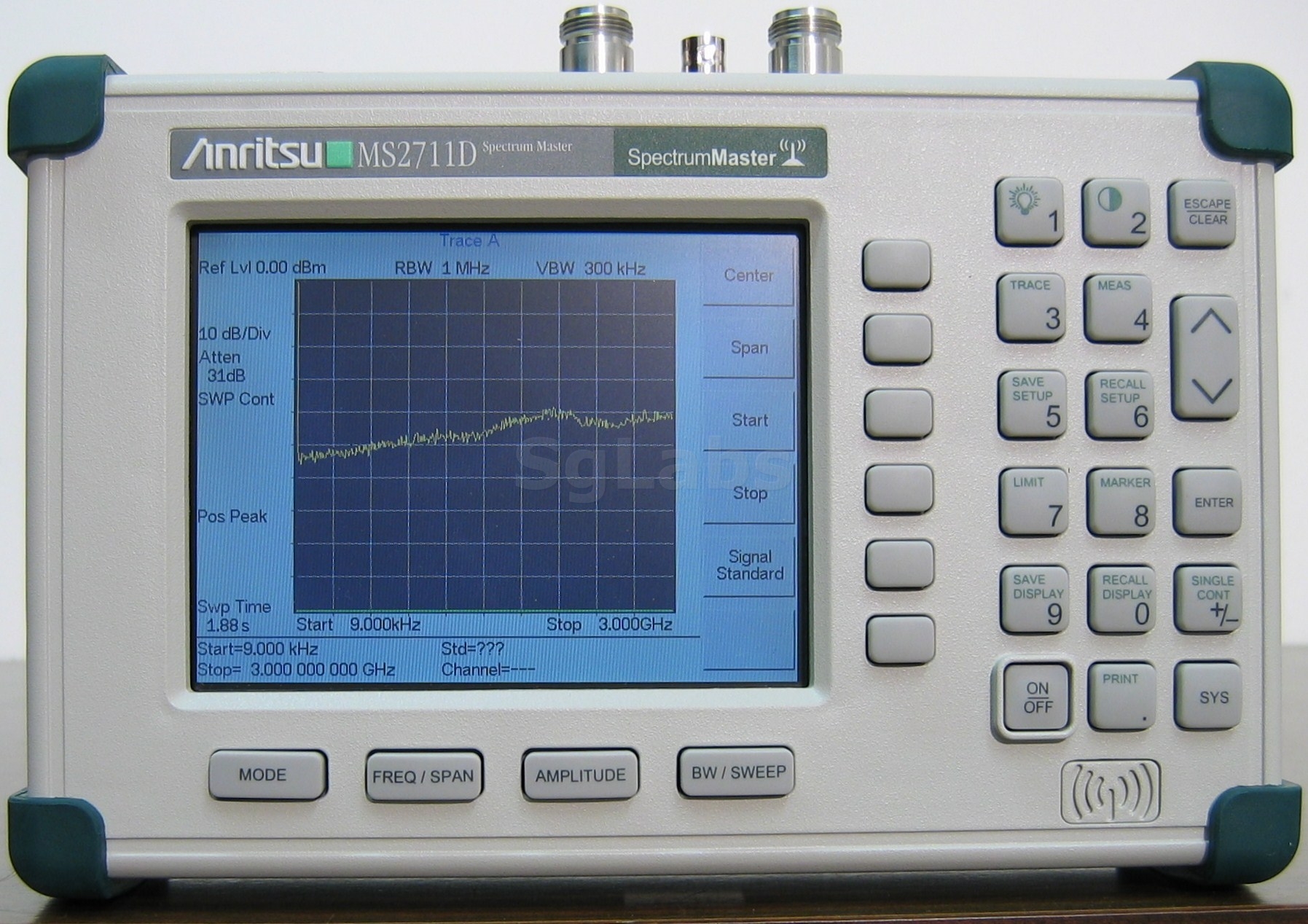

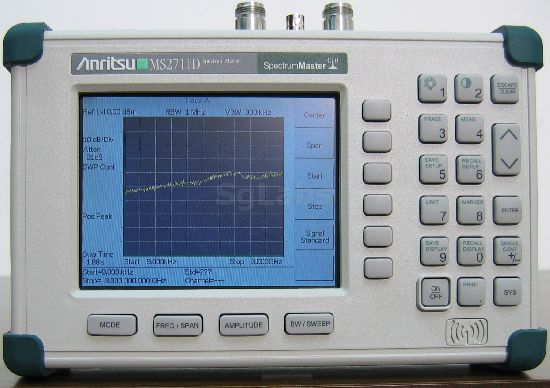

Anritsu (Wiltron), MS2711D
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Anritsu Spectrum Master MS2711D provides ultimate measurement flexibility in a package that is
ruggedized for field environments and light enough for mobile applications. Unlike traditional
spectrum analyzers, the MS2711D features a rugged, ultra-lightweight, battery-operated design that
allows users to conduct spectrum analysis measurements – anywhere, anytime.
With the MS2711D, you can locate, identify, record, and solve communication systems problems
quickly and easily, and with incredible accuracy. Whether you are installing, maintaining, or
troubleshooting, the MS2711D provides exceptional performance combined with ease-of-use and broad
functionality – making it a perfect solution for conducting field measurements in the 100 kHz to 3.0
GHz frequency range. For instance, it is perfect for locating the source of interfering signals. The
addition of Option 25, Interference Analysis, makes the instrument particularly well suited for the

  • AM/FM integrated receiver, with oudspeaker and headphones
  • Resolution measurement di 0.1 dB
  • Marker e limits
  • RS232 interface
  • 300 Internal Trace Memory

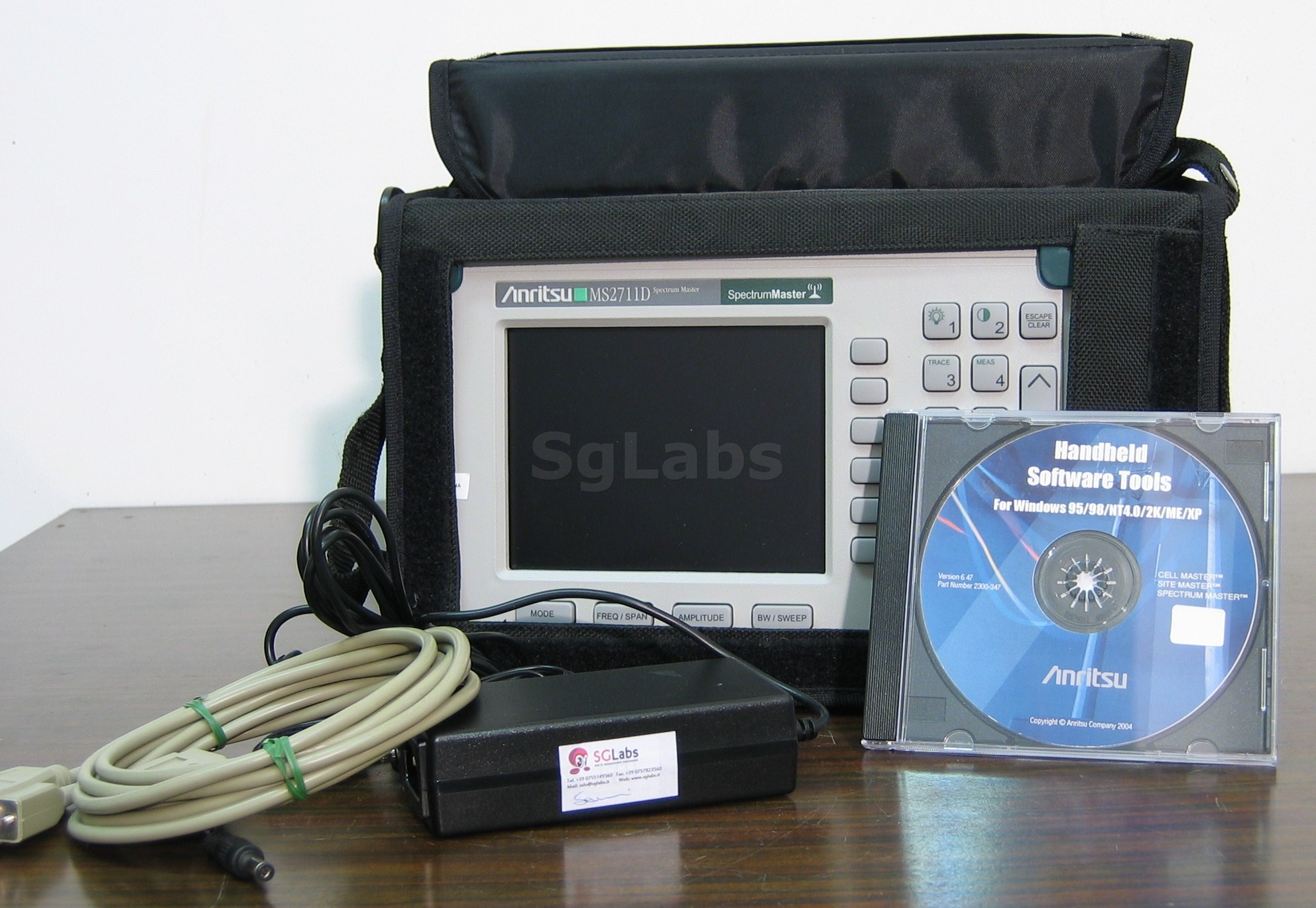

  • Software per l'analisi dei dati
  • Frequency range 100 kHz - 3GHz
  • RBW 100 Hz to 1 MHz in 1-3 sequence, ±5%
  • Display: VGA Color (option 3) with adjustable backlight
  • Measuremente range -135 dBm a +20 dBm
  • Scale UnitsdBm, dBV, dBmV, dBμV, V, W
  • Opt 21 Tracking Generattor
  • Display: TFT color
  • Max. Frequency: 3 GHz
  • Min. Frequency: 100 KHz
  • Max. Level: +20 dBm
  • Min. Level: -135 dBm
  • Min. Resolution: 100 Hz
  • Tracking generator: optional
