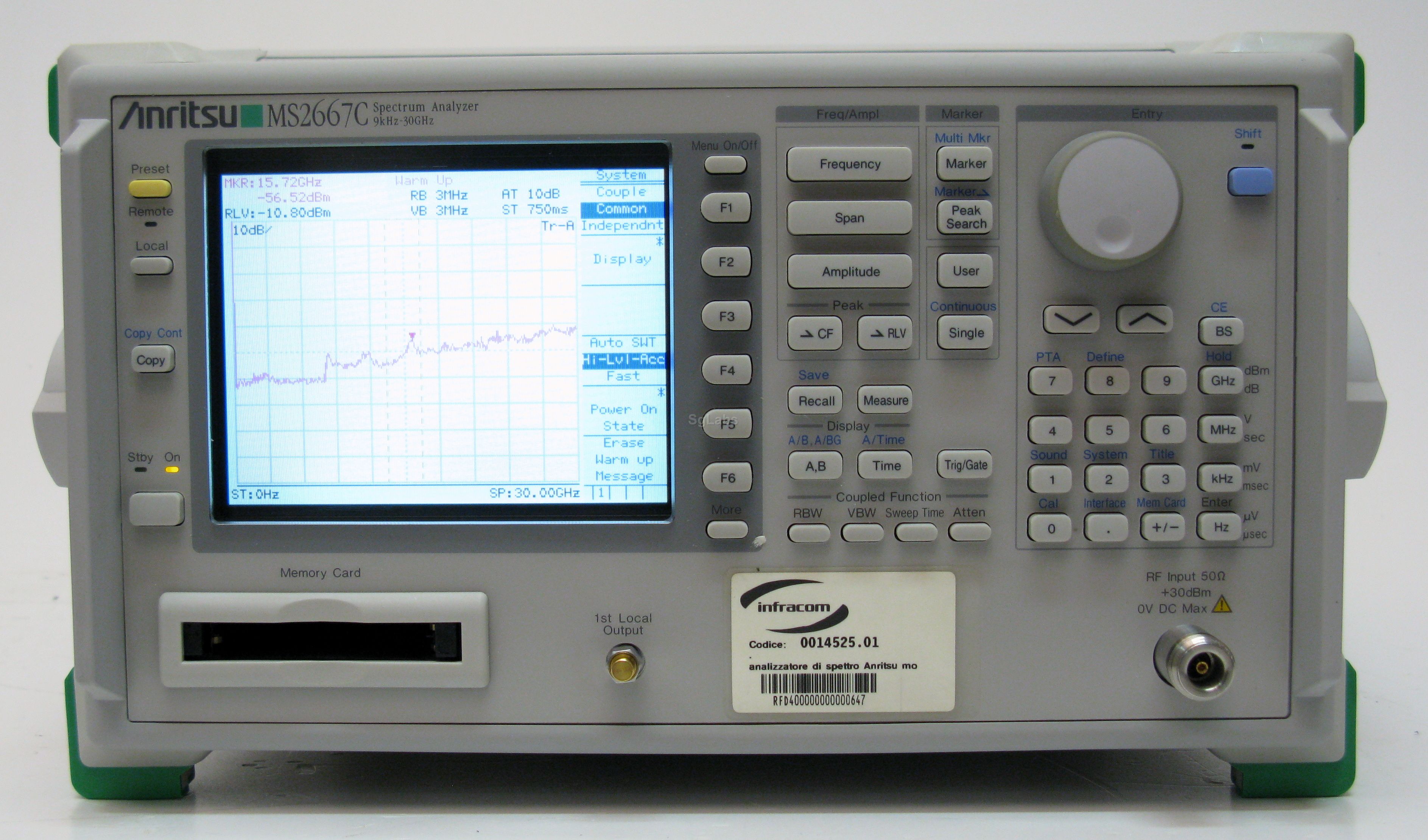

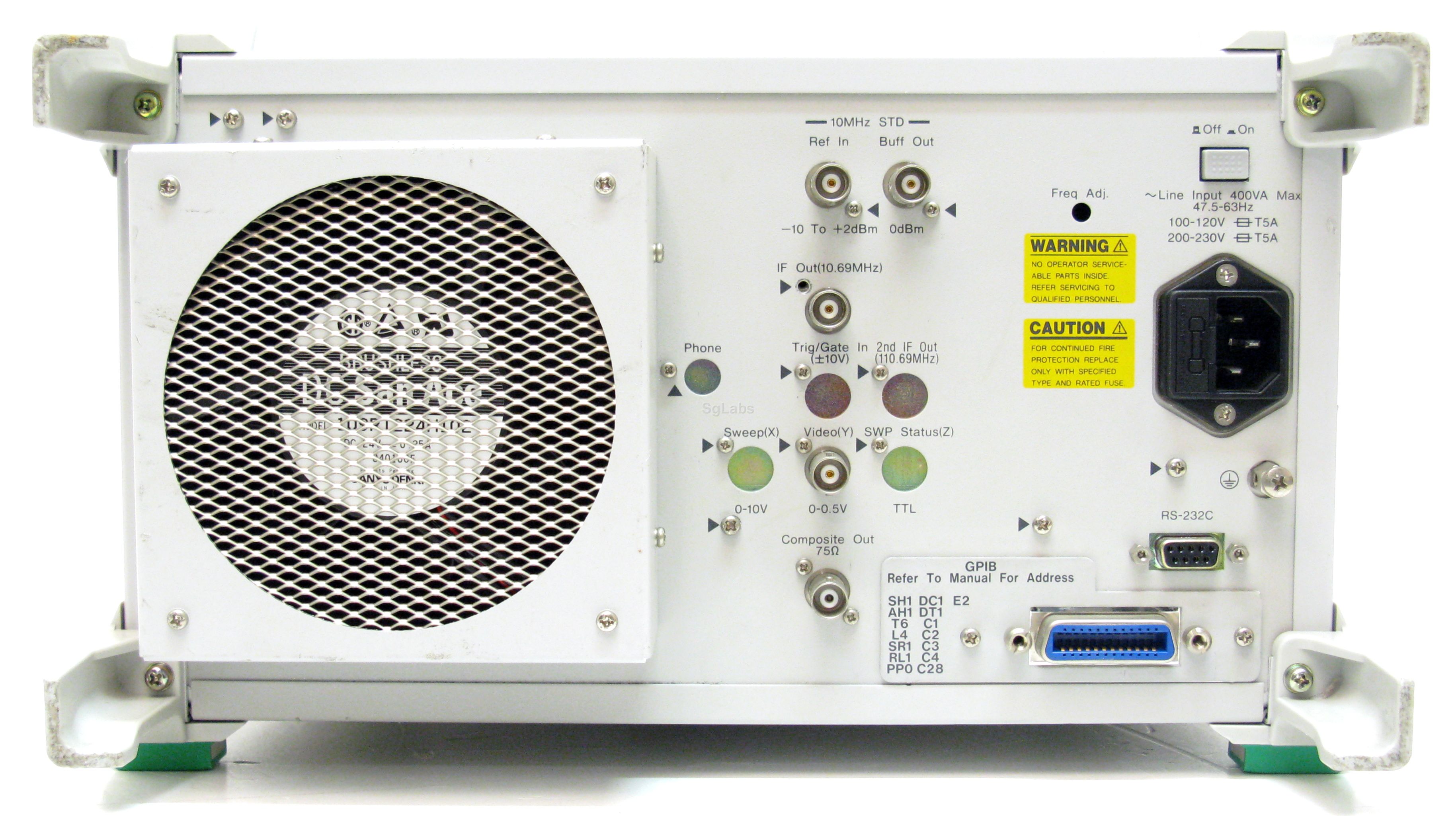

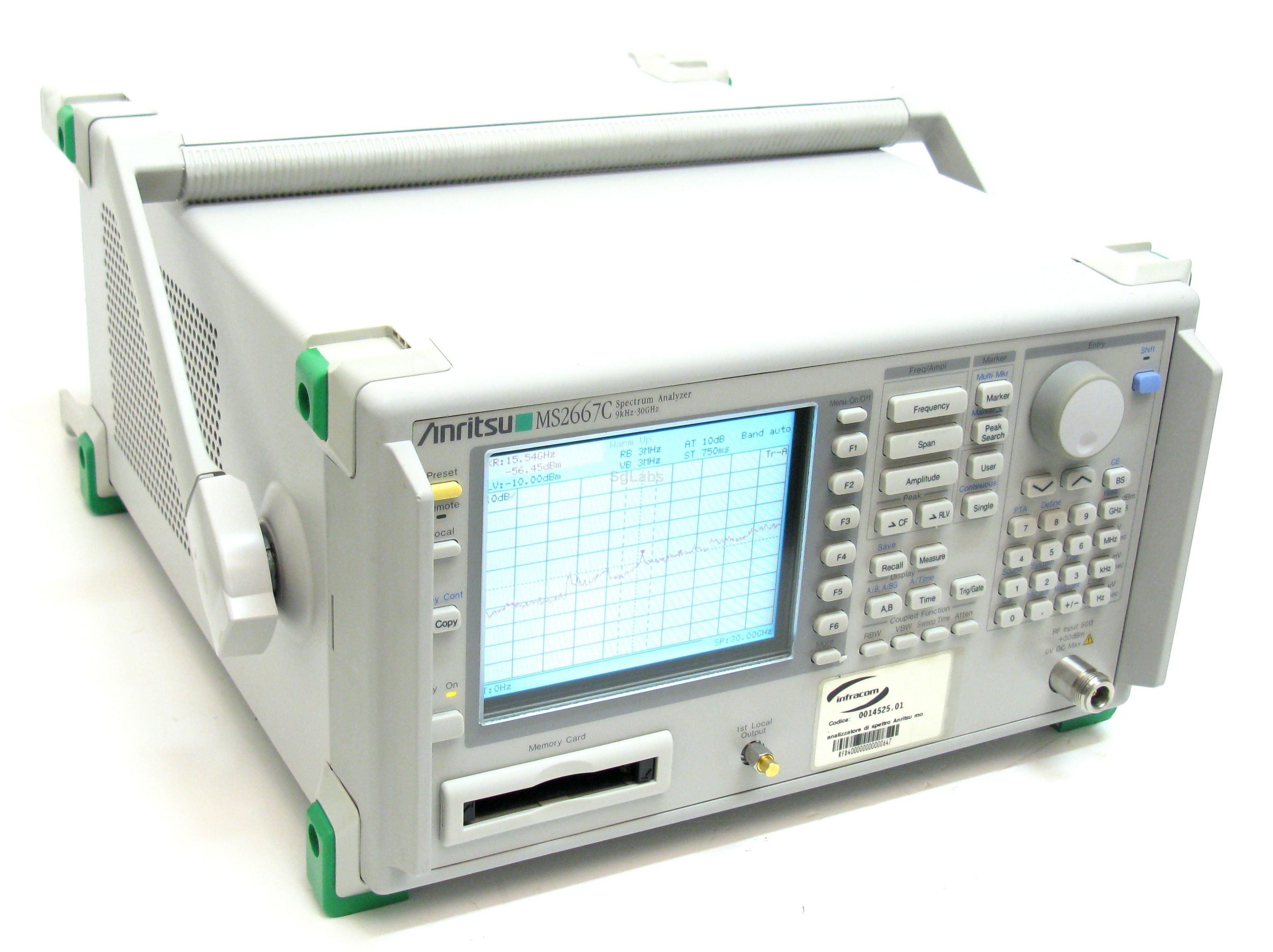

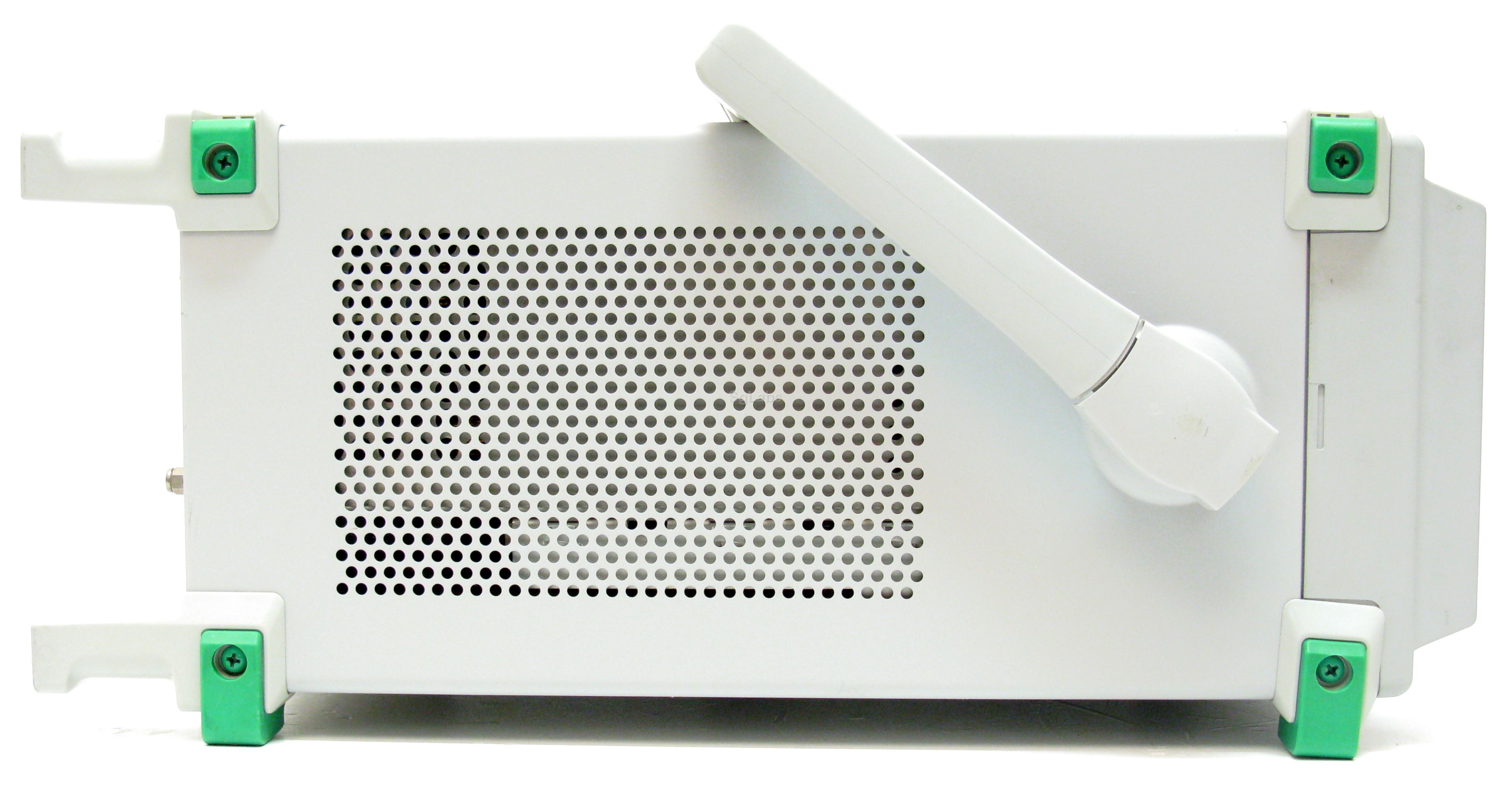

Anritsu (Wiltron), MS2667C
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The MS2667C is a compact, lightweight, and low-price spectrum an-alyzer that covers a frequency range of 9 kHz to 30 GHz. It has su-perior basic performance, such as high C/N ratio, low distortion, and high frequency/level accuracies, and is easy to operate. A large se-lection of options is provided to handle a wide range of applications at reasonable cost.

  • Compact and lightweight (15 kg in standard configuration)
  • High C/N and superior distortion characteristics
  • Easy-to-use, simple operation
  • Millimeter applications
  • Options support wide range of applications
Features
  • Frequency Range: 9 kHz to 30 GHz
  • 1 kHz resolution
  • Level: -115 dBm to +30 dBm
  • Display: TFT color
  • Max. Frequency: 30 GHz
  • Min. Frequency: 9 KHz
  • Max. Level: +30 dBm
  • Min. Level: -115 dBm
  • Min. Resolution: 1 KHz
