Anritsu (Wiltron), ML524B

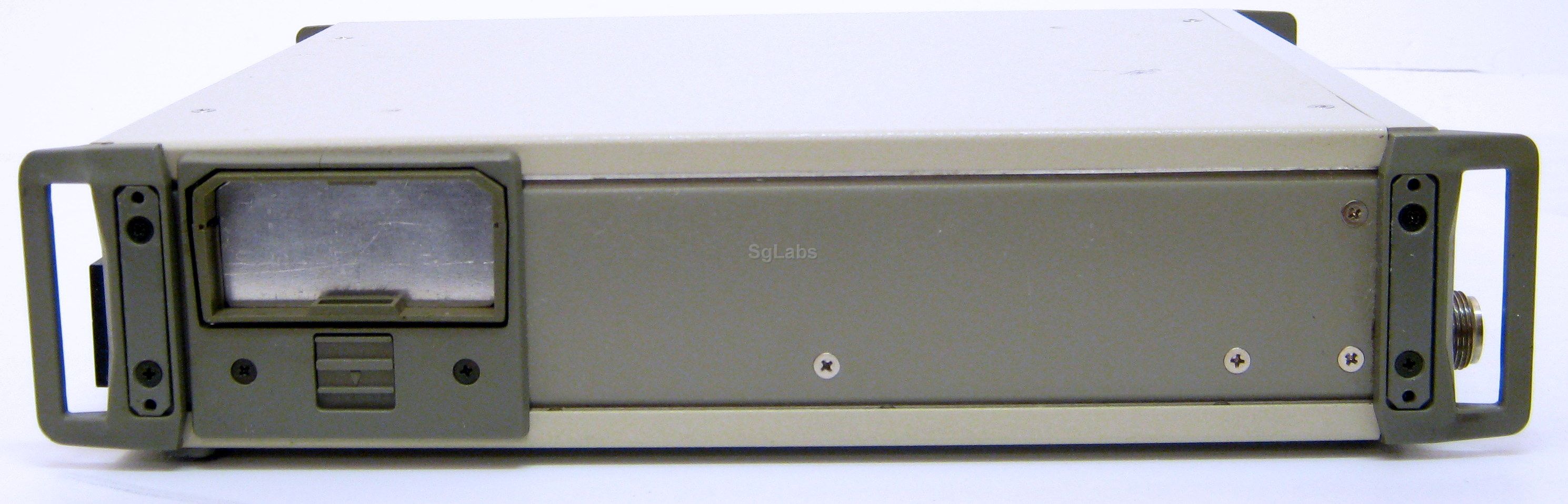

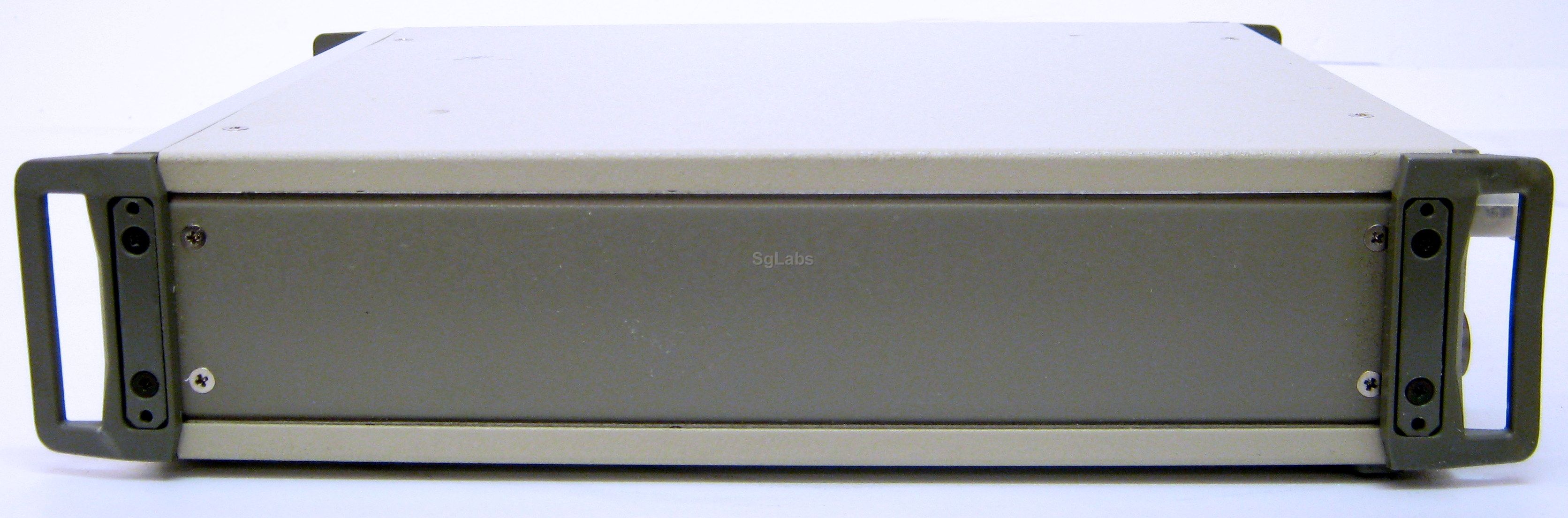

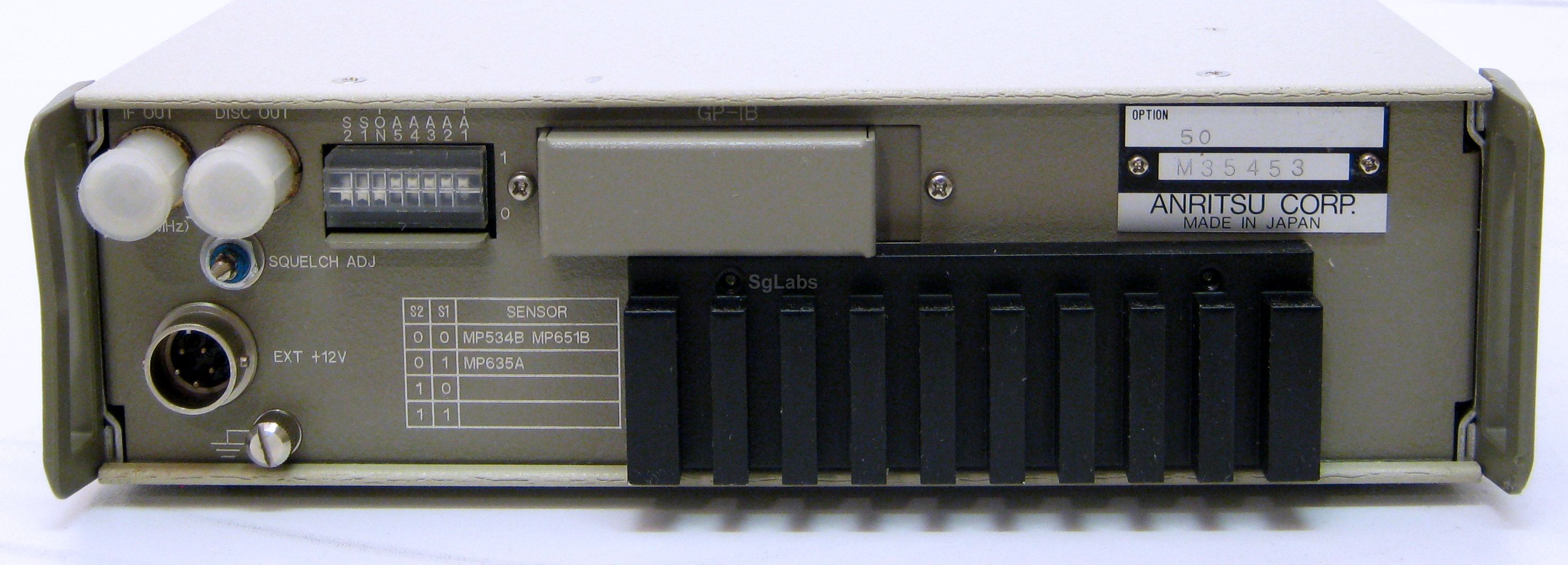

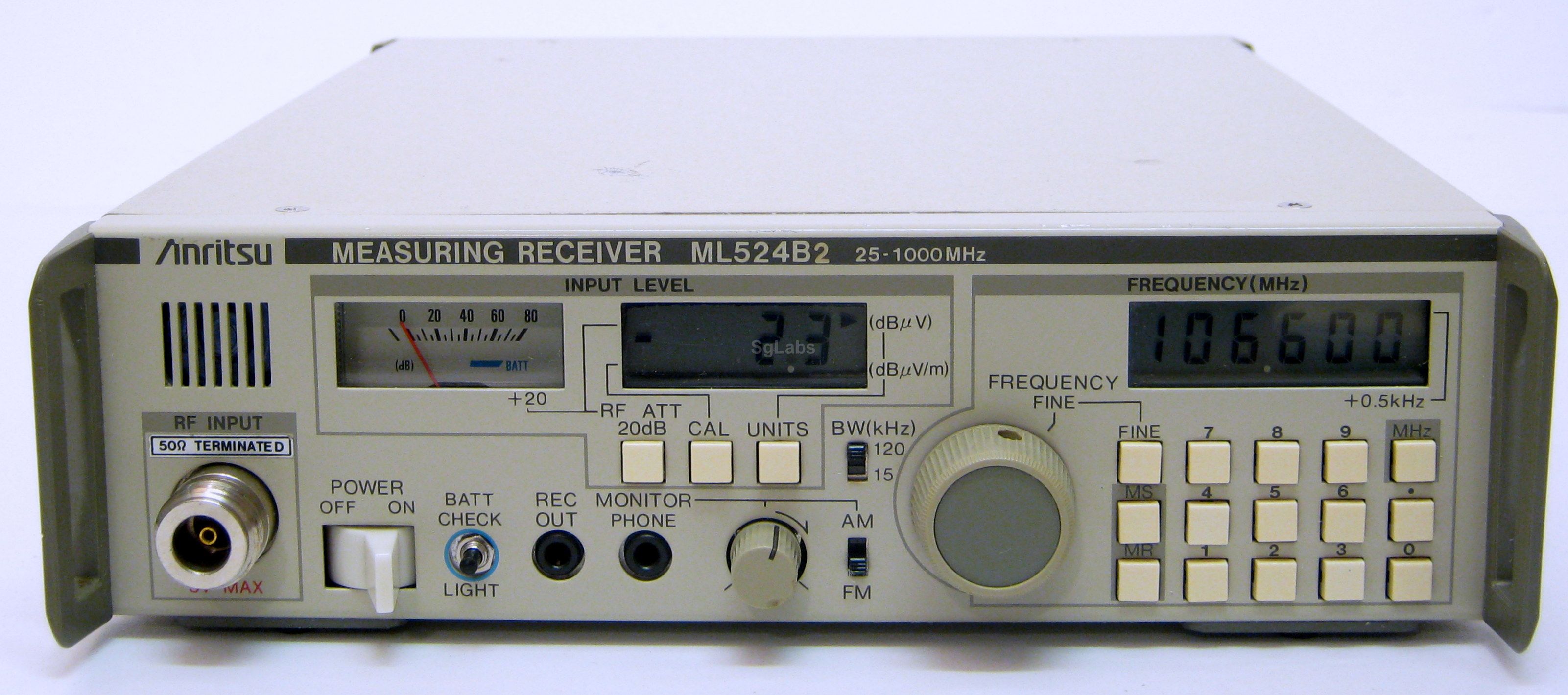

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The ML524B have a full range of features and functions plus demodulation functions for various signals. Their compact, lightweight construction makes them suitable for a variety of measurement applications. Use of the GPIB interface option allows easy configuration of an automatic test system controlled by a personal computer.

Very compact and lightweight
High frequency stability (A synthesizer local is used. Its reference oscillator has a high frequency stability of ±1 x 10–6.)
Wide dynamic range (80 dB without switching)
Automatic gain calibration
Direct readout of field strength
High precision level display (indication in 0.1 dB steps)


For field strength measurement
• Investigation to determine service areas
• Radio wave propagation test
• Measurement of spurious radiation from transmitter

For other than field strength measurement
• Radio monitoring
• Measuring receiver
• High-sensitivity signal demodulation
  • Power supply: Battery
  • Max. Frequency: 1000 MHz
  • Min. Frequency: 25 MHz
  • Resolution: 1 kHz
  • Measure: Receiver
