Anritsu, MS2711E

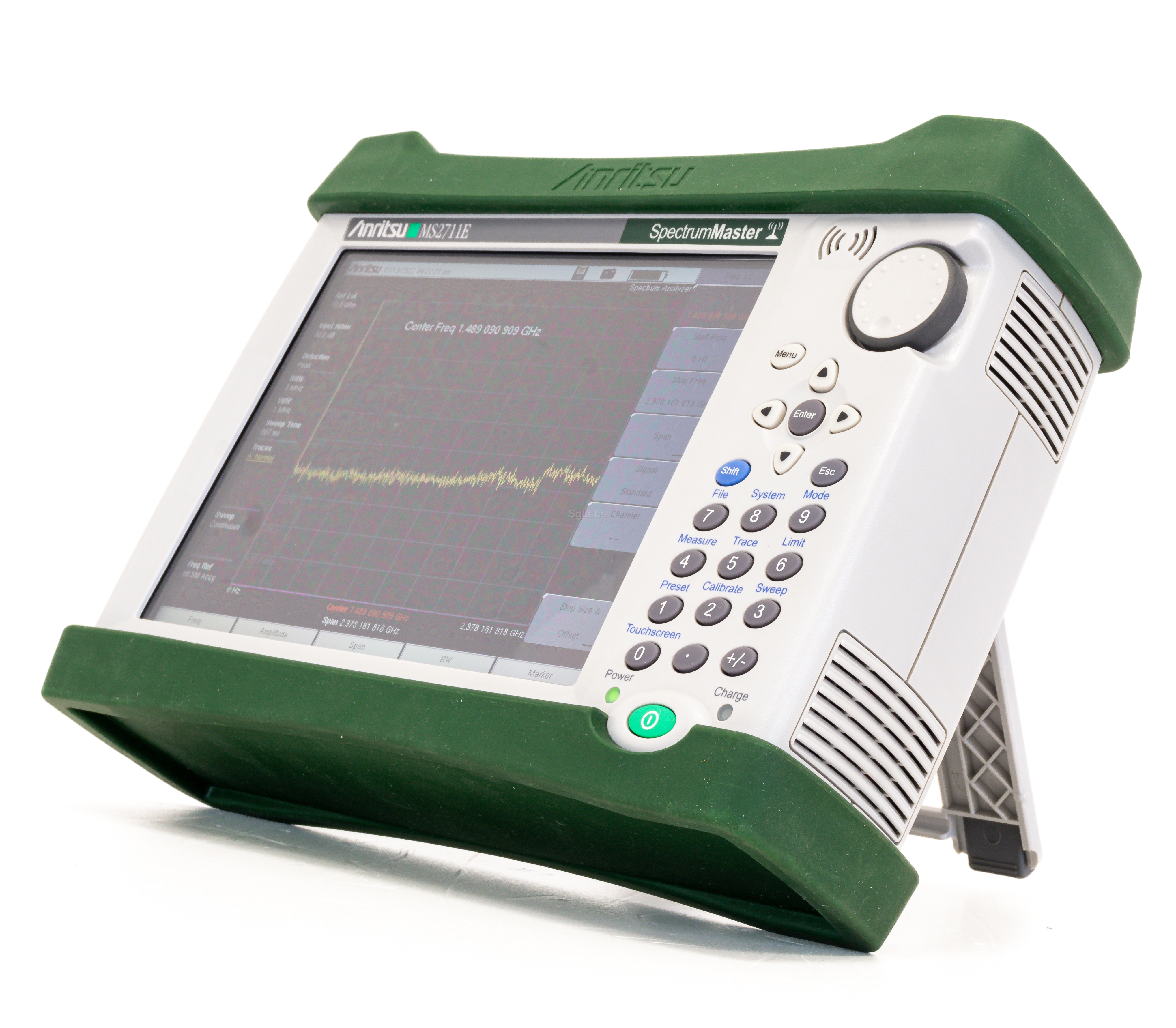

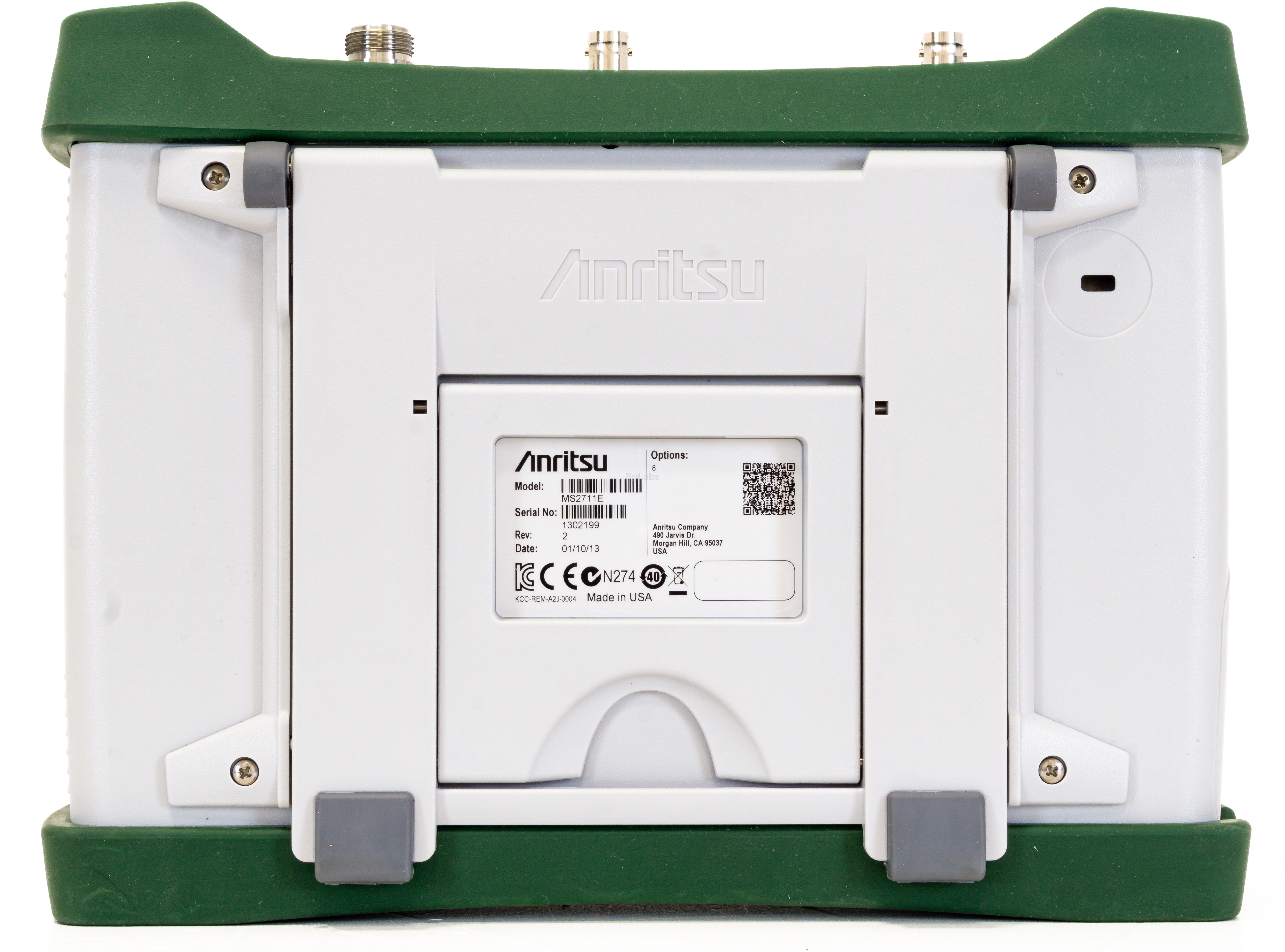

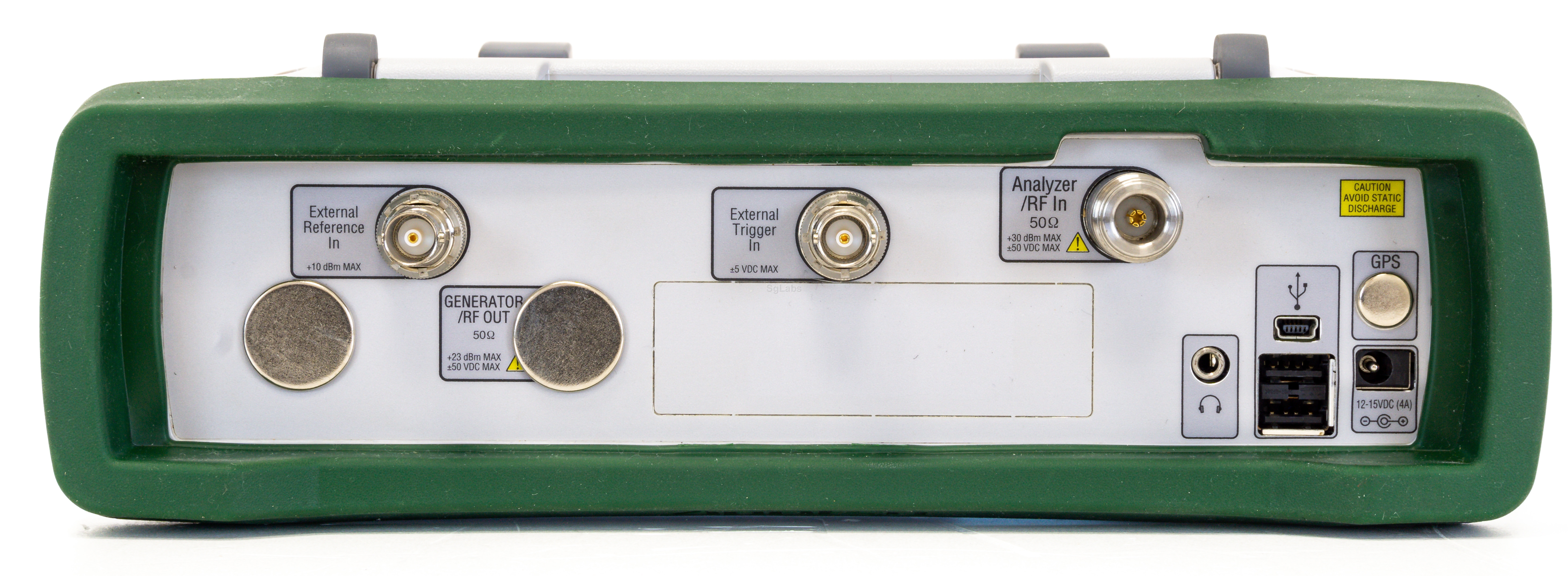

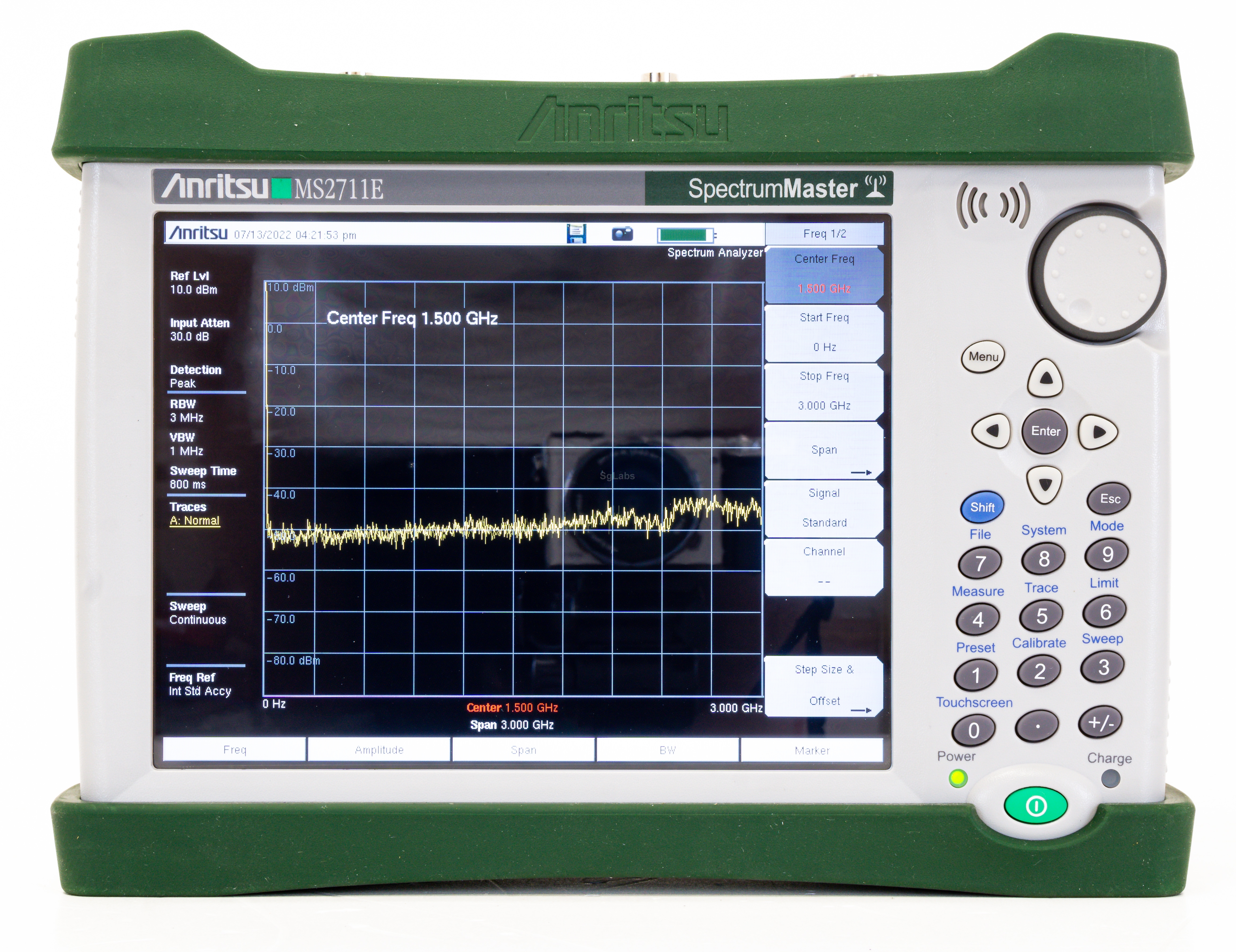

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Designed to handle the most punishing field conditions, the MS2711E allows you to monitor wireless systems easier than ever before. Measurements include received signal strength (RSSI), channel power, adjacent channel power ratio (APCR), and occupied bandwidth measurements that can confirm the distortion level or channel power level of an AMPS, TDMA, CDMA or GSM transmitter. Additionally, the MS2711E can locate and identify out-of-band spurious signals when analyzing a wireless base station transmitter, while the field strength mode allows users to measure propagation and coverage, or to pinpoint electromagnetic (EM) leakage in broadcast systems. Measurement of carrier to interference ratio is included.
  • Frequency range: 9 kHz to 3 GHz
  • DANL: > –142 dBm in 100 Hz RBW (with Preampl option 8)
  • Dynamic range: > 85 dB in 100 Hz RBW
  • +25 dBm TOI typical @ 2 GHz
  • Phase Noise: –90 dBc/Hz @ 10 kHz at 1 GHz
  • Frequency accuracy: < ± 50 ppb with GPS on
  • Detection methods: Peak, RMS, Negative, Sample, Quasi-peak
  • Save-on-event: Automatically saves a sweep when crossing a limit line or at the end of the sweep.
  • One-button measurements: ACPR, Channel Power, Field Strength, Occupied BW, AM/FM/SSB Demod
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Signal ID, Interference Mapping
  • USB for data transfer and instrument control
  • 8.4-inch daylight viewable color touchscreen display
  • Lightweight: < 3.45 kg
  • Demodulator: AM/FM
  • Display: Color Touchscreen
  • Max. Frequency: 3 GHz
  • Min. Frequency: 9 kHz
  • Tracking generator: optional
